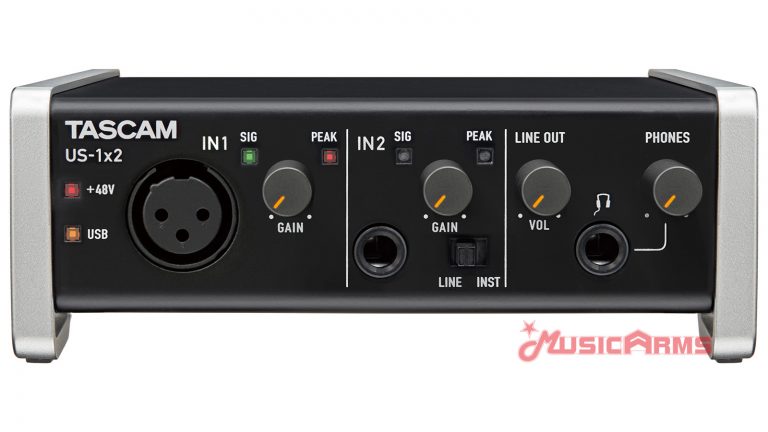

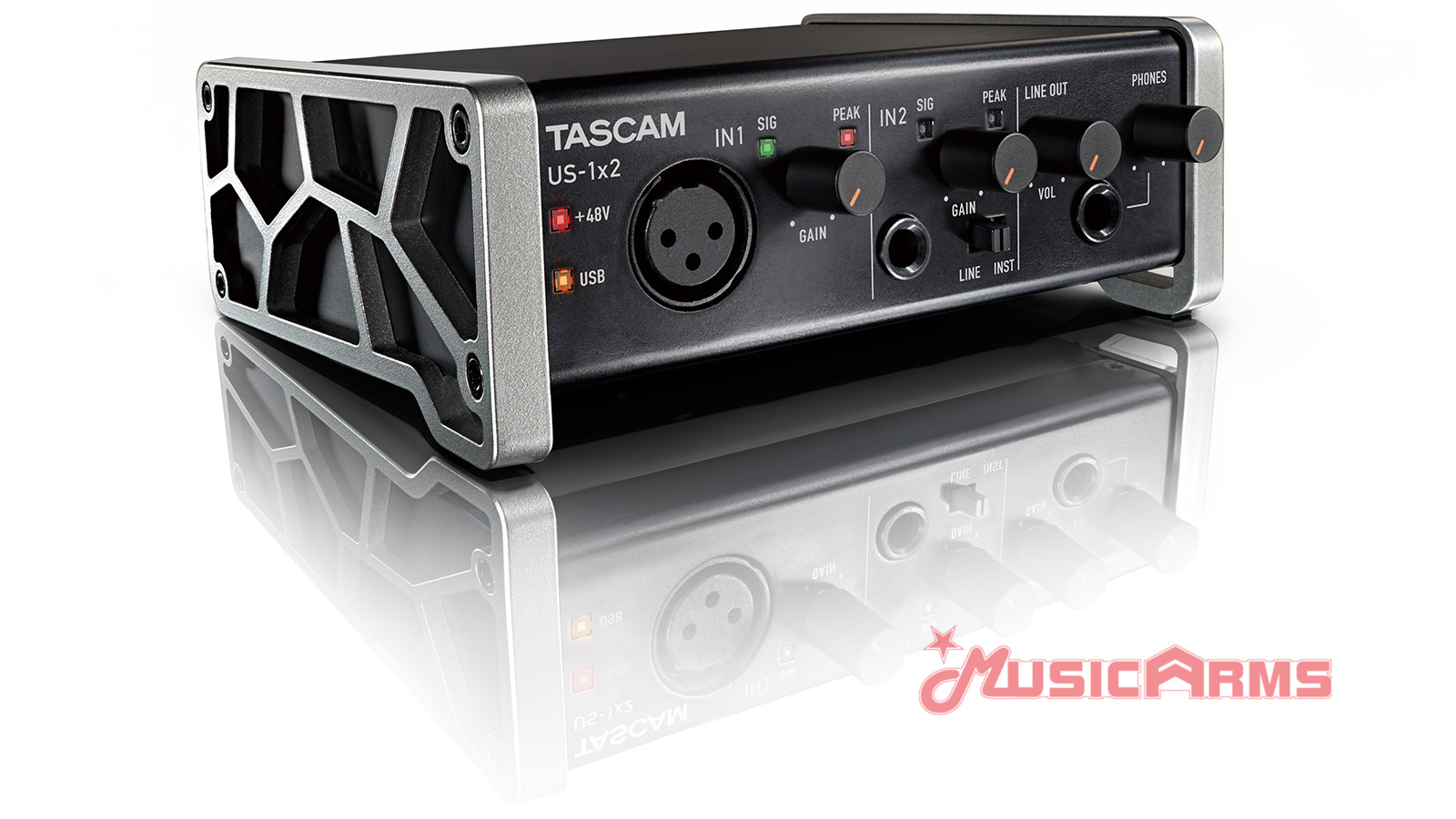

Tascam US-1x2HR (High-Resolution USB Audio Interface)

US-1×2

Fine-selected IN/OUT with high audio quality, All within the compact body.

Perfect for RCA Line input and output as well as mic/guitar direct input.
The US-1×2 is a 2-in/2-out audio interface with the most compact body among US series.

New Update: Settings Panel for Windows

TASCAM USB Audio Interfaces Driver (Settings Panel) software for Windows has been updated to Version 4.00, enabling to build music production environments with ultra-low latency that maximizes the processing power of the computers in use. In this new version, the driver’s stability has been greatly enhanced, the audio buffer size is now selectable up from 4 samples instead of older versions with the default buffer size of 64 samples, and overall usability has been improved.

Spec description

• Sampling frequency 44.1k/48k/88.2k/96k Hz
• Quantization bit rate 16/24bit
• Analog audio inputs
• MIC IN (IN 1)
• Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
• Input impedance 2.4k ohms
• Nominal input level
• GAIN:MAX -65dBu (0.0004Vrms)
• GAIN:MIN -8dBu (0.3090Vrms)
• Maximum input level +8dBu (1.9467Vrms)
• Gain 57dB
• LINE/INST IN (IN 2)

LINE IN

• Connector 6.3mm(1/4″) TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
• Input impedance 10k ohms
• Nominal input level
• GAIN:MAX -41dBu(0.0069Vrms)
• GAIN:MIN +4dBu(1.228Vrms)
• Maximum input level +20dBu(7.75Vrms)
• Gain 57dB

INST IN

• Connector 6.3mm(1/4″) TS-jack(T:HOT, S:GND), UNBALANCED
  * When set to “INST” at LINE/INST switch
• Input impedance 1M ohms
• Nominal input level
• GAIN:MAX -58dBV(0.0013Vrms)
• GAIN:MIN -13dBV(0.2239Vrms)
• Maximum input level +3dBV(1.1425Vrms)
• Gain 57dB

LINE L/R IN

• Connector RCA pin-jack, UNBALANCED
• Input impedance 10k ohms
• Maximum input level +6dBV(1.9953Vrms)
• Analog audio outputs

LINE OUT

• Connector RCA pin-jack, UNBALANCED
• Output impedance 100 ohms
• Maximum output level +6dBV (1.995Vrms)

PHONES

• Connector 6.3mm(1/4″) stereo phone jack
• Maximum output level 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded)
• Control IN / OUT

USB

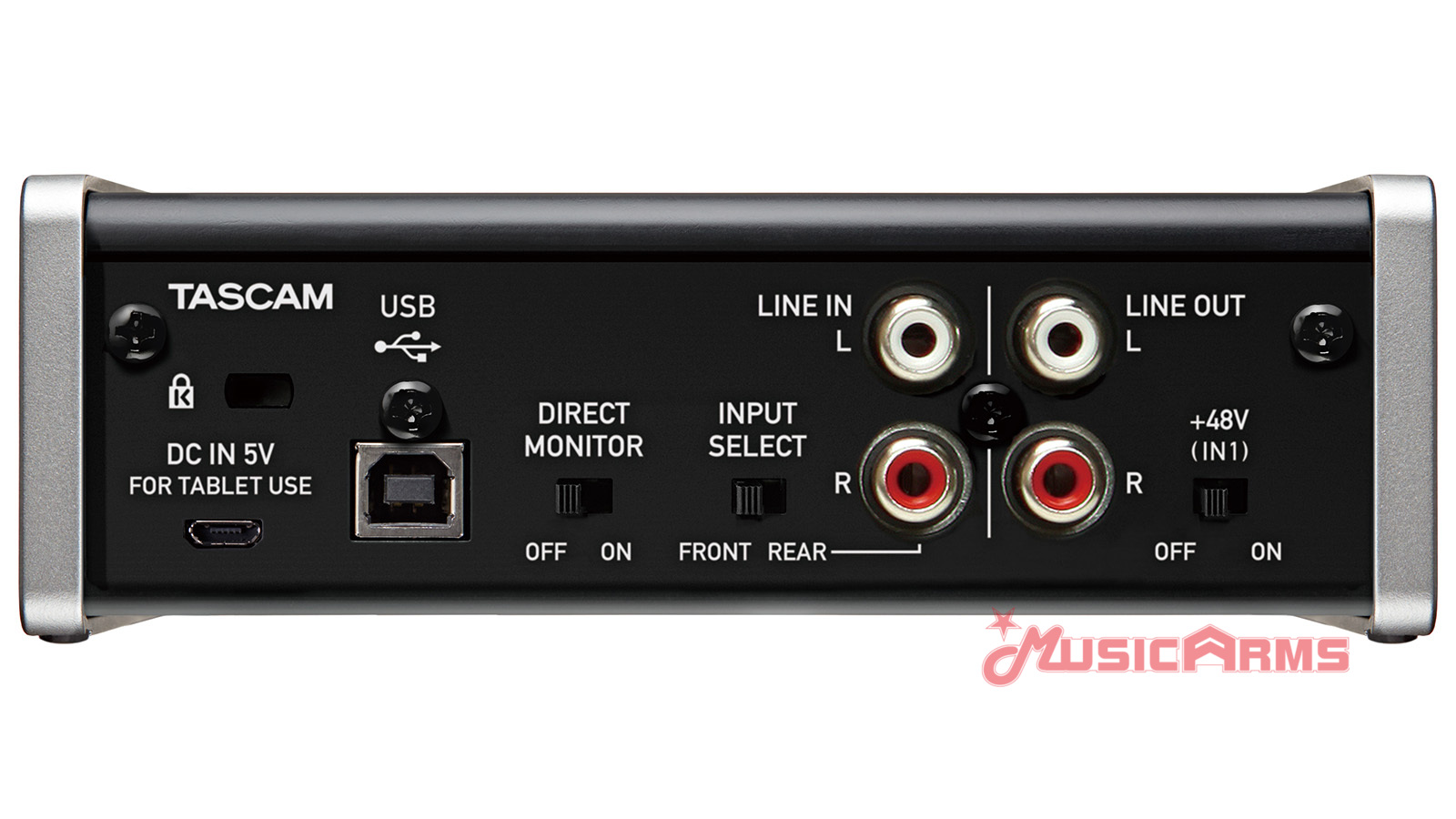

• Connector USB B type 4-pin
• Format USB2.0 HIGH SPEED
• DC IN 5V
• Connector USB Micro B type

Power

• When connected PC USB bus powered
• When connected iOS AC Adapter (TASCAM PS-P520, sold separately)
• Power consumption 2.5W
• Dimensions 146(W) × 55(H) × 120(D)mm
• Weight 623g
• Operating temperature 5 to 35˚C
• Accessories USB cable (1.5m), Installation manual, User’s manual, warranty card

Manual

Owner’s Manual

รายละเอียด TASCAM US-1x2HR (High-Resolution USB Audio Interface)

• ความถี่ในการสุ่มตัวอย่าง 44.1k / 48k / 88.2k / 96k Hz
• อัตราบิต Quantization 16/24 บิต
• อินพุตเสียงอนาล็อก

ช่องต่อไมค์

• ขั้วต่อ XLR-3-31 (1: GND, 2: HOT, 3: COLD), BALANCED
• อิมพีแดนซ์อินพุต2.4kΩ
• Gain สูงสุด –68dBu (0.0003Vrms)
• Gain ตำสุด -12dBu (0.195Vrms)
• ระดับอินพุตสูงสุด + 8dBu (1.947Vrms)
• Gain 56dB

ช่องต่อ INST IN

• ขั้วต่อ 1/4 “(6.3 มม.) TS-jack (T: HOT, S: GND), UNBALANCED (เมื่อตั้งค่าเป็น” INST “ที่สวิตช์ LINE / INST)
• อิมพีแดนซ์อินพุต1MΩหรือมากกว่า
• Gain สูงสุด –57dBV (0.0014Vrms)
• Gain ตำสุด–12dBV (0.251Vrms)
• ระดับอินพุตสูงสุด + 8dBu (0.2512Vrms)
• Gain 45dB

ช่องต่อ Line IN

• ขั้วต่อ 1/4 “(6.3 มม.) TS-jack (T: HOT, S: GND), UNBALANCED (เมื่อตั้งค่าเป็น” INST “ที่สวิตช์ LINE / INST)
• อิมพีแดนซ์อินพุต10KΩ
• Gain สูงสุด –41dBu (0.0069Vrms)
• Gain ตำสุด +4dBu (1.228Vrms)
• ระดับอินพุตสูงสุด +24dBu (12.182Vrms)
• Gain 45dB
