A compact wonder of complete vocal and guitar processing, Play Electric allows you to rock out with confidence! The hottest vocal sounds, including perfect backing harmonies, combined with best-selling TC Electronic guitar FX and enough amp emulations to quench anyones thirst for tone, make Play Electric the new standard for singing guitarists everywhere.
– User-friendly design with per-preset Vocal and Guitar FX combinations for easy performance control
Features
VOCAL EFFECTSGlobal Adaptive Tone
Global Pitch Correction
Harmony
Double
Delay (w/Filter styles)
Reverb
HardTune (Pop, Correct, Robot, Gender Bender)
Transducer (Megaphone, Radio, Distortion)
Mod (Detune, Chorus, Flange, Rotor, Tube, Character)GUITAR EFFECTSAmp Modeling (incl. acoustic/no amp)
Delay
Reverb
Chorus
Flanger
Tremolo
Overdrive & Distortion
Compression
Detune
Rotor
Panner
Auto Filter
CONTROL70+ Song & Artist Inspired Presets, Memory for 500
Simple Vocal & Guitar FX Editing via Direct Access Buttons
Direct Access to Favorite, Genre, Mix and Setup Menus
Preset Up/Down and HIT Footswitch
Graphics LCD Display
Bump-Protected Mic Level
Dual-Colour Backlit Buttons
DesignSIZEHeight: .8 inches (45 mm)
Width: 7.9 inches (200 mm)
Depth: 6. inches (56 mm)
WEIGHTWeight: 2.2 lb. ( kg)
CONSTRUCTIONDual die-cast clamshell design
Acrylic Lens
Punch-cut Metal connection panel
Rubberized footings
Backlit Graphic LCD Display

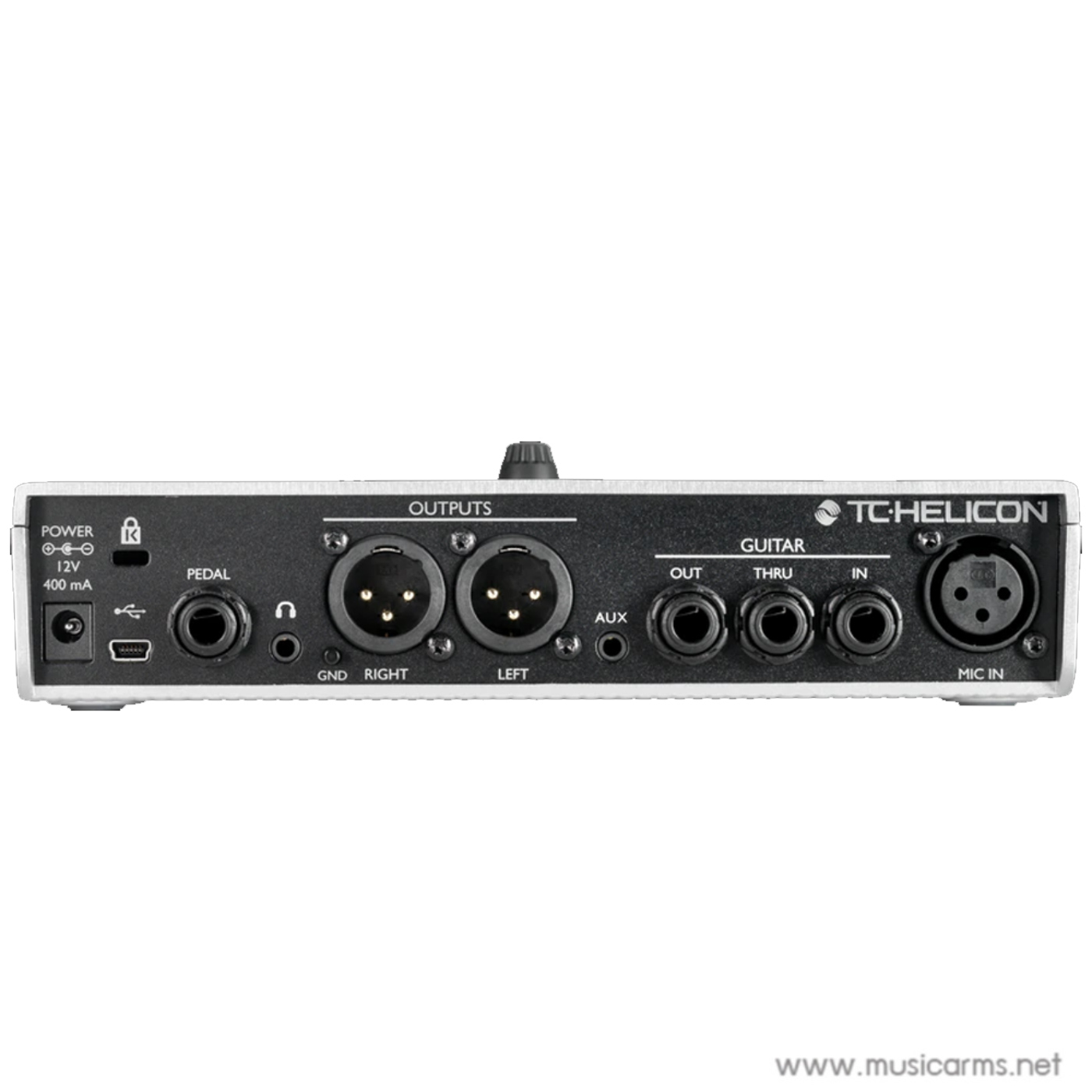

Connections
Play Electric I/O
ANALOG INPUTS
VOICE
Connector: Balanced XLR
Input Impedance Balanced: 3 kOhm
Mic Input Level @ 0 dBFS: -39 dBu to +4 dBu
EIN @ Max Mic Gain Rg = 50 Ohm: -27 dBu
Mic SNR >00 dB at typical mic input gain
Phantom Power: +48V (on/off via setup menu)
A to D Conversion 24 Bit, 28 x oversampling bitstream, 0 dB SNR A-weighted
GUITAR
Connector: /4 phone jack
Guitar Input Impedance: MOhm
Guitar Input Level @ 0 dBFS: +3 dBu
Guitar Input SNR >08 dB
A to D Conversion 24 Bit, 28 x oversampling bitstream, 5 dB SNR A-weighted
AUX
Aux: /8 stereo mini jack
Aux Input Level @ 0 dBFS +2.5 dBu
ANALOG OUTPUTS
VOICE
Connectors: balanced XLR
Output Impedance Balanced/Unbalanced: 260/30 Ohm
Output Range 0 dBFS: -6 dBu
Dynamic Range >08 dB, 20 Hz to 20 kHz
Frequency Response +.3/-0 dB, 20 Hz to 20 kHz
D to A Conversion 24 Bit, 28 x oversampling bitstream, 5 dB SNR A-weighted
GUITAR
Connectors: /4 TRS
Output Impedance Balanced/Unbalanced: 300/50 Ohm
Output Level at 0 dBFS: +6 dBu
Dynamic Range >05 dB, 20 Hz to 20 kHz
D to A Conversion 24 Bit, 28 x oversampling bitstream, 08 dB SNR A-weighted
HEADPHONE
/8 Mini stereo jack, 50 Ohm, +2 dBu max
GUITAR THRU
Buffered Guitar Input
Connector: /4 TRS
Output Impedance Bal/UnBal: 540/270 Ohms
CONTROL
USB: USB A, Mini-B
Pedal: /4 TRS phone jack
Mic Control using TC-Helicon MP-75 Microphone or Sennheiser e 835 fx mic
Included with Play Electric
Region specific power supply
USB cable
User guide
