TOPPPROTDI-A2 DI-BOX
ราคา : 1,500 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
Description
introduction

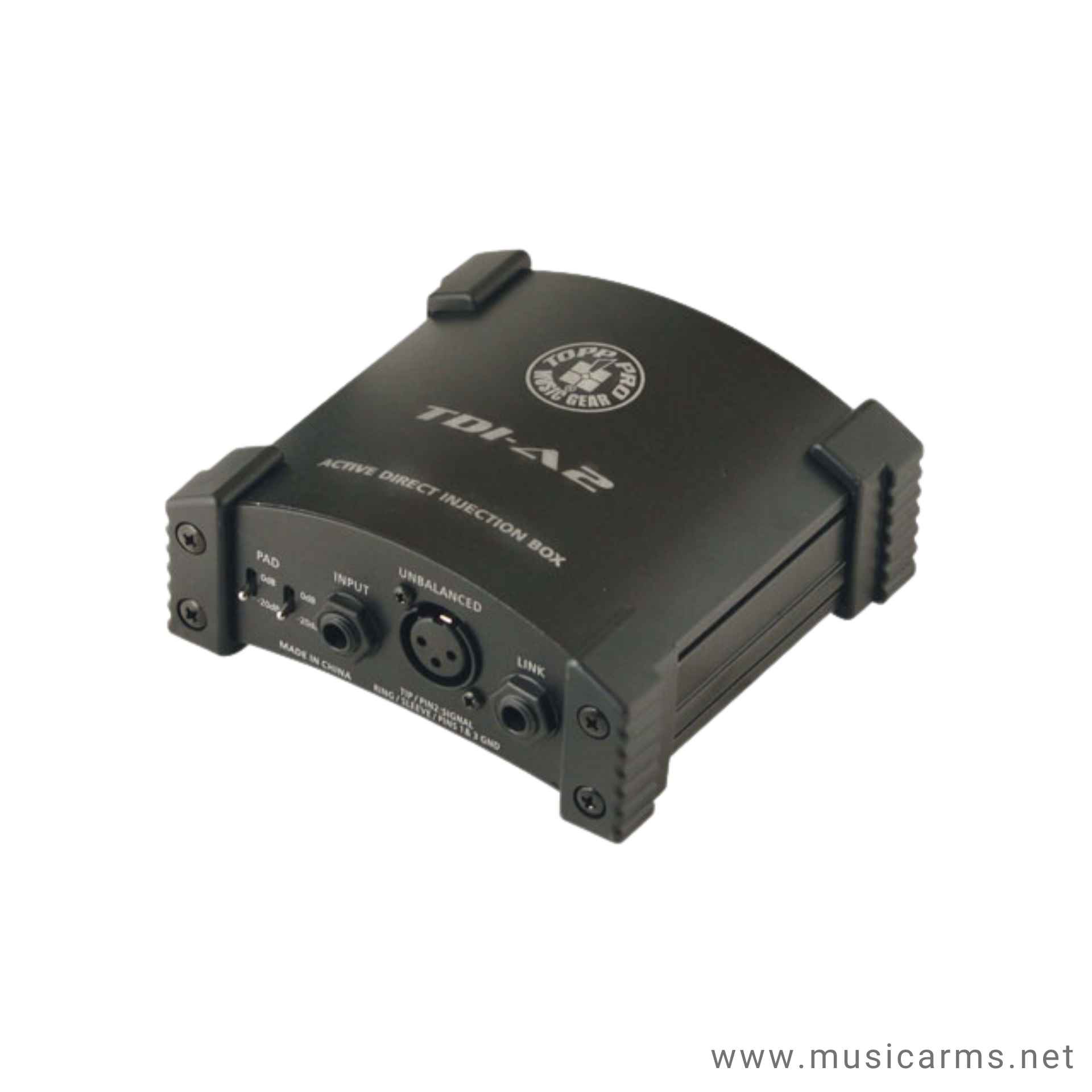

New TOPP PRO TDI -A2 direct injeciton box active is made for stage use and its rugged case ensures it will last for years
A Di box is an impedance matching and singnal balancing device for Guitars and other musical intruments
A Direct injection box converts high impedance unbalanced signals to low level balanced output signals for use with audio equipment such as mixing consoles etc
it also ensures propeer electrical signals are maintained throughout the signal chain and allows long
cable runs while cancelling interference and noise
FEATURES
converts high impedance unbalanced signals to low- level balanced signals
Rugged construcction
solid rubber feet
unbalanced input/output impedance 50k ohms
balanced i/o is low noise for long-distance and weak signal transmit
Ground botoom make the noise of input lower when transmitting
Attenuation 0dB 20dB
Specification
Specification
| Model | TDI-A2 ACTIVE DI BOX |

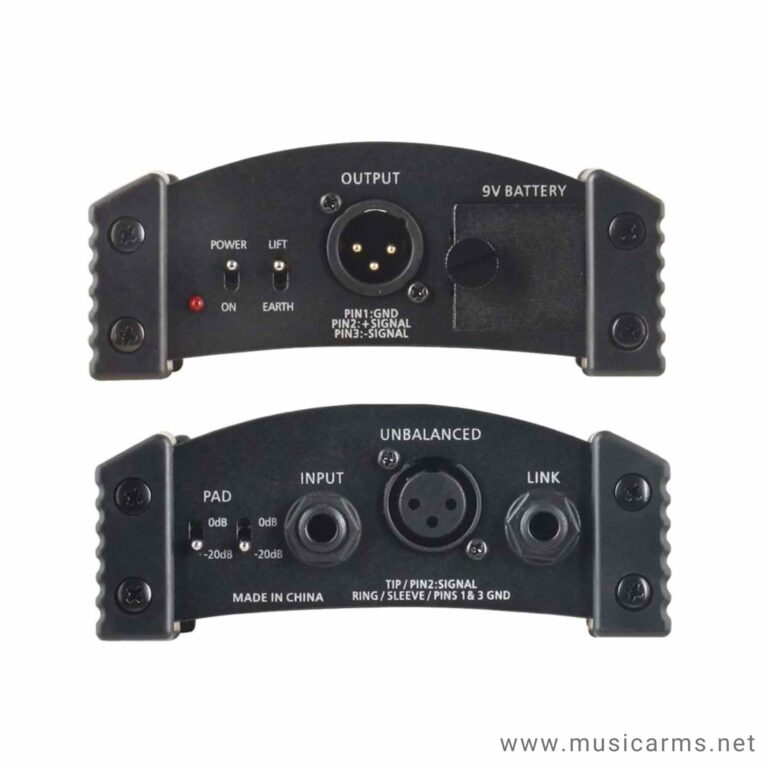

| Inputs | 1/4″ mono jack connector (Top hot, sleeve ground) or 3-pin XLR connector (pin 2 hot, pins 1-3 ground, unbalanced parallel link output 1/4″ jack connector for feeding to other equipment or via buffer amplifier |
| Attenuator | At 0dB / At 20dB |
| Impedance | 1M Ohm / 47K Ohm |
| Max. Input Level | +13dB / +33dB |
| Outputs | 3-pin connector, transformer balanced output, will drive lines from 600ohm upwards. Maximum output level clip greater than +6dBu with battery or Phantom supply. |
| Frequency Response | 10Hz to 30KHz, ±1dB |
| Noise | -108dBu “unweighted” |
| THD | Less than 0.02% a 1KHz, 0dBu Output |
| “Phantom Power” power requeriments | +20V DC to +48V DC |
| Current Drain | “Phantom power” less than 8mA, Battery less than 2mA |
| Dimensions | 130 x 127 x 45mm |
| Weight | 0.6Kg |
