Two Notes Torpedo Reload II โหลดบ็อกซ์อนาล็อก

Introducing Torpedo Reload II. Two Notes are yet again providing the industry-leading reactive load solution. Featuring twin-channel operation, selectable multi-impedance compatibility & true continuous attenuation. Easily integrate the Reload II into your existing setup thanks to the 2x XLR Line Outputs for effortless integration with audio interfaces, cab sims and more.

Key Features

• All-Analogue Load Box – Premium all-analogue reactive Load Box featuring a Celestion Approved Load Response
• Compatible With Amps Up To 200W – Compatible with tube and solid-state amplifiers rated up to 200W RMS; selectable multi-impedance compatibility (4-, 8-, 16Ω)
• Twin Channel Operation – Twin channel operation with dedicated source selection per channel for (1) Amp Input and (2) Line Inputs
• Continuous Attenuation – Continuous Active Attenuation from total silence (load box operation) to stage-ready source amplification
• Dual Channel Power Amplifier – Stereo/Dual Mono 215W (Per Channel, under 4Ω) studio-grade power amplifier; (2) independent cabinet outputs for amplifier rigs and/or line level inputs
• Footswitchable Stereo FX Loop – Footswitchable Stereo FX Loop with Series/Parallel, Dual Mono and A>B Link Modes; selectable -10dB / +4dB Send; Return Dry/Wet mix control
• Front Panel Controls – Front panel control for complete command of Amp Input Level, Cabinet Volume, Channel-Specific Source Selection and XLR Line Out Level
• Dial In Tone Shaping With Ease – Dedicated Depth & Presence controls per channel for hands-on tone shaping of the input source
• Integrated MOJO Controls – Integrated MOJO controls deliver high-power feel, even at low-volume
• GENOME Reload II & Amp Capture Essential Software Included – Use the included software to heighten your sound with DynIR speaker simulation and more.

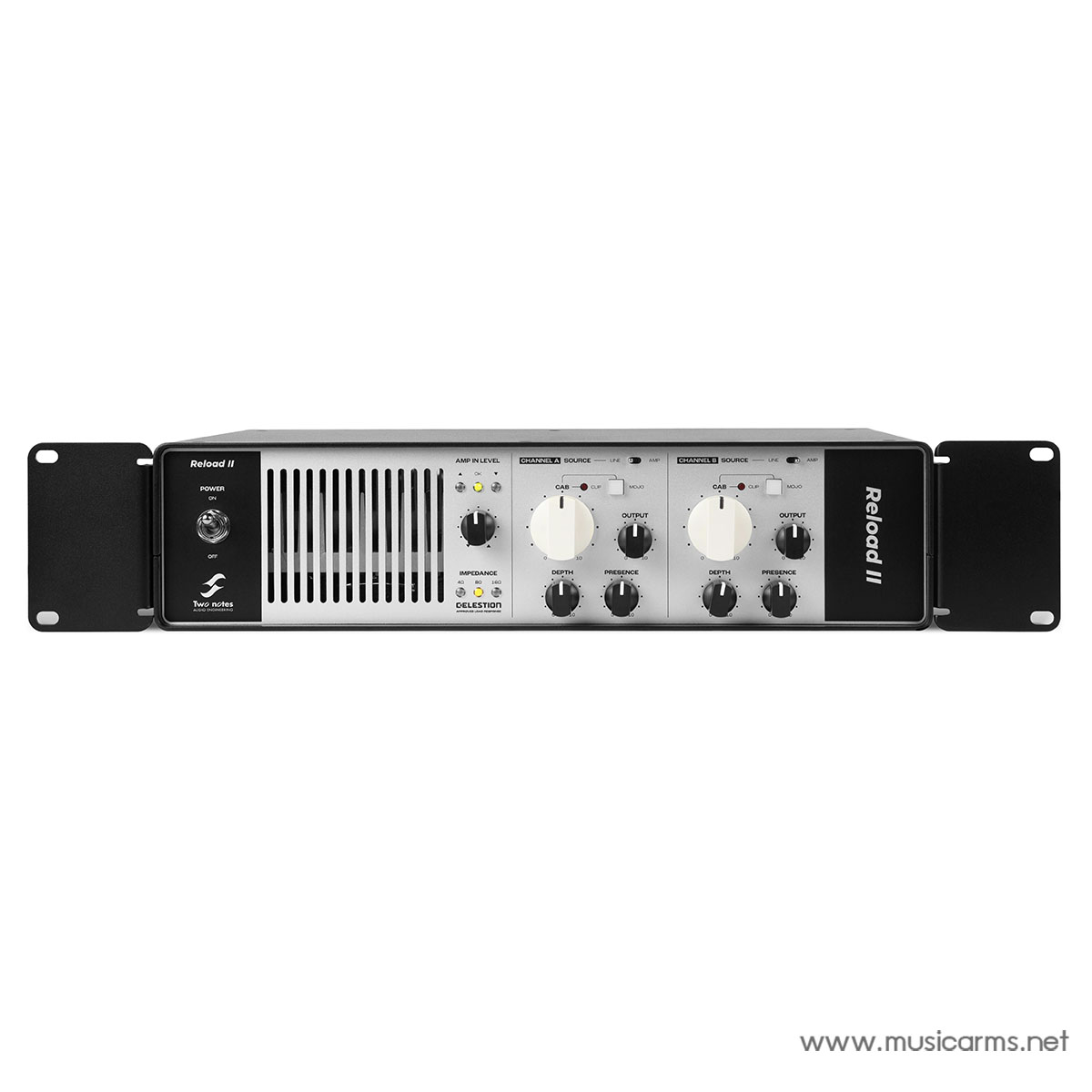

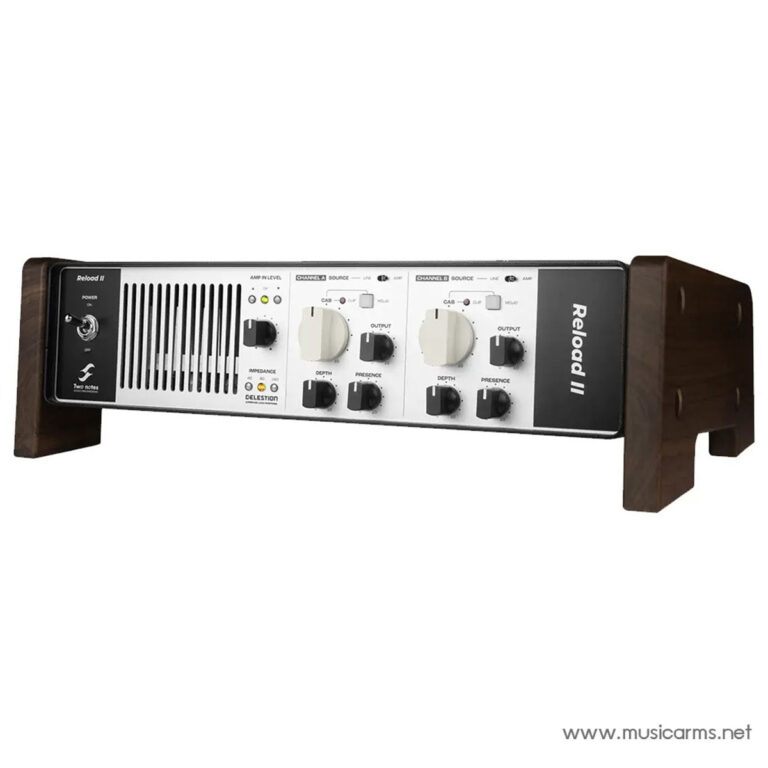

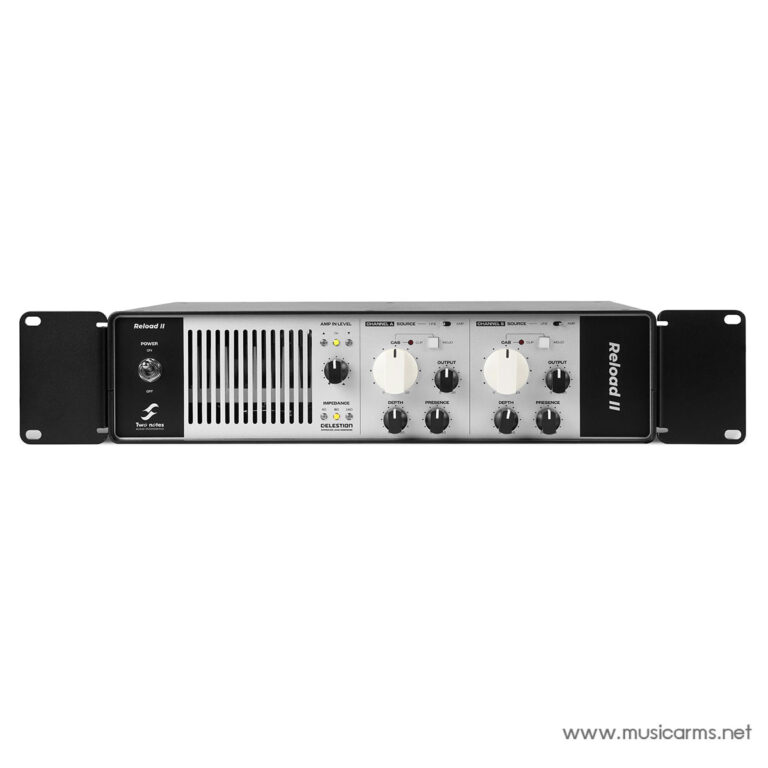

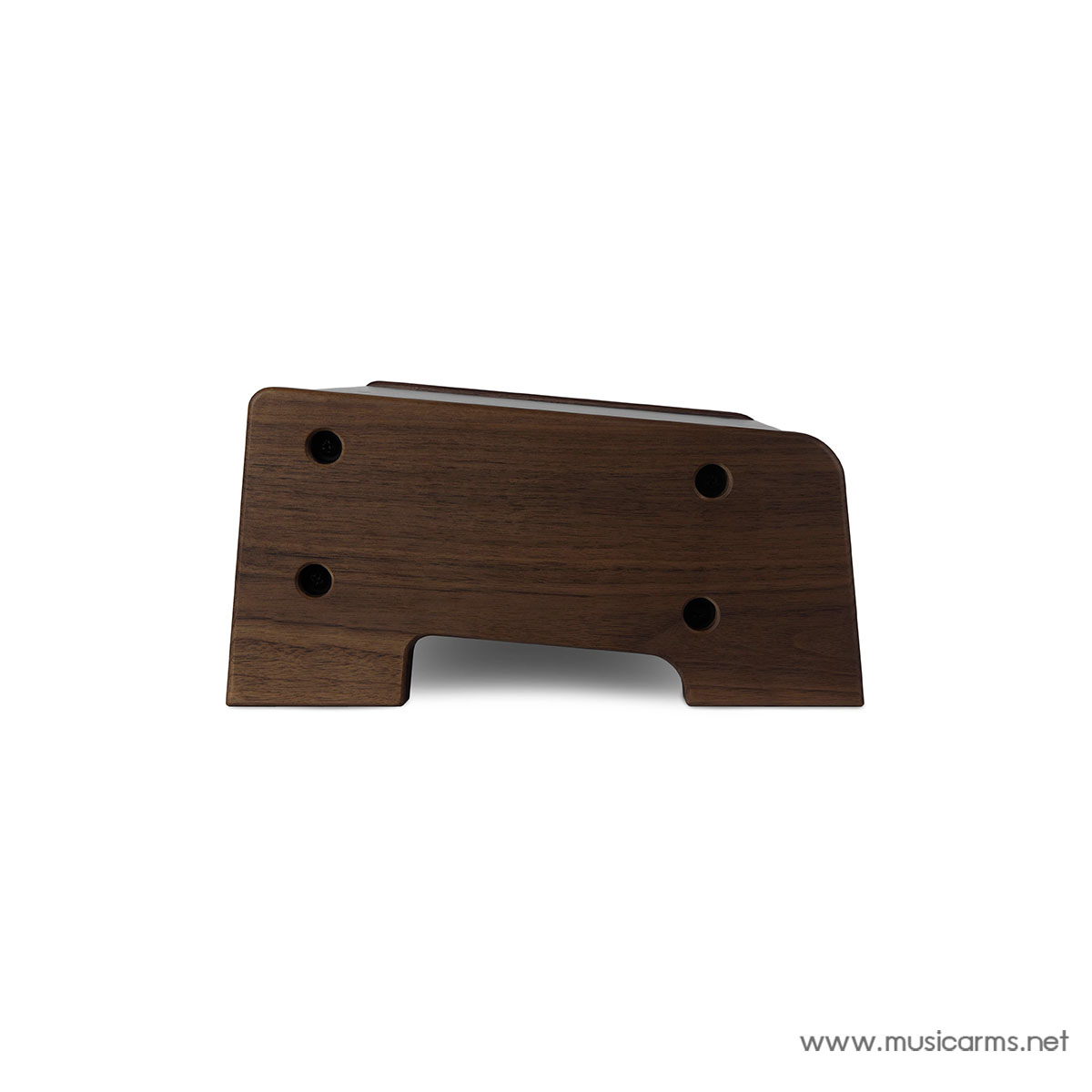

• Topbox Or Rack-Mountable? – Genuine wood side-panels for Topbox configuration, and Rack Mountable (2U) via the included Rack Ears

The Industry-First Celestion Approved Load Response

Two Notes’ have done a ground-up rework of their load design, and now it delivers an impedance curve inspired by Celestion’s iconic driver line for an industry-first “Celestion Approved Load Response”. Fuse this with switchable multi-impedance capability (4-, 8- and 16Ω), and you will get the best out of every amp in your collection.

Whatever Your Rig, Reload It!

The multi-impedance Amp In and dual Line inputs make hooking-up anything from a 200W amplifier’s power stage to a dual-mono/stereo line level source simple thanks to the twin-channel operation.

Continuous Active Attenuation

Reload II’s twin-channel continuous attenuator is fueled by an integrated ultra-transparent power amplifier. Basically, its everything you need to experience the harmonic saturation, organic feel and dynamic response only a pushed tube amp can yield – all with total control of your partner cab’s output.

Shape Your Tone

Use the intuitive tone-shaping tools which are engineered to get your tone where it needs to be, fast! The dedicated Depth and Presence controls add weight, body and definition to your input source.

GENOME Reload II Edition & Amp Capture Essential Included

Out-the-box, Reload II ships with a lifetime license to GENOME. This is Two Notes’ software which is engineered for world-class DynIR speaker simulation and much more. Elevate any tube amp profile with CODEX, GENOME’s AI Amp Capture Player. Compatible with Neural Amp Modeller (NAM), AIDA-X and Proteus captures, this lets you create your own unique profiles.

Series-R DynIR Cabinet Collection

Experience expert-level tone shaping with the GENOME-ready Series-R DynIR cabinet collection. Packing a premier assemblage of 24 expertly-curated DynIRs from Celestion and Two notes’ expansive catalogue, elevating your tone with the undisputed top-tier cabinet emulation platform is primed for any sonic exploit.

• Load Box: Reactive Load featuring a Celestion Approved Load Response with nominal impedance: 4- or 8-or 16-Ohms (switchable)
• Input/Output: Jack 6.35mm (1/4”) unbalanced (TS, Tip/Sleeve)
• Maximum Input Voltage: 140V AC (45dBu)
• Security Load: 270Ohms / 20W
• Load Input Level: Adjustable via potentiometer with continuous attenuation (-inf) to continuous amplification (+20dB)

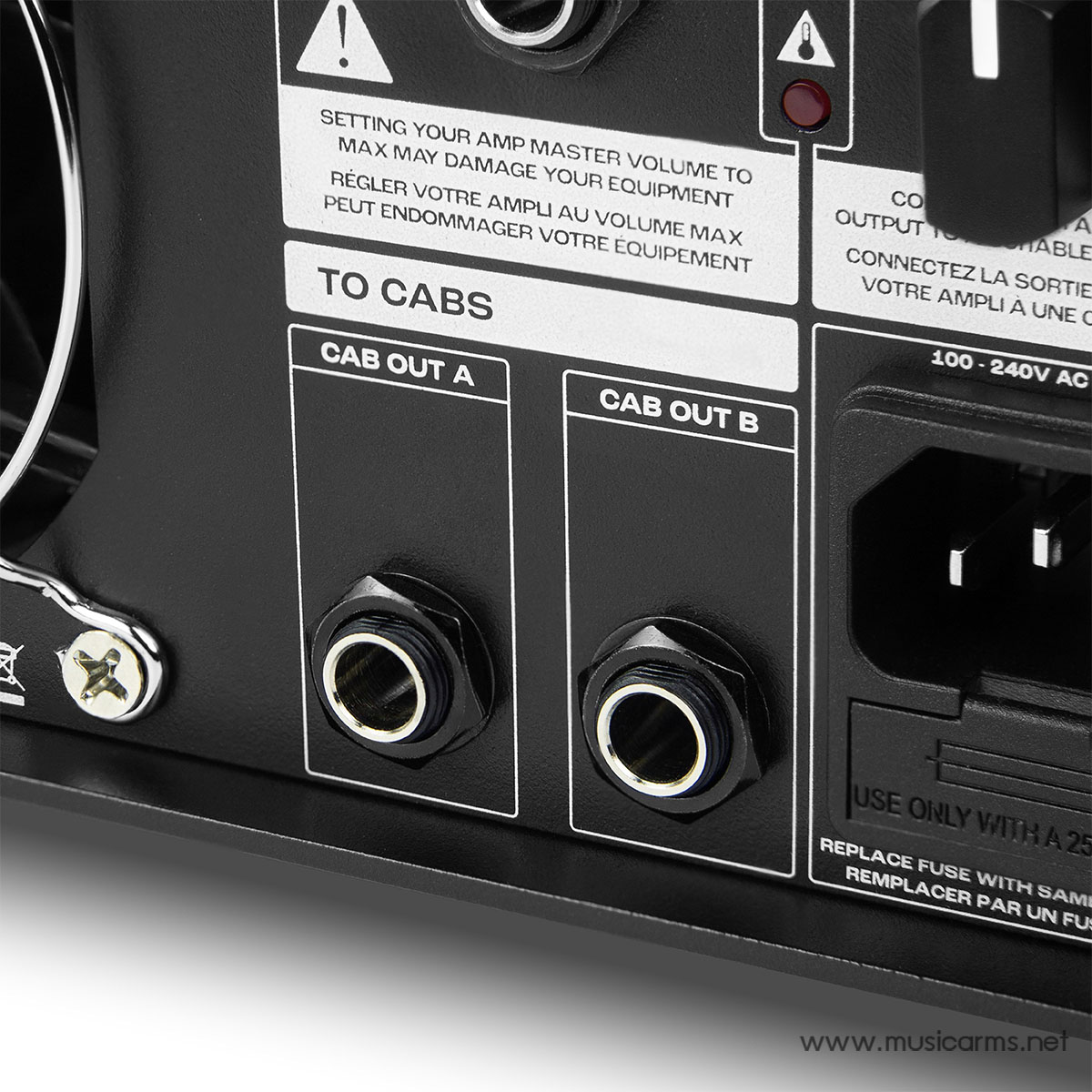

• Speaker Outputs: 2x Jack 6.35 mm (1/4”) unbalanced (TS)
• Line Inputs: Dual-Mono, (2) Jack 6.35mm (1/4”) balanced (TRS, Tip/Ring/Sleeve). Level output adjustable with 21 detent potentiometer for fine channel symmetry.
• FX Loop: Dual-Mono FX loop with independent CHANNEL A and CHANNELB controls. (2) SEND + (2) RETURN via 6.35mm (1/4”) unbalanced (TS) Jack.

• บ็อกซ์โหลด (Load Box): โหลดรีแอกทีฟที่มีการตอบสนองโหลดที่ได้รับการรับรองจาก Celestion โดยมีความต้านทานตามปกติ: 4, 8 หรือ 16 โอห์ม (สามารถสลับได้)
• อินพุต/เอาต์พุต: แจ็คขนาด 6.35 มม. (1/4”) แบบไม่สมดุล (TS, Tip/Sleeve)
• แรงดันไฟฟ้าสูงสุดที่สามารถรับได้: 140V AC (45dBu)
• โหลดความปลอดภัย: 270 โอห์ม / 20W
• ระดับอินพุตโหลด: ปรับได้ผ่านพอเตนชิโอมิเตอร์โดยมีการลดระดับสัญญาณอย่างต่อเนื่อง (-inf) ไปจนถึงการขยายสัญญาณอย่างต่อเนื่อง (+20dB)
• เอาต์พุตลำโพง: 2x แจ็คขนาด 6.35 มม. (1/4”) แบบไม่สมดุล (TS)
• อินพุตสายสัญญาณ: Dual-Mono, (2) แจ็คขนาด 6.35 มม. (1/4”) แบบสมดุล (TRS, Tip/Ring/Sleeve). ระดับเอาต์พุตสามารถปรับได้ด้วยพอเตนชิโอมิเตอร์ 21 ตำแหน่งสำหรับการปรับสมดุลช่องสัญญาณ
• FX Loop: Dual-Mono FX loop พร้อมการควบคุมช่อง A และช่อง B แยกอิสระ (2) SEND + (2) RETURN ผ่านแจ็คขนาด 6.35 มม. (1/4”) แบบไม่สมดุล (TS)
