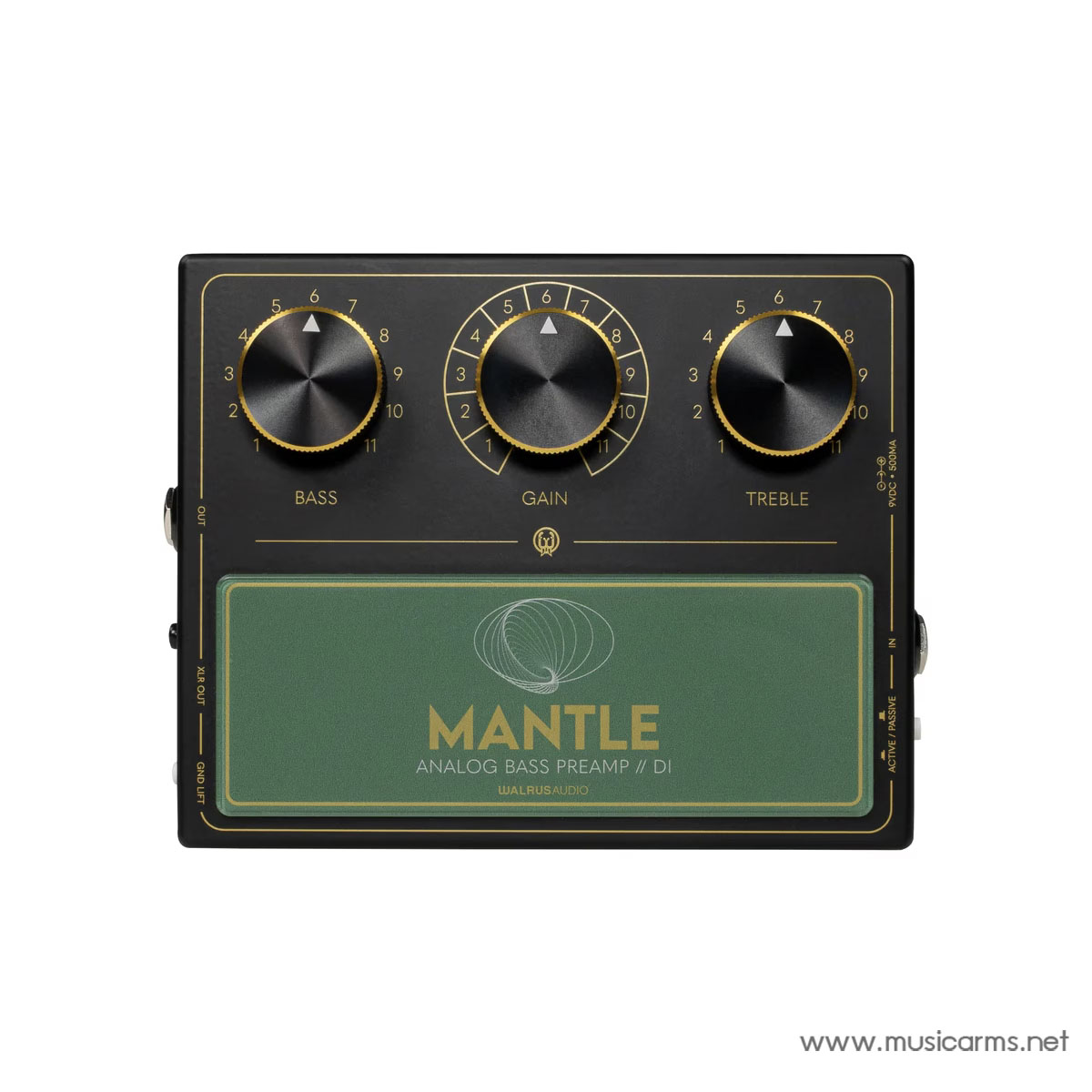

Walrus Audio Mantle Analog Bass Preamp // D.I.

คลิ๊กที่ภาพเพื่อขยาย

ราคา : 26,900 บาท

รุ่น :  Walrus Audio Mantle Analog Bass Preamp // D.I.
💳 ช่องทางการชำระเงิน
จ่ายหน้าร้าน 13 สาขา โอนเงิน เก็บปลายทาง บัตรเครดิต ผ่อน 0% (บางรายการ) Shopee Lazada

🏢
ลูกค้าองค์กร / ขอใบเสนอราคา
สั่งซื้อ Walrus Audio Mantle Analog Bass Preamp // D.I.ผ่านline สั่งซื้อ Walrus Audio Mantle Analog Bass Preamp // D.I.ผ่าน messenger

Description

Walrus Audio Mantle: Premium Analog Bass Preamp and D.I. Co-Designed with Ian Martin Allison for Ultimate Tonal Definition

The Walrus Audio Mantle Analog Bass Preamp // D.I. is a tour-grade, high-end analog preamplification and direct insert system developed in close collaboration with renowned bassist Ian Martin Allison. Engineered to deliver pristine studio-quality audio, the Mantle features a custom-wound Sapphire Transformer developed exclusively by Walrus Audio to inject rich analog warmth, fat low-end architecture, and organic harmonic overtones into your signal. Driven by a lightning-fast JFET Input Buffer that preserves the absolute nuance and transient clarity of your instrument, this pedal boasts a highly specialized bass EQ layout and customizable filters. Operating at a high-voltage internal +24V rail for immense headroom, the Mantle is the definitive tonal command center for studio tracking sessions and high-profile live stage performances alike.

Key Features

  • Custom-Wound Sapphire Transformer: Outfitted with a proprietary Sapphire transformer that delivers up to +23 dB of pure transformer-driven gain, enriching your bass lines with magnificent analog saturation and punch.
  • Pro JFET Buffer & Massive +24V Headroom: Features a high-fidelity JFET input buffer for exceptional signal retention, backed by an internal +24V voltage rail that provides massive headroom to handle heavy slaps and aggressive dynamic spikes without clipping.
  • Acoustic Tailoring with EQ & Selectable Filters: Offers precise Bass and Treble EQ controls with boost/cut capabilities. The Bass knob acts as a multi-frequency High-Pass Filter (HPF), while the Treble control functions as an assignable Low-Pass Filter (LPF) for strategic frequency management.
  • Transformer-Isolated XLR Output: Equipped with a premium balanced XLR output driven by its own output transformer, ensuring a clean, noise-free, and powerful direct feed to any PA system or recording audio interface.
  • Essential Utilities for Road & Studio: Fully loaded with an Active/Passive Pad switch to optimize input levels for any bass pickup configuration, alongside a dedicated Ground Lift switch to instantly terminate unwanted ground loop hums.

The Ultimate Dynamic Foundation Engineered to Make Your Bass Cut Through the Mix

When your music demands a bulletproof, high-headroom direct signal that retains the organic acoustic texture of your bass, the Walrus Audio Mantle delivers with world-class authority. Eliminating cold digital tracking and weak signals, this analog powerhouse acts as both a tone-sculpting preamp and a professional-grade DI box. Don’t let thin tones or messy ground loops hold back your groove—take complete control of your low-end dynamics and upgrade your rig with the Walrus Audio Mantle today.

Specification

Walrus Audio Mantle Details

Product Type Analog Bass Preamp & Direct Box
Signal Path Input → JFET Buffer → Low-Pass / High-Pass Filters or Dry Path → Input Transformer (-6 dB to +23 dB) → Boost EQ → Output Transformer
Gain Range -6 dB to +23 dB
EQ Boost Range 0 dB to +15 dB
Frequency Response 20 Hz – 20 kHz
Input Impedance 1 MΩ
Output Impedance 150 Ω Balanced / 150 Ω Unbalanced
Noise Floor Balanced: -101 dBV / Unbalanced: -94 dBV
THD (1 kHz / 1 Vrms) 0.04%
Power Requirements 9V DC / 500 mA, Center Negative, 2.1 mm barrel connector
Internal Operating Voltage +24V (For expanded headroom and dynamic range) *Isolated power supply recommended
Dimensions 154.78 × 119.35 × 57.98 mm

ข้อมูลสินค้า

Walrus Audio Mantle: เบสปรีแอมป์และ DI อะนาล็อกระดับไฮเอนด์ ร่วมออกแบบโดย Ian Martin Allison เพื่อโทนเสียงเบสที่สมบูรณ์แบบ

Walrus Audio Mantle Analog Bass Preamp // D.I. คือปรีแอมป์และกล่องดีไอ (D.I. Box) แบบอะนาล็อกระดับพรีเมียมสำหรับกีตาร์เบสที่พัฒนาร่วมกับ Ian Martin Allison มือเบสและเซสชันแมนชื่อดัง เพื่อมอบคุณภาพเสียงที่ทรงพลังและสะอาดหมดจดระดับสตูดิโอ หัวใจสำคัญอยู่ที่การเลือกใช้หม้อแปลง Sapphire Transformer แบบ Custom-Wound ที่พัฒนาขึ้นโดย Walrus Audio โดยเฉพาะ มอบโทนเสียงที่อิ่มหนา รายละเอียดเสียงต่ำที่ลึกคมชัด และเพิ่มสีสันทางฮาร์มอนิก (Harmonics) อย่างเป็นธรรมชาติ ผสานวงจร JFET Input Buffer ที่ตอบสนองฉับไวและรักษาคุณภาพสัญญาณดั้งเดิมได้อย่างครบถ้วน พร้อมระบบ EQ และฟิลเตอร์ตัดความถี่ที่ออกแบบมาสำหรับเบสโดยเฉพาะ ช่วยให้ผู้เล่นสามารถปรับแต่งซาวด์ได้อย่างละเอียด ทรงพลัง และยืดหยุ่นสูงสุดไม่ว่าจะใช้อัดเสียงในสตูดิโอหรือระเบิดความมันบนเวทีแสดงสด

คุณสมบัติเด่น

  • Custom Sapphire Transformer & JFET Buffer: ขับเคลื่อนด้วยหม้อแปลง Sapphire แบบสั่งทำพิเศษ มอบ Gain เสียงจาก Transformer สูงถึง +23 dB ช่วยสร้างเนื้อเสียงที่อิ่มและอุ่นแบบอนาล็อก พร้อม JFET Input Buffer ที่คงรายละเอียดความชัดเจนของหัวโน้ตไว้ได้อย่างสมบูรณ์
  • Advanced Bass & Treble EQ with Integrated Filters: ระบบปรับแต่งย่านเสียงต่ำและเสียงแหลมแบบ Boost/Cut โดยปุ่ม Bass Control จะมาพร้อมฟังก์ชัน High-Pass Filter (HPF) และปุ่ม Treble Control จะมาพร้อม Low-Pass Filter (LPF) ที่สามารถเลือกย่านความถี่ในการตัดเสียงได้อย่างอิสระ
  • Transformer-Balanced XLR Output: ช่องเอาต์พุต XLR แบบบาลานซ์ที่ทำงานร่วมกับหม้อแปลง Output Transformer โดยเฉพาะ มอบสัญญาณเสียงที่แรง สะอาด ปราศจากสัญญาณรบกวน เหมาะสำหรับการยิงสัญญาณเข้ามิกเซอร์คอนโซลหรือออดิโออินเตอร์เฟสโดยตรง
  • Professional Stage Utility: มาพร้อมสวิตช์ Active/Passive Pad เพื่อสลับอัตราขยายสัญญาณให้เหมาะสมกับประเภทพิกอัปของกีตาร์เบส และสวิตช์ Ground Lift สำหรับตัดสัญญาณรบกวนที่เกิดจากลูปกราวด์ (Ground Loop) บนเวที
  • +24V High-Headroom Internal Circuitry: ตัววงจรภายในทำงานด้วยแรงดันไฟสูงถึง +24V มอบ Headroom ที่กว้างเป็นพิเศษ รองรับไดนามิกการสแลป (Slap) หรือการเล่นที่หนักหน่วงได้สบายโดยที่สัญญาณเสียงไม่แตกพร่า

ยกระดับรากฐานเสียงเบสของคุณสู่มาตรฐานสตูดิโอระดับโลก

หากคุณกำลังตามหาอุปกรณ์ที่จะช่วยเติมเต็มพลัง เนื้อเสียง และความชัดเจนให้กับกีตาร์เบสของคุณ Walrus Audio Mantle คือคำตอบระดับมาสเตอร์พีซที่ไม่ควรมองข้าม ด้วยการผสานวงจรอะนาล็อกระดับพรีเมียมและความยืดหยุ่นในการจัดการความถี่เสียง ปรีแอมป์/DI ตัวนี้จะช่วยให้ซาวด์เบสของคุณพุ่งทะยานและโดดเด่นอยู่ในมิกซ์ได้อย่างสมบูรณ์แบบ ปลดล็อกศักยภาพสูงสุดของเบสคุณด้วย Walrus Audio Mantle ได้แล้ววันนี้

รายละเอียดคุณสมบัติ

Walrus Audio Mantle Details

ประเภทสินค้า ปรีแอมป์และกล่องดีไอแอนะล็อกสำหรับกีตาร์เบส (Analog Bass Preamp & Direct Box)
เส้นทางสัญญาณ (Signal Path) Input → JFET Buffer → Low-Pass / High-Pass Filters หรือ Dry Path → Input Transformer (-6 dB ถึง +23 dB) → Boost EQ → Output Transformer
ช่วงอัตราขยายสัญญาณ (Gain Range) -6 dB ถึง +23 dB
ช่วงการบูสต์อีคิว (EQ Boost Range) 0 dB ถึง +15 dB
การตอบสนองความถี่ 20 Hz – 20 kHz
อินพุตอิมพีแดนซ์ 1 MΩ
เอาต์พุตอิมพีแดนซ์ 150 Ω แบบ Balanced / 150 Ω แบบ Unbalanced
ระดับเสียงรบกวน (Noise Floor) ช่อง Balanced: -101 dBV / ช่อง Unbalanced: -94 dBV
ค่าความเพี้ยนรวม (THD @ 1 kHz / 1 Vrms) 0.04%
ข้อกำหนดการจ่ายไฟ 9V DC, กระแสไฟขั้นต่ำ 500 mA (ขั้วในลบ Center Negative / แกนขนาด 2.1 มม.)
แรงดันไฟทำงานภายใน +24V (แปลงกระแสไฟภายในเพื่อเพิ่ม Headroom สูงเป็นพิเศษ) *แนะนำให้ใช้ร่วมกับแหล่งจ่ายไฟแยกอิสระ (Isolated Power Supply)
ขนาด (ยาว x กว้าง x สูง) 154.78 × 119.35 × 57.98 มม.
