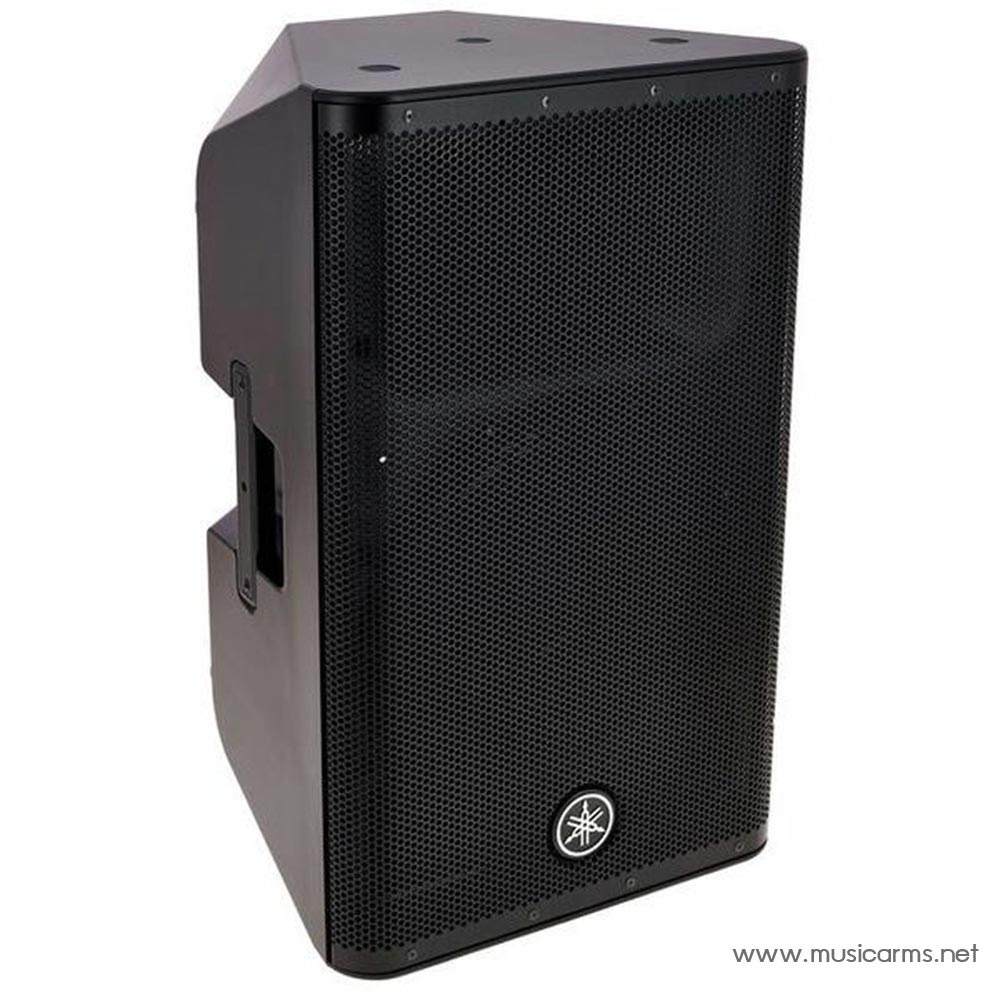

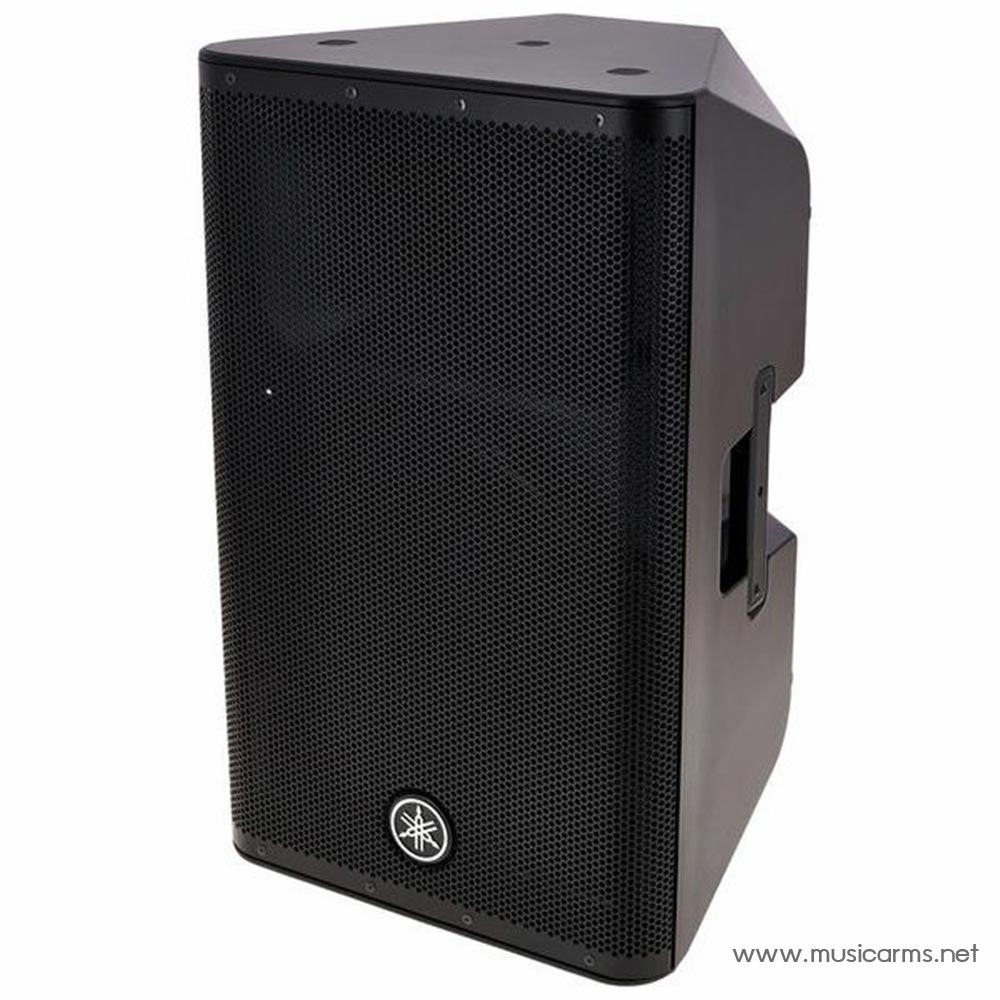

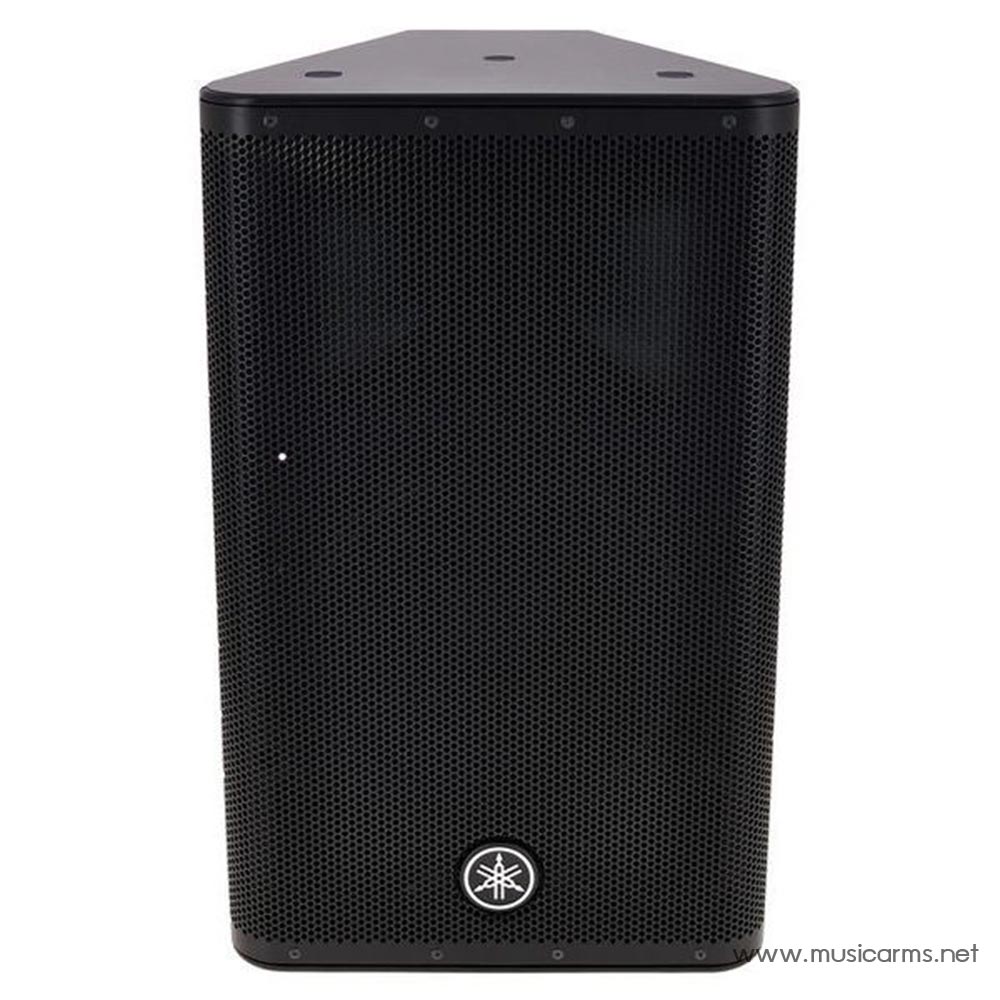

Yamaha DXR12 MKII ลำโพง Active

Raw power

With a 1100 Watt Class-D amplified design, the Yamaha DXR12mkII 12” Active PA Speaker is powerful enough for any live environment. An intelligent multi-band compressor calculates level-based EQ adjustments. Ensuring consistent clarity. And with the ability to handle obscene sound pressure levels, you can be confident that the DXR12mkII won’t be bested.

Fine-tuned

The DXR12mkII is clever enough to give you the best sound possible. Yamaha’s innovative FIR-X Tuning intelligently manages frequencies. Combatting phase cancellation, ensuring clarity, and with exceptionally smooth crossover. Meaning you’ll always sound exceptional.

Mixed in

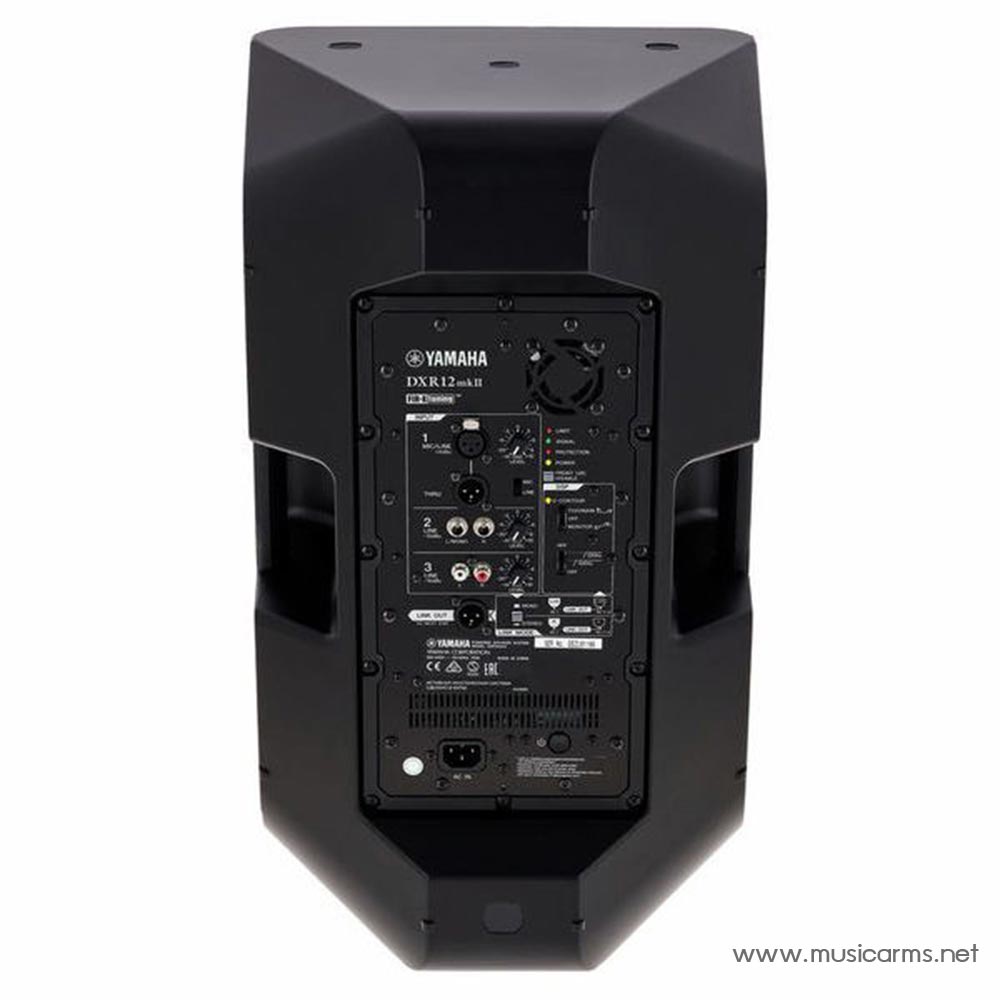

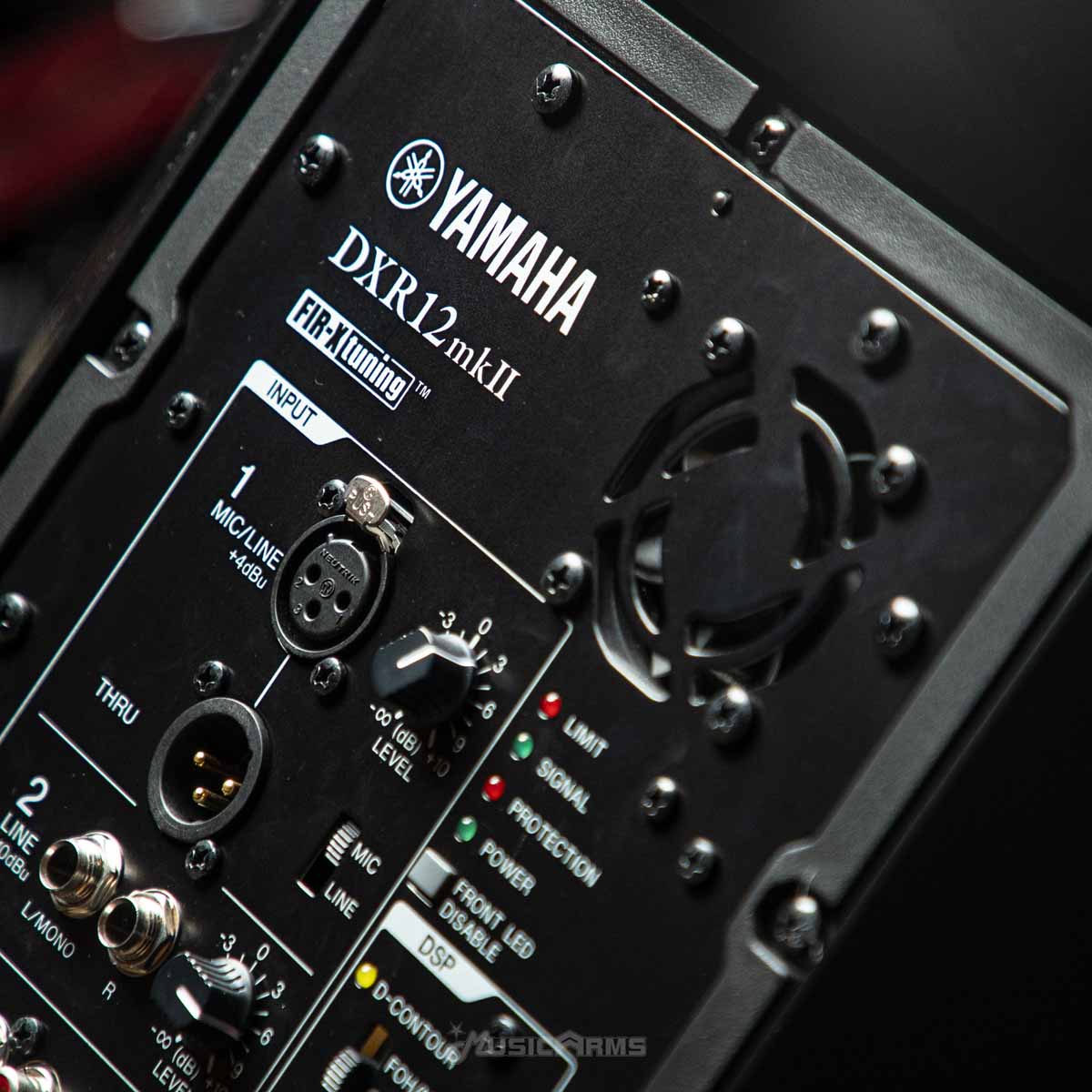

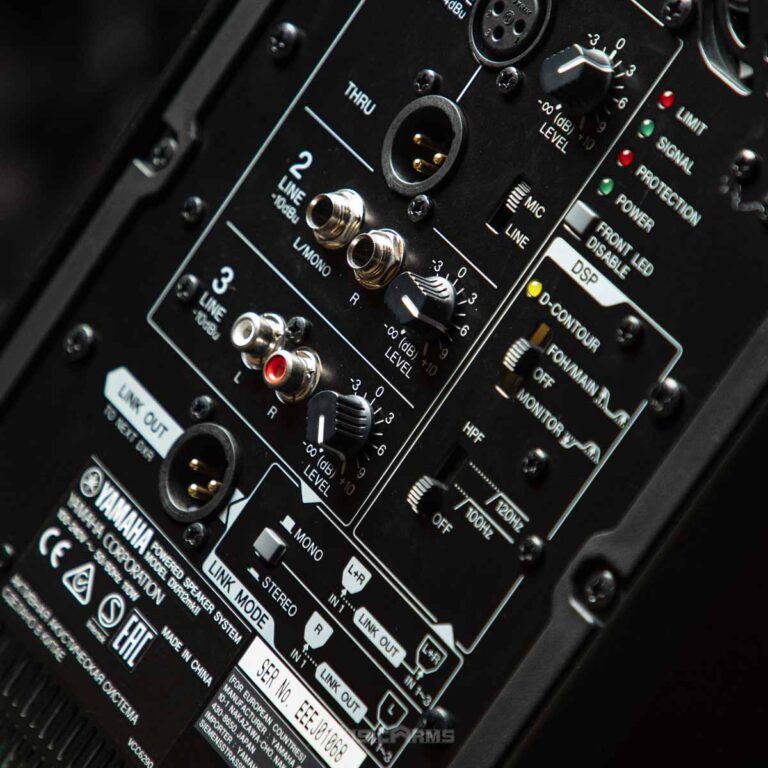

Getting a great sound couldn’t be easier, thanks to the integrated 3-channel mixer. Each channel has its own volume control to balance your sources. Once you’ve got a great balance, the sound output can be adjusted to different spaces and applications, with easy contouring preset switches.

Versatile design

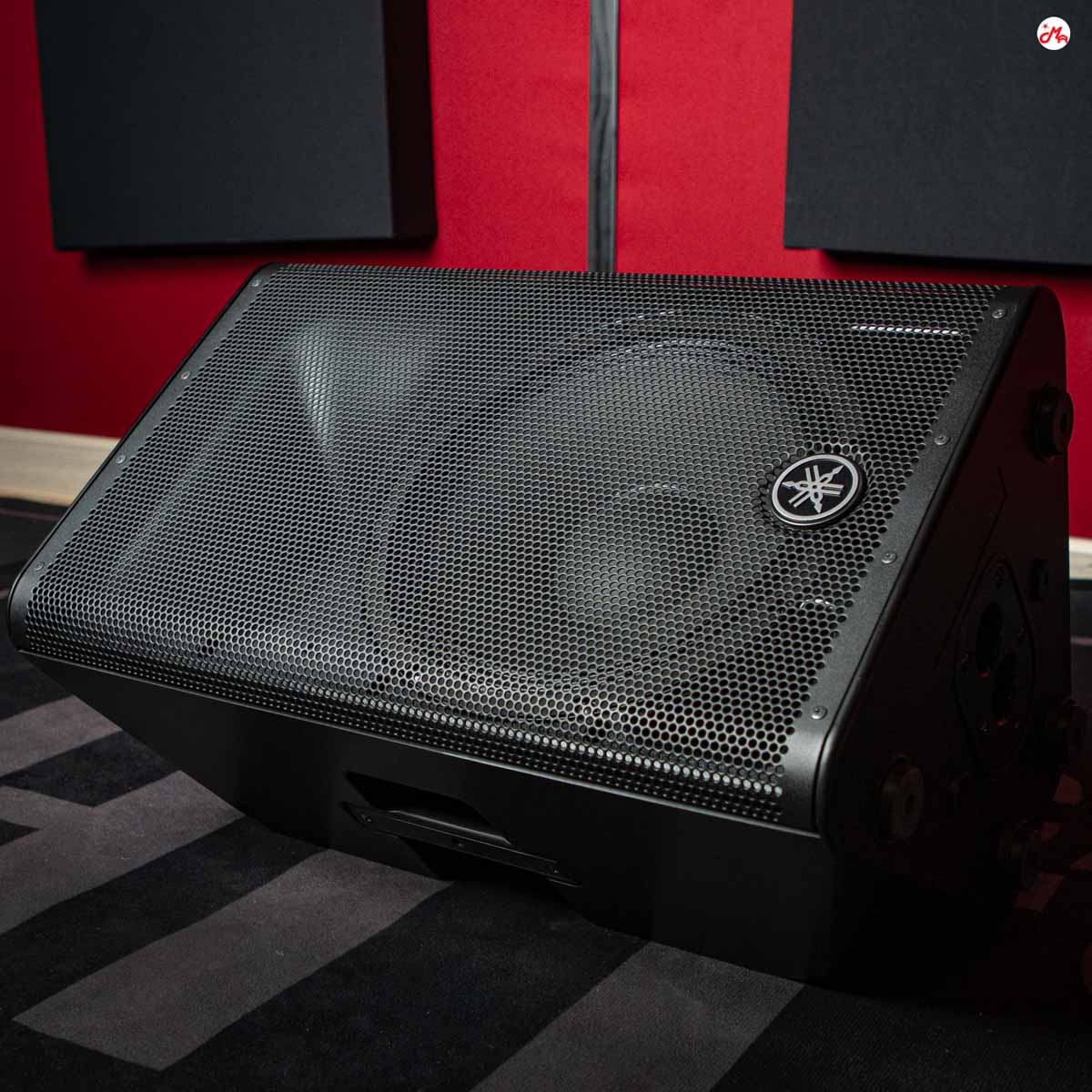

You can use the DXR12mkII in a variety of configurations. For floor monitoring applications, a 50° angle is integrated into the cabinet design for easy placement. Two 35 mm speaker pole mounts let you mount the speaker at an angle of either 0°, or 7°.

Active full-range / multi-function speaker

• Speaker: 12″ 1.75″ Neodymium driver
• 90° x 60° horn
• 2-Way bi-amped 1100 watt Class-D power amplifiers (950 W LF + 150 W HF)
• Frequency range: 52 – 20,000 Hz
• Maximum level: 134 dB

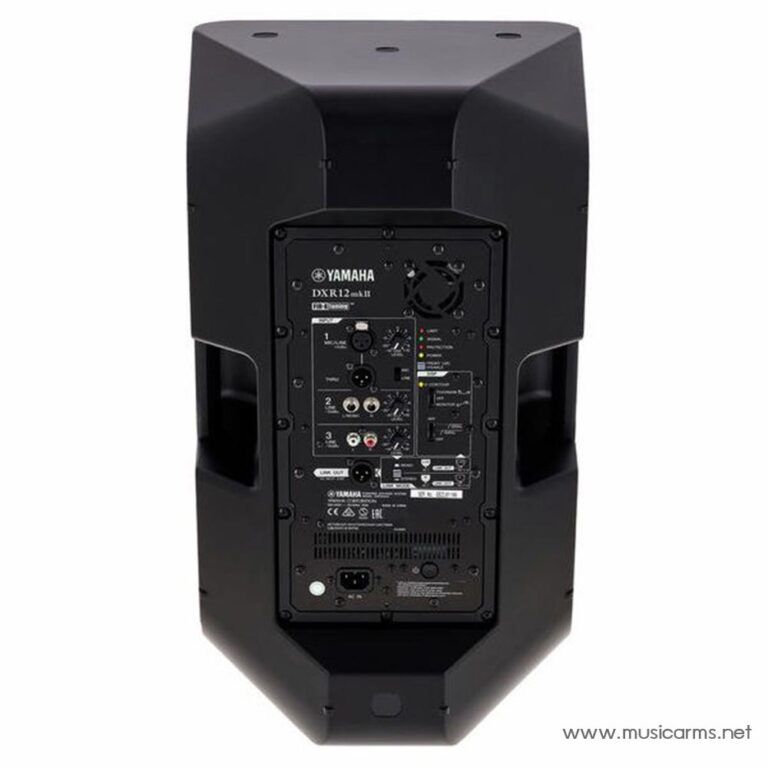

• XLR and jack inputs / outputs

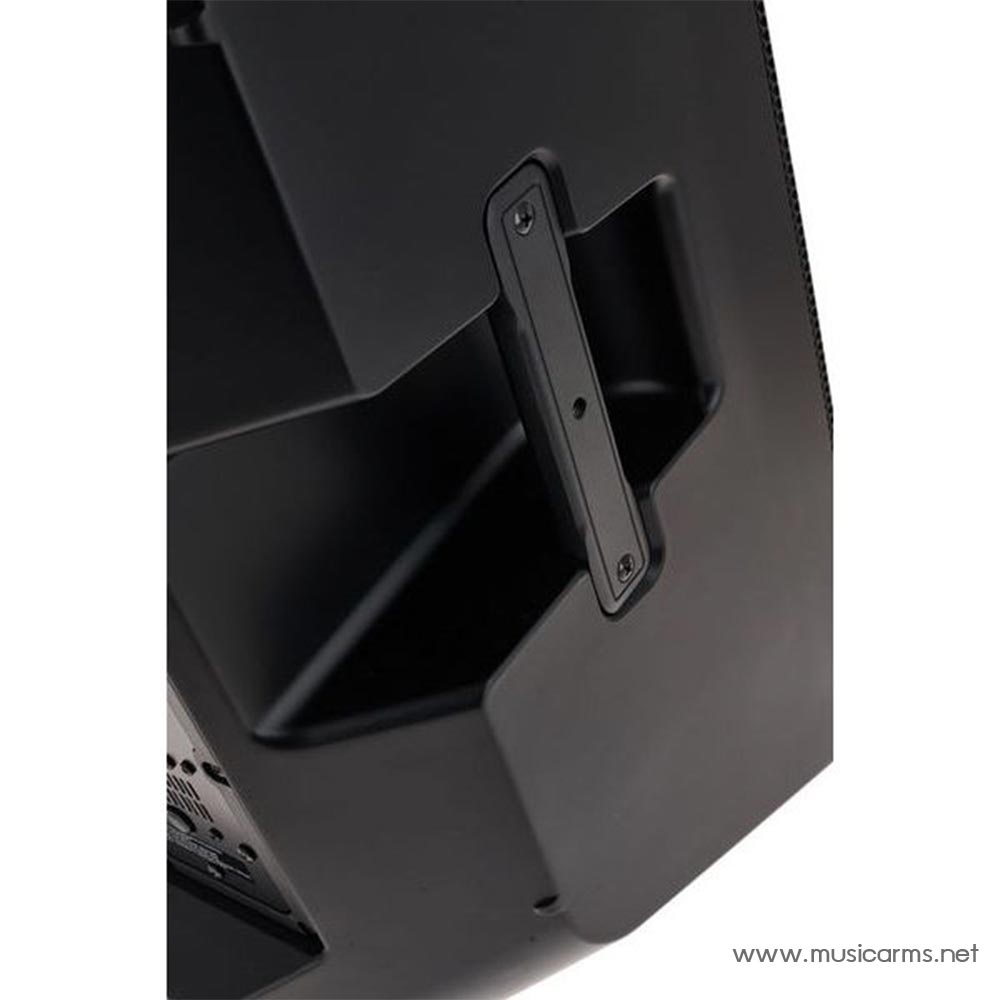

• ABS plastic housing with 3x M8x15 rigging points
• 35 mm Stand flange mount

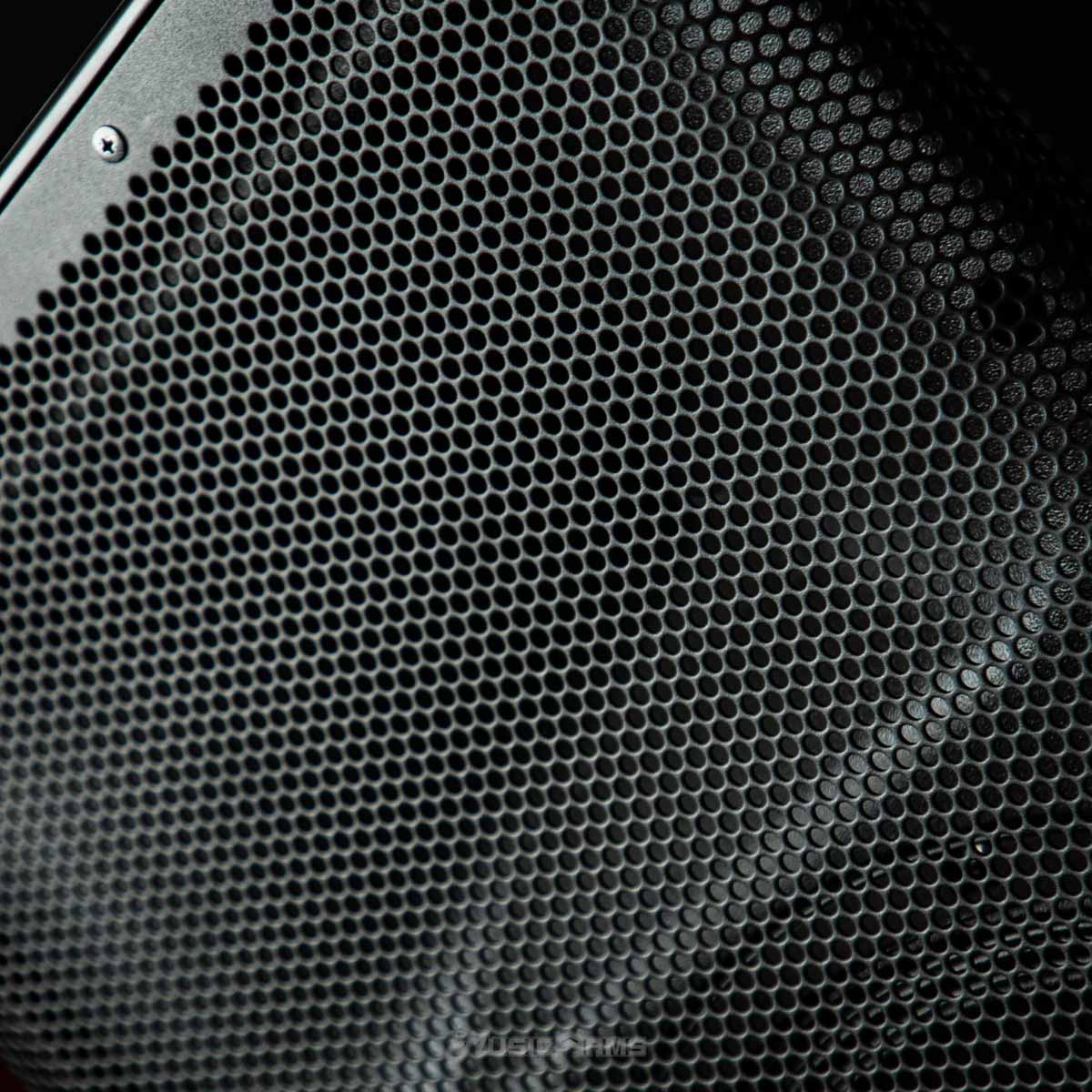

• Continuous speaker grille
• Dimensions: 362 x 601 x 350 mm
• Weight: 18.6 kg
• Colour: Black
