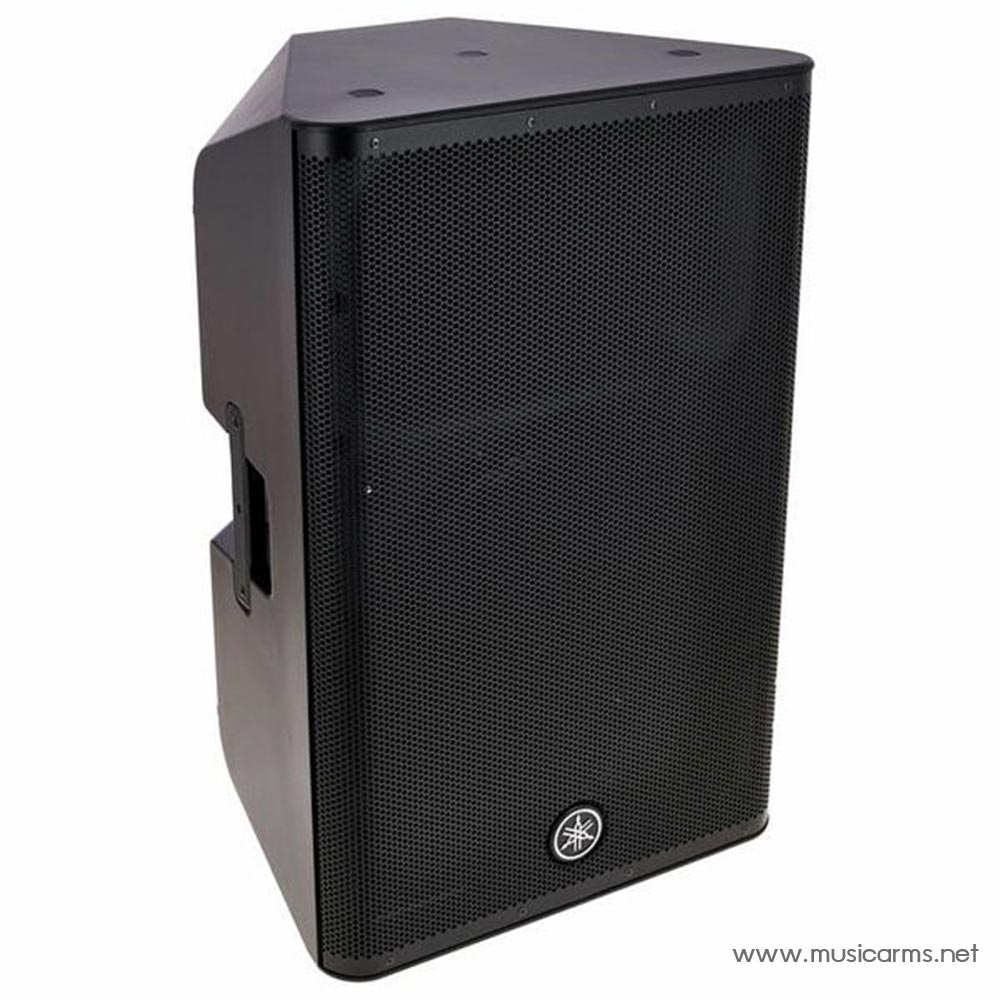

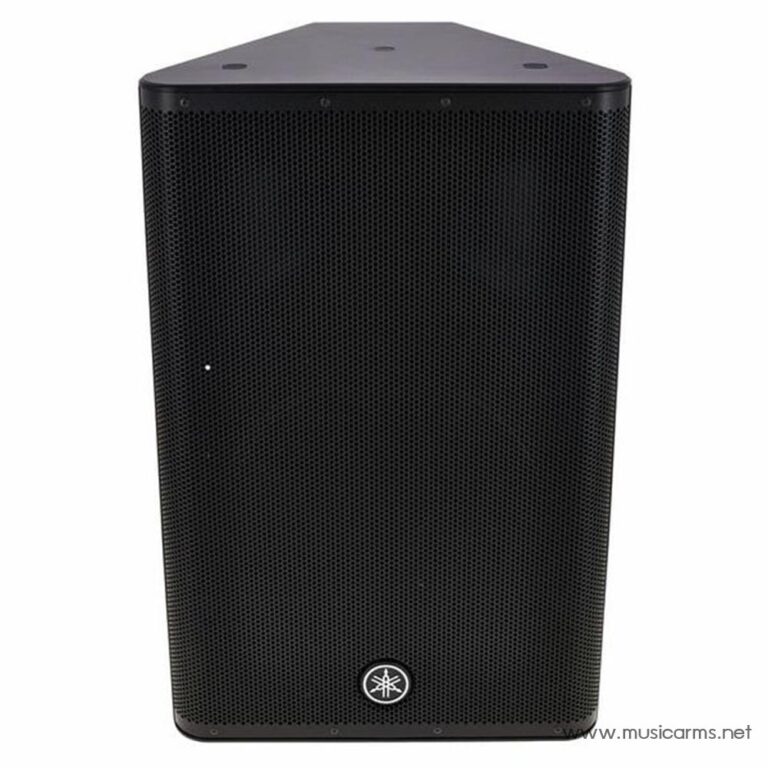

Yamaha DXR15 MKII ลำโพง Active

Raw power

With a 1100 Watt Class-D amplified design, the Yamaha DXR15mkII 15” Active PA Speaker is powerful enough for any live environment. An intelligent multi-band compressor calculates level-based EQ adjustments. Ensuring consistent clarity. And with the ability to handle obscene sound pressure levels, you can be confident that the DXR15mkII won’t be bested.

Fine-tuned

The DXR15mkII is clever enough to give you the best sound possible. Yamaha’s innovative FIR-X Tuning intelligently manages frequencies. Combatting phase cancellation, ensuring clarity, and with exceptionally smooth crossover. Meaning you’ll always sound exceptional.

Mixed in

Getting a great sound couldn’t be easier, thanks to the integrated 3-channel mixer. Each channel has its own volume control to balance your sources. Once you’ve got a great balance, the sound output can be adjusted to different spaces and applications, with easy contouring preset switches.

Versatile design

You can use the DXR15mkII in a variety of configurations. For floor monitoring applications, a 50° angle is integrated into the cabinet design for easy placement. Two 35 mm speaker pole mounts let you mount the speaker at an angle of either 0°, or 7°.

Active full-range / Multifunction speaker

• Speaker: 15″ and 1.75″ neodymium components
• Horn: 90 x 60°
• 2-Way bi-amped 1100 watt class-D power amplifiers (950 W LF + 150 W RF)
• Frequency response: 49-20,000 Hz
• Maximum SPL (sound pressure level): 134 dB
• XLR and jack inputs / outputs
• Black ABS plastic housing with 3 x M10 x 18 rigging points

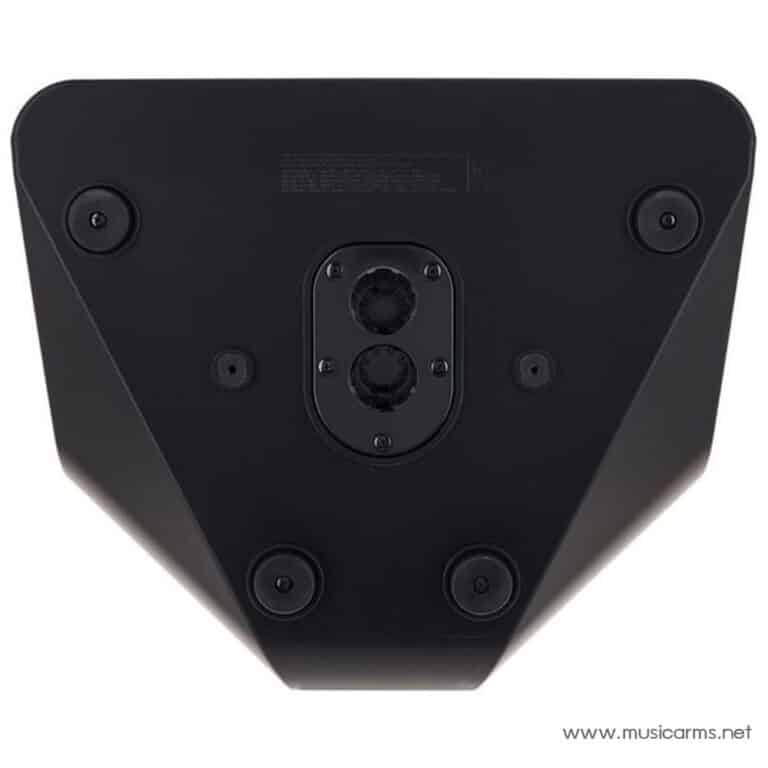

• Stand flange mount: 35 mm
• Continuous speaker grille
• Dimensions: 445 x 700 x 380 mm
• Weight: 21.8 kg
• Colour: Black
