Yamaha DZR15 MKII ลำโพง Active

Two-Way, Class-D Amplified Design

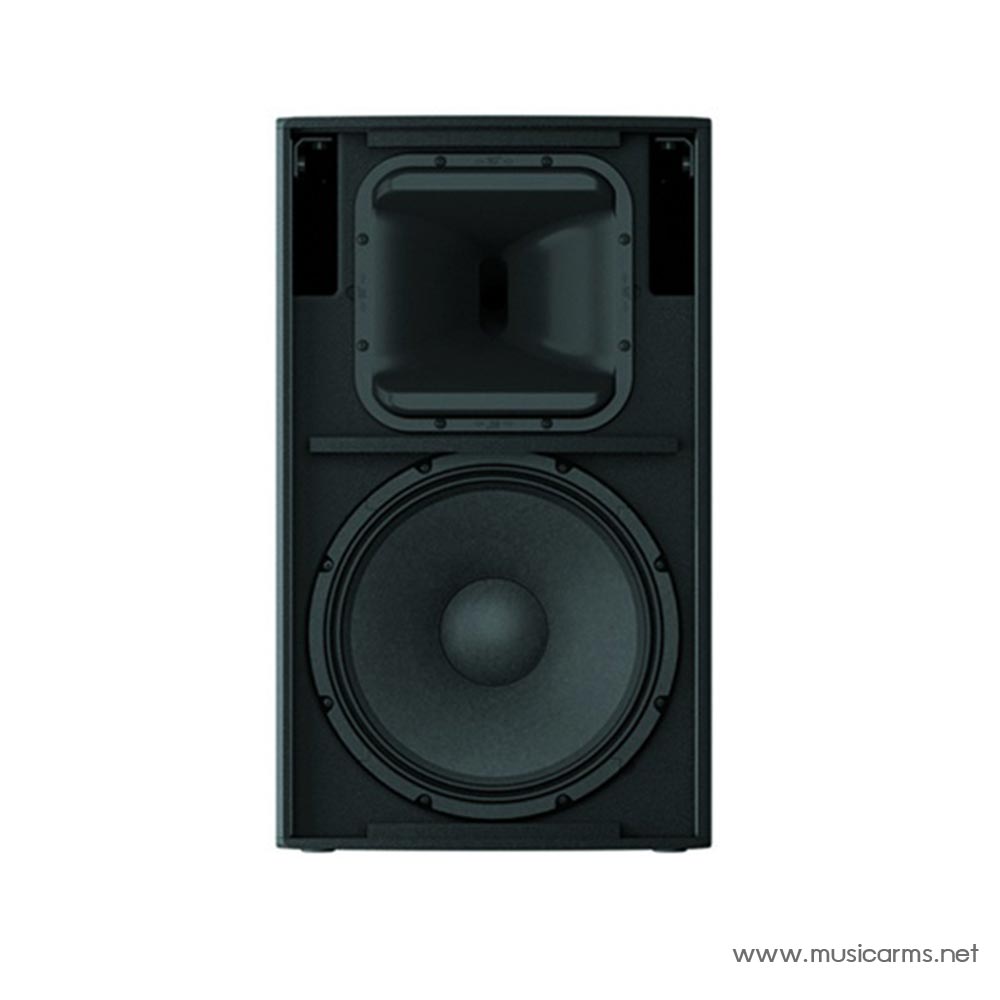

The Yamaha DZR series is the latest range of loudspeakers from Yamaha. What sets them apart from previous Yamaha loudspeakers is the innovative fully-integrated smart design. The loudspeaker is comprised of a 2-way design with a 15-inch LF driver and a 2-inch HF driver. At the heart of the DZR loudspeaker is the premium-grade Class-D amplifier, providing up to 2000W (Peak) power, more than enough for a wide range of applications. The LF transducer features large 3-inch voice coils in cast aluminium frames and a lightweight neodymium magnet for high power handling. It provides a tightly controlled sound, resulting in distortion-free performance. The HF transducer includes a 2-inch voice coil and a 1-inch throat compression driver with a titanium diaphragm for sparkling high-end performance.

Advanced FIR-X Tuning & 96kHz DSP Processors

One of the most unique features of the DZR loudspeaker range is the integrated 96kHZ DSP processors, helping to provide the high-power output the speaker delivers. The result is high-definition audio performance with super-low latency. The FIR-X Advanced Tuning technology uses linear phase FIR filters for the crossover network. The FIR filters allow you to achieve a smooth frequency response, resulting in exceptional clarity and sound imaging without phase distortion. EQ filtering capabilities are also included for fine-tuning adjustments, with best-in-class SPL without signal degradation.

D-CONTOUR Multi-Band Compressor

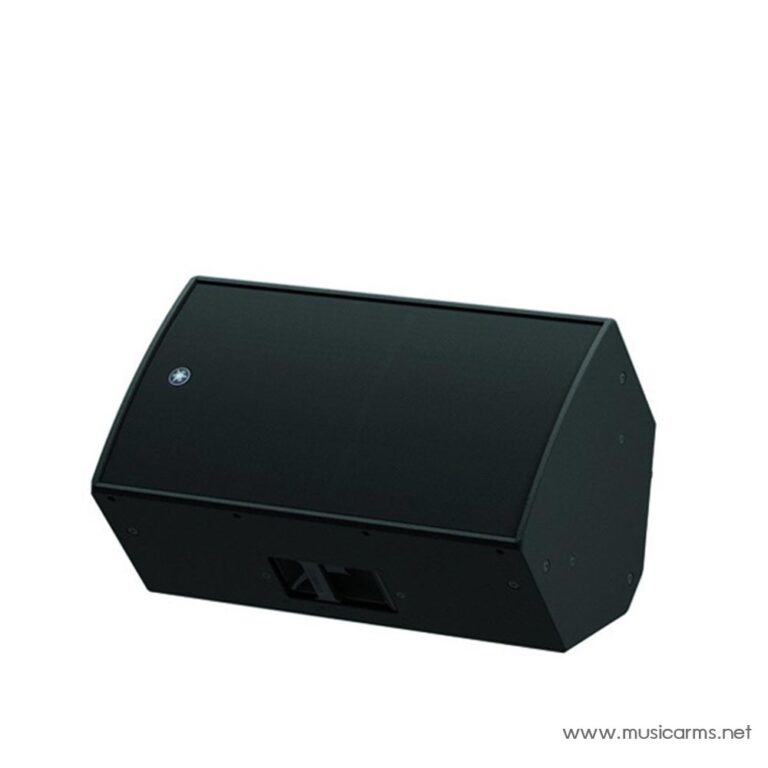

Another innovative feature of the DZR speaker is the built-in D-CONTOUR multi-band compressor, ensuring a consistent and clear sound at any volume level. The D-CONTOUR compressor works by measuring the output of the frequency bands, then applying the optimum EQ adjustment settings, ensuring clear and clean sound even at high output levels. D-CONTOUR provides you with two settings: FOH/MAIN or MONITOR mode, allowing for detailed tuning of your PA system. The FOH/MAIN mode helps to raise lower frequencies and compensate for low-end that can be missing when speakers are used on a monitor stand or suspended. The MONTIOR mode is designed for floor monitoring applications, optimising your frequency response to match various settings.

Active full-range / Multifunction speaker

• Speaker: 15″ and 1.75″ neodymium components
• Horn: 90 x 60°
• 2-Way bi-amped 1100 watt class-D power amplifiers (950 W LF + 150 W RF)
• Frequency response: 49-20,000 Hz
• Maximum SPL (sound pressure level): 134 dB
• XLR and jack inputs / outputs
• Black ABS plastic housing with 3 x M10 x 18 rigging points
• Stand flange mount: 35 mm
• Continuous speaker grille
• Dimensions: 445 x 700 x 380 mm
• Weight: 21.8 kg
• Colour: Black
