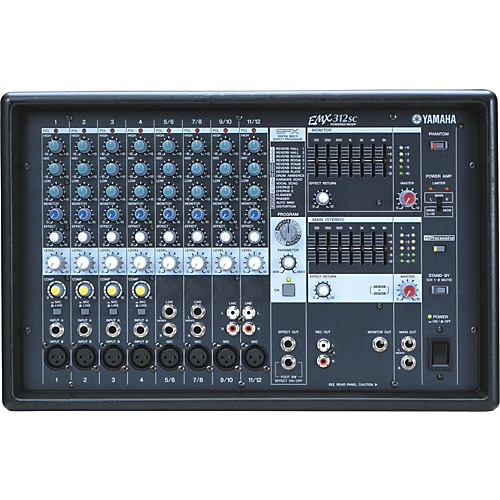

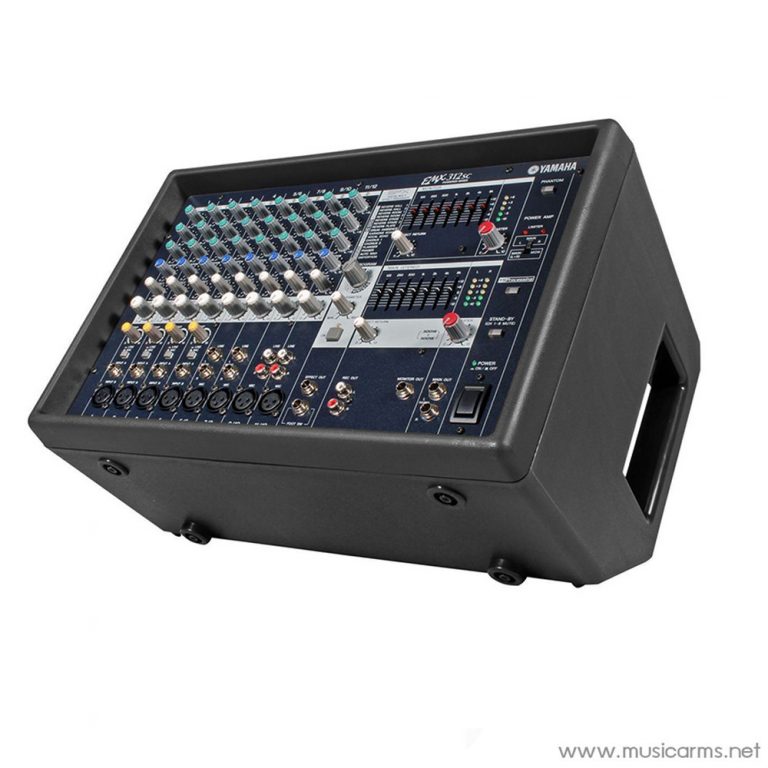

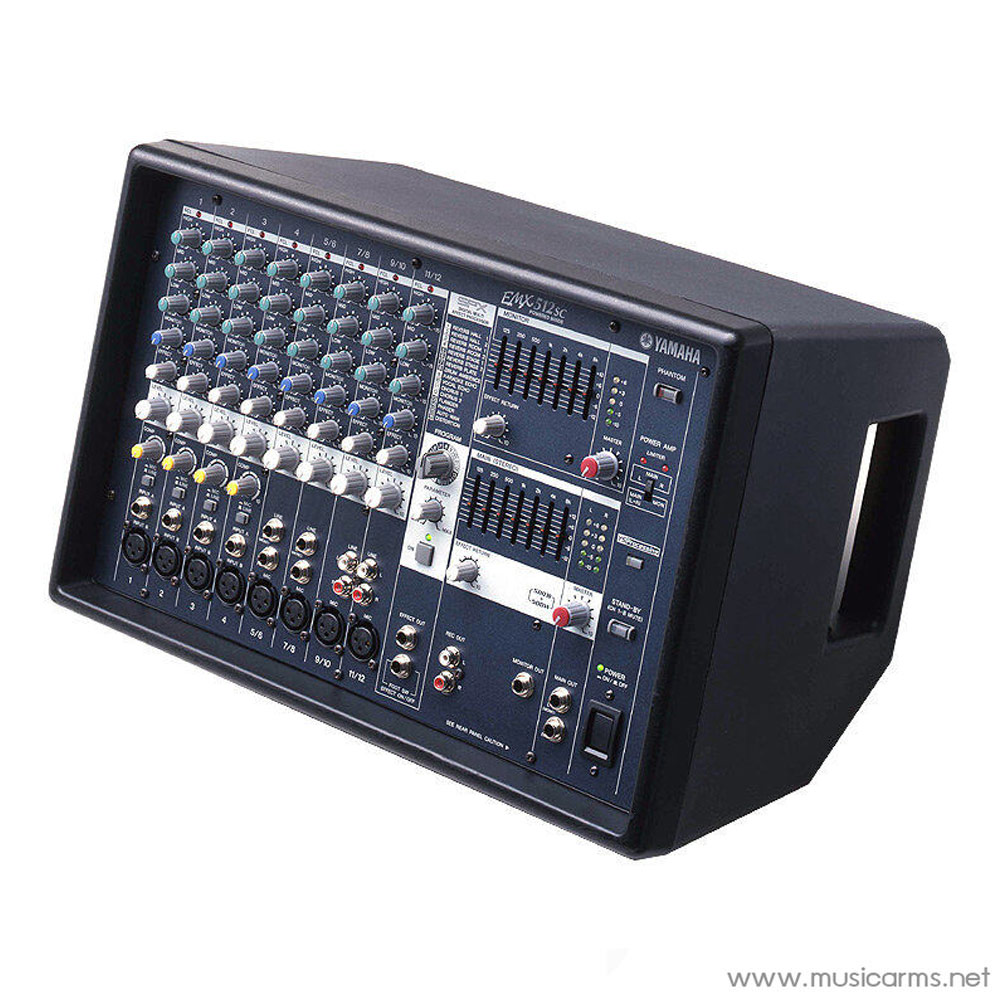

พาวเวอร์มิกเซอร์ Yamaha รุ่น EMX312SC

Portable, convenient, and packed with power and effects!

The durable, lightweight Yamaha EMX312SC 12-Channel Powered Mixer has dual 300W amps, 16 Yamaha SPX effects, built-in graphic EQs, and loads of input options.

Flexible power
The power mode switch lets you use the dual power channels as a stereo amplifier or use one channel for the main speakers and one for the monitors, with separate monitor mix setup via the channel Monitor controls.

SPX digital effects
16 Yamaha SPX effects–including reverb, echo, chorus, flanger, phaser, and even distortion–let you add the finishing touches to your live presentation.

Graphic EQs
Graphic equalizers are provided for both the main and monitor power channels so you can effectively control feedback or tailor the sound to match the room and program material.

Input options
The Yamaha EMX312SC offers a total of 12 input channels–4 for monaural microphone (with phantom power) or line input, plus 4 pairs that can function either as monaural mic inputs or stereo line inputs–providing a versatile mix of input capabilities for a wide range of applications. If only mic inputs are needed, you can use up to 8 mic channels. If you want to play recorded background music during breaks using a stereo input and have a keyboard player with stereo outputs, you still have 6 mic/line inputs available. If all 4 stereo pairs are used to handle stereo line sources, you still have 4 channels available for mono mic or line input. It’s a versatile system that can adapt to your needs with ease.

• Dual 300W amps
• Power mode switch allows amps to function in stereo or as separate mono channels for mains and monitors
• 16 SPX digital effects including reverb, echo, chorus, flanger, phaser, and distortion
• FCL (Feedback Channel Locator) system
• 7-band graphic EQs for main and monitor power channels: 125Hz, 250Hz, 500 Hz, 1kHz, 2kHz, 4kHz, 8 kHz, +12/-12 dB
• 3-band EQ per input channel
• 12 input channels: 4 for monaural microphone with phantom power or line input and 4 pairs that can function either as monaural mic inputs or stereo line inputs
• Single knob compression on first 4 channels
• YSP (Yamaha Speaker Processing)
• Speakon and 1/4″
• phone jack speaker output connectors
• Durable, lightweight design

รายละเอียดมิกเซอร์ Yamaha EMX312SC

• กำลังไฟ 2×300 วัตต์
• แรงต้านไฟ 4 โอห์ม
• ช่องเสียบแบบโมโน 6 ช่อง
• ช่องเสียบแบบสเตอริโอ 4 ช่อง
• อีควอไลท์เซอร์ 7 แบนด์
• มีช่องต่อลำโพง Output
• ช่องต่อเป็นขั้วแบบ XLR 4 ช่อง
• เอฟเฟคแบบ SPX 16 แบบ
• แชนแนล 1-10 มีระบบ Feedback
• แชนแนล 1-6 เป็นระบบ Compressor
• มีระบบ Compressor ตั้งค่าด้วยปุ่มเดียว
