Yamaha HS4 ลำโพงมอนิเตอร์

The HS4 continue the design philosophy and know-how of previous Yamaha studio monitors. No effort has been spared in the pursuit of the optimal product, and the resulting speakers comprise carefully selecting parts such as a high-performance class-D amp, a highly resilient MDF cabinet, and woofers and soft dome tweeters that deliver a sound that is faithful to the source despite their small size. They also feature proprietary “Twisted Flare Port” technology that reduces air turbulence noise in the bass reflex port, providing clear and accurate bass.

Key Features:

• Tailored to your environment:

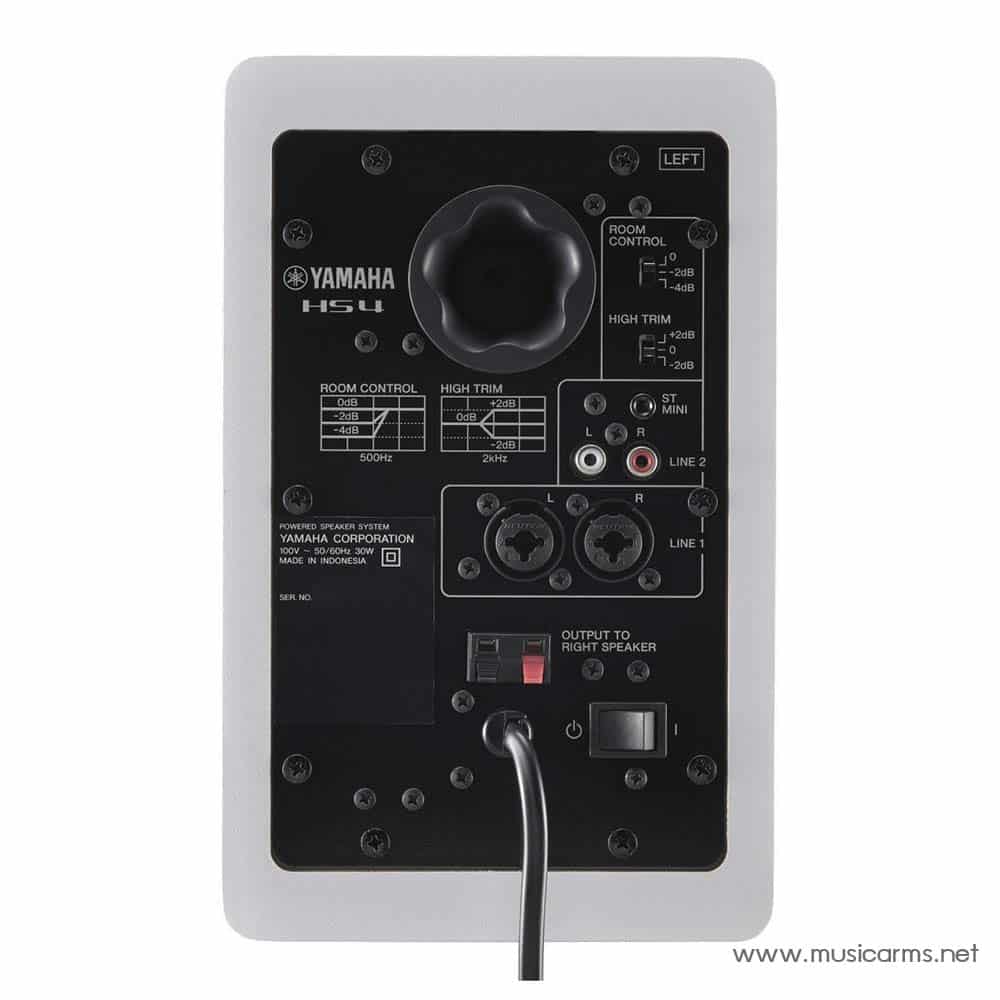

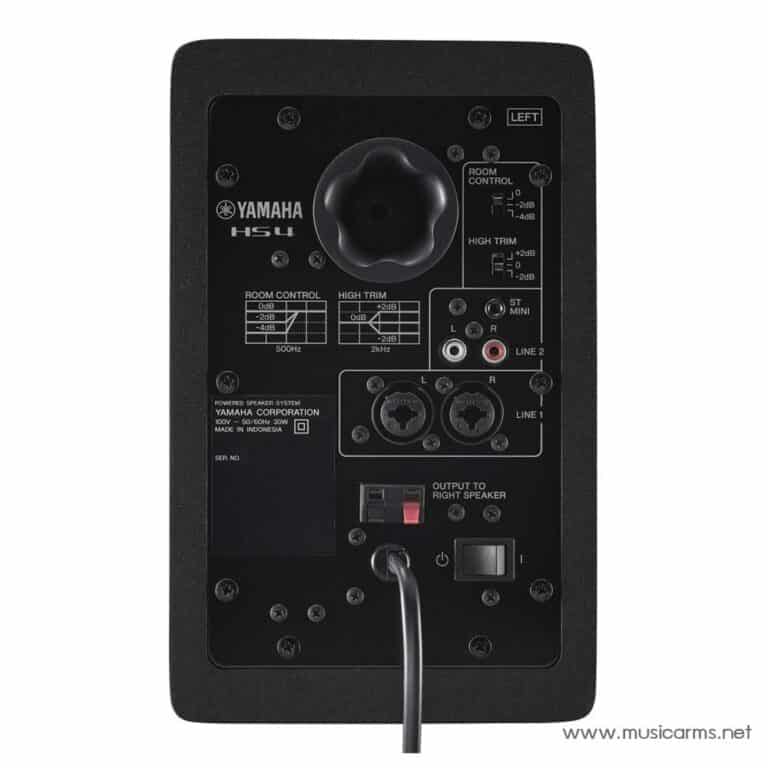

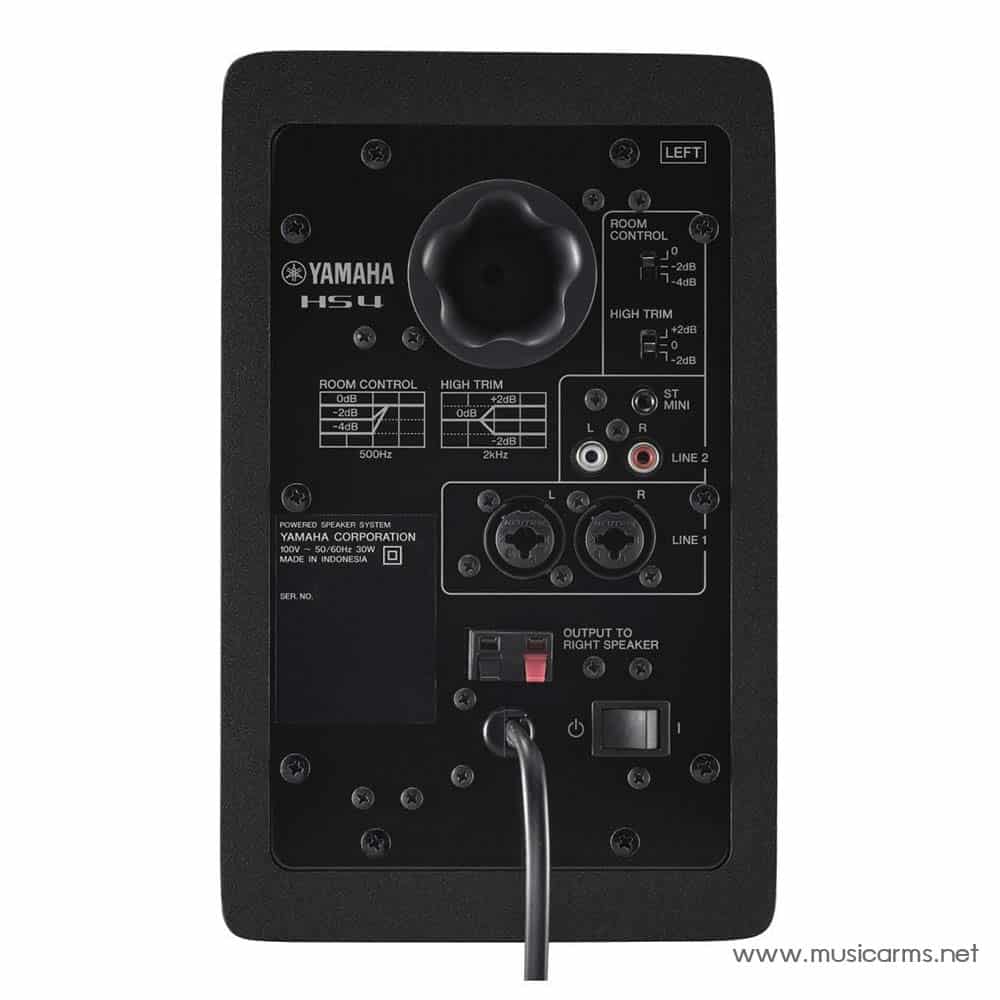

  The sound produced by speakers is sometimes affected by the surrounding environment. The rear panels of the HS4 are equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.
• Inputs and controls to fit any use case:

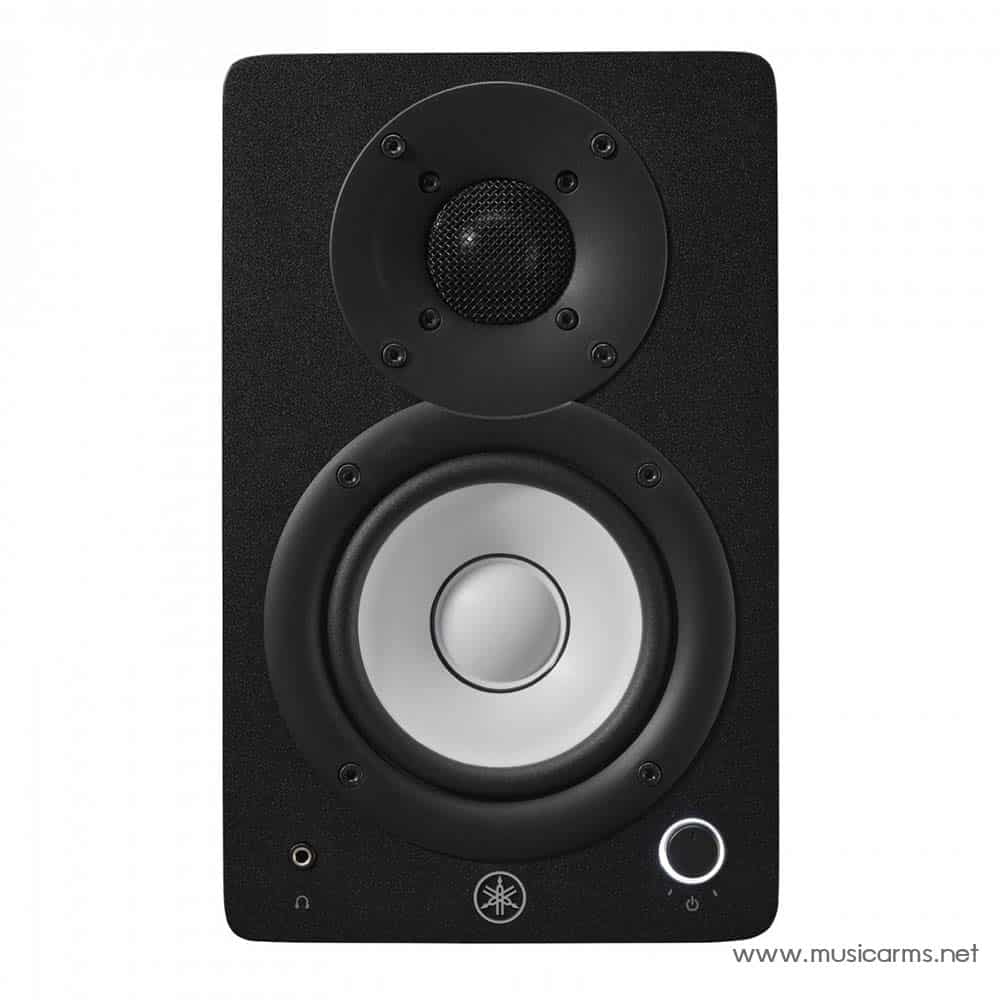

  The rear panel of the HS4 is equipped with combination XLR/TRS phone, RCA, and stereo mini jacks, allowing you to connect to a wide range of professional and consumer equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most used feature, power button, volume knob, and headphone jacks, are located in the front for easy access.
• Compact and Portable:
  The compact size of the HS4 was made possible thanks to the highly efficient class-D amp. Using one amp for two speakers has enabled us to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.

• Sound:
  – Frequency Response: 83hz – 20Hz
  – Crossover Frequency: 2.3kHz
  – Maximum Output Level 102dB SPL
• Connections:
  – Left Side Input: 2x Combo XLR 1/4″ TRS, 2x RCA, 1x Stereo TRS 3.5mm
  – Right Side Input: Speaker Input
  – Output: Headphone + Speaker output (Left side only)
• Speaker Section: Bass-reflex type, Material: MDF
  – Enclosure: HF: 0.75″ Dome + LF: 3.5″ Cone
  – Speaker Components: 6 ohms
• Power:
  – Power Requirements: 100-240 V, 50/60 Hz
  – Power Consumption: 15W
• Dimensions:
  – Left Side Size: 150×240×213 mm (5.9″ x 9.4″ x 8.4″
  – Right Side Size: 150×240×203 mm (5.9″ x 9.4″ x 8.0″)
  – Left Side Weight: 3.7 kg (8.2 lbs)
  – Right Side Weight: 3.1 kg (6.8 lbs)

รายละเอียด Yamaha HS4

• การตอบสนองความถี่: 83 Hz – 20 kHz
• ความถี่ครอสโอเวอร์: 2.3 kHz
• ระดับเอาต์พุตสูงสุด 102 dB SPL
• อินพุตด้านซ้าย: 2x Combo XLR 1/4″ TRS, 2x RCA, 1x สเตอริโอ TRS 3.5 มม.
• อินพุตด้านขวา: อินพุตลำโพง
• เอาต์พุตหูฟัง + ลำโพง (ด้านซ้ายเท่านั้น)
• ลำโพงชนิดสะท้อนเสียงเบส, วัสดุ: MDF
• ลำโพง HF: โดม 1″ + LF: กรวย 4.5″
• กำลังขับ 26 วัตต์ + 26 วัตต์ (ไดนามิก RL=6 Ω)
• ความต้องการพลังงานไฟฟ้า: 100-240 V, 50/60 เฮิรตซ์
• การใช้พลังงาน: 15W
• ขนาดด้านซ้าย: 150×240×213 มม. (5.9″ x 9.4″ x 8.4″)
• ขนาดด้านขวา: 150×240×203 มม. (5.9″ x 9.4″ x 8.0″)
• น้ำหนักด้านซ้าย: 3.7 กก. (8.2 ปอนด์)
• น้ำหนักด้านขวา: 3.1 กก. (6.8 ปอนด์)
