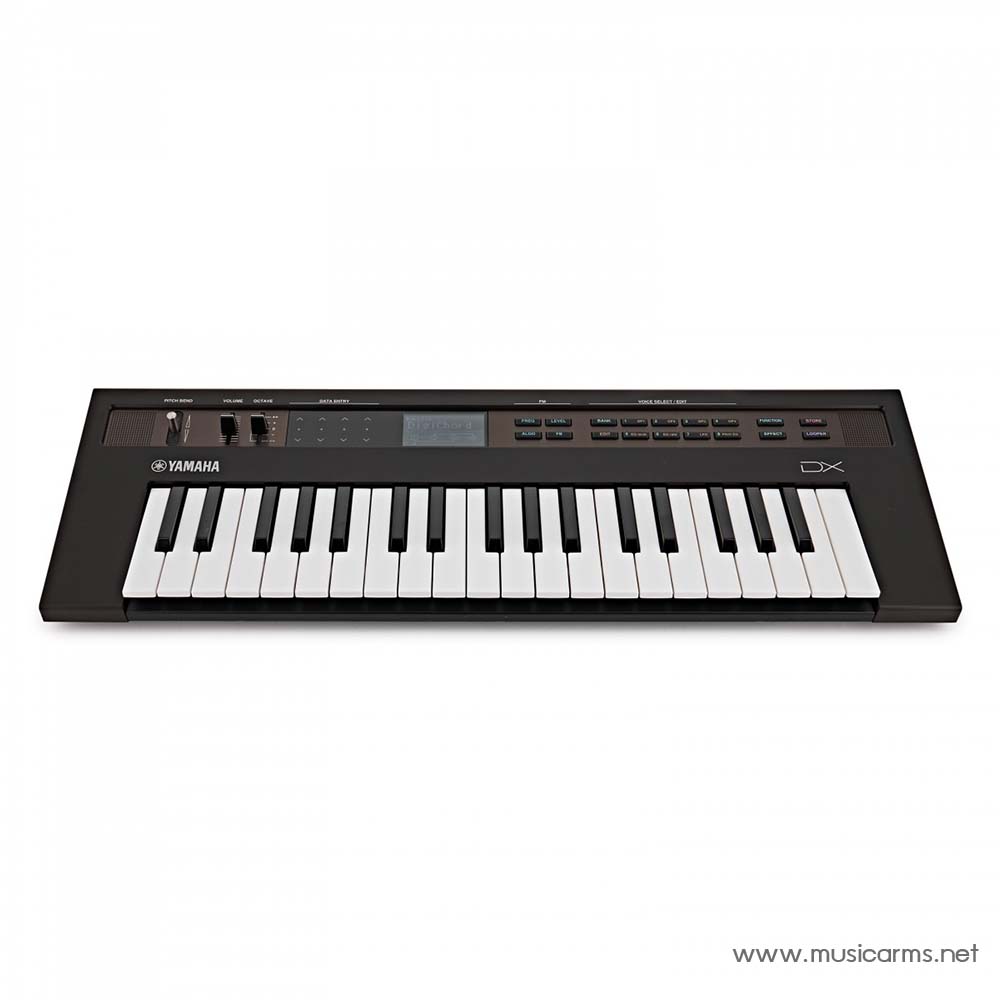

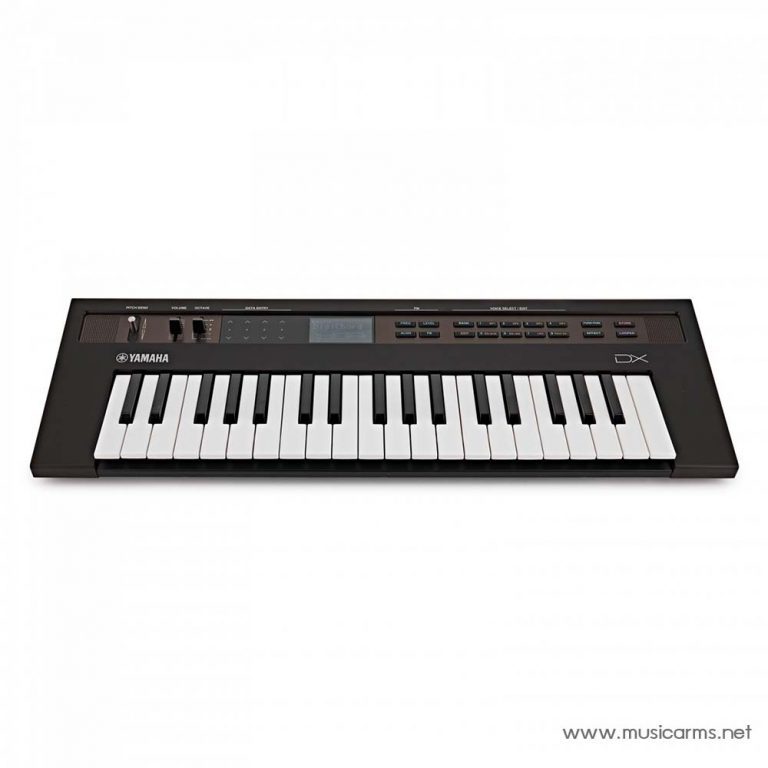

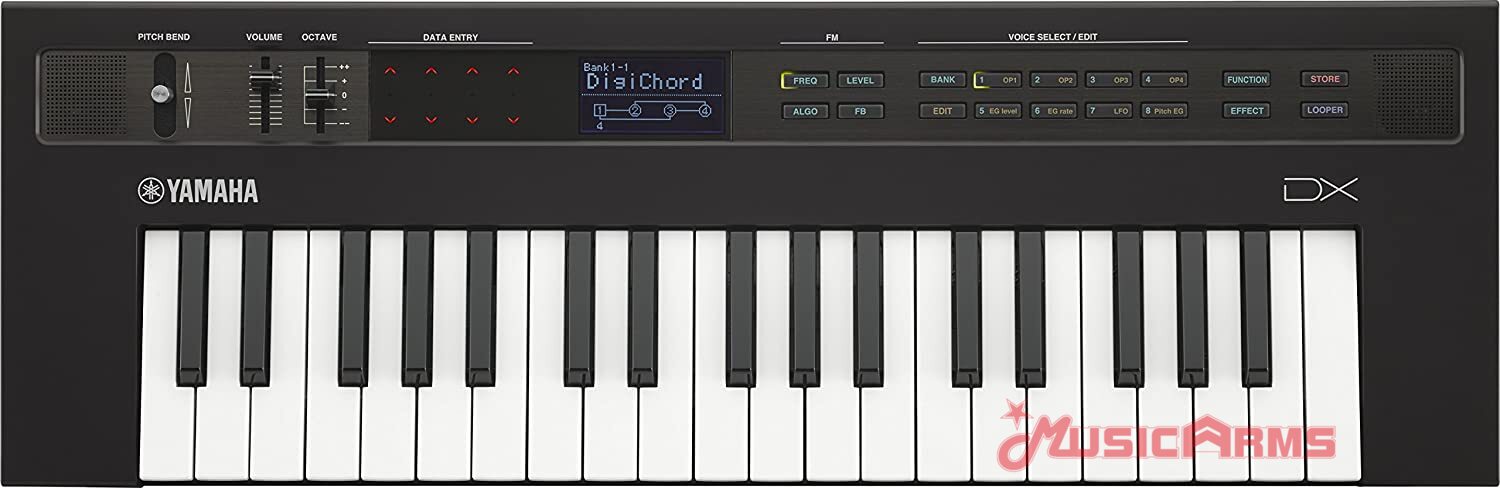

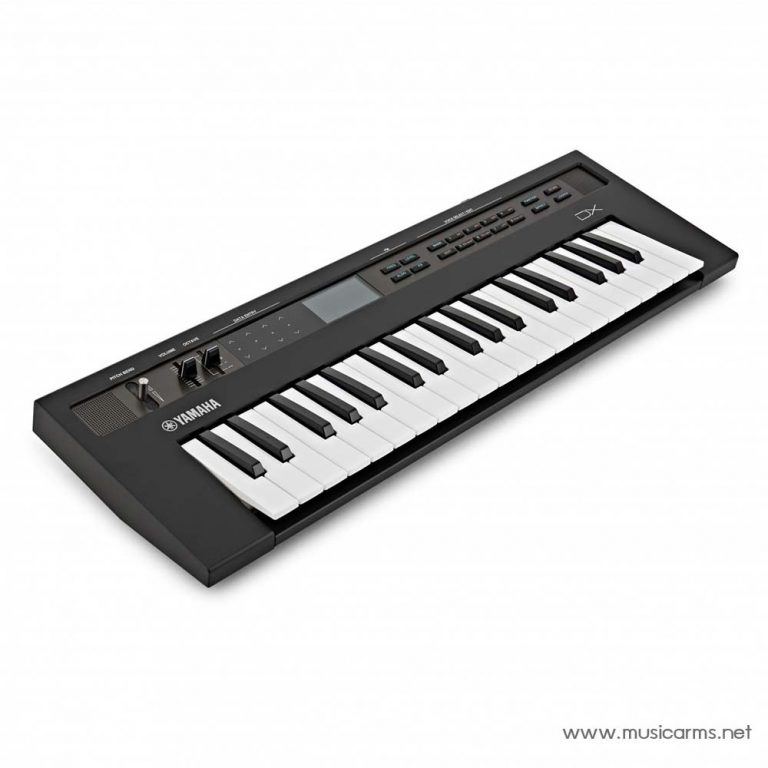

Yamaha Reface DX Synthesizer

The Classic FM Synth Reincarnated

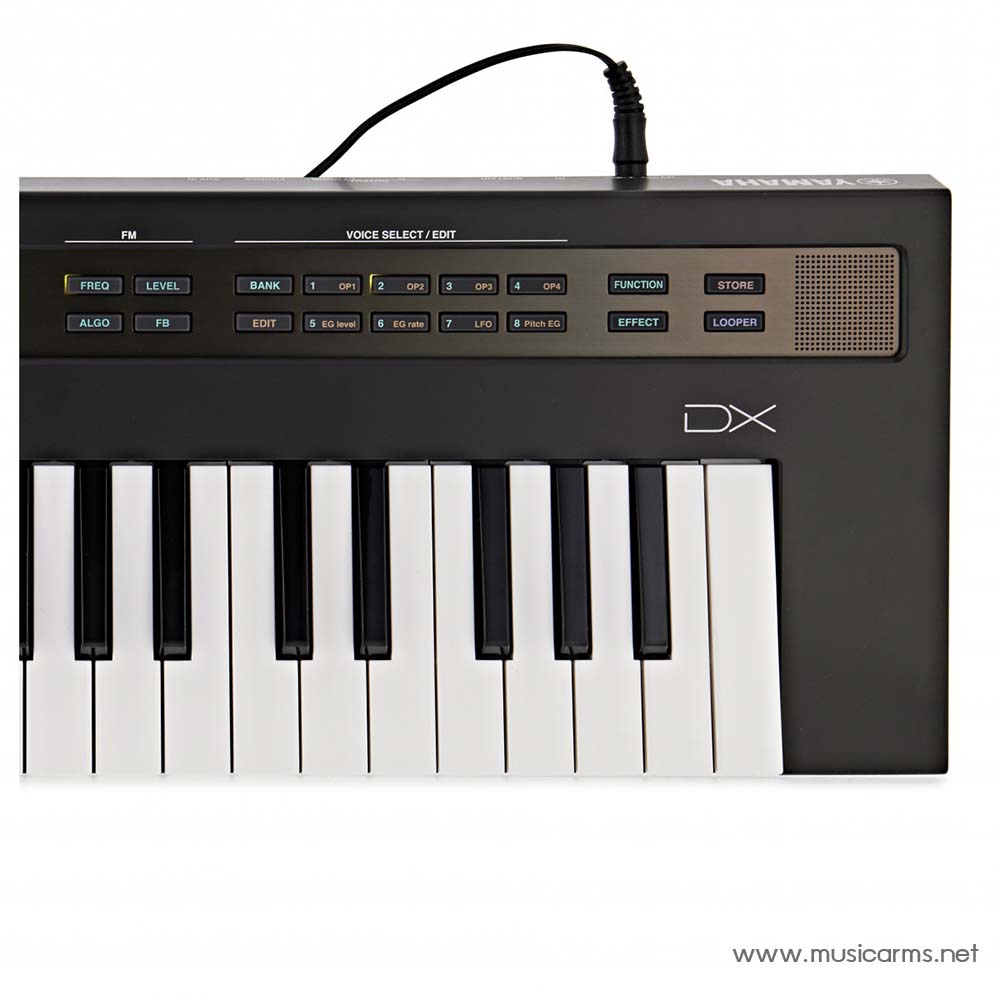

The DX7 defined the synth sound in the ’80s. The Yamaha Reface DX mobile mini keyboard puts the iconic sound of a 4-operator FM synth right in your hands, along with a host of modern features like onboard multi-effects and straightforward editing. Manipulating parameters is a breeze, thanks to the Reface DX’s multi-touch control surface, and storing your patches is just as easy. Whether you want classic electric pianos and bells or modern dubstep and EDM sounds, the Reface DX has got you covered. On top of that, you get an onboard phrase looper for capturing song ideas or creating “sound on sound” overdubs. The synth nuts at Sweetwater are really excited about the Yamaha Reface DX mobile mini keyboard!

Yamaha Reface DX Mobile Mini Keyboard Features at a Glance:

• 4-operator FM Sound Engine offers dynamic and expressive additive synthesis
• Onboard multi-effects for adding depth to your sound
• 32 memory locations let you store and recall your patches
• Phrase looper lets you capture song ideas or create “sound on sound” overdubs
• HQ mini keyboard allows fast, natural performance with premium feel and response
• Sustain pedal input allows the sustain function for all FM generated sounds
• Stereo speaker system lets you take your sounds anywhere
• Specially designed bass reflex port technology enhances bass response for full, rich sound
• Can operate on 6 AA batteries for up to 5 hours for true portability
• USB To Host port allows MIDI connectivity to your USB-equipped computer or iOS device
• An aux line input lets you play along with mobile devices, tablets, and more
• Dual line outputs provide connection to mixers, audio interfaces, DI boxes, and more

Tech Specs

• Sound Engine: FM tone generation
• Number of Keys: 37
• Type of Keys: Mini synth keys with initial touch

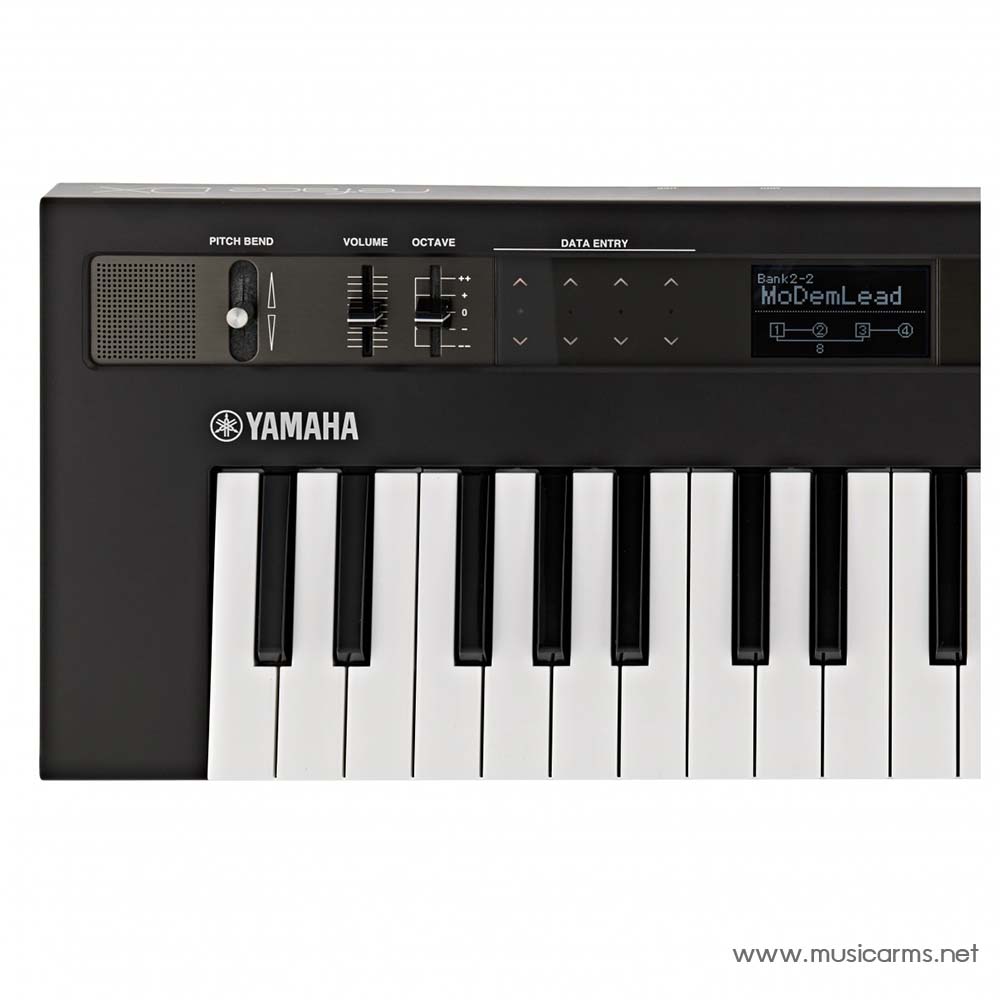

• Other Controllers: Pitchbend
• Polyphony: 8-note
• Number of Presets: 32 voice memories
• Effects Types: VCM Touch Wah, VCM Flanger, VCM Phaser, Chorus, Delay, Reverb, Distortion
• Sampling: Phrase looper

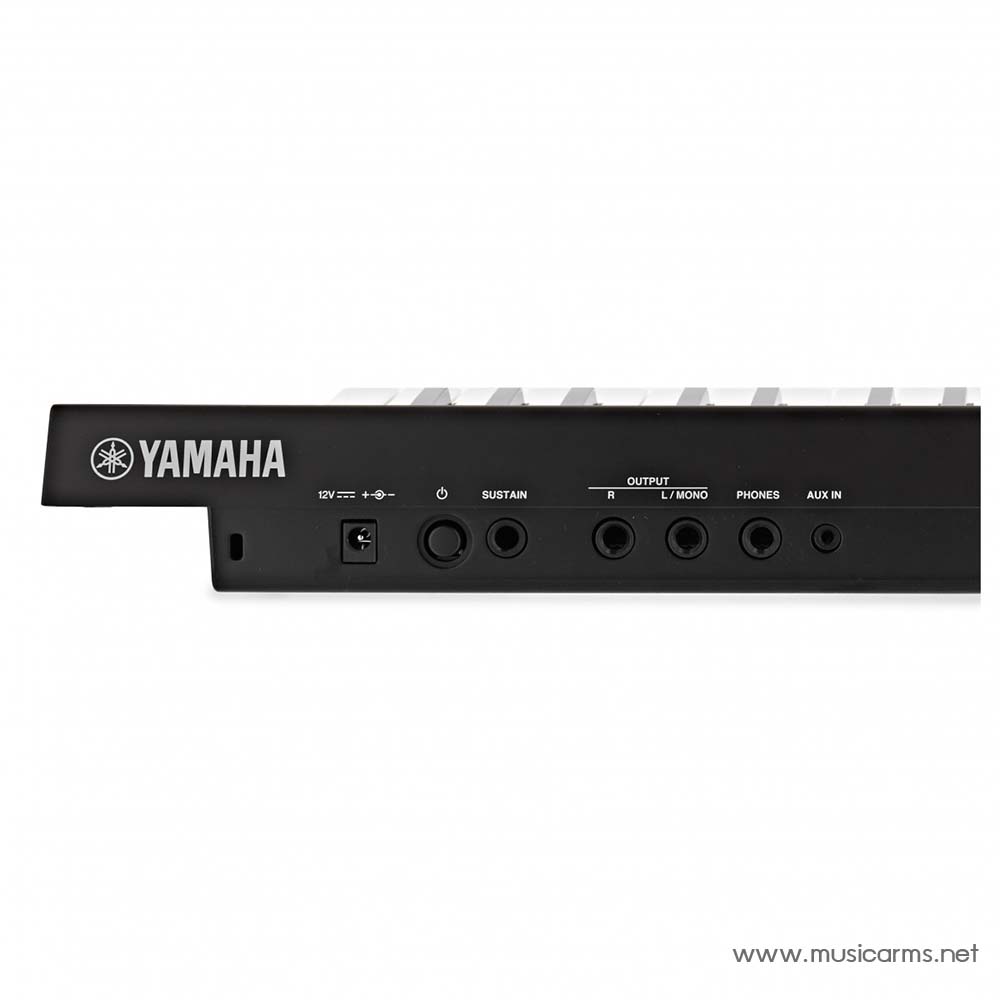

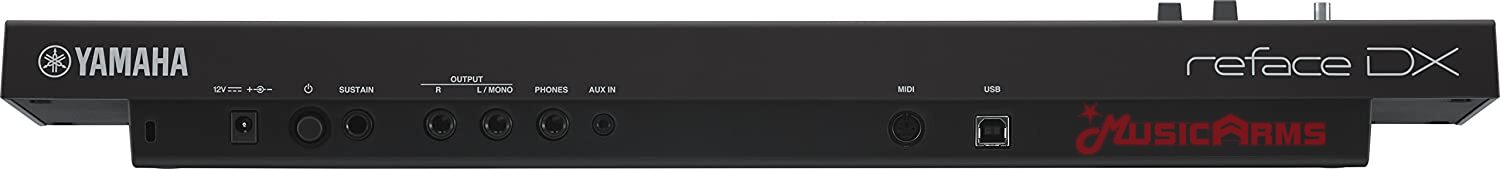

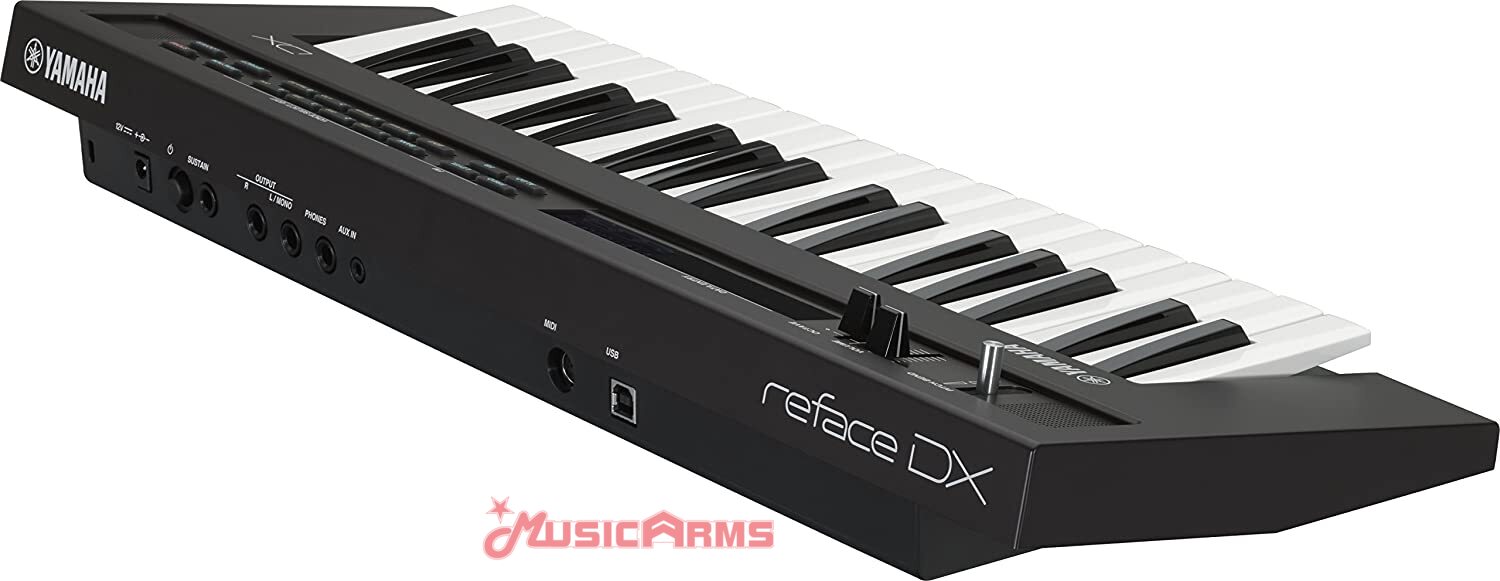

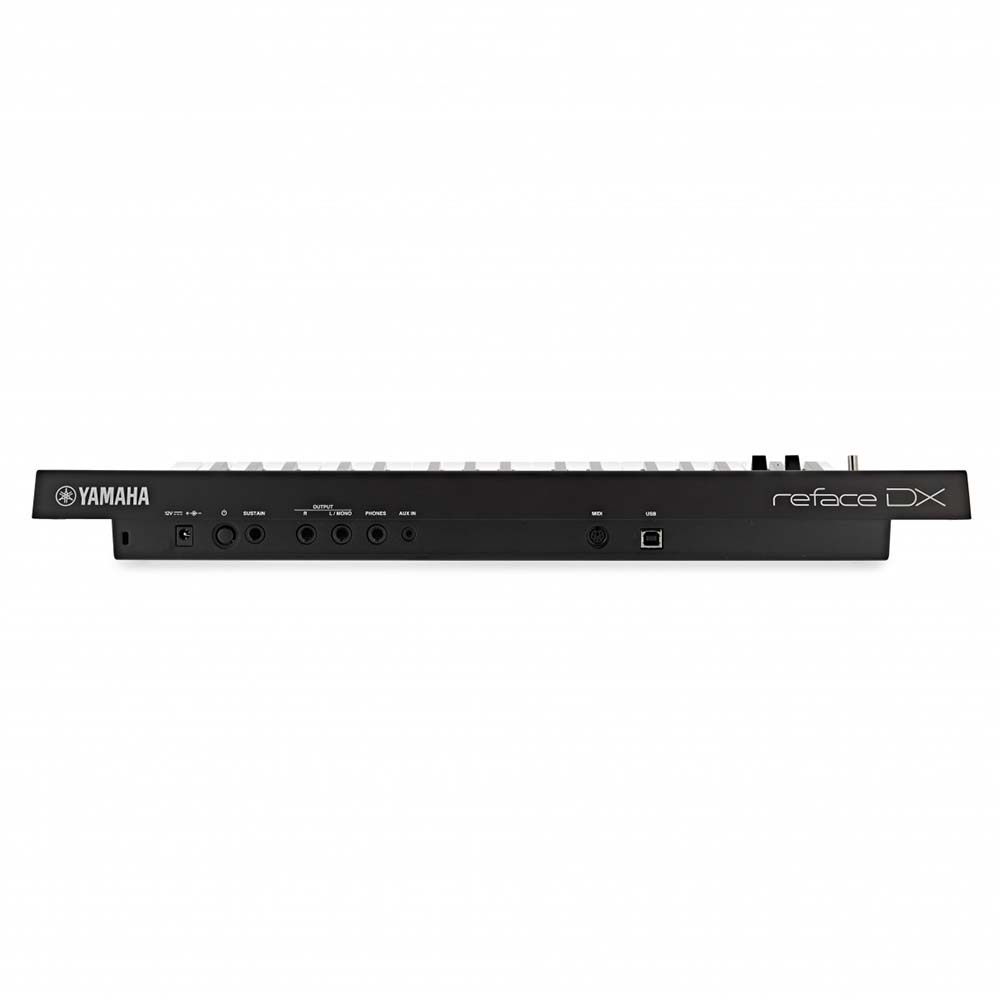

• Audio Inputs: 1 x 1/8″ (aux in)
• Audio Outputs: 2 x 1/4″ (left, right)
• Headphones: 1 x 1/4″
• USB: 1 x USB Type B
• MIDI I/O: 1 x MIDI jack with breakout cable
• Pedal Inputs: 1 x 1/4″ (sustain)
• Power Source: 12V DC power supply or 6 x AA batteries (5 hour life span)
• Height: 2.37″
• Width: 20.87″
• Depth: 6.87″
• Weight: 4 lbs. 3 oz.
• Manufacturer Part Number: REFACE DX

รายละเอียด Yamaha Reface DX

• ระบบเสียง FM tone generation
• 37 คีย์ แบบ Mini synth
• มีวงล้อ Pitchbend
• โพลีโฟนี 8 โน้ต
• Preset 32 เสียง
• เอฟเฟคในตัว VCM Touch Wah, VCM Flanger, VCM Phaser, Chorus, Delay, Reverb, Distortion
• Loop Sampling ได้
• ช่องต่อ Audio แบบ Aux in TRS แบบ 1/8 นิ้ว
• Output แบบ 1/4 นิ้ว 2 ช่อง (ซ้าย/ขวา)
• ช่องต่อ หูฟังแบบ 1/4 นิ้ว
• USB แบบ B
• มี MIDI
• ช่องต่อแป้นเหยียบแบบ 1/4 นิ้ว แบบ sustain
• แหล่งจ่ายไฟ 12V DC หรือแบตเตอรี่ AA 6 ก้อน
