Yamaha ZG01

ยี่ห้อ : Yamaha
รุ่น :  Yamaha ZG01 ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 11,000 บาท

การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ Yamaha ZG01ผ่านline สั่งซื้อ Yamaha ZG01ผ่าน messenger


YouTube video

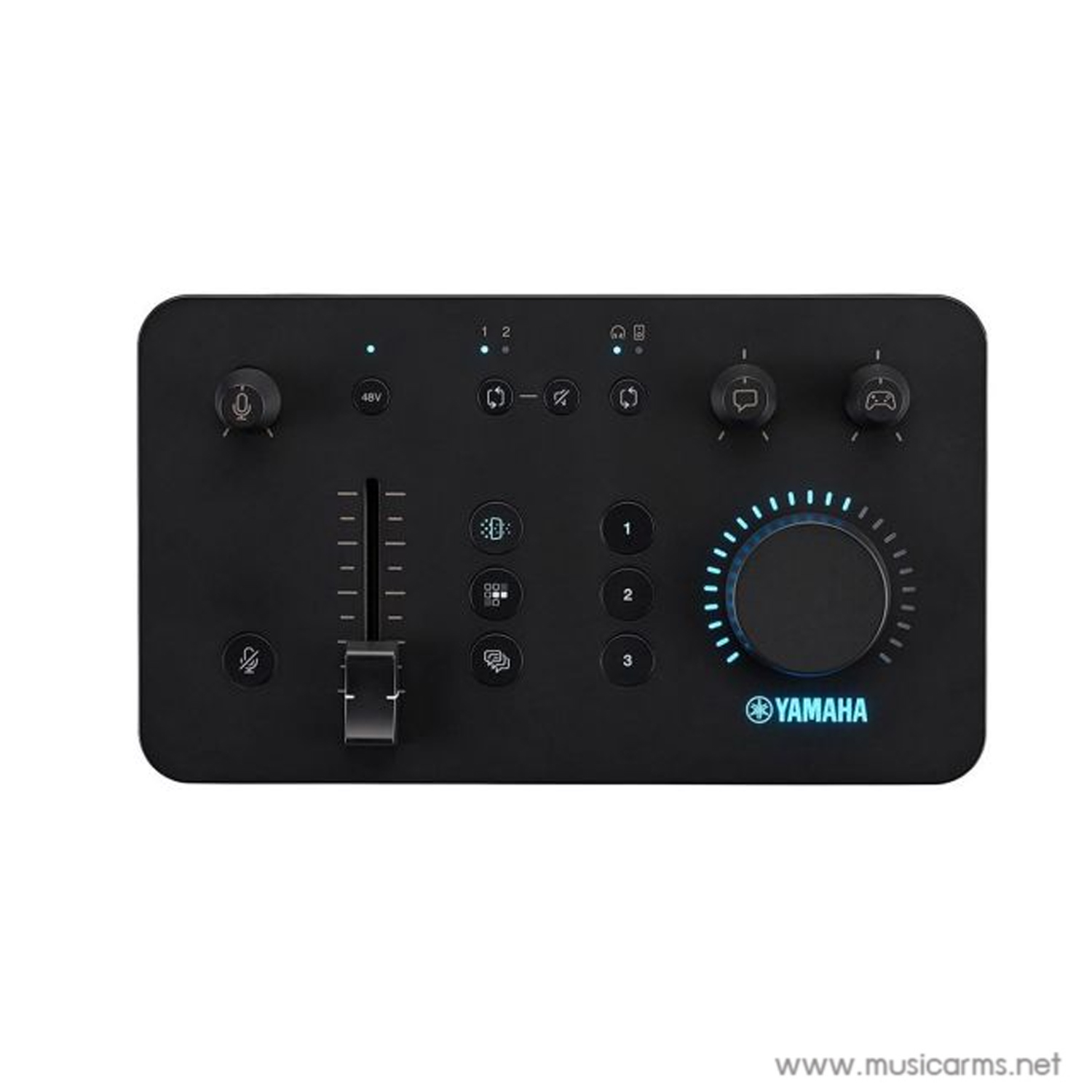

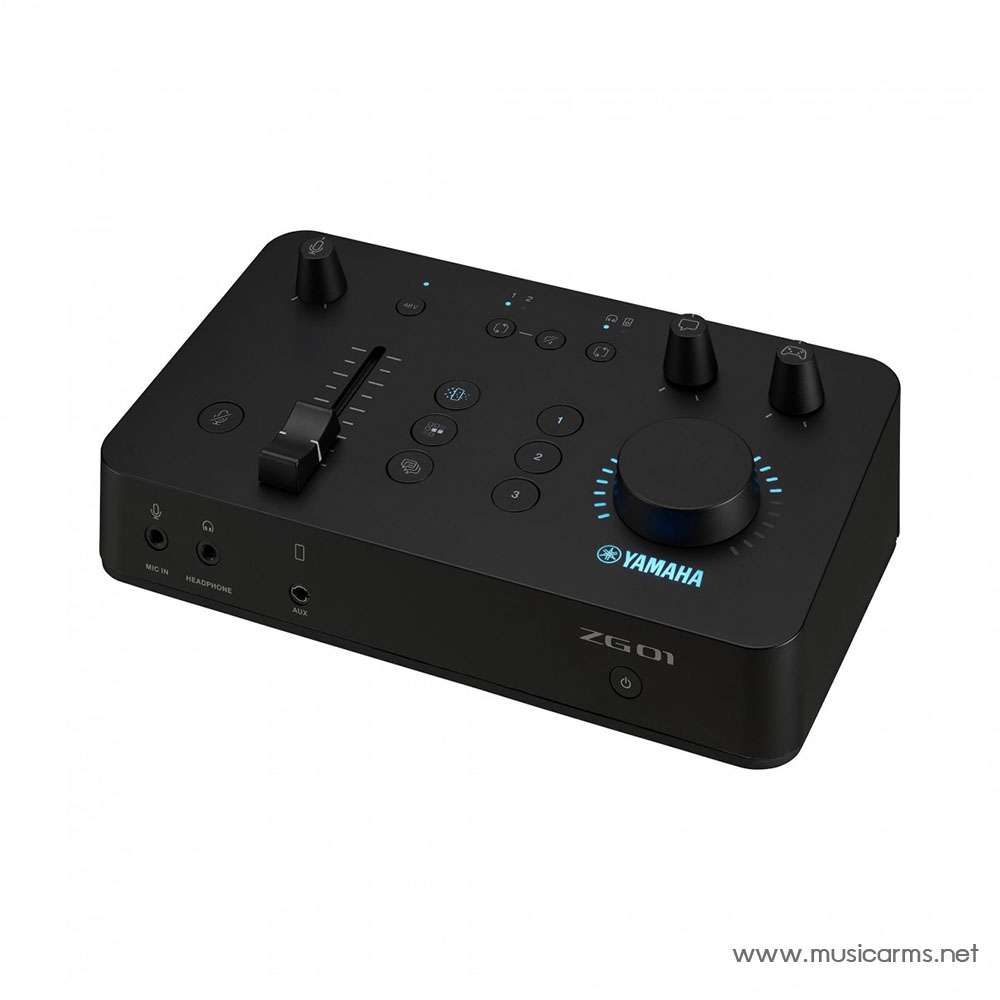

Simple, direct control

The ZG01 gives you everything you need for excellent sound on its front panel. Gain and volume controls over your own microphone or headset, level balancing for your game audio and voice chat, and the overall volume of your stream are all the twist of a dial away. Get the perfect balance for your streams or for casual gaming sessions with your friends.

Immersive sound for you and your audience

This mixer uses Yamaha’s new “ViReal™” technology, giving you wide and detailed stereo field for your in-game sound directly through your headphones. Then, Focus mode and EQ allows you to bring out every nuance of your game’s sound. Whether you need to hear the opponent’s footsteps or want to enhance a level’s ambient sound, you can do this all from your phone.

You to control the depth of field and atmospheric reverb of your voice chat too, placing your party in a virtual space defined by you. This helps your game audio and voice chat come through clearly without clashing, and makes it feel as if you and your friends are in the same room. You can send all of this to your audience, and as long as they have stereo speakers or headphones, they’ll hear all the atmospheric richness too.

Convenient connectivity

We all know that cable management can be an absolute nightmare. That’s why the ZG01 keeps it simple and easy. Everything goes into one device, giving you complete control.

By default, the ZG01 appears as two devices on your main PC or Mac, letting you send and receive two copies of each signal. This allows increased flexibility for sending audio or video to multiple software packages. This is ideal if you like to record your streams for editing later.

The two HDMI inputs on the ZG01 allow you to switch between two consoles at once, or to sum both of their outputs to your main gaming monitor. And need a capture card for recording your gameplay? No problem. Simply connect it before getting to the ZG01 and you have a recorded backup ready for later. Plus, control and edit volume and effects settings from the included ZG Controller software to customise EQ for certain games or styles, immersive voice chat, and your own vocal effects.


A game streaming audio mixer that provides a highly immersive gaming experience.

  • Intuitive volume control designed for gamer and game streamer
  • High resolution (24-bit, 48 kHz) USB audio recording and playback
  • Flexible volume control with dedicated drivers that are recognized by Windows/Mac as virtual multiple devices
  • ZG Sound Processing (ZG SURROUND, FOCUS MODE/EQ, 3D CHAT SPACE, Voice changer, Transceiver/Radio voice effect… and more)
  • Effect button x 6 (3 for voice chat effects, 3 for game sound effects)

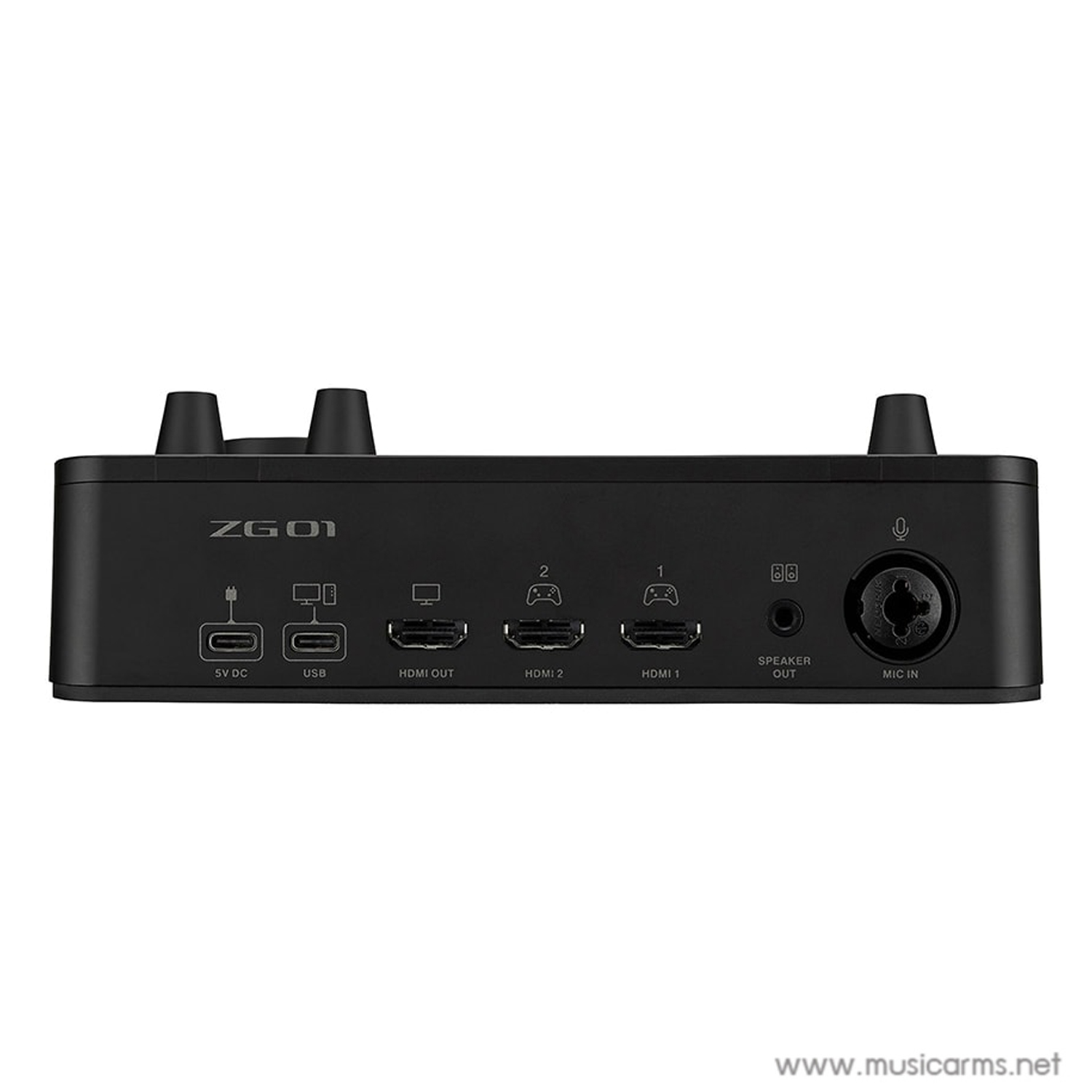

  • HDMI connection port x 3 (2-in/1-out, Audio out: 2ch 24-bit/48 kHz fixed, Video signal: Pass-through)
  • MIC input for condenser mics with +48 phantom power and mute button

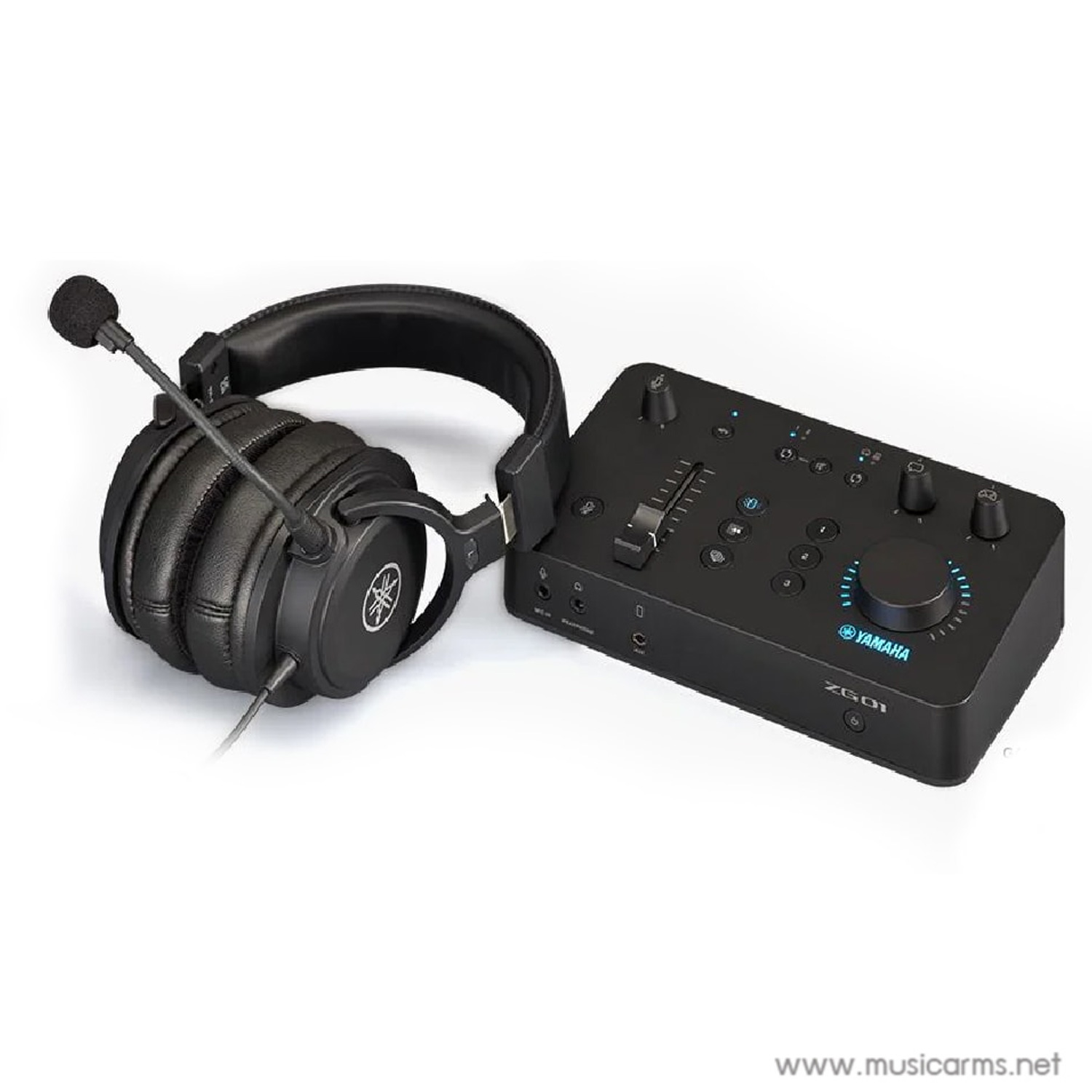

  • Independent inputs and outputs for headset/ microphone with headphones or desktop speakers
  • 4-pole mini input/output (TRRS) for smartphones
  • ZG Controller (Windows/Mac) for precise parameter control
  • Windows/Mac support by USB-C connection
  • iOS and Android supported by 4-pole mini input/output (TRRS)
  • USB-C Power input (5 V DC, 1.5 A)
