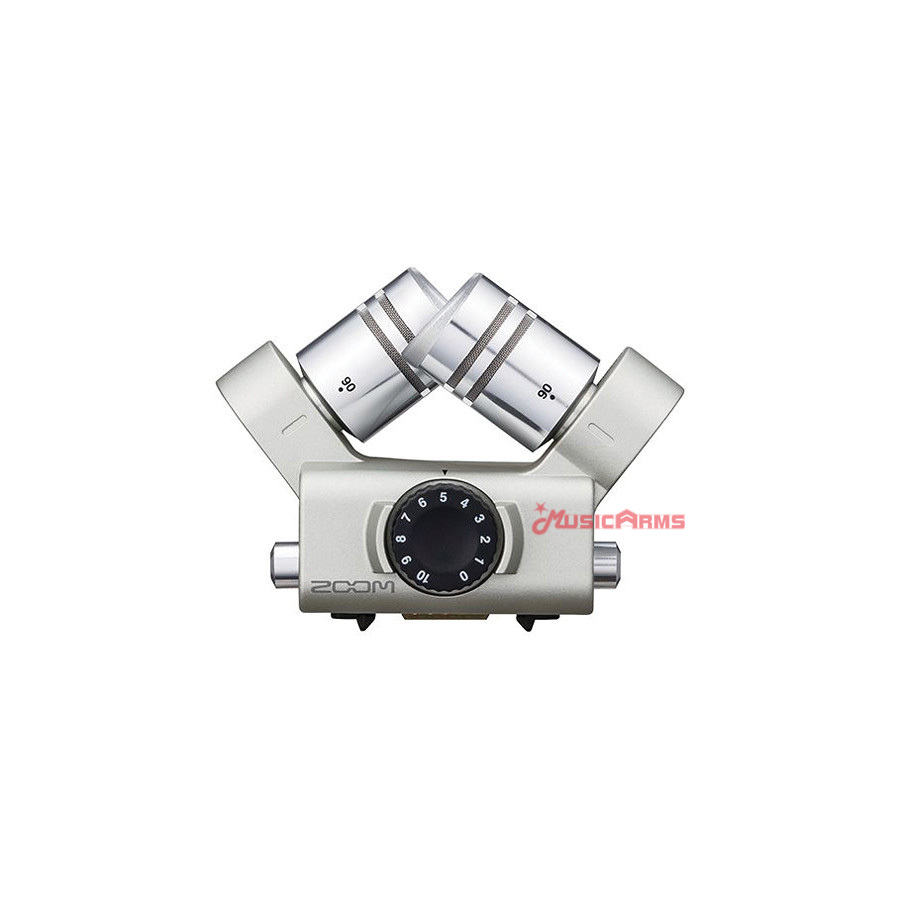

Zoom XYH-6 X/Y Microphone Capsule

Versatile X-Y Stereo

The Zoom XYH-6 Shockmounted XY capsule (included with the H6 Handy Recorder), uses a pair of cardioid condenser capsules to give you a broad range of XY stereo sound. In 90-degree mode, the X-Y field captures a focused stereo that’s ideal for distance miking. When you rotate the capsules into 120-degree mode, the XYH-6 provides you with a much broader spread that’s perfect for capturing wider ambience, which makes it particularly useful for close miking. Take it from Sweetwater – if you’ve invested in a compatible Handy Recorder, it makes sense to take full advantage of the versatility offered by interchangeable mic capsules. The Zoom XYH-6 lets you do just that!

Zoom XYH-6 Shockmounted XY Capsule Features at a Glance:

• Compatible with H5 and H6 Handy Recorders
• Incorporates two matched unidirectional condenser mics set at a 90-degree angle
• Captures a solid stereo image across a wide range of applications
• Shockmounted to minimize vibration and handling noise
• Ideal for location videography and live broadcast/podcast applications
• 140dB max SPL for recording in high-volume situations such as rock concerts

Zoom XYH-6 Specs

• Microphone Type Unidirectional
• Sensitivity -41 dB, 1 kHz at 1 PA
• Input Gain -∞ to 46.5 dB
• Max SPL Level 136 dB SPL

Line Input

• Connector 1/8″ stereo mini jack
• Input Level -∞ to 46.5 dB
• Input Impedance 2 kΩ
• Plug-in power 2.5 V supported

General

• Dimensions Not specified by the manufacturer
• Weight Not specified by the manufacturer

Packaging Info

• Package Weight 0.515 lb
• Box Dimensions (LxWxH) 4.2 x 3.85 x 3.6″
