Electro-Harmonix Battalion Nano เอฟเฟคเบส

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Electro-Harmonix
รุ่น :  Electro-Harmonix Battalion Nano เอฟเฟคเบส Bass Effect
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 4,500 บาท

5,000 บาท ประหยัด10%
การชำระเงิน : จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ Electro-Harmonix Battalion Nano เอฟเฟคเบสผ่านline สั่งซื้อ Electro-Harmonix Battalion Nano เอฟเฟคเบสผ่าน messenger

วีดีโอ


YouTube video

Description

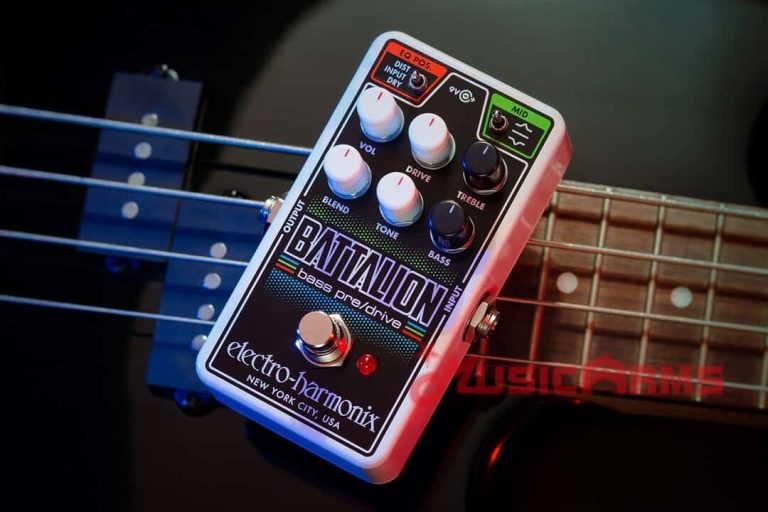

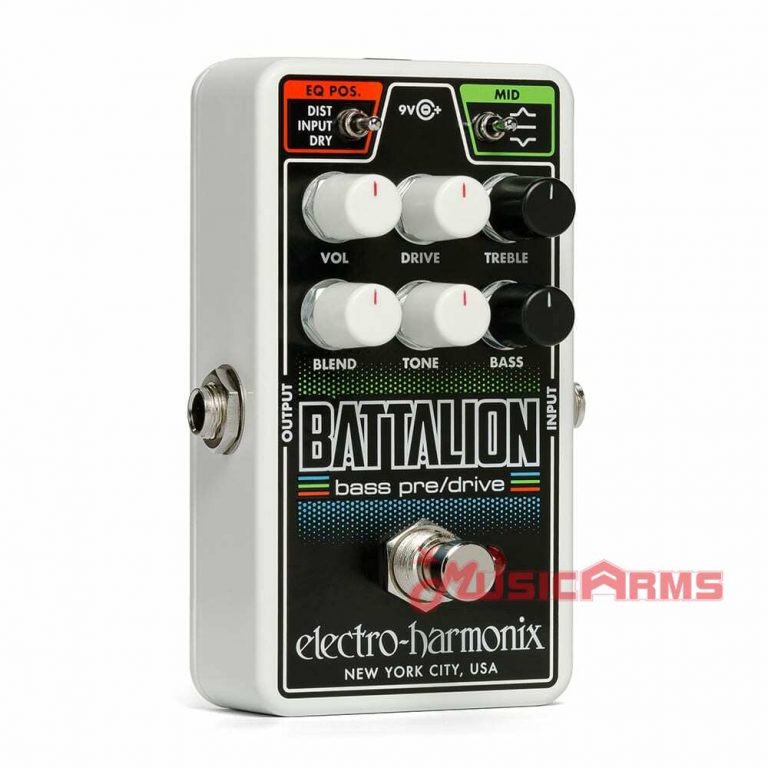

NANO BATTALION

The all-analog circuitry of the EHX Nano Battalion provides an amazing array of bass tones in a sturdy, compact package. A versatile MOSFET drive circuit that can deliver everything from subtle, light overdrive to fully saturated distortion forms the pedal’s core.

The Nano Battalion features a three-band EQ with three EQ position modes for maximum flexibility and sound shaping control. The three-band EQ includes Treble (boost/cut above 1kHz) and Bass (boost/cut below 200Hz) controls, plus a Mid switch which provides a 9dB boost or cut at 500Hz. Three signal path options determine where the EQ is applied. In Distortion Mode the EQ comes after the distorted signal and has a powerful effect on its timbre while the clean signal is not affected. In Input Mode the EQ comes first in the signal path affecting both the clean and distorted signals. Boosting frequencies in this mode can drive the distortion to a more saturated state. In Dry Mode the EQ affects the clean signal, but not the distorted signal.

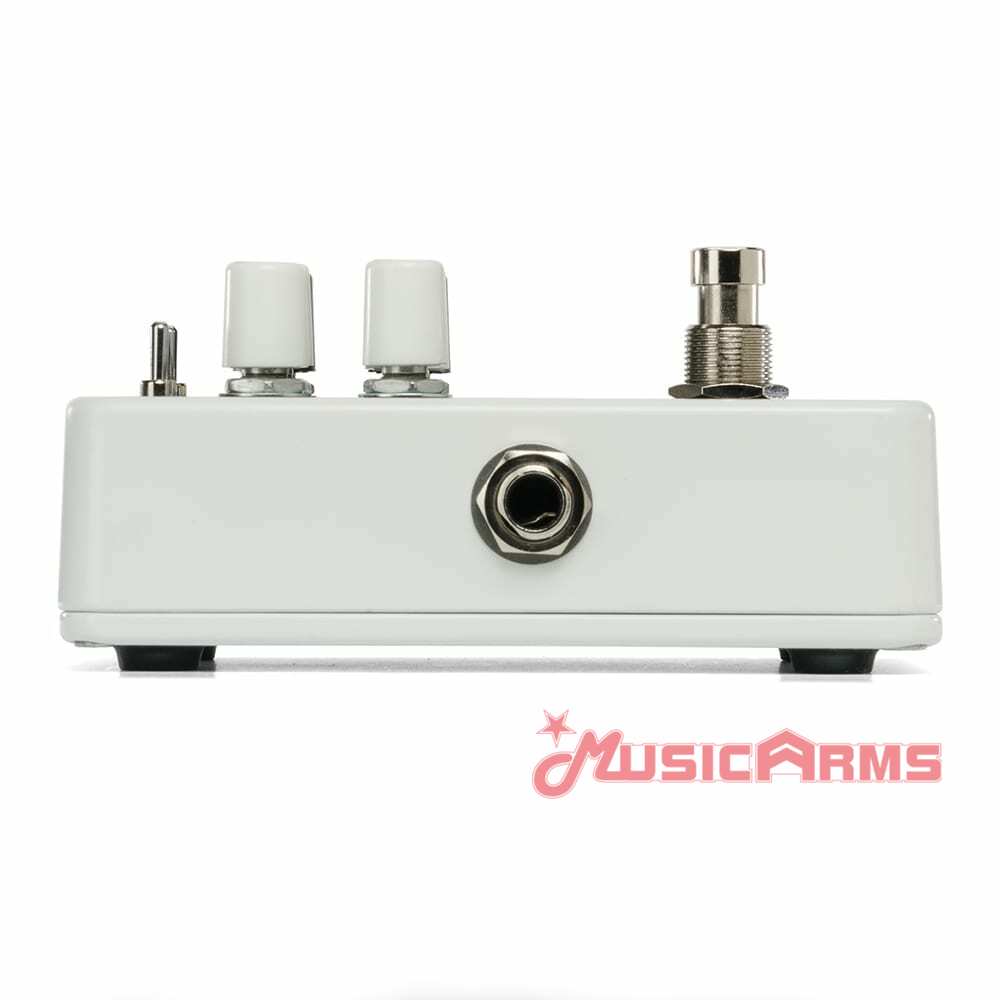

The Nano Battalion includes a ¼” input jack and ¼” output jack. When a normal TS cable is connected to the output jack it delivers an unbalanced signal. When a TRS cable is plugged into this jack, it outputs a balanced signal that can go directly into a mixing console or recording interface.

The Nano Battalion is a powerful, versatile tool for bass players.

  • All analog circuit with MOSFET drive for great tone and variation
  • Three-band EQ and three EQ position modes for maximum sound shaping control and flexibility
  • Great for active or passive, pickup-equipped basses
  • ¼ inch output provides an unbalanced output with a TS cable or a balanced signal with a TRS cable to right into a mixing console or recording interface
  • Power adapter included

Specification

SPECIFICATIONS

Circuit

Analog

Bypass

True Bypass

Audio

Mono

Power Supply

9.6VDC-200mA power adapter included

Dimensions (in)

4.5 x 2.75 x 2.1

Current Draw

45mA

Year Released

2018

UPC

683274012186

×
