เครื่องส่งสัญญาณ SHURE QLXD1=-Q12 เครื่องส่งสัญญาณไมโครโฟนไร้สาย แบบ Bodypack

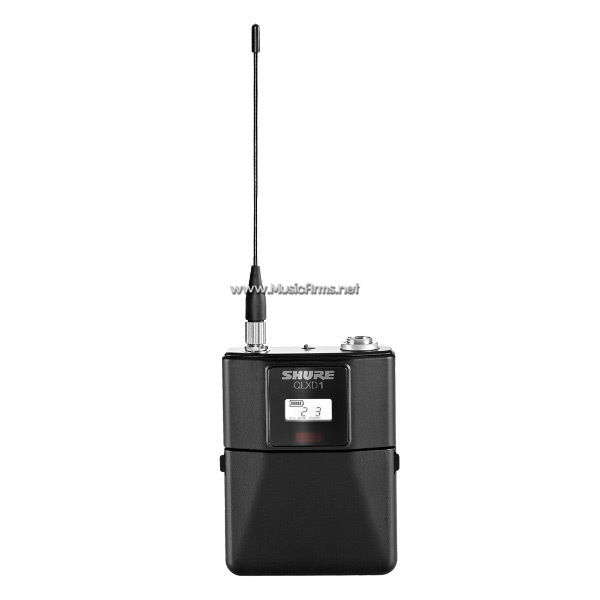

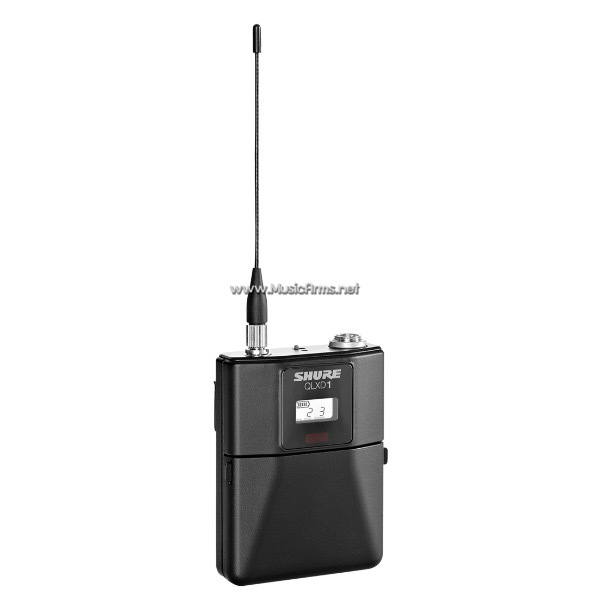

SHURE QLXD1 Wireless Bodypack Transmitter

Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues, and houses of worship.

Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues, and houses of worship.

Specification

• Mic Offset Range 0 to 21 dB (in 3 dB steps)
• Battery Type Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V
• Battery Runtime (@ 10 mW) Shure SB900A: up to 10 hours Alkaline: up to 9 hours
• Dimensions 86 × 65 × 23 mm, H × W × D
• Weight 138 g, without batteries
• Housing Cast aluminum

Audio Input

• Connector 4-pin male mini connector (TA4M)
• Configuration Unbalanced
• Impedance 1 MΩ
• Maximum Input Level (1 kHz at 1% THD) : 8.5 dBV (7.5 Vpp)
• Preamplifier Equivalent Input Noise (EIN) (System Gain Setting ≥ +20) −120 dBV, A-weighted, typical

RF Output

• Connector SMA
• Antenna Type 1/4 wave
• Impedance 50 Ω
• Occupied Bandwidth < 200 kHz
• Modulation Type Shure proprietary digital
• Power 1 mW or 10 mW
• SM35 SM35 Condenser Headset Microphone, Cardioid
• MX150/O MX150 Condenser Lavalier Microphone, Omnidirectional
• MX150/C MX150 Condenser Lavalier Microphone, Cardioid
• WL183 WL183 Condenser Lavalier Microphone, Omnidirectional
• WL184 WL184 Condenser Lavalier Microphone, Supercardioid
• WL185 WL185 Condenser Lavalier Microphone, Cardioid
• WL93 WL93 Condenser Lavalier Microphone, Omnidirectional
• WB98H WB98H/C Condenser Instrument Clip-on Mic, Cardioid
• MX153B MX153 Condenser Headset Microphone, Omnidirectional, Black
• MX153T MX153 Condenser Headset Microphone, Omnidirectional, Tan
