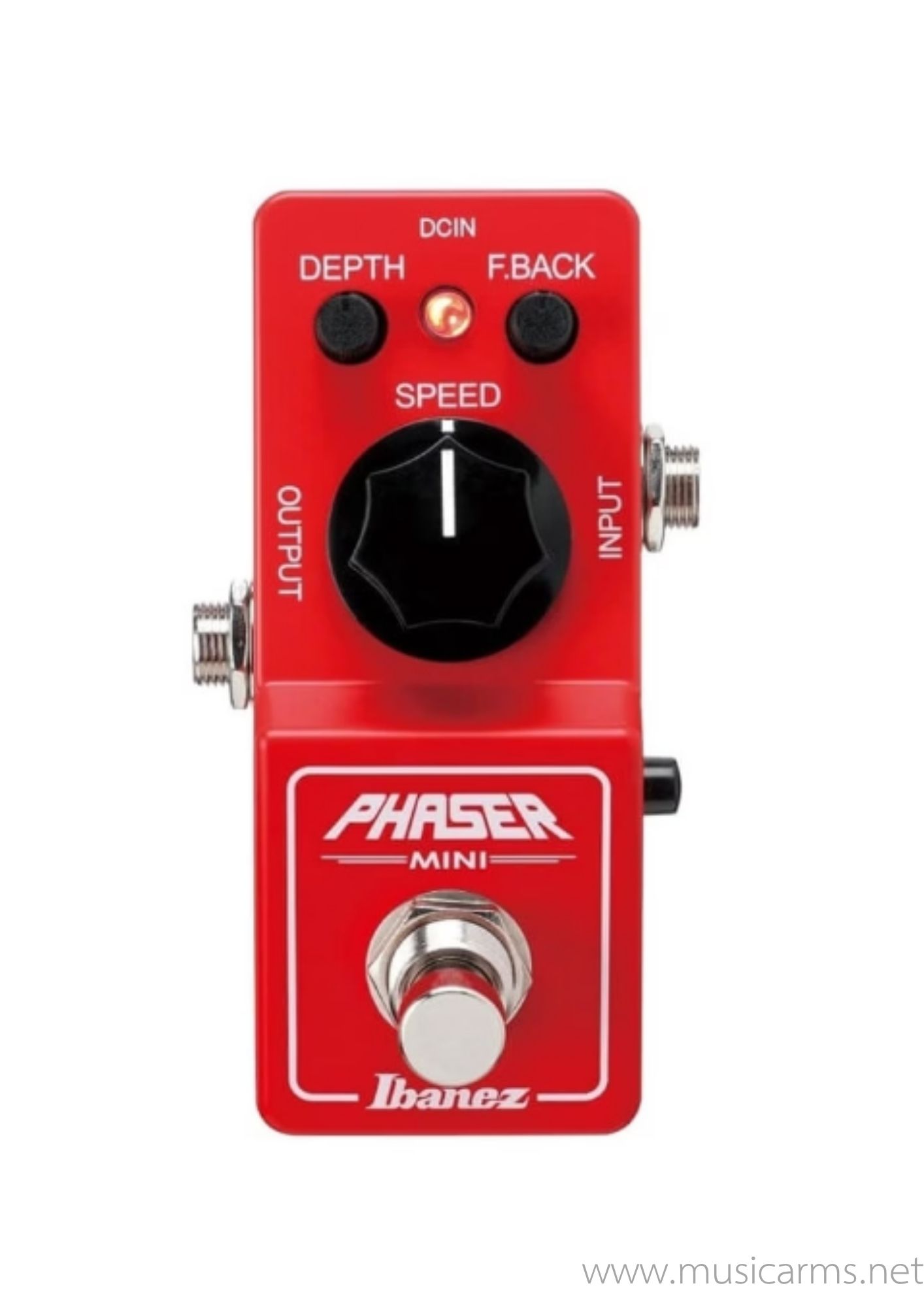

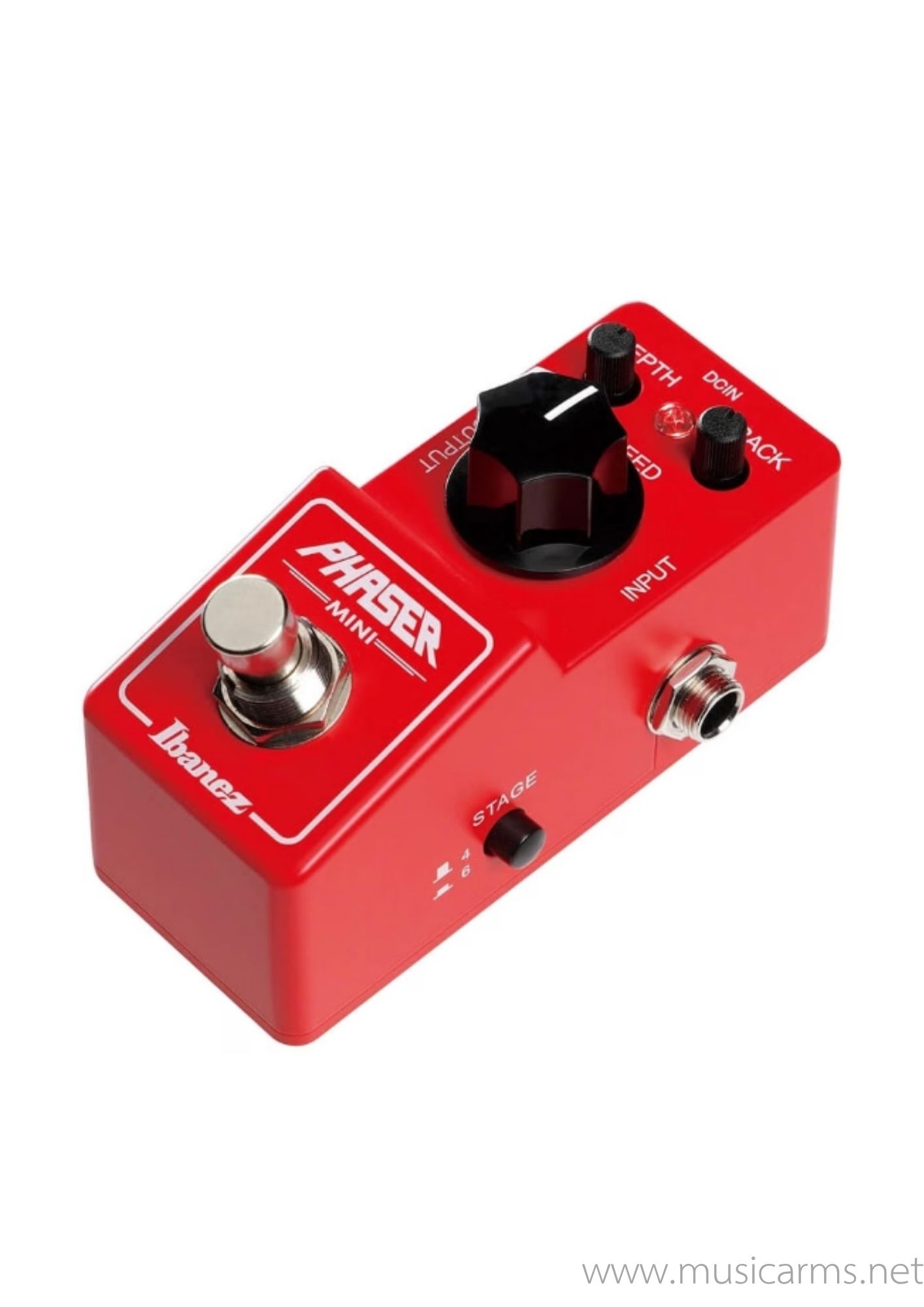

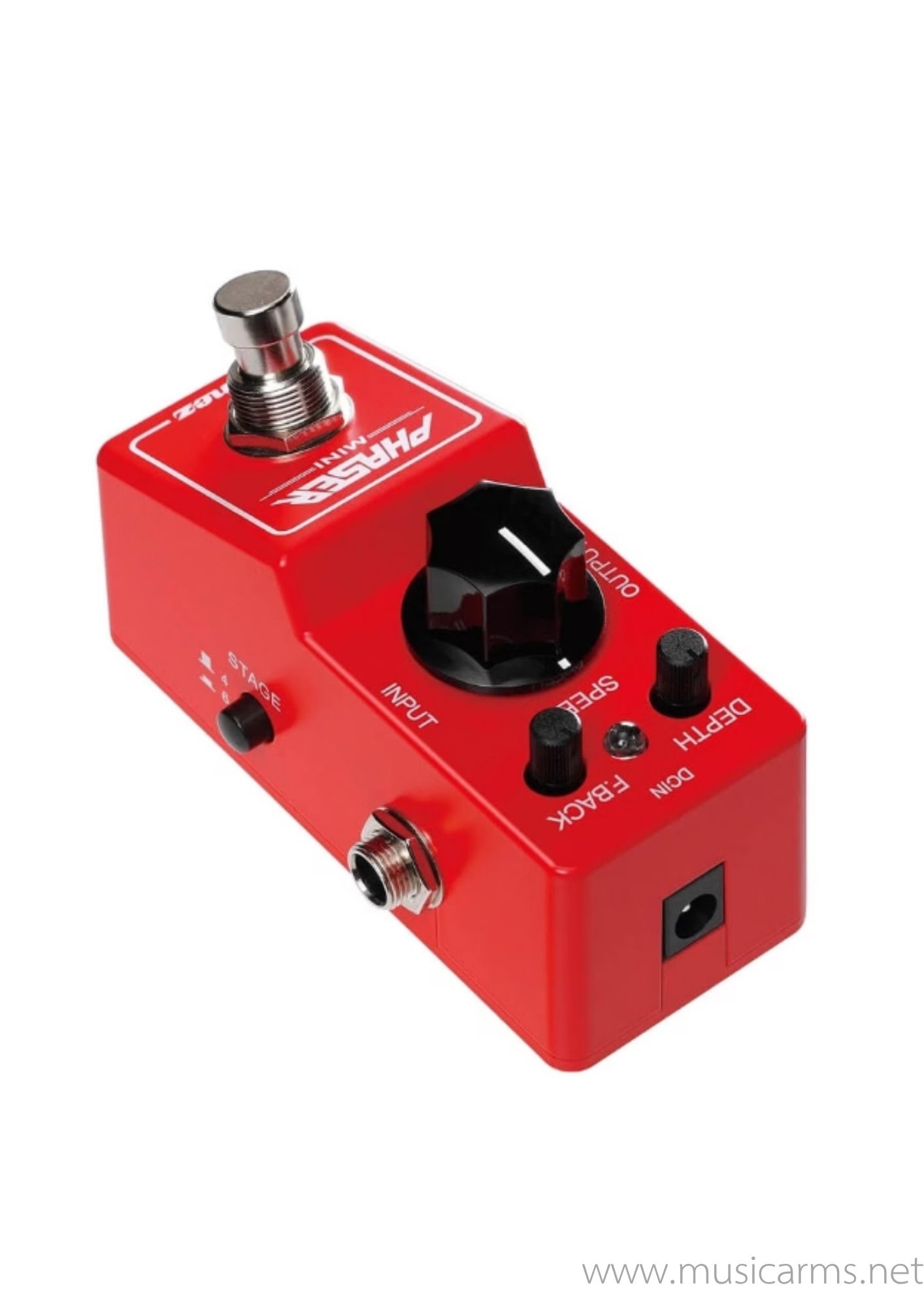

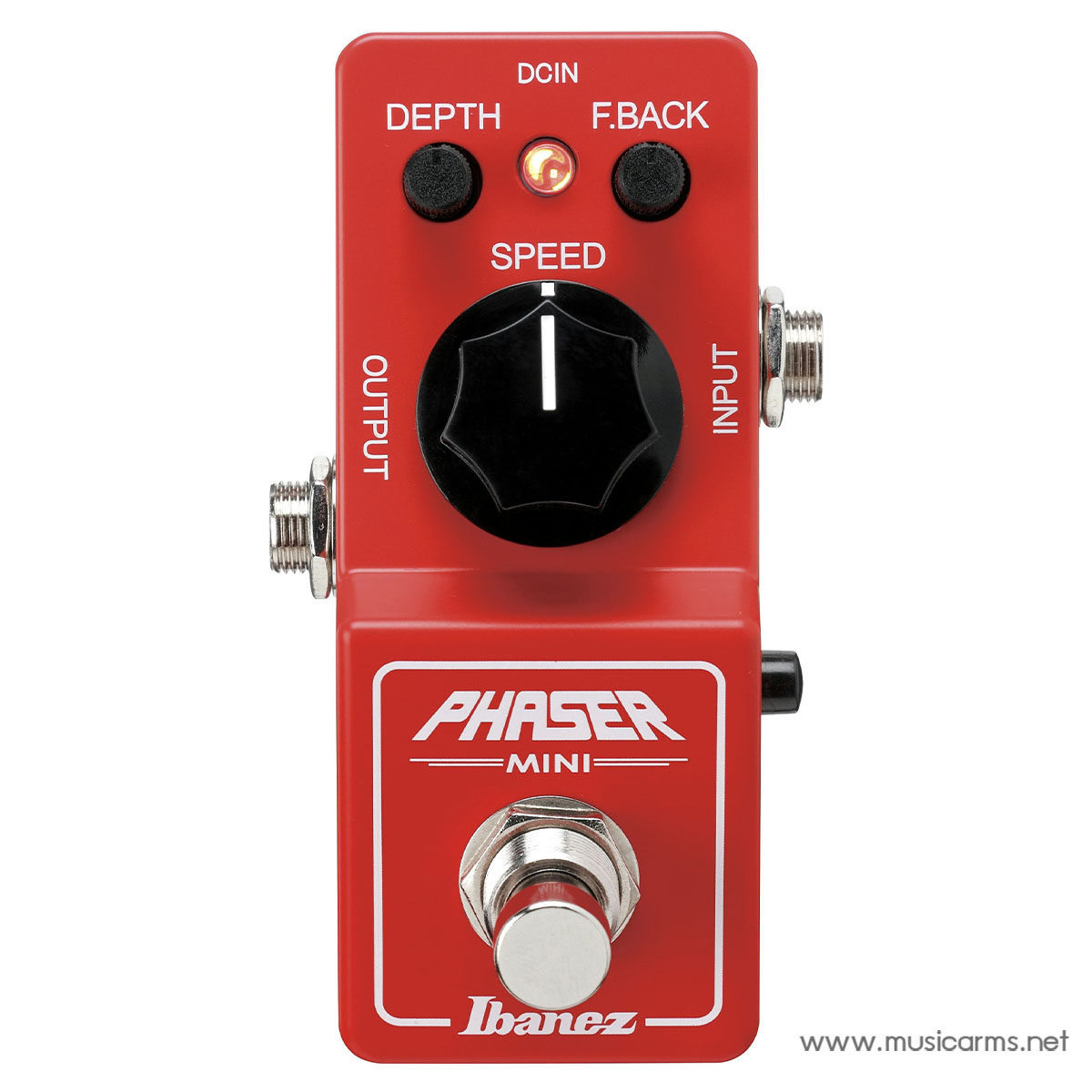

เอฟเฟคกีตาร์ Ibanez PH MINI Phaser Pedal

The Ibanez PH MINI Phaser (PHMINI) is a compact analog phaser pedal introduced in 2021 as part of Ibanez’s Mini Pedal series, designed to deliver professional-grade tone in a space-saving format

It builds on Ibanez’s legacy of classic phaser pedals from the late 1970s and early 1980s—such as the PT9 and other “9-series” units—known for their warm and distinctive analog modulation tones

Manufactured in Japan, the PHMINI features a 100% analog circuit, aiming to preserve the traditional phaser character while adapting it into a modern, compact design suitable for crowded pedalboards

Despite its small size, it includes full control over:

• Speed (rate of modulation)
• Depth (intensity of the effect)
• Feedback (resonance of the phase sweep)

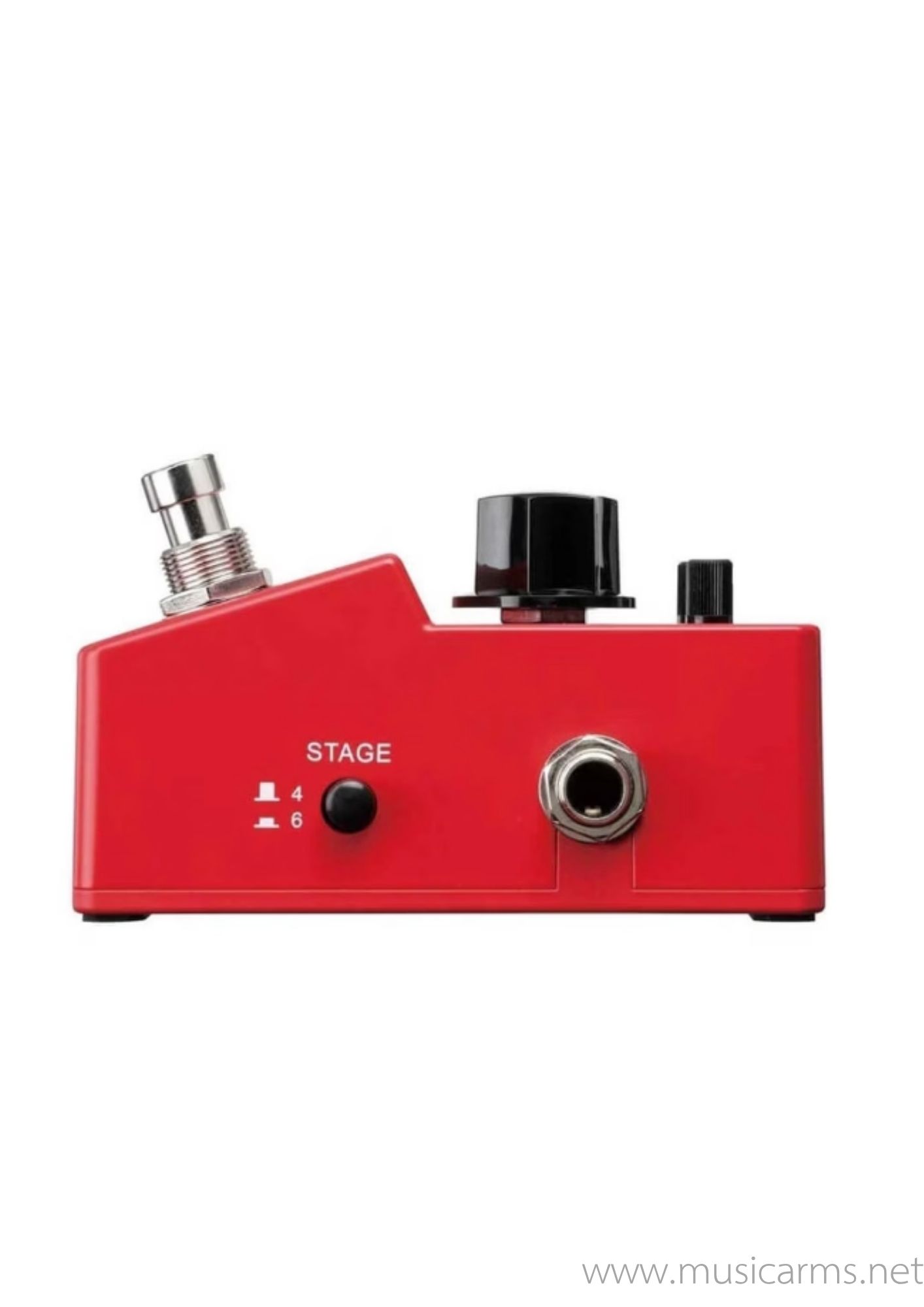

A key feature is its switchable stage modes:

• 4-stage: classic, vintage-style phasing
• 6-stage: deeper, more intense and dramatic modulation

Summary:
The PHMINI represents Ibanez’s effort to modernize its classic analog phaser heritage into a compact, versatile, and pedalboard-friendly format.

• Effect Type: Phaser (Modulation)
• Circuit: 100% Analog
• Made in: Japan
• Controls:
  • Speed (modulation rate)
  • Depth (effect intensity)
  • Feedback (resonance)
• Modes:
  • 4-stage (classic phaser tone)
  • 6-stage (deeper, more intense effect)
• Bypass: True Bypass
• Power Supply: DC 9V (center-negative adapter)
• Current Draw: ~5mA
• Battery: Not supported
• Dimensions: 51 x 93 x 57 mm
• Weight: ~270 g

• ประเภทเอฟเฟค: Phaser (Modulation)
• วงจร: อนาล็อก 100%
• การผลิต: Made in Japan 🇯🇵
• Controls (ปุ่มปรับ):
  • Speed (ความเร็วการสวิง)
  • Depth (ความลึกของเอฟเฟค)
  • Feedback (ความเข้ม/เรโซแนนซ์)
• โหมด:
  • 4 Stage (โทนคลาสสิก)
  • 6 Stage (โทนลึก/จัดจ้านขึ้น)
• Bypass: True Bypass
• ไฟเลี้ยง: DC 9V (Center Negative)
• กินกระแส: ประมาณ 5mA
• แบตเตอรี่: ❌ ไม่รองรับ (ใช้ Adapter เท่านั้น)
• ขนาด: ประมาณ 51 x 93 x 57 มม.
• น้ำหนัก: ~270 กรัม
