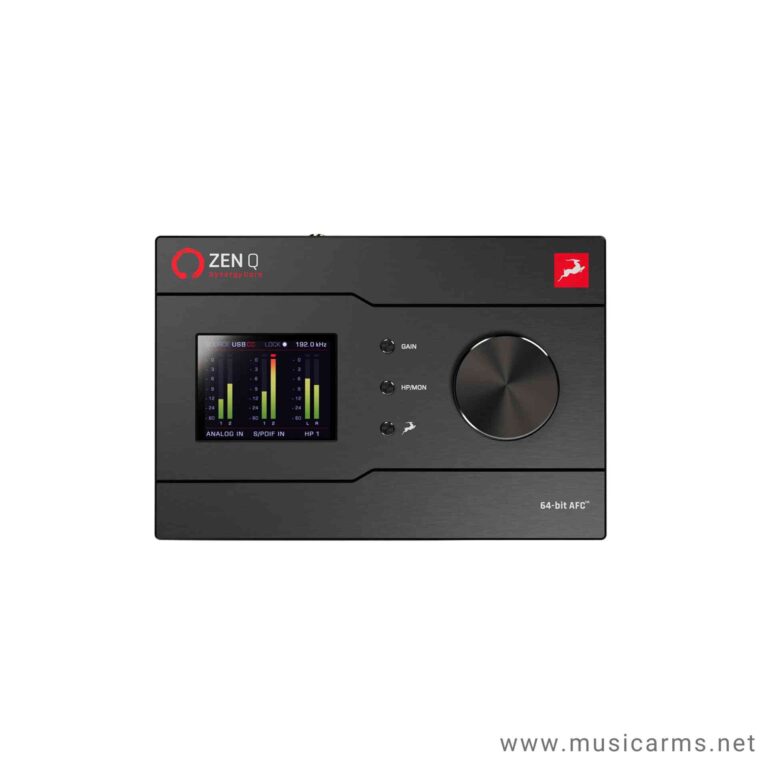

Antelope AudioZenQSynergyCoreUSB Audio Interface

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Antelope Audio

ราคา : 45,000 บาท

รุ่น :  Antelope Audio AudioZenQ SynergyCor USB ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com

สั่งซื้อ Antelope AudioZenQSynergyCoreUSB Audio Interfaceผ่านline สั่งซื้อ Antelope AudioZenQSynergyCoreUSB Audio Interfaceผ่าน messenger

Description

Antelope AudioZenQ SynergyCoreUSB

CONNECTIVITY

All I/O,
all the time

With its pairs of headphone outputs, preamps, and instrument inputs, the Zen Q interface was built with collaboration in mind. Flexible routing and switchable inputs unlock a wealth of possible setups. Four simultaneous Hi-Z instruments and two pairs of monitors? No problem. Four balanced analog outboard inserts? You got it.

If you need even more inputs, hook up any ADAT-compatible preamp with up to eight additional channels, and you’re ready to record a full band live. The stereo input and output over S/PDIF can be used to add an outboard effect, record a digital hardware synth, or send a high-quality clocking signal to the rest of your studio.

Extensive
connectivity
It all starts with the bus-powered connectivity – you only need a USB or Thunderbolt cable and a computer to start the show. The multipurpose inputs and the digital ports allow you to change things on the fly and expand your setup easily.
Console-grade
preamps
For our discrete preamps we use a combination of transistors that results in maximum noise reduction and, most importantly, precise sound capture.
Signature clocking
& conversion
The 64-bit AFC clocking and AD/DA converters give the stereo image more detail and a sense of spaciousness. This gives your recordings stand-out sound quality and makes the Zen Q ideal for mastering.

SOUND QUALITY

Discrete console-grade preamps

The Zen Q audio interface packs two professional-grade microphone preamps with 65db of gain and individual phantom power. Their ultra-linear, discrete circuit topology is on par with the preamps found in legendary consoles at the world’s best studios.
The clock you can’t beat
Taken from our award-winning master clocks, the AFC™ (Acoustically Focused Clocking) technology ensures professional, low-jitter AD/DA conversion up to 192 kHz / 24 bit. This makes listening, mixing, and even mastering with the Zen Q an absolute audiophile experience. From analog to digital and back, your sound meets nothing but the best signal path
From studio
to studio
The portable design of the Zen Q means you can carry it in your backpack and take it on tour with you or any on-location recording session.
Work at the speedof sound
Unleash the true power of the Zen Q by creating custom monitor and headphone mixes, combining device inputs and DAW outputs with real-time analog-modeled Synergy Core FX – all that from an intuitive control panel.

Handy
loopback

The built-in loopback feature lets you livestream a complete mix to Facebook, YouTube, Twitch and more.

Session recall
For every individual recording scenario, you can save session files and create exact snapshots of all your settings so you can load them later without losing your progress.

Easy routing

The signal routing is as versatile as it is intuitive, and any configuration can be stored and recalled as a preset.

SYNERGY CORE COLLECTION

Real-time
onboard FX

Powered by the Synergy Core, the Zen Q comes with a selection of 37 analog-modeled effects, with many more available in our Software Store. This ultra-low latency processing is entirely run within the interface on a unique combo of FPGA and DSP chips, at no extra cost to your computer’s CPU or memory. This means you can record and monitor voice and instruments through real-time models of effects and guitar amps, from classic gear to rare gems.Not ready to commit? No problem. You can still take advantage of the Synergy Core effects during mixing by using afx2daw. Analog workflow in the digital domain.



Specification

Specification

CONVERSION & CLOCKING

•Class-leading AD/DA conversion with up to 127dB of headroom

• Recording, mixing and playback at up to 24-bit/192kHz

• Proprietary 64-bit Acoustically Focused Clocking (AFC™) technology & Jitter Management algorithm delivering increased width, separation, and detail

CONNECTIVITY

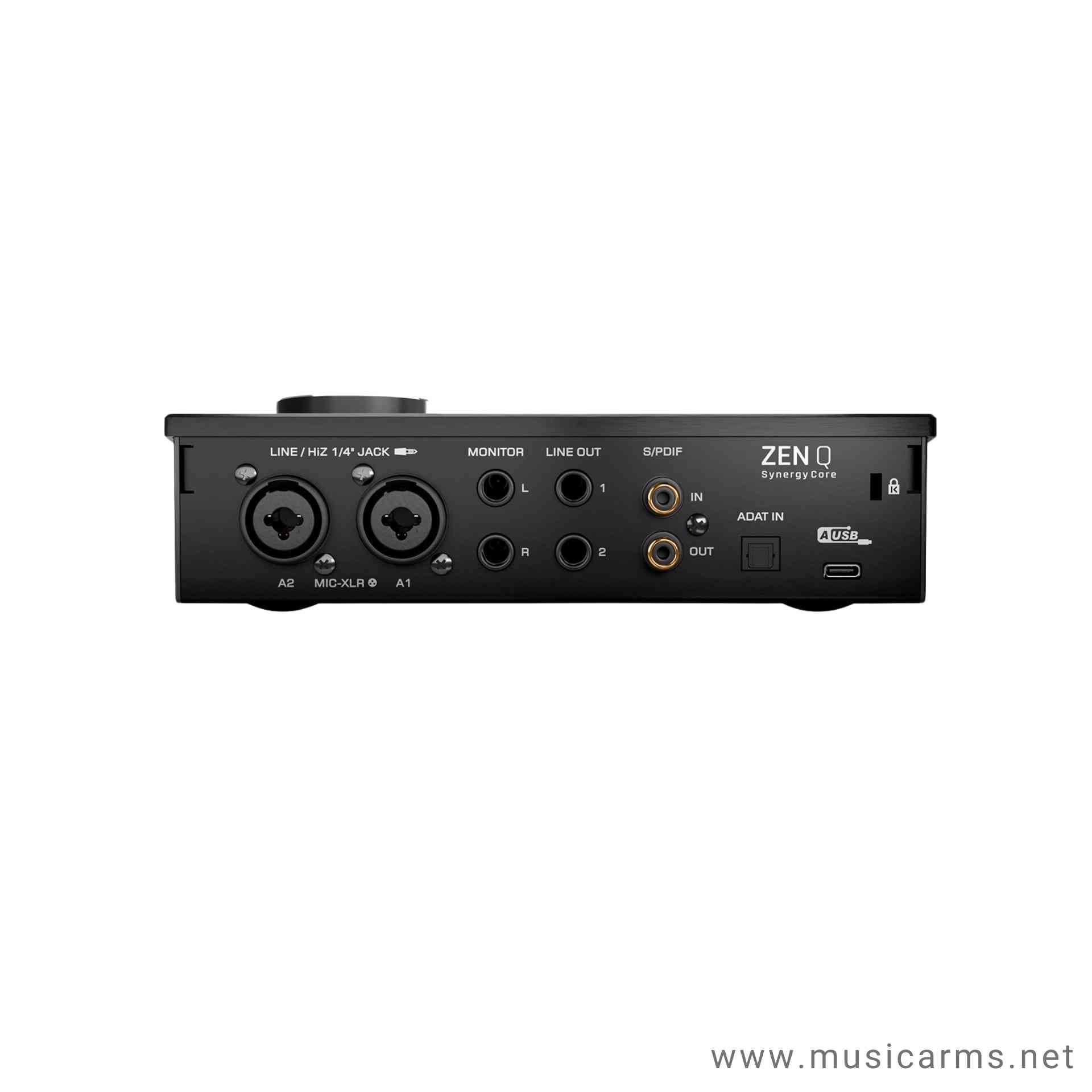

• 2×Discrete ultra-linear preamps with 65dB of gain for studio-quality recordings. Both work as microphone/line/ Hi-Z inputs, on combo XLR jacks, and supply 48V of phantom power

• 2×Hi-Z/line instrument inputs over TRS

• 2×DC-coupled line outputs over TRS

• Thunderbolt™ 3 port (for Zen Q Thunderbolt) or USB2.0 type C port (for Zen Q USB) carrying 16 input and 16 output channels in any popular DAW with custom macOS & Windows drivers

• Digitally expandable over ADAT IN , with 8 channels available

• Digitally expandable over S/PDIF I/O, with 2 channels available

• 1 × Stereo monitor output over TRS

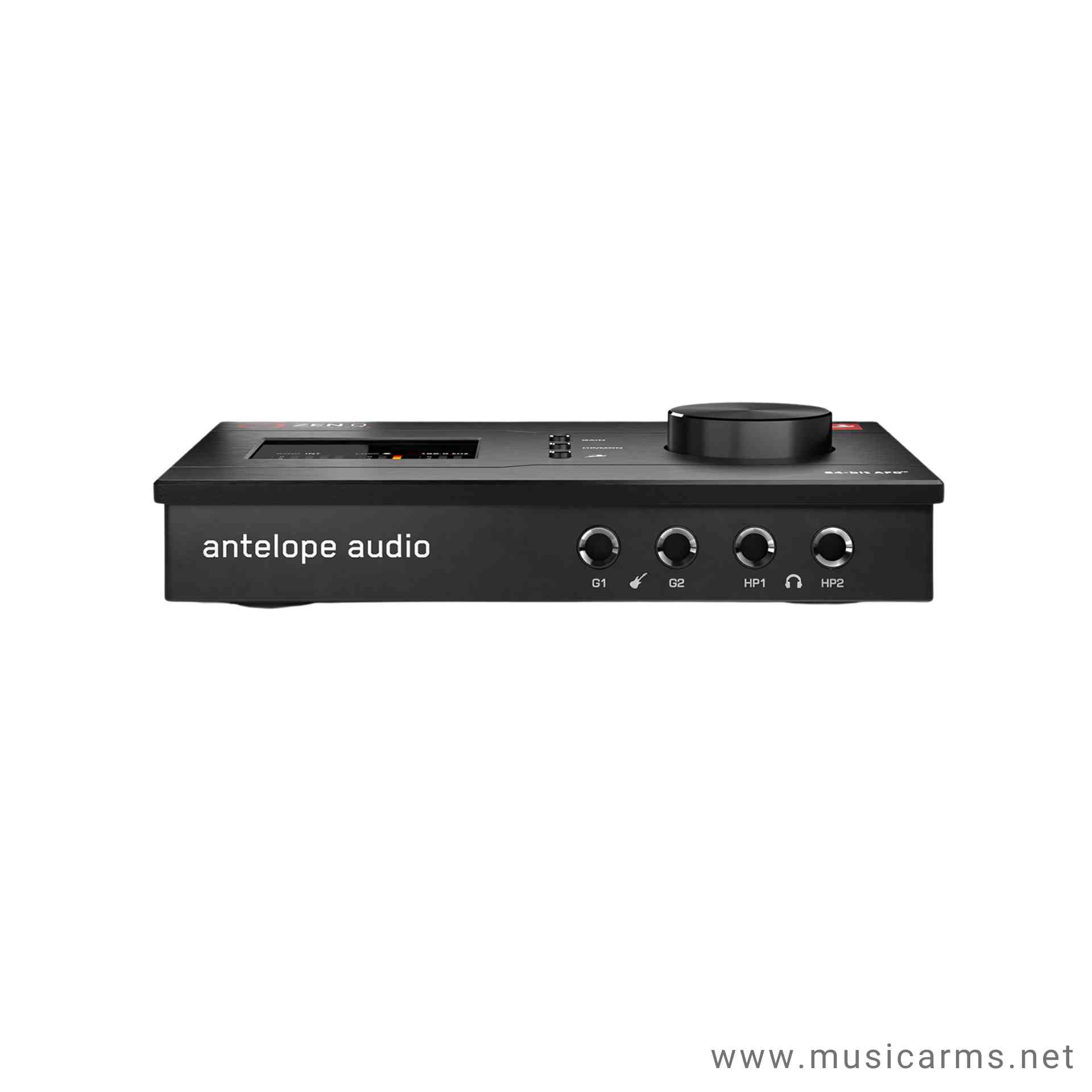

• 2 × Stereo headphone outputs with separate volume control

WORKFLOW-ENHANCING FEATURES

• Bus-powered interface powered by the Thunderbolt or USB-C connection without the need for a dedicated power source

• Direct monitoring with Synergy Core effects, processed in real-time with imperceptible latency

• Simplified I/O routing with pre-configured settings, allowing immediate recording and playback

• Front panel with easily accessible controls over input and output levels, and other settings

• Customizable presets with signal routing, level adjustments, mixer and effects settings

• Customizable monitoring mixes with adjustable volume, pan and reverb

REAL-TIME EFFECTS PROCESSING

• Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear

• Synergy Core proprietary onboard platform powered by 2×DSP & 1 × FPGA chips for real-time effects processing with imperceptible latency

• Modeling Engine allowing pairing with the Edge line of microphones for real-time use of vintage microphone emulations

37 INCLUDED SYNERGY CORE EFFECTS

Gyraf Gyratec IX (Dual Tube Mic Preamp with HPF)

VCA160 (VCA Compressor / Limiter)

Stay-Levin (Vari-Mu Tube Compressor)

FET-A76 (FET Compressor / Limiting Amplifier)

VEQ-1A (2-Band Tube EQ)

VMEQ-5 (3-Band Tube Mid-Range EQ)

X903 (VCA Compressor / Limiter)

PowerFFC (Feed-Forward Compressor)

Clear Q (Parametric EQ)

Power EX (Expander)

VEQ-HLF (Tube 2-Band HPF / LPF)

Auraverb (Reverb)

BA-31 (Germanium Mic Preamp)

Power Gate (Noise Gate)

A-Tuner (Guitar Tuner)

Plexi 59 (UK) (Tube Guitar Amp)

Bass SuperTube VR (Tube Guitar Amp)

Darkface 65 (US) (Tube Guitar Amp)

Top30 (UK) Bright (Tube Guitar Amp)

Tweed Deluxe (US) (Tube Guitar Amp)

Overange 120 (UK) (Tube Guitar Amp)

BurnSphere (DE) Lead (Tube Guitar Amp)

Marcus II (US) Lead (Tube Guitar Amp)

Modern (US) CH3 (Tube Guitar Amp)

Rock 75 (UK) (Tube Guitar Amp)

Rock 22.10 (UK) (Tube Guitar Amp)

Darkface 65 2×12 (2×12 Guitar Cabinet)

Top30 2×12 (2×12 Guitar Cabinet)

Modern 4×12 (4×12 Guitar Cabinet)

Green 2×12 (2×12 Guitar Cabinet)

Vintage 4×12 (4×12 Guitar Cabinet)

Green 4×12 (4×12 Guitar Cabinet)

Caliper 50 1×10 (1×10 Guitar Cabinet)

Bluelux 1×12 (1×12 Guitar Cabinet)

Clst 1×12 (1×12 Guitar Cabinet)

England 4×12 (4×12 Guitar Cabinet)

Bass Tube 1×15 (1×15 Guitar Cabinet)

IN-THE-BOX CONTENT

• Zen Q Synergy Core

• Dual USB-A to USB-C Y-cable for Zen Q Synergy Core USB

*Note: Thunderbolt cable is not included

• Getting Started leaflet

×
