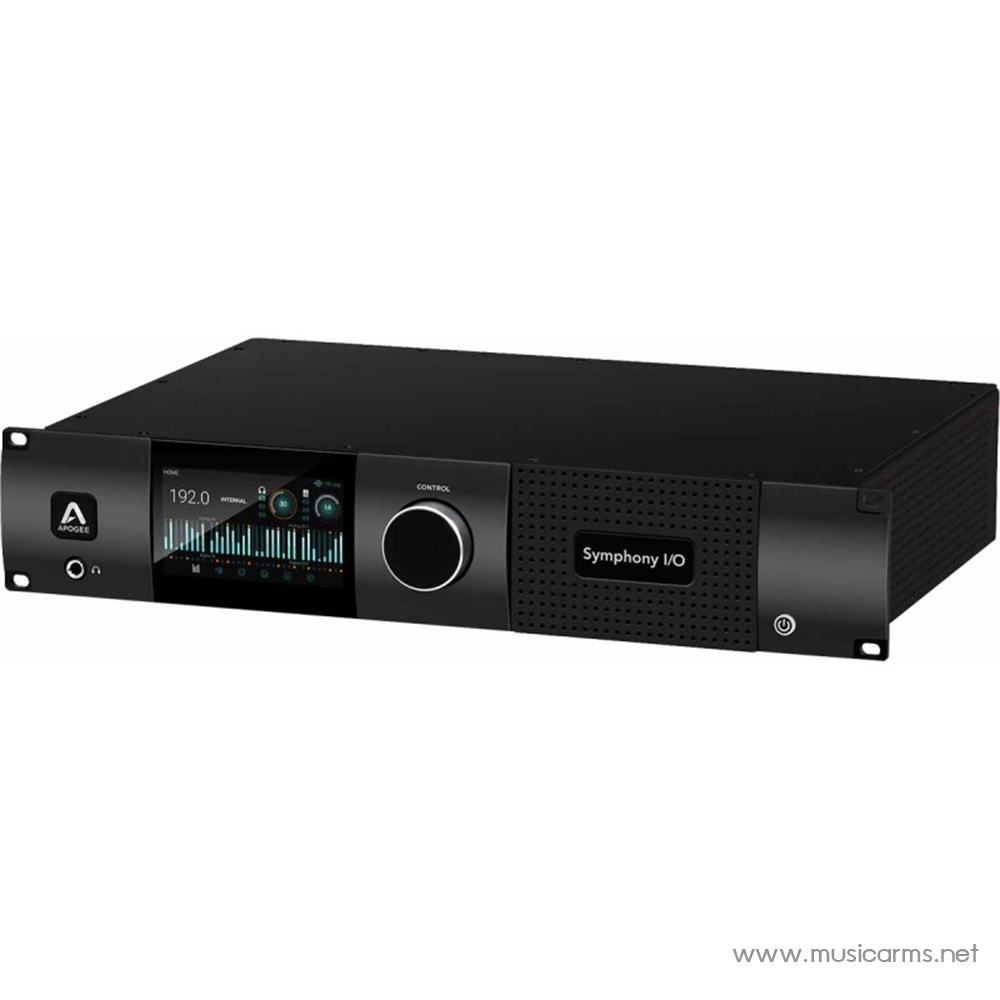

Apogee SYM2-24X24S2-PTHD

APOGEE SYMPHONY I/O MKII PRO TOOLS HD INTERFACE 24X24 (SYM2-24X24S2-PTHD)

Symphony I/O Mk II HD is designed for the Pro Tools HD user who needs a multi-channel audio interface with the best sound quality at an incredible cost per channel value. Whether using a Mac or PC based studio, the Apogee Symphony I/O MKII Pro Tools HD Interface can connect directly to your Pro Tools HDX, Pro Tools HD Native or Pro Tools Core/Accel systems.

Symphony I/O Mk II HD can be utilized alongside or in place of Avid or Digidesign interfaces for Pro Tools HD. In fact, each I/O module installed in Symphony I/O Mk II HD appears and functions in Pro Tools HD the same if it were a separate Avid HD I/O interface, so set up is easy and you can take advantage of important Pro Tools features such as sample-accurate delay compensation.

A single Symphony I/O Mk II HD unit can have up to 32 simultaneous analog I/O, so you can have more channels with less rack gear. Need even more channels? You can utilize multiple units simultaneously, with one Symphony I/O Mk II HD per every Pro Tools HD port in your system. Calibrating your I/O is easy with Symphony I/O Mk II HD’s front panel touchscreen.

16×16 ANALOG I/O MODULE (ONE INCLUDED)

16 channels of I/O simultaneously:

• Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
• Coax IN: S/PDIF on 1 RCA connector
• Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
• Coax OUT: Supports SPDIF on 1 RCA connector

8×8 ANALOG I/O + 8×8 AES/OPTICAL I/O (ONE INCLUDED)

16 channels of I/O simultaneously.

INPUTS:

• Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
• AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector(192k single wide compatible)
• Optical IN: Supports ADAT, SMUX & S/PDIF: ADAT: 8 channels 44.1-48 kHz; SMUX: 8 channels 88.2-96 kHz; S/PDIF: 2 channels, up to 96 kHz
• Coax IN: 2 channels of S/PDIF, up to 192 kHz

OUTPUTS:

• Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
• AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector(192k single wide compatible)
• Optical OUT: Supports ADAT, SMUX & S/PDIF: ADAT: 8 channels 44.1-48 kHz; SMUX: 8 channels 88.2-96 kHz; S/PDIF: 2 channels, up to 96 kHz
• Coax OUT: 2 channels of S/PDIF, up to 192 kHz

FEATURES:

• Best performance of any multi-channel Pro Tools HD interface
• Best cost per channel value of any Pro Tools HD interface solution
• Connects directly to any Pro Tools HD system (Mac or PC)
• Emulates Avid HD I/O interface, including sample-accurate delay compensation
• Connect multiple units in a single system (1 unit per HD port)
• Easy I/O calibration with front panel touchscreen

Specification

• CONDITION New
• WIDTH 19 in
• DEPTH 3.5 in
• HEIGHT 3.5 in
• CHASSIS 19-inch Rack-mount
• RACK SPACES 2u
• DIGITAL INPUTS 10
• ANALOG INPUTS 24
• INPUT CONNECTORS AES/EBU DB25, Analog DB25, BNC, Digital RCA, Optical
• DIGITAL OUTPUTS 8
• ANALOG OUTPUTS 26
• OUTPUT CONNECTORS AES/EBU DB25, Analog DB25, BNC, Digital RCA, Optical
• COMPUTER CONNECTION Digilink
• CLOCK I/O In, Out
• MAXIMUM SAMPLING RATE 192 kHz
• DIGITAL FORMAT ADAT, S/PDIF, SMUX
