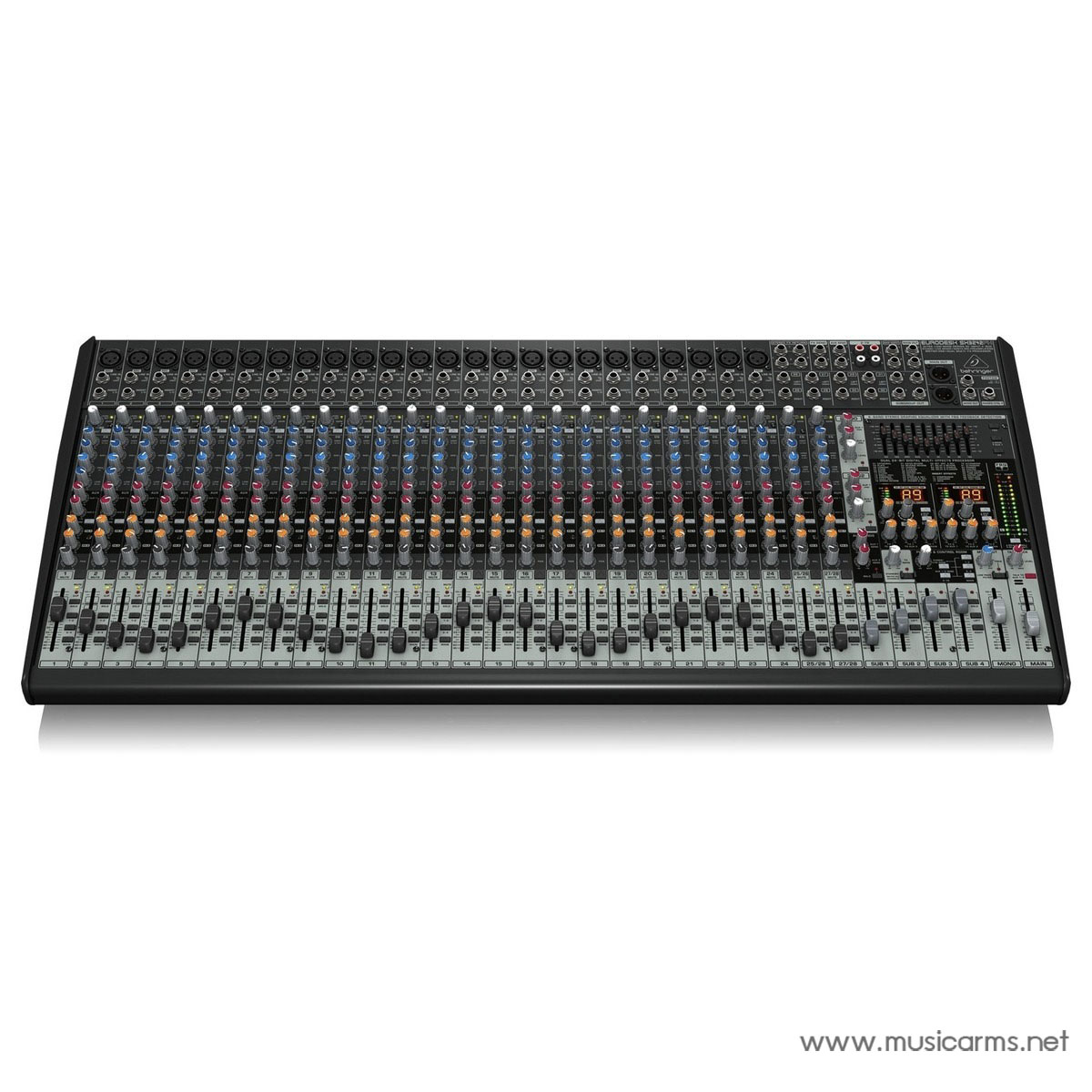

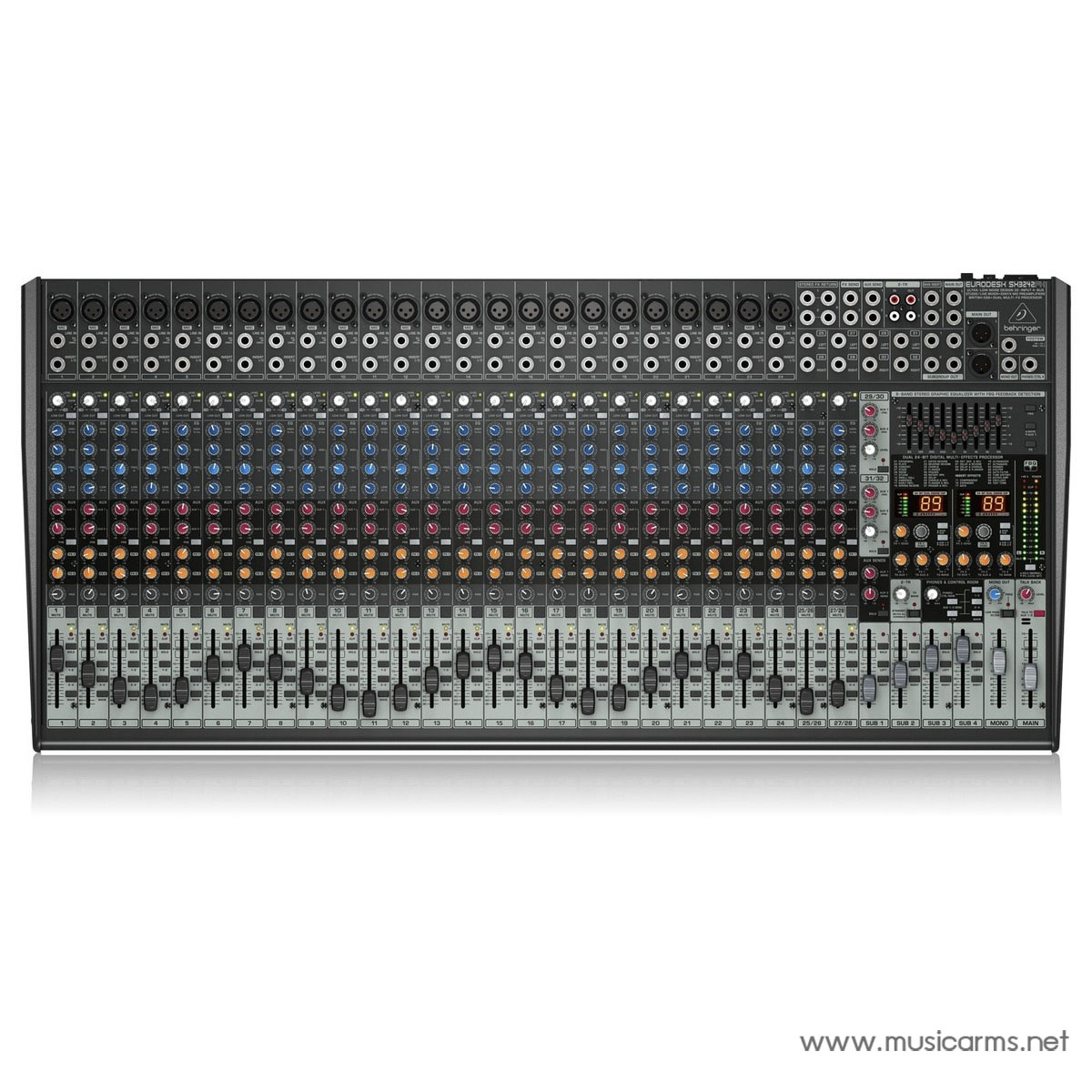

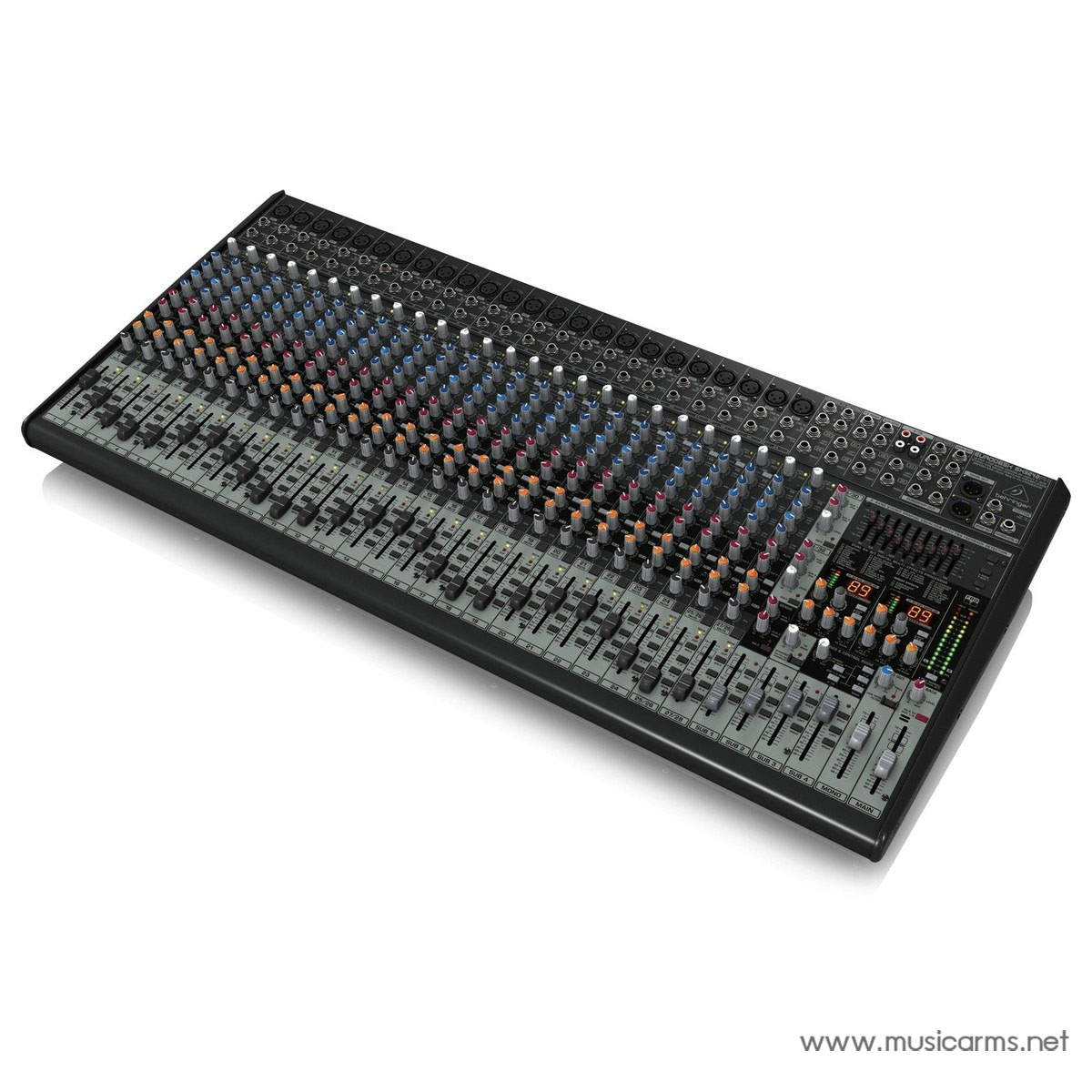

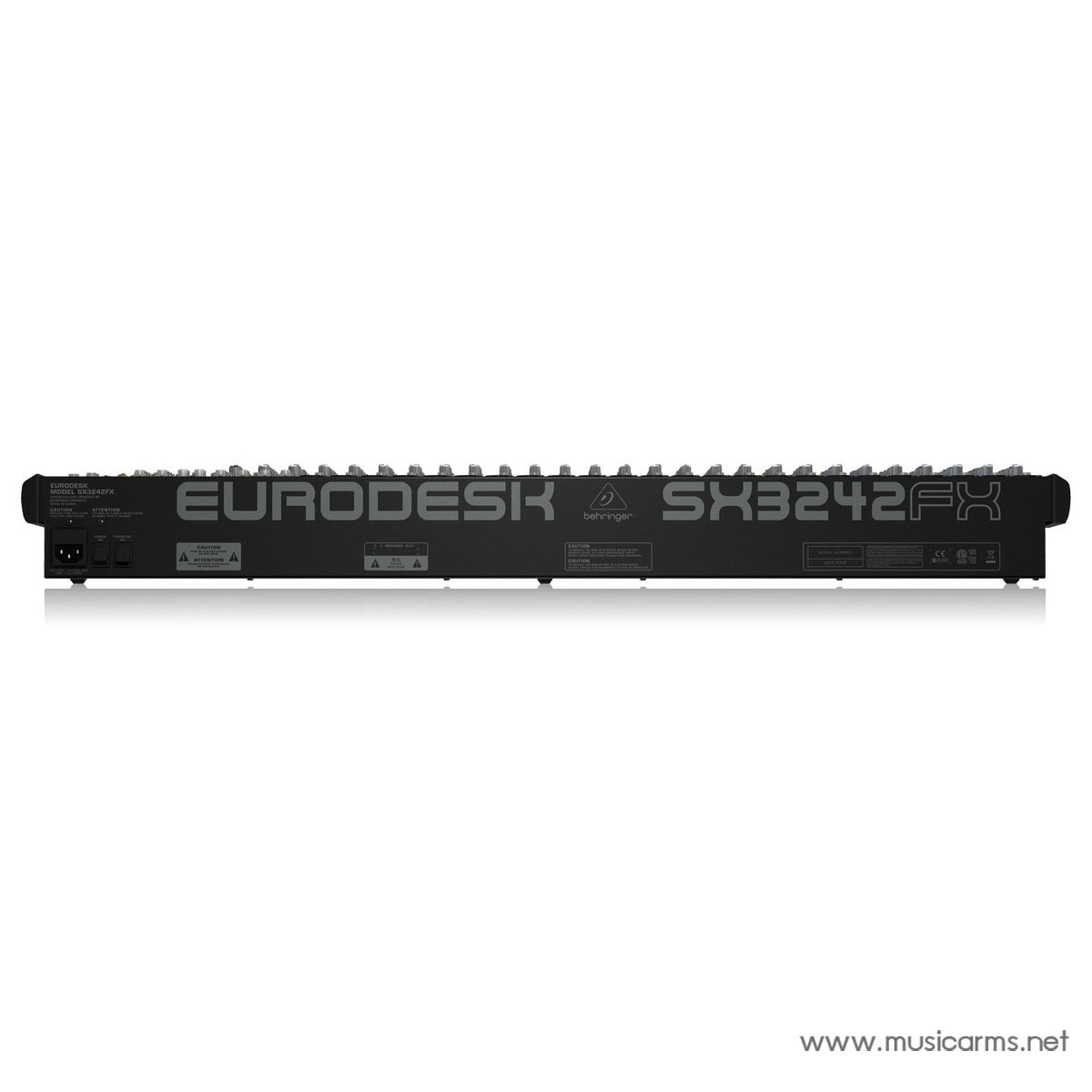

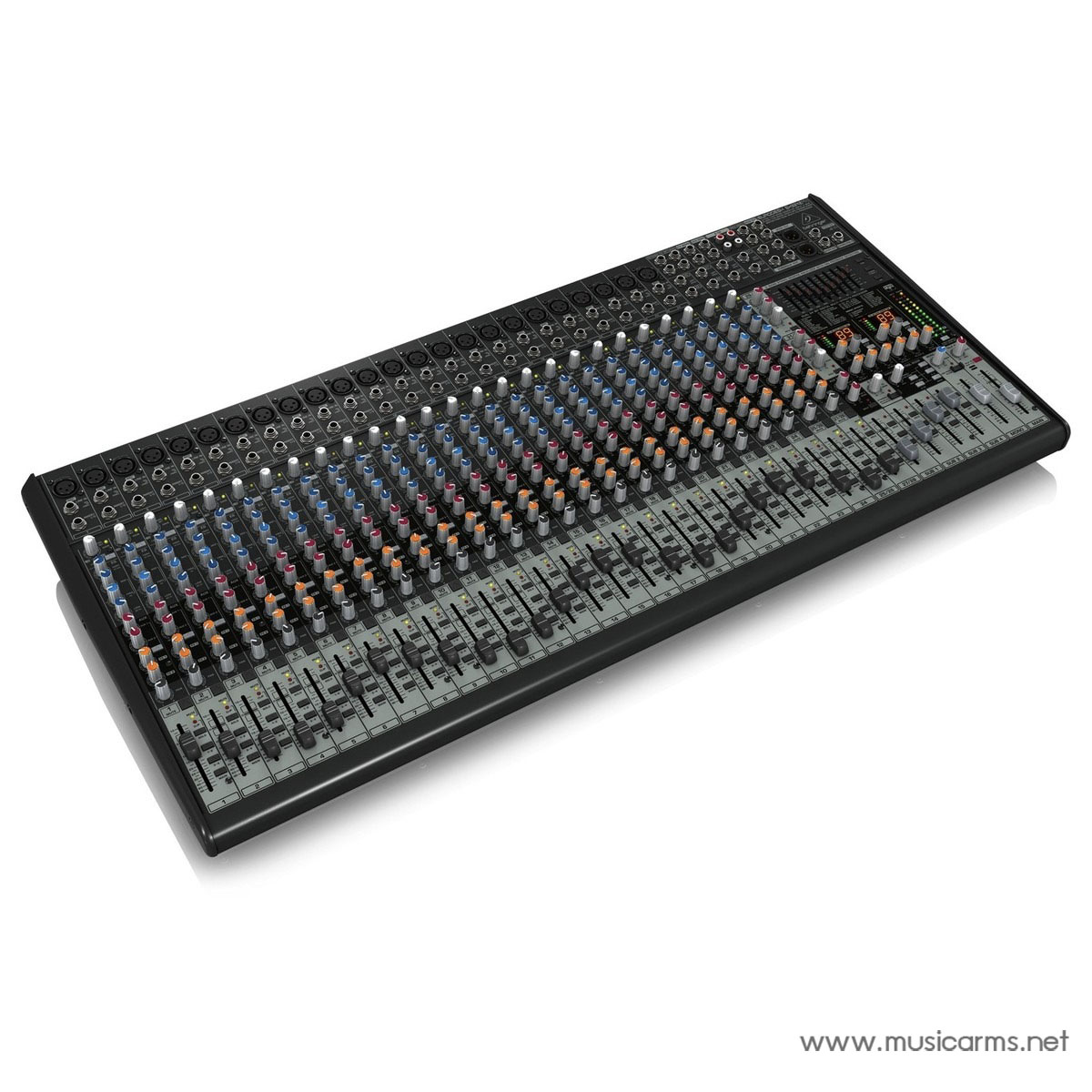

Behringer Eurodesk SX3242FX Analog Mixer

Sonically superior preamps

Behringer XEYNX preamps are renowned for their unique sonic performance. With an impressive 130dB of dynamic range and a frequency bandwidth of 10Hz to 20kHz the XEYNX preamps are the ideal choice for home recording and live use. Ensuring high quality and outstanding clarity, you’ll own preamps which excel on a wide array of sources. From guitars to percussion, to vocals and bass. There’s nothing that the XEYNX preamps won’t shine on.

Sublimely musical British EQ

British mixing consoles are renowned for their analog warmth and unique sonic qualities. Behringer have meticulously studied and incorporated the same style circuitry on the SX3242FX’s four band channel EQ, providing incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

Built-in digital multi-FX processor

The X2442USB features a built-in digital Multi-FX Processor designed to offer you an arsenal of premium-grade digital effect presets. A unique feature of the Multi-FX Processor is the time-based functions that can be controlled manually by pressing the tap button in time with the music. The 99 digital effect presets included with the Multi-FX Processor include: delay, chorus, flanger, pitch shifting, reverb and more.

FBQ – Totally feedback-free

Integrated within the Eurodesk SX3242FX and developed over 20 years, the FBQ Feedback Elimination processors guarantee to ensure that your sound is completely feedback-free. Allowing you to focus entirely on your performance, the FBQ utilises an ultra-fast detection system which corrects frequencies instantly. When feedback is sensed in a specific frequency range, the LED on the associated EQ fader illuminates, showing you at a glance which fader to alter to overcome the feedback.

Features

• Premium ultra-low noise, high-headroom analog mixer
• 24 state-of-the-art Xenyx mic preamps comparable to stand-alone boutique preamps
• Neo-classic ”British” 3-band EQs for warm and musical sound
• 2 independent studio-grade 24-bit stereo FX processors with 99 presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
• Precise 9-band stereo graphic EQ allows frequency correction of monitor or main mixes
• Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies
• Peak LEDs, Mute, Main Mix and subgroup routing switches, plus Solo and PFL functions on all channels
• 2 stereo input channels with 4-band EQ plus 2 additional stereo inputs channels with Level and pre-fader Aux controls
• Inserts on each mono channel and main mix for connecting outboard equipment
• 4 Subgroup outputs and additional Mono outputs with sweepable Low Pass filter for subwoofer applications
• 4 aux sends per channel; 2 pre/post fader switchable for monitoring FX/applications and 2 post fader for internal FX or external send
• Balanced Main mix outputs with 1/4” jack and gold-plated XLR connectors, plus separate Control room, Headphone and stereo Tape outputs
• Solo-In-Place and Pre-Fader-Listen functions plus Talkback section
• Standby switch mutes all channels during breaks while background music is provided via CD/Tape inputs
• Long-wearing 60mm logarithmic-taper master fader and sealed rotary controls
• Internal autorange power supply for maximum flexibility (100V-240V), noise-free audio, superior transient responses plus low power consumption for energy saving
• Conceived and designed by Behringer Germany

• Channels: 28
• Faders: 32
• Inputs – Mic Preamps: 24 x XLR
• Phantom Power: 24
• Inputs – Line: 32 x TRS
• Inputs – Other: 2 x RCA
• Outputs – Main: 2 x XLR, 2 x TRS
• Outputs – Other: 2 x RCA
• Aux Sends: 2 x Pre/Post, 2 x Post
• Send/Return I/O: 4 x TRS (Send), 4 x TRS (Return)
• Busses/Groups: 4 x Groups
• Channel Inserts: Yes
• Headphones: 1 x 1/4″
• Talkback: Yes
• EQ Bands: 4-band
• Effects: Yes
• Height: 3.9″
• Width: 35.3″
• Depth: 16.1″
• Weight: 13.24kg

• ช่องสัญญาณ: 28
• เฟดเดอร์: 32
• อินพุต – ไมค์ปรีแอมป์: 24 x XLR
• Phantom Power: 24
• อินพุต – Line: 32 x TRS
• อินพุต – อื่นๆ: 2 x RCA
• เอาต์พุต – หลัก: 2 x XLR, 2 x TRS
• เอาต์พุต – อื่นๆ: 2 x RCA
• Aux Sends: 2 x Pre/Post, 2 x Post
• Send/Return I/O: 4 x TRS (Send), 4 x TRS (Return)
• Buses/Groups: 4 x Groups
• Channel Inserts: มี
• หูฟัง: 1 x 1/4″
• Talkback: มี
• EQ Bands: 4-band
• เอฟเฟกต์: มี
• ความสูง: 3.9″
• ความกว้าง: 35.3″
• ความลึก: 16.1″
• น้ำหนัก: 13.24 กก.
