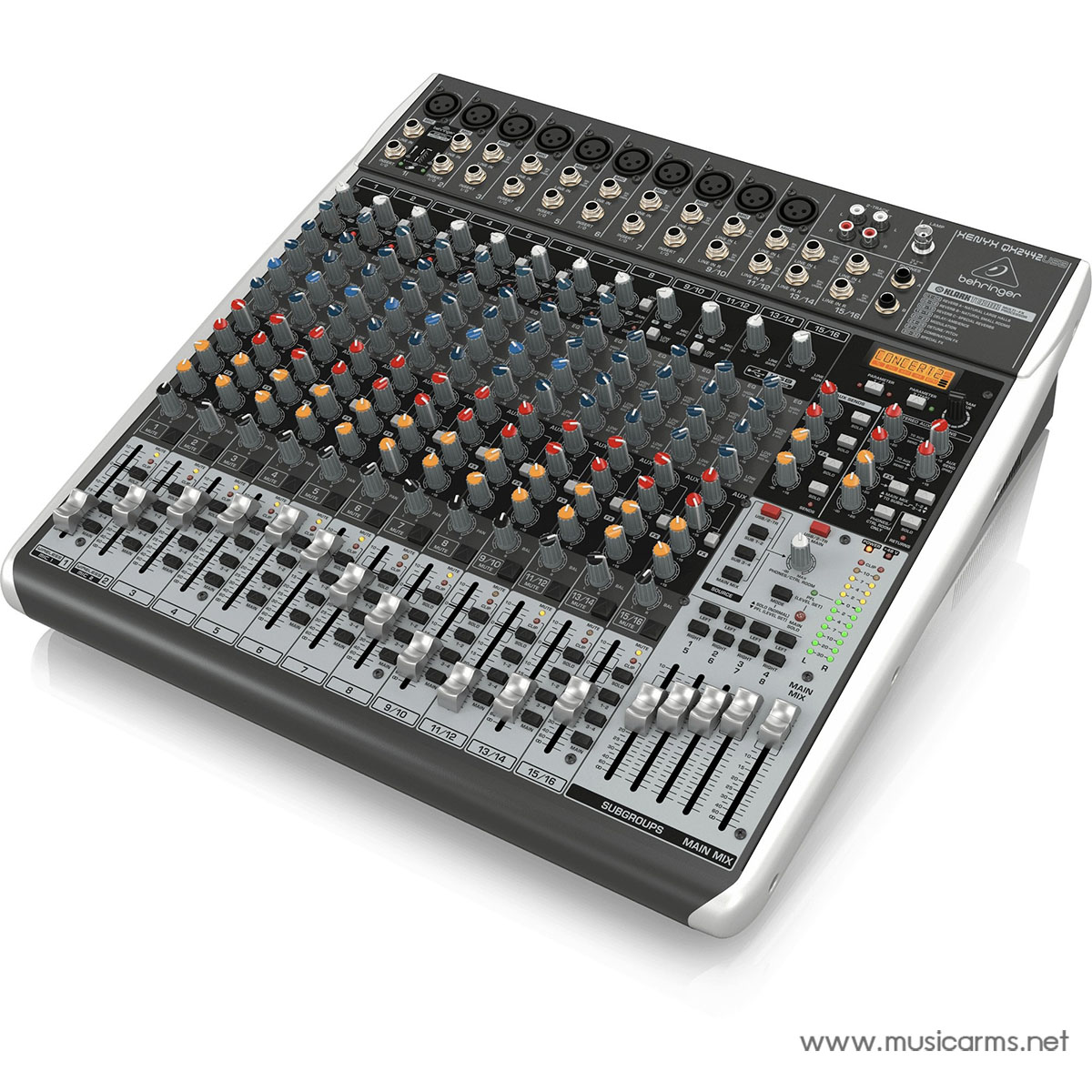

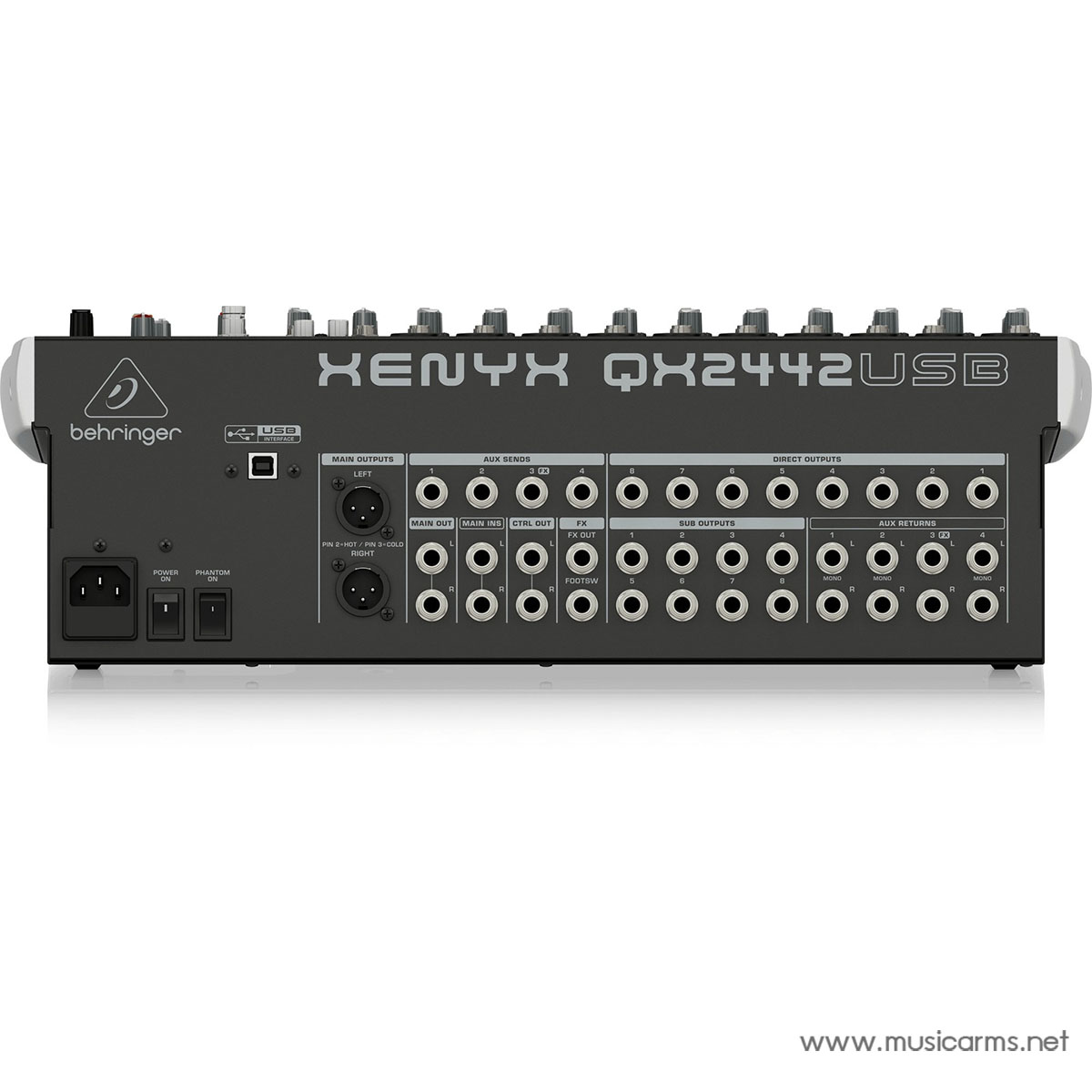

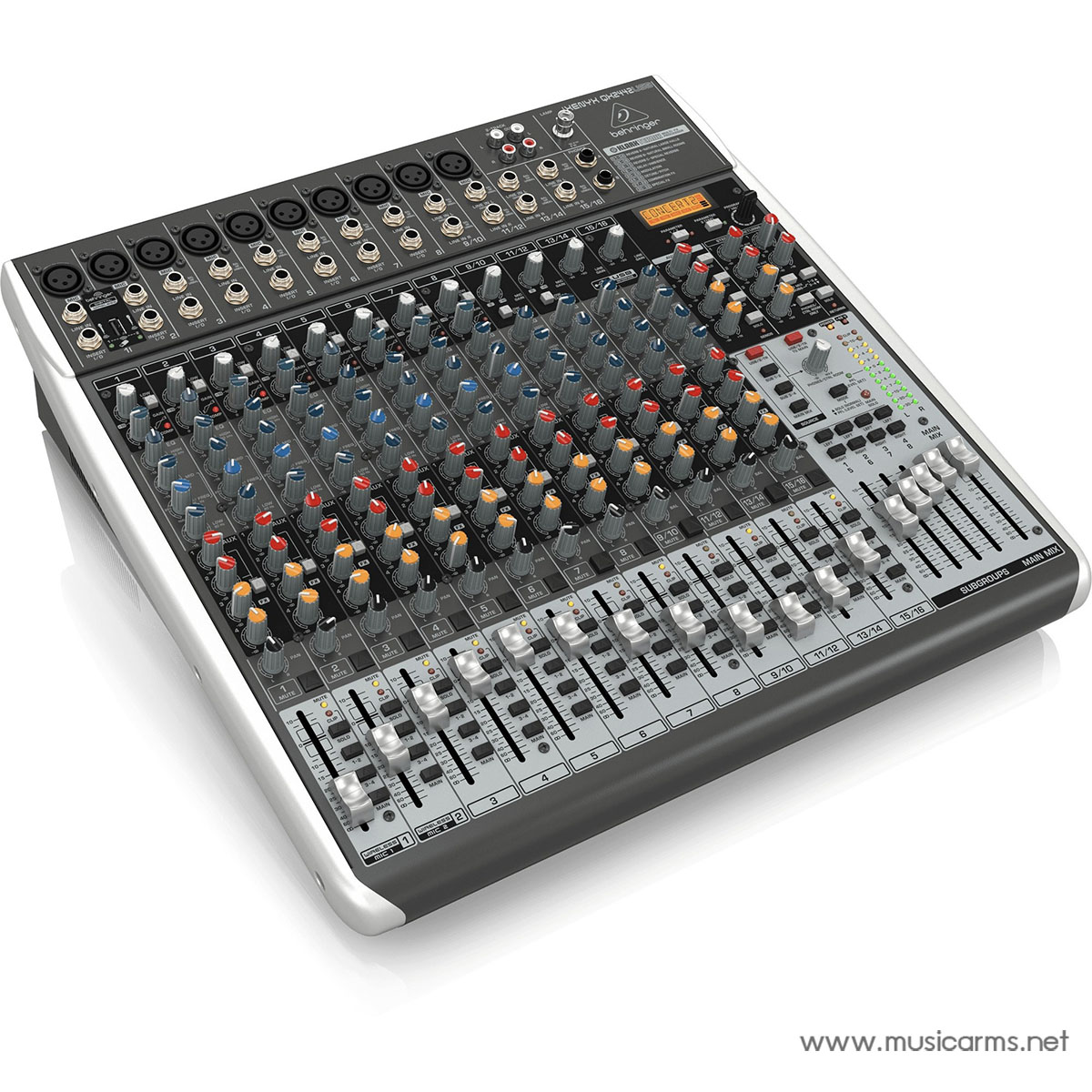

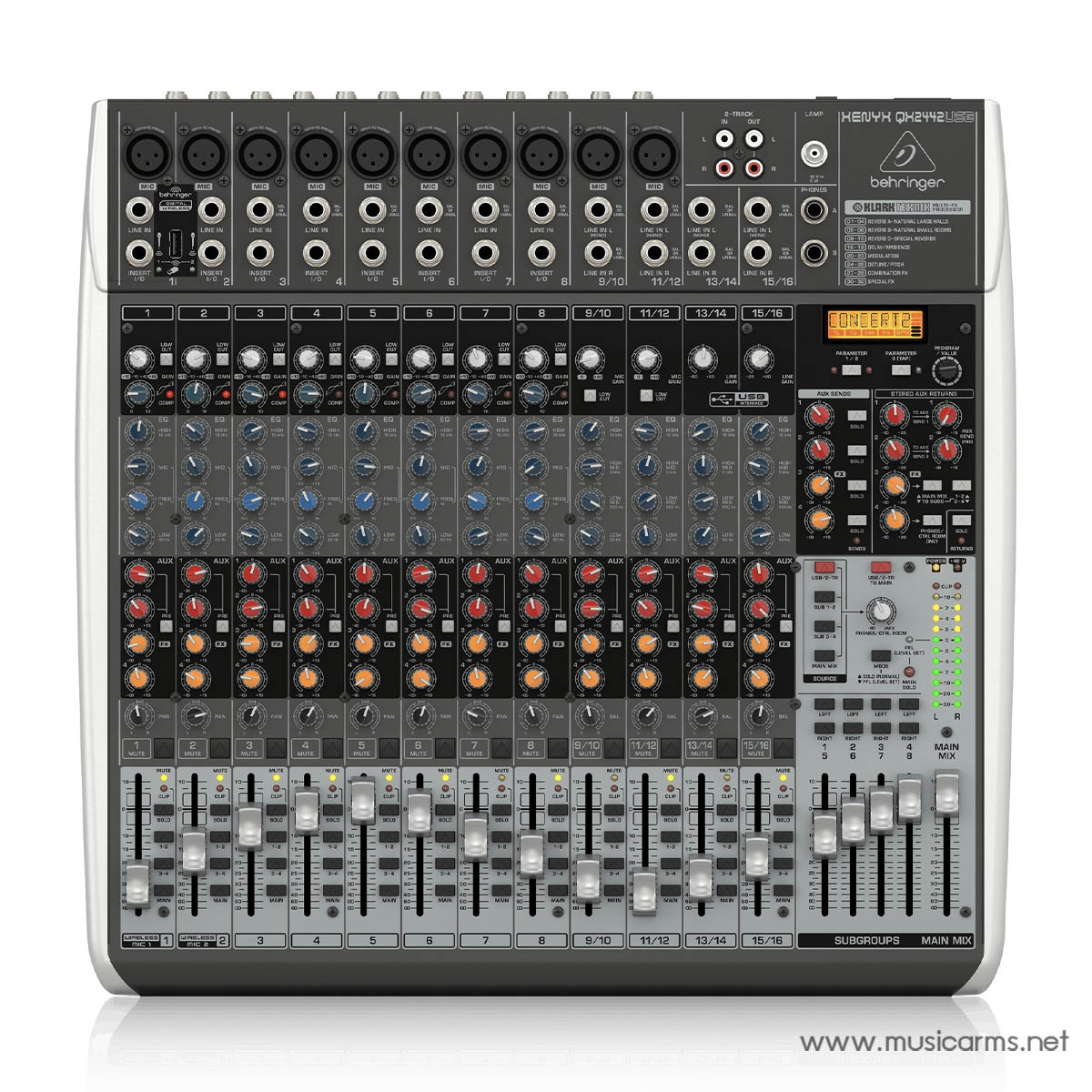

Behringer XENYX QX2442USB Analog Mixer

XENYX QX2442USB

The feature-packed XENYX QX2442USB mixer allows you to effortlessly achieve premium-quality sound thanks to its 10 onboard studio-grade XENYX Mic Preamps and ultra-musical “British” channel EQs – with a semi-parametric mid band for warm and musical sound. And our easy-to-use “one-knob” compressors provide total dynamic control for the ultimate in punch and clarity, while respecting all the power and emotion you pack into every note. Add to this our KLARK TEKNIK FX processor with 32 studio-grade presets with dual addressable parameters, Tap function and storable user parameter settings – and the QX2442USB becomes an incredibly versatile mixer for your live performances. But XENYX QX2442USB isn’t just designed to handle your live gigs; they also provide the state-of-the-art tools you need to make stunning, professional- quality recordings. Along with their built-in USB/audio interfaces, the XENYX QX2442USB comes with all the recording and editing software needed to turn your computer system into a complete, high-performance home recording studio.

Sonically Superior Mic Preamps

The XENYX QX2442USB gets its name from our legendary, high headroom XENYX mic preamps, which have been praised by audio engineers all over the world. These state-of- the-art mic pres represent a major step in the evolution of audio technology – and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the XENYX QX2442USB provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren’t looking.

Studio-Quality Compressor – Stairway to Heaven

Our studio-grade compressor is based on classic and famous studio equipment from the 70’s. This totally transparent and musical compressor design allows your full dynamic range to shine through until your signal reaches the compression threshold, which is indicated by the highly visible status LED. The compressor increases sustain and gently smoothens out signal peaks, which is especially handy when you’re laying down the funk, à la slap and pop – or hammering home your most-aggressive metal lines. The resulting output level lets you unleash powerful and impact-laden bass lines, while still sitting right where you need to be in the mix!

Sublimely Musical British EQ

The British consoles of the 1960s and ‘70s changed the sound of rock and roll – without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on our XENYX mixers is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

KLARK TEKNIK – The Reverb that Made History

KLARK TEKNIK is recognized worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and even a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK′s legendary heritage.

BEHRINGER is proud to incorporate custom-engineered KLARK TEKNIK effects into their products. Featuring 100 world-class presets to choose from including reverb, chorus, flange, delay, pitch shift and many other amazing effects, KLARK TEKNIK created the 24-bit, studio-grade effects engine for BEHRINGER – to give your performance that truly professional finishing touch.

Own the Stage with Digital Wireless

Get wireless-ready with the built-in, dedicated connectivity of our ULTRALINK ULM Series wireless microphone system (to be ordered separately). Wireless gives you maximum freedom and mobility without the need to run cables. The highest-quality sound is provided thanks to the ULM′s digital, license-free 2.4 GHz frequency spectrum.

The ULM wireless system combines professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Just plug in the ULM receiver “dongle”, and instantly you have an exceptional wireless mic system. Freeing you from cables is the simply easy way to own the stage.

Special Features…

The “Big Daddy” of the series is the QX2442USB, with its 10 state-of-the-art, XENYX-powered mic inputs, 4 stereo channels, 4 Aux Sends and 4 stereo Aux Returns, and our easy to use “one knob” compressors, Inserts and direct Outputs on each of the mono channels. Other features available exclusive to the QX2442USB are: 4 subgroups for mixing versatility; Main Inserts (the ideal path for connecting graphic equalizers or compressor/limiters); 8 Direct Outs and Sub Outs for analog recording purposes.

Recording Bliss

There was a time when the recording process called for lots and lots of expensive gear, which meant the average musician had to buy time at a recording studio – and that time was pricey indeed. But modern technology has put personal recording well within the reach of virtually anyone with access to a computer. How do you get all that music flying around your brain into your computer? That′s where XENYX QX Series USB mixers come in. Thanks to the built-in, bi-directional stereo USB audio interface, you can connect any of these mixers directly to your PC or Mac computer via a single USB cable. Now any signal source you connect to the mixer can be recorded directly to your hard drive. Which brings us to software…

Free Software Would Be Nice!

Because you′ll want to take full advantage of the XENYX QX2442USB′s recording and podcasting potential, we′ve included all the software you′ll need for audio recording, editing and even podcasting – all free of charge and downloadable from behringer.com. You′ll be ready to go live on your PC or Mac right out of the box! We′ve also provided a free download of more than 150 virtual instruments and FX plug-ins – turning your computer into a powerful home-based or mobile recording studio from input to output.

• Premium ultra-low noise, high headroom mixer
• 10 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
• 8 studio-grade compressors with super-easy “one-knob” functionality and control LED for professional vocal and instrumental sound
• Ultra-high quality Klark Teknik FX processor with LCD display, dual-parameters, Tap function and storable user parameter settings
• “Wireless-ready” for high-quality Behringer digital wireless system (not included)
• Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable from the Behringer website
• Neo-classic “British” 3-band EQs with semi-parametric mid band for warm and musical sound
• Channel inserts and direct outputs on each mono channel plus main mix inserts for flexible connection of outboard equipment
• 4 aux sends per channel: 2 pre/post fader switchable for monitoring/FX applications, 2 post fader (for internal FX or as external send)
• Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
• 4 subgroups with separate outputs for added routing flexibility; 4 multi-functional stereo aux returns with flexible routing
• Control room/phones outputs with multi-input source matrix; rec inputs assignable to main mix or control room/phones outputs
• Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
• “Planet Earth” switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• 3-Year Warranty Program
• Designed and engineered in Germany

ปรีแอมป์และคอมเพรสเซอร์

• ไมค์ปรีแอมป์ XENYX 10 ตัว: มีคุณภาพเทียบเท่ากับปรีแอมป์บูติกแบบ Standalone พร้อม Phantom Power ในตัวเพื่อรองรับไมโครโฟนคอนเดนเซอร์
• คอมเพรสเซอร์ 8 ตัว: ระดับสตูดิโอพร้อมฟังก์ชัน “One-knob” ที่ใช้งานง่าย และไฟ LED ควบคุม เพื่อเสียงร้องและเครื่องดนตรีระดับมืออาชีพ

เอฟเฟกต์และ EQ

• โปรเซสเซอร์ Klark Teknik FX คุณภาพสูงพิเศษ: มาพร้อมจอ LCD, พารามิเตอร์คู่, ฟังก์ชัน Tap และสามารถบันทึกการตั้งค่าของผู้ใช้ได้
• “British” 3-band EQs แบบ Neo-classic: พร้อม Mid Band แบบ Semi-parametric เพื่อเสียงที่อบอุ่นและเป็นธรรมชาติ

การเชื่อมต่อและฟังก์ชันการทำงาน

• “Wireless-ready”: รองรับระบบไร้สายดิจิทัลคุณภาพสูงของ Behringer (ไม่รวมในชุด)
• USB/Audio Interface สเตอริโอในตัว: สำหรับเชื่อมต่อโดยตรงกับคอมพิวเตอร์ มาพร้อมซอฟต์แวร์บันทึกเสียง, ตัดต่อ และพอดแคสต์ฟรี รวมถึงปลั๊กอินเครื่องดนตรี/เอฟเฟกต์ 150 รายการที่สามารถดาวน์โหลดได้จากเว็บไซต์ Behringer
• อินเสิร์ทช่องสัญญาณและ Direct Outputs: บนแต่ละช่องโมโน รวมถึงอินเสิร์ท Main Mix สำหรับการเชื่อมต่ออุปกรณ์ภายนอกที่ยืดหยุ่น
• Aux Sends 4 ช่องต่อแชนเนล: 2 ช่องแบบ Pre/Post Fader ที่สามารถสลับได้สำหรับแอปพลิเคชันมอนิเตอร์/FX, 2 ช่องแบบ Post Fader (สำหรับ FX ภายในหรือส่งออกภายนอก)
• ไฟ Clip LEDs, Mute, Main Mix และ Subgroup Routing Switches: รวมถึงฟังก์ชัน Solo และ PFL บนทุกช่อง
• 4 Subgroups พร้อมเอาต์พุตแยก: เพื่อความยืดหยุ่นในการ Routing ที่เพิ่มขึ้น และ 4 Stereo Aux Returns แบบ Multi-functional พร้อมการ Routing ที่ยืดหยุ่น
• Control Room/Phones Outputs: พร้อม Multi-input Source Matrix; อินพุต Rec สามารถกำหนดไปยัง Main Mix หรือ Control Room/Phones Outputs ได้
• เฟดเดอร์แบบ Logarithmic-taper ขนาด 60 มม. ที่ทนทาน: และปุ่มหมุนแบบซีล

แหล่งจ่ายไฟและการออกแบบ

• แหล่งจ่ายไฟแบบ Switching “Planet Earth”: เพื่อความยืดหยุ่นสูงสุด (100 – 240 V~), ให้เสียงที่ปราศจากเสียงรบกวน, การตอบสนองชั่วขณะที่เหนือกว่า และการใช้พลังงานต่ำเพื่อการประหยัดพลังงาน
• รับประกัน 3 ปี
• ออกแบบและผลิตในเยอรมนี
