Friedman IR-J
ราคา : 23,900 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com


Description
The Friedman IR-J dual-channel tube preamp is an entire Friedman rig in a compact pedalboard-friendly package. IR-J boasts two fully independent foot-switchable channels based on Friedman’s legendary JEL-100 and JEL-20 designs which are rooted in Dave’s modded ‘800/PLEXI circuits. Powered by two high-voltage 12AX7 preamp tubes, each channel delivers deep harmonic richness and the touch response of a large format Friedman tube amp. The SYNERGY powered, state of the art, ultra-low latency, DSP IR cabinet/power amp simulation sends a studio-quality mic’d-up tone to your DAW or Front-of-House. The IR-J provides easy-to-use controls without complex menus and 100-page manuals.
Specification
- Jake E Lee Signature
- All-tube HIGH-VOLTAGE preamp – DI
- 2 x 12AX7 preamp tubes
- Two independent channels + TS style boost per channel
- Based on Friedman’s legendary JEL-100 and JEL-20 designs
- MIDI programmable features:
- Channel select / Boost
- IR select
- Thump, Presence and Low-Pass Filter – three-way switch per channel
- Effects loop ON/OFF
- Boost Lock
- Power amp simulation with software editable Presence, Thump and Low-Pass Filter (per channel)
- Low latency Impulse Response cabinet simulation (bypassable)
- Three position CAB/IR select switch per channel (programmable via software)
- 18 free Friedman IRs or load your own

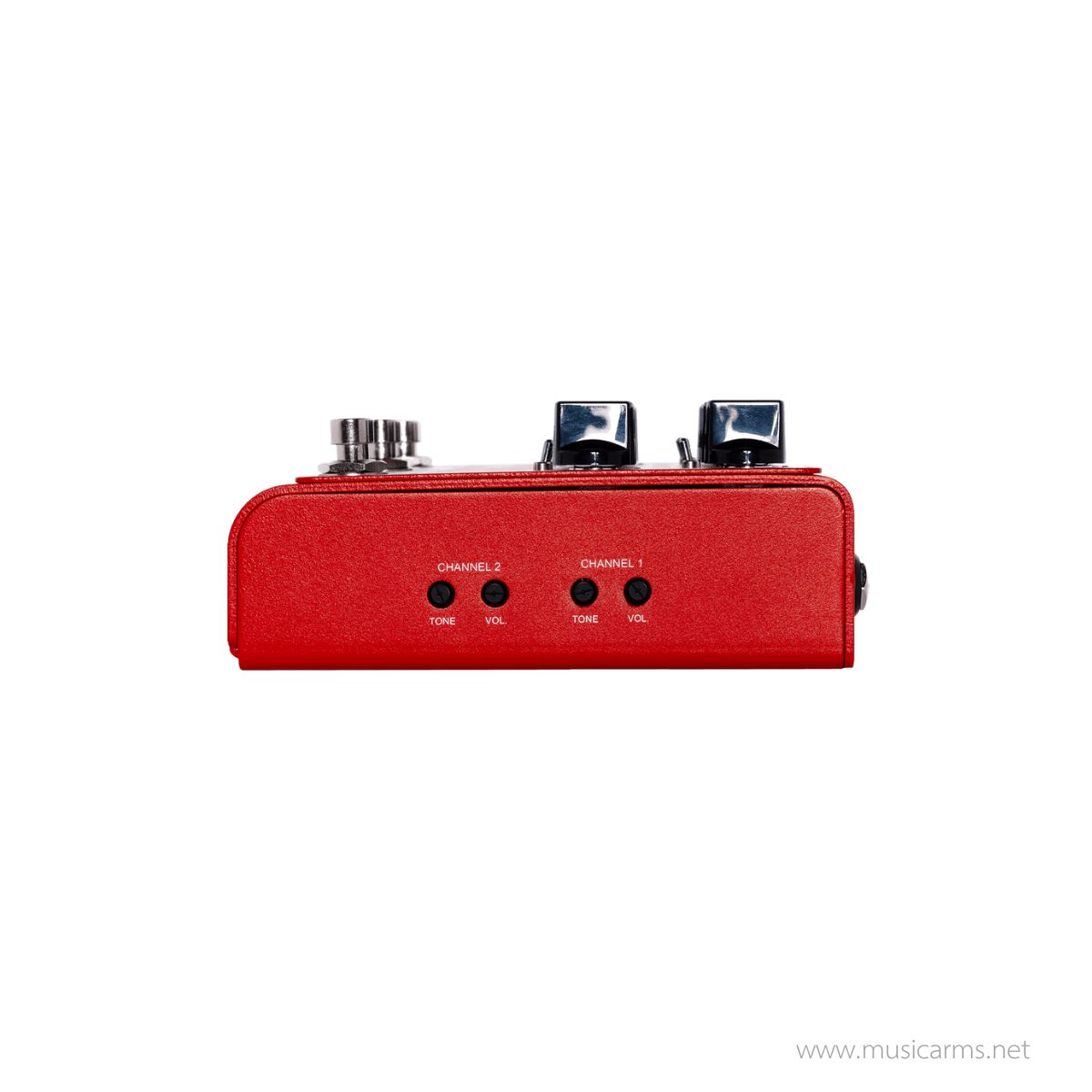

- Boost Volume (top) – Vol. (gain amount) and Tone controls (per channel) on side panel
- Volume and Gain controls (per channel)
- Full EQ consisting of Bass, Middle, Treble (per channel)
- 3-way Bright switch (per channel)
- 2-way Gain switch (Channel 2)
- Three multi-function foot switches

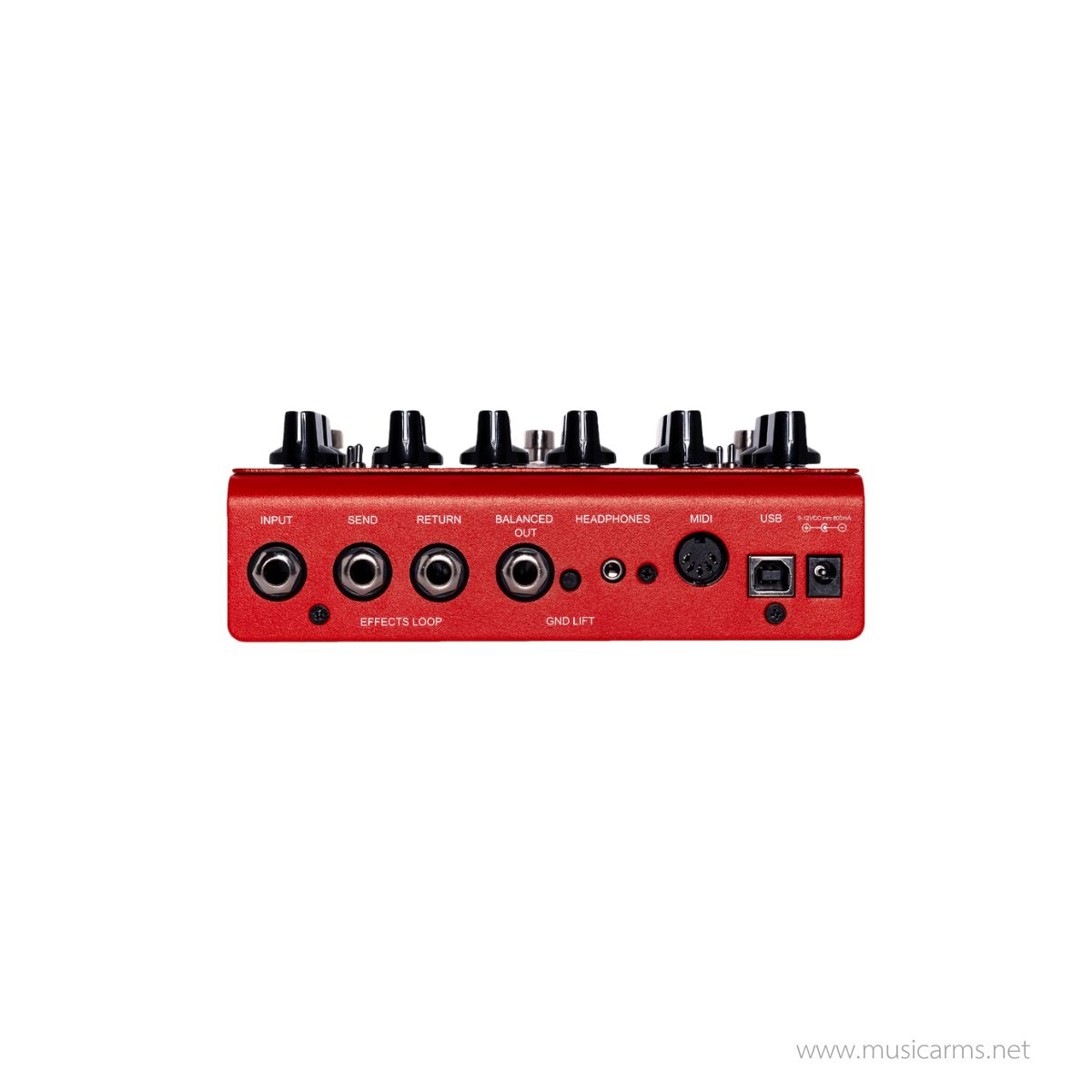

- Ultra-transparent series FX loop (bypassable)
- TRS balanced output
- Headphone output
- MIDI 5 pin standard connector and USB MIDI
- USB software editor – powered by SYNERGY
- Limited 3-year Warranty
- Universal 12V Power Supply Included
- 6 Foot USB2.0 A Male to B Male cable Included
- Dimensions (Including Knobs): 5.5” (D) x 6.5” (W) x 2.3 (H)
- Weight: 1.5 lbs.
- Boost Volume (top) – Vol. (gain amount) and Tone controls (per channel) on side panel
- Volume and Gain controls (per channel)
- Full EQ consisting of Bass, Middle, Treble (per channel)
- 3-way Bright switch (per channel)
- 2-way Gain switch (Channel 2)
- Three multi-function foot switches
- Ultra-transparent series FX loop (bypassable)
- TRS balanced output
- Headphone output
- MIDI 5 pin standard connector and USB MIDI
- USB software editor – powered by SYNERGY
- Limited 3-year Warranty
- Universal 12V Power Supply Included
- 6 Foot USB2.0 A Male to B Male cable Included
- Dimensions (Including Knobs): 5.5” (D) x 6.5” (W) x 2.3 (H)
- Weight: 1.5 lbs.
ข้อมูล
Friedman IR-J dual-channel tube preamp เป็นชุดอุปกรณ์ Friedman แบบครบวงจรในรูปแบบที่กระทัดรัดและเหมาะสำหรับการใช้งานกับแผงเพดเดิลบอร์ด IR-J มาพร้อมกับแชนแนลสองแชนแนลที่สามารถสลับใช้งานได้อย่างอิสระโดยใช้ฟุตสวิตช์ ซึ่งได้รับการออกแบบตามแอมป์ Friedman รุ่น JEL-100 และ JEL-20 ที่มีรากฐานมาจากวงจรโมดิฟายด์ ‘800/PLEXI ของ Dave Friedman โดยใช้หลอด 12AX7 preamp tubes ความแรงสูง 2 หลอด แต่ละแชนแนลให้เสียงที่มีความอิ่มตัวทางฮาร์โมนิกและการตอบสนองที่ละเอียดเหมือนแอมป์หลอดขนาดใหญ่จาก Friedman แพลตฟอร์ม SYNERGY ที่รองรับเทคโนโลยี DSP IR simulation สำหรับการจำลองตู้แอมป์/กำลังขับแบบมืออาชีพ พร้อมส่งสัญญาณเสียงที่มีคุณภาพระดับสตูดิโอไปยัง DAW หรือ Front-of-House ได้อย่างมีประสิทธิภาพ IR-J มาพร้อมกับการควบคุมที่ใช้งานง่าย ไม่มีเมนูซับซ้อนหรือคู่มือยาวๆ 100 หน้า
สเปค
Jake E Lee Signature Preamp
-
All-tube HIGH-VOLTAGE preamp – DI
-
ใช้หลอด 12AX7 preamp tubes จำนวน 2 หลอด
-
แชนแนลสองแชนแนล พร้อม TS style boost ต่อแชนแนล
-
อิงจากการออกแบบแอมป์ Friedman รุ่น JEL-100 และ JEL-20
-
ฟีเจอร์ MIDI programmable:
-
Channel select / Boost
-
IR select
-
Thump, Presence และ Low-Pass Filter – สวิตช์ 3 ท่าแต่ละแชนแนล
-
Effects loop ON/OFF
-
Boost Lock
-
การจำลองพลังแอมป์ (Power amp simulation) พร้อมการปรับแต่ง Presence, Thump และ Low-Pass Filter ผ่านซอฟต์แวร์ (แยกแต่ละแชนแนล)
-
การจำลองตู้แอมป์ Impulse Response (ต่ำ latencies) (สามารถข้ามได้)
-
สวิตช์ CAB/IR select 3 ตำแหน่งแต่ละแชนแนล (โปรแกรมผ่านซอฟต์แวร์)
-
ฟรี 18 Friedman IRs หรือสามารถโหลด IR ของตัวเอง
-
-
Boost Volume (top) – ปรับ Vol. (ระดับ Gain) และ Tone controls (ต่อแชนแนล) ที่แผงด้านข้าง
-
ปรับ Volume และ Gain (ต่อแชนแนล)
-
EQ เต็มรูปแบบ ประกอบด้วย Bass, Middle, Treble (ต่อแชนแนล)
-
สวิตช์ Bright 3 ท่า (ต่อแชนแนล)
-
สวิตช์ Gain 2 ท่า (แชนแนล 2)
-
สามฟุตสวิตช์ฟังก์ชันหลายรูปแบบ
-
Ultra-transparent series FX loop (ข้ามได้)
-
TRS balanced output
-
Headphone output
-
MIDI 5 pin standard connector และ USB MIDI
-
USB software editor ที่ขับเคลื่อนโดย SYNERGY
-
รับประกันจำกัด 3 ปี
-
รวม Universal 12V Power Supply
-
รวม สาย USB2.0 A Male to B Male ขนาด 6 ฟุต
-
ขนาด (รวมปุ่ม): 5.5” (D) x 6.5” (W) x 2.3” (H)
-
น้ำหนัก: 1.5 lbs
