JBL MK12-PAK ลำโพงเอนกประสงค์

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : JBL

ราคา : 18,900 บาท

30,000 บาท ประหยัด37%
รุ่น :  JBL MK12-PAK ลำโพงอเนกประสงค์
สถานะสินค้า : มีสินค้าพร้อมส่ง
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ JBL MK12-PAK ลำโพงเอนกประสงค์ผ่านline สั่งซื้อ JBL MK12-PAK ลำโพงเอนกประสงค์ผ่าน messenger

Description

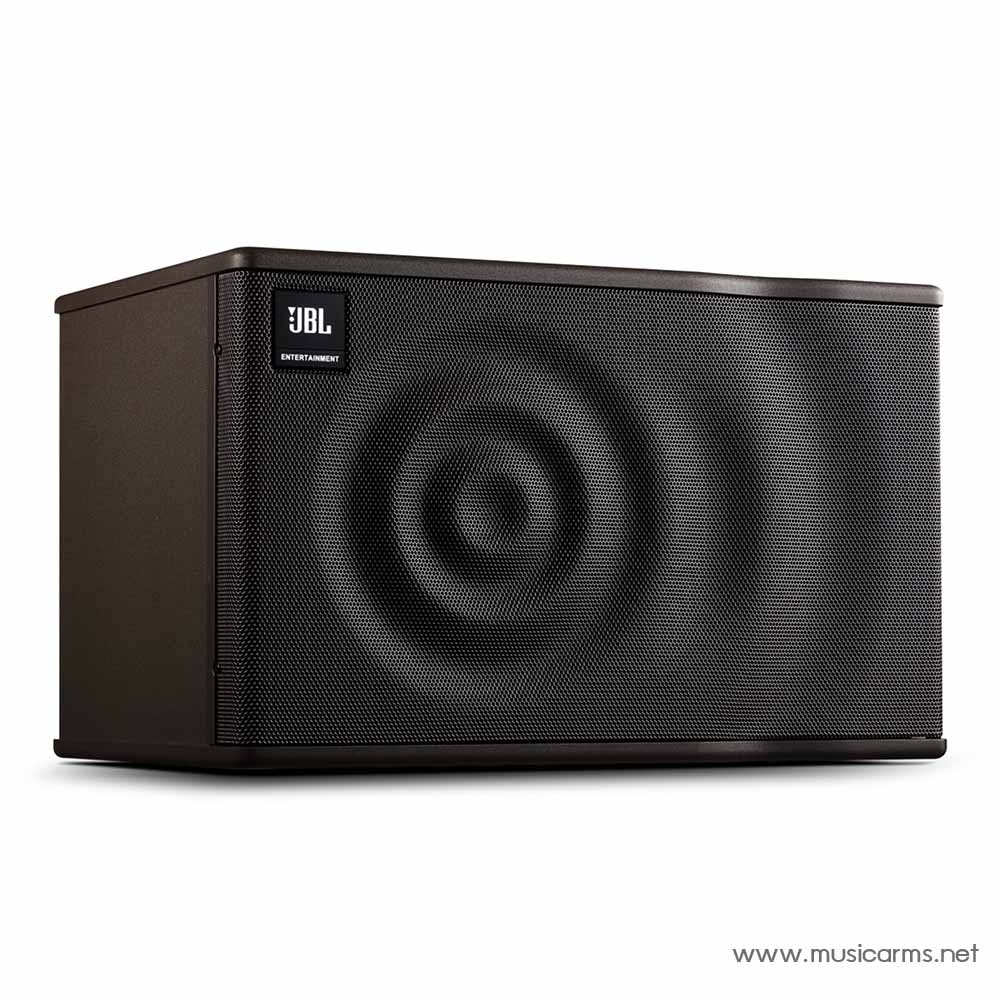

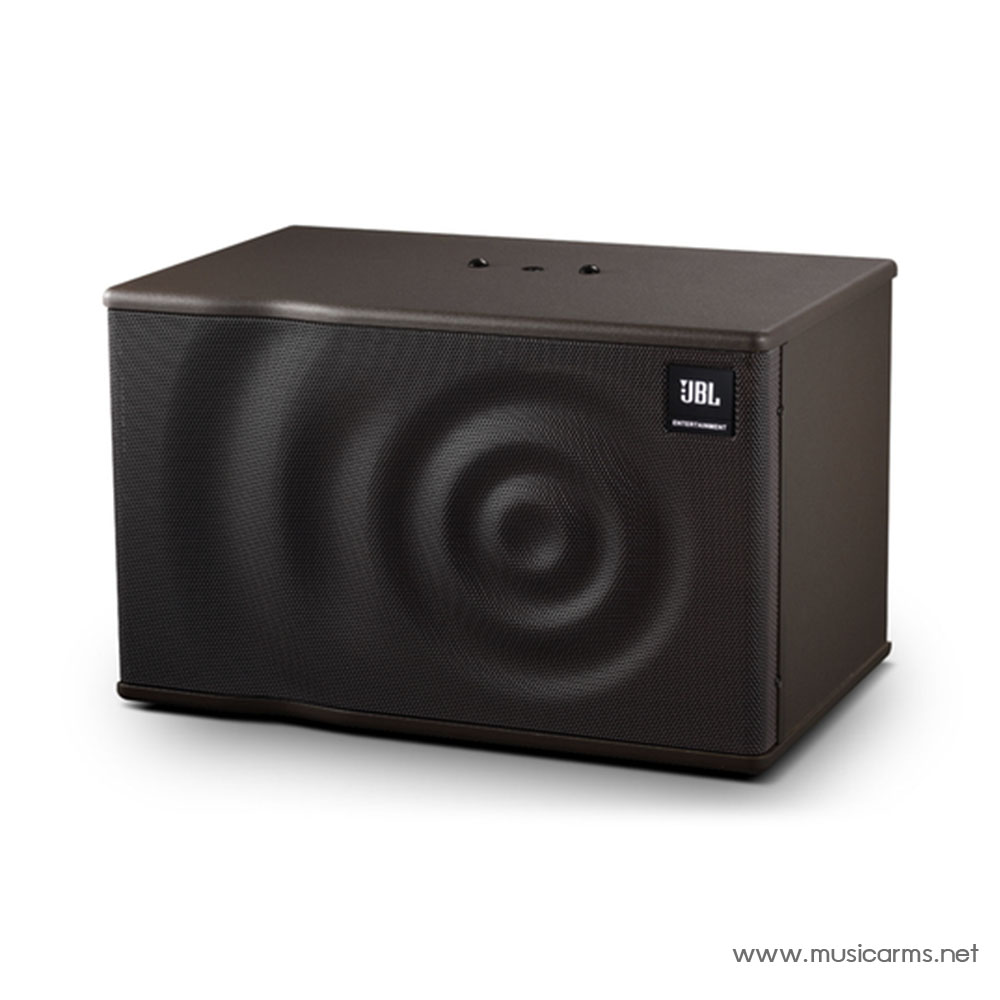

MK12 is a 2-way full-range loudspeaker designed by JBL for KTV boxes. It uses a 12” woofer and two 3” tweeters to realize exceptional acoustic performance – high power, low distortion, and remarkable electro-acoustic conversion efficiency.

The 12” woofer is specially designed for high power handling and features a non-pressed long fiber pulp cone with foam surround, which provides enough stiffness and reliability while processing the electromagnetic force. A demodulating aluminum ring is fitted to guarantee minimum distortion and power compression. For the high frequencies, two 3” paper cones are installed, in consideration of their light weight and, most importantly, their ability to reproduce high notes bright, smooth and with excellent dispersion.

To optimize power distribution between low and high frequency transducers and for better frequency response, a precision-engineered crossover is utilized. The cabinet to support the tweeters is built in a V-shape so as to further improve the coverage and sensitivity, two factors essential to a karaoke speaker.

MK12 presents itself as a mix of edgy design and high tech through its light-coffee palette, wave-like front grille, and luminous JBL ENTERTAINMENT logo. The light-coffee colored enclosure is constructed of premium quality MDF and finished in durable vinyl wraps. Two high-strength M10 suspension points are provided for bracket mounting. 16-gauge steel is used to build the corrugated grille and to protect the components inside. JBL’s PSL (Passive Sound Lighting) Technology is what’s behind the glowing JBL ENTERTAINMENT logo and making JBL sound visible.

Specification

Specs

System Type 12″, 2-way, bass-reflex
Frequency Range (-10 dB) 45 Hz – 17 kHz
Frequency Response (±3 dB) 60 Hz – 14 kHz
Sensitivity (1w@1m) 91 dB
Nominal Impedance 8 Ohms
Maximum SPL 115 dB (121 dB peak)
Power Rating
(Continuous/Program/Peak)
250 W/500 W/1000 W
Coverage Pattern 100° × 90° (H × V)
Dimensions (H × W × D) 350 mm × 575 mm × 355 mm13.8 inch × 22.6 inch × 14.0 inch
Net Weight 16 Kg (35.9 lbs)
LF Driver 1 × 12″ (304.8 mm) woofer
HF Driver 2 × 3″ (76.2 mm) tweeter
Input Connectors Binding Post
Enclosure Construction Vinyl covered 15mm MDF

ข้อมูล

JBL MK12-PAK ลำโพงฟูลเรนจ์ 2 ทาง ใช้วูฟเฟอร์ขนาด 12 นิ้ว และทวีตเตอร์ 3 นิ้ว สองตัวเพื่อให้ได้ประสิทธิภาพเสียงที่ยอดเยี่ยม กำลังสูง ความเพี้ยนต่ำ และประสิทธิภาพการแปลงไฟฟ้า-อะคูสติกที่โดดเด่น ในขณะประมวลผลแรงแม่เหล็กไฟฟ้า แหวนอะลูมิเนียม demodulating ถูกติดตั้งเพื่อรับประกันความผิดเพี้ยนขั้นต่ำและกำลังอัด สำหรับความถี่สูง มีการติดตั้งกรวยกระดาษขนาด 3 นิ้ว จำนวน 2 อัน โดยคำนึงถึงน้ำหนักเบา และที่สำคัญที่สุดคือ ความสามารถในการสร้างโน้ตสูงที่สว่าง ราบรื่น และกระจายเสียงได้อย่างดีเยี่ยม

MK12 นำเสนอตัวเองด้วยการผสมผสานระหว่างดีไซน์ล้ำสมัยและเทคโนโลยีชั้นสูง เทคโนโลยี PSL (Passive Sound Lighting) ของ JBL กระจายพลังงานระหว่างทรานสดิวเซอร์ความถี่ต่ำและความถี่สูงและเพื่อการตอบสนองความถี่ที่ดีขึ้น ครอสโอเวอร์ที่ออกแบบมาอย่างแม่นยำ ตู้สำหรับรองรับทวีตเตอร์สร้างขึ้นในรูปตัว V เพื่อการรับเสียงที่ยอดเยี่ยม สามารถใช้งานได้กว้าง

สเปค

รายละเอียด JBL MK12-PAK

  • ประเภทระบบ 2-way, เบส-รีเฟล็กซ์
  • ลำโพงขนาด 12 นิ้ว
  • ช่วงความถี่ (-10 dB) 45 Hz – 17 kHz
  • การตอบสนองความถี่ (±3 dB) 60 Hz – 14 kHz
  • ความไว (1w@1m) 91 dB
  • ความต้านทานที่กำหนด 8 โอห์ม
  • SPL สูงสุด 115 dB (สูงสุด 121 dB)
  • ระดับพลังงาน (ต่อเนื่อง/โปรแกรม/สูงสุด) 250 W/500 W/1000 W
  • รูปแบบการครอบคลุม 100° × 90°
  • ขนาด  350 มม. × 575 มม. × 355 มม.
  • น้ำหนัก 16 กก.
  • LF Driver วูฟเฟอร์ ขนาด 12 นิ้ว
  • HF Driver ทวีตเตอร์ ขนาด 3 นิ้ว 2 ตัว
  • ขั้วต่ออินพุท Binding Post
  • ตู้ ไวนิลหุ้ม MDF ขนาด 15 มม.

×
