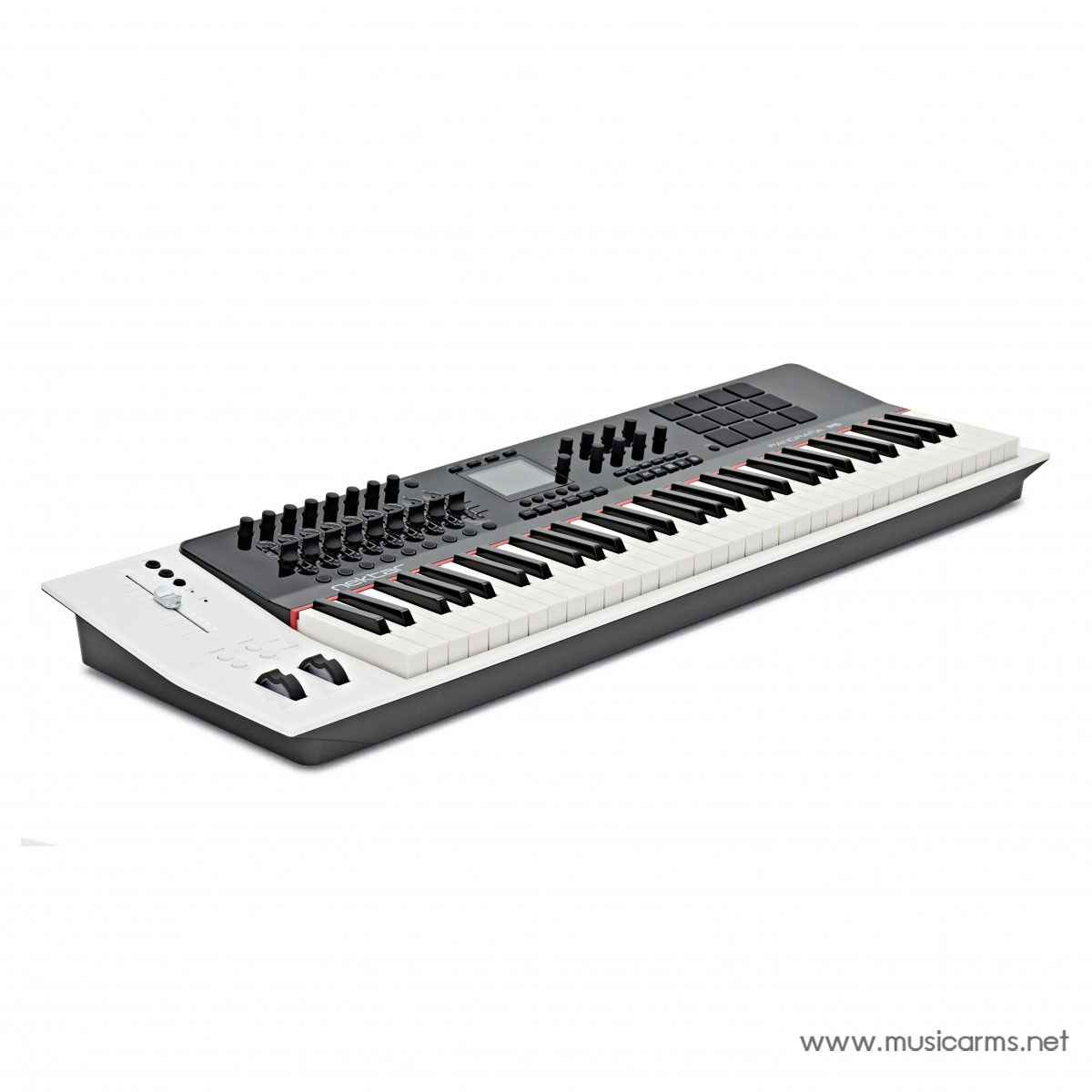

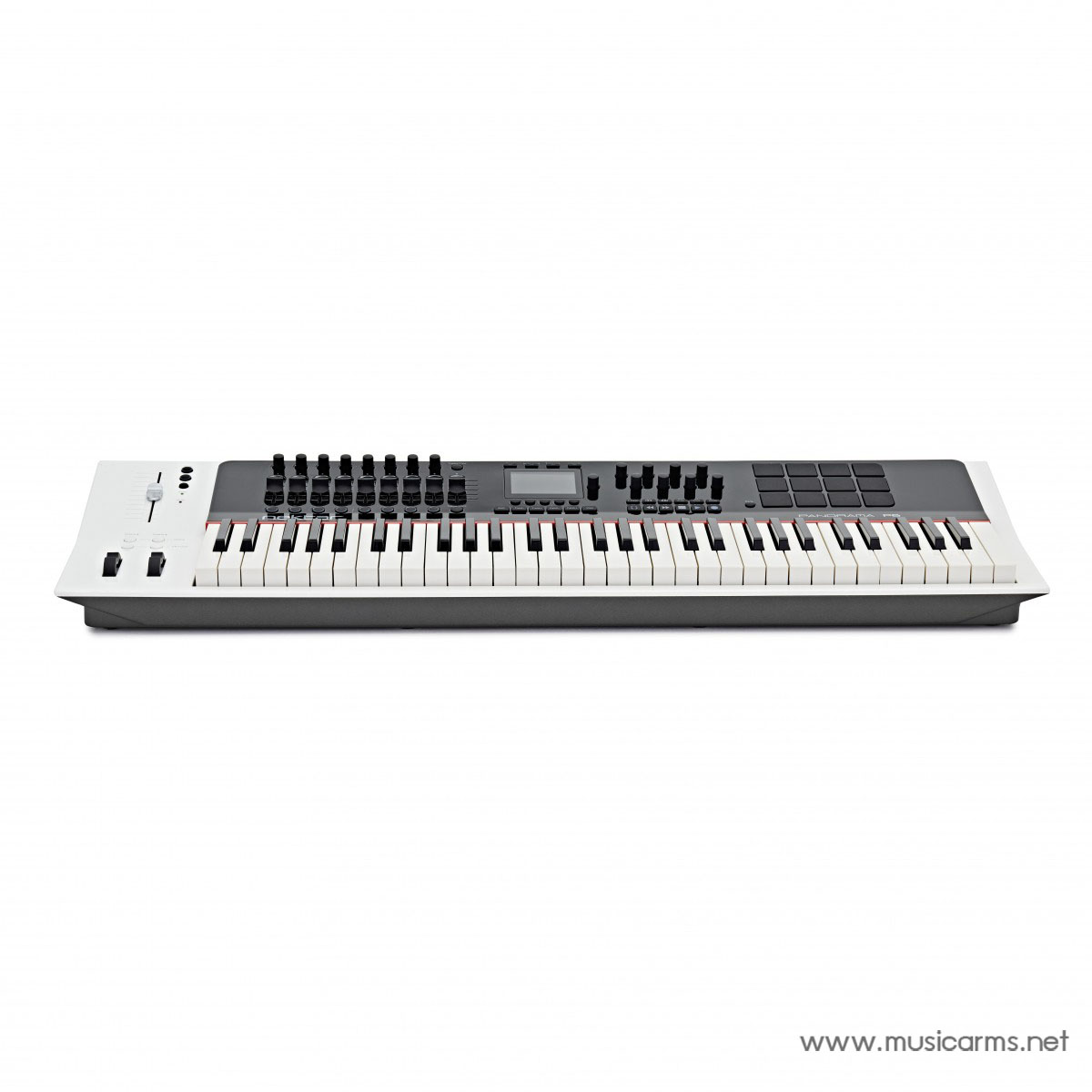

Nektar Panorama P6

Velocity-Sensitive Keybed

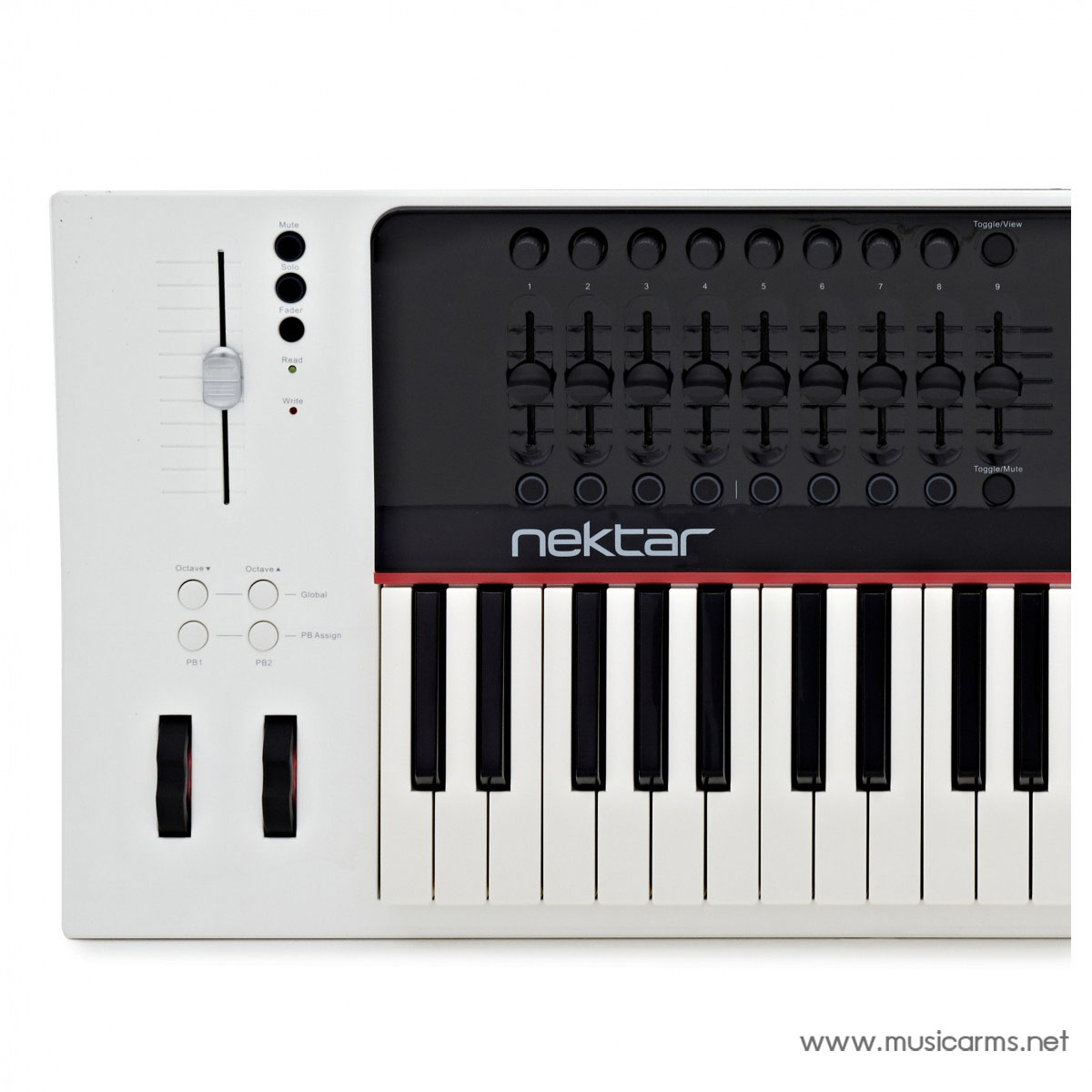

The Nektar Panorama P6 is ideal for digital musicians and classic players alike, with its velocity-sensitive keybed providing fluid playability. The 61-note keyboard features 5 veloci9ty curves as well as fixed ones. It also features the standard pitch bend and modulation assignable wheels for added expression when recording and playing. The keybed is accompanied by octave shift buttons and as well as 4 keyboard zones with can be programmed with filters and program mapping.

Performance Pads & Faders

In addition to the feel of the keybed, the Panorama P6 also boasts a range of performance controls including 16 encoders, 45mm faders, LED buttons and even performance pads for drumming and triggering samples. The 12 performance pads are velocity and pressure sensitivity and boasts 7 velocity curves for maximum versatility. You can use the performance pads for everything from triggering samples in a live performance, to recording drum patterns within your selected DAW. The other performance controls such as the encoders and faders are ideal for controlling everything from volume levels to automation and more. Transport controls are also included allowing you to improve your workflow when recording and playing within your selected audio software

Display & Connectivity

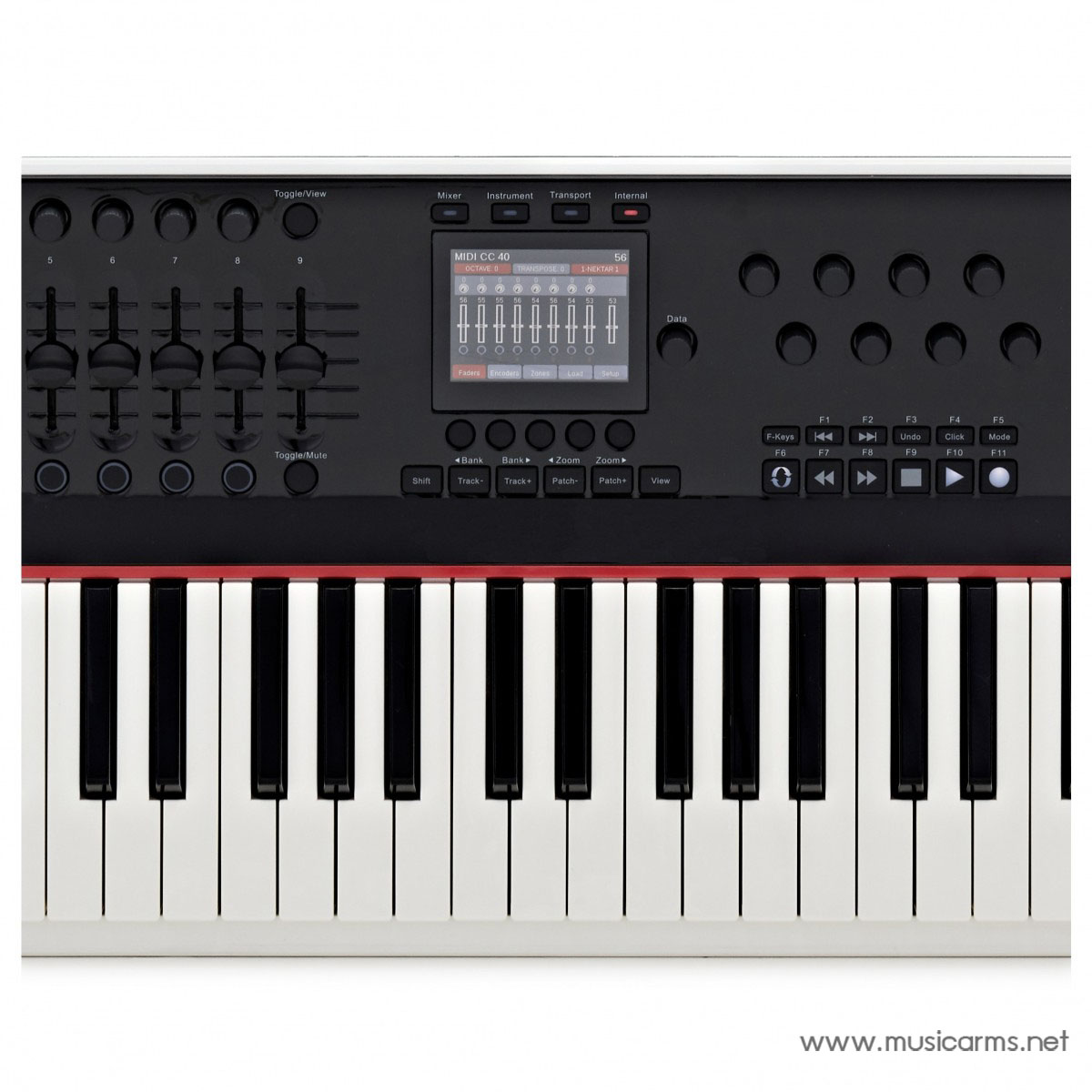

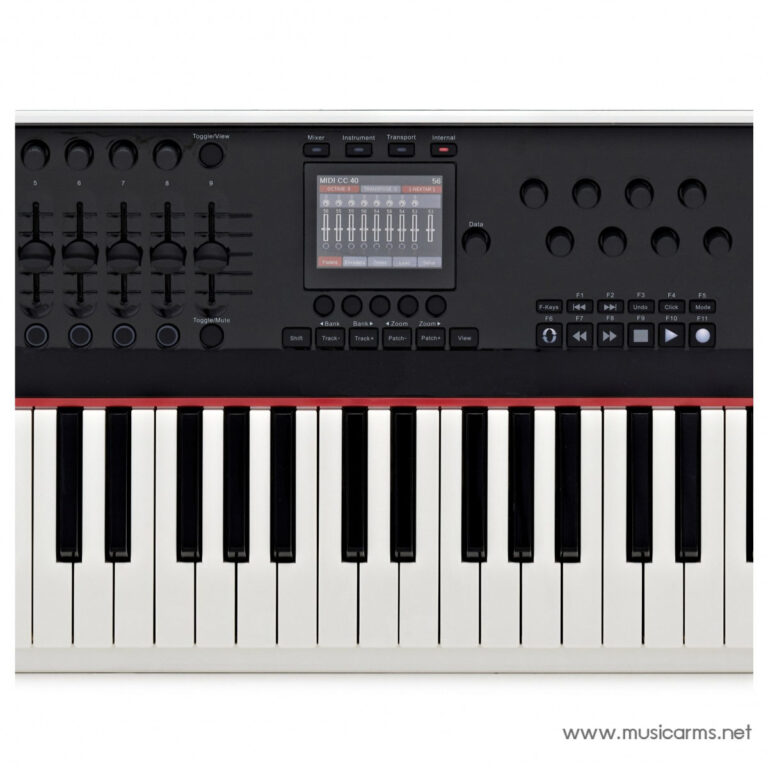

At the centre of the keyboard’s design is the 3.5-inch, TFT display which provides easy navigation of your presets, controls and more. The display gives you information on the way your keyboard is reacting as well as ways to integrate with your selected DAW. It also features a dedicated 10mm ALPS motorised faders as well as 6 assignable navigation buttons. The keyboard features a 5-pin MIDI din output for communication with your selected DAW, as well as connection for a foot switch and an expression pedal. Nearly every controls and performance functions can be mapped to your DAW for flawless integration.

Keyboard

• 61 note weighted (semi-) velocity-sensitive keyboard w/aftertouch
• 5 velocity curves plus fixed
• Pitch bend & Modulation assignable wheels
• Octave shift buttons
• PB1/2 buttons
• 4 keyboard zones programmable with controller filters and program changes
• 5 keyboard maps store all settings

Preset Controls

• 16 encoders
• 9 x 45mm faders
• 10 assignable LED buttons
• 11 dedicated transport buttons
• 20 preset locations store all settings including links to keyboard, pad and F-keys maps

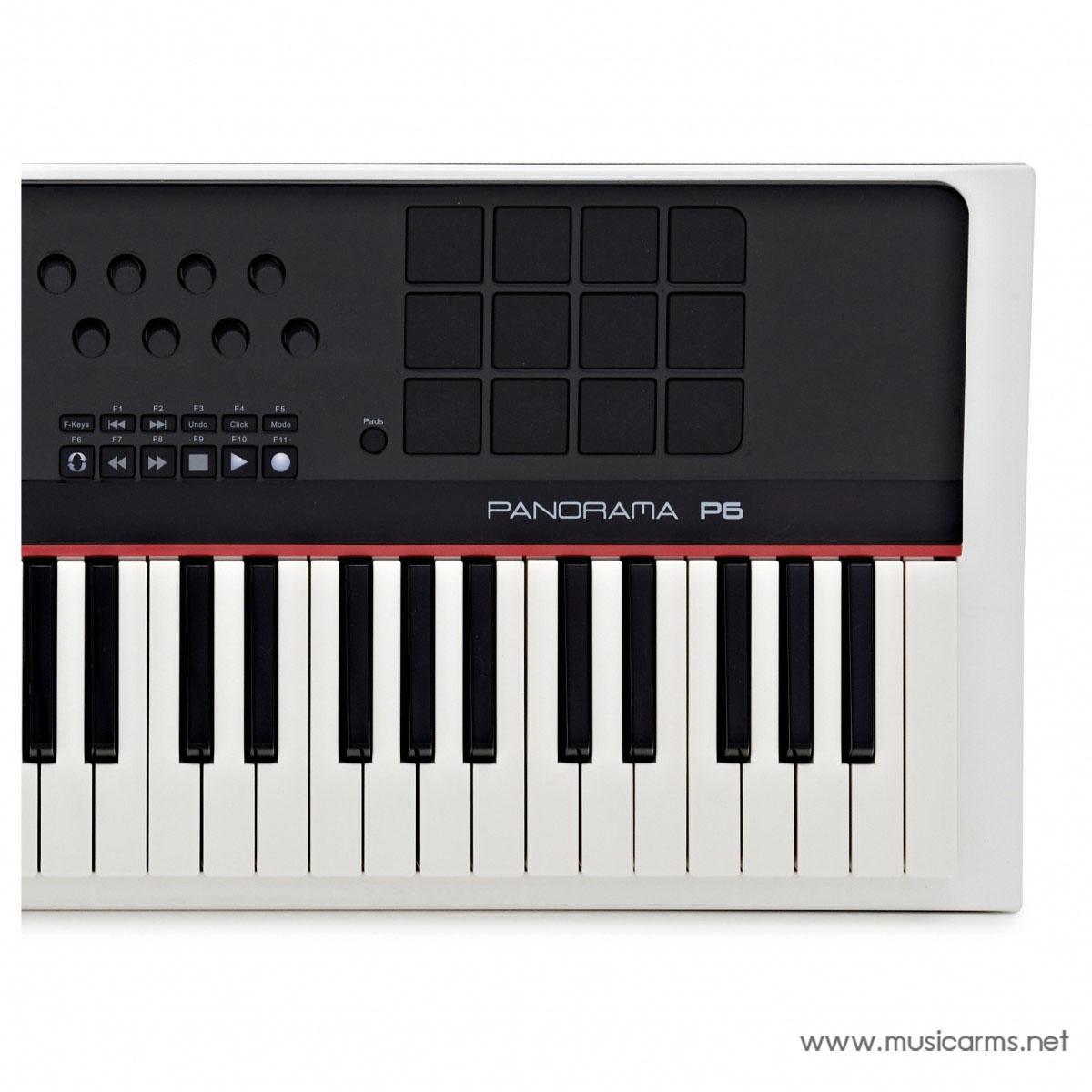

Pads

• 12 pads with velocity and pressure sensitivity
• 7 velocity curves
• Note-learn, Scale mode with 30+ scales and interval setting
• Velocity spread functions spreads the selected pad assignment over all 12 pads, at different velocity levels
• Transpose and Octave shift in both pad-map and scale mode
• Pads freely assignable in Reason mode
• Load or Save to any of 20 pad maps

F-keys

• 11 assignable Function Keys (accessible using shift and transport keys)
• Load or Save to any of 10 F-Keys maps
• F-Keys assignable even in 3 Reason modes

Additional

• 100 mm ALPS motorized fader*
• 6 dedicated assignable navigation buttons
• ASCII/QWERTY macros assignable to buttons and pads
• 3.5” high-resolution TFT display provides incredible navigation and user visibility
• Nektar DAW Integration
• Presets and setup files for major DAWs

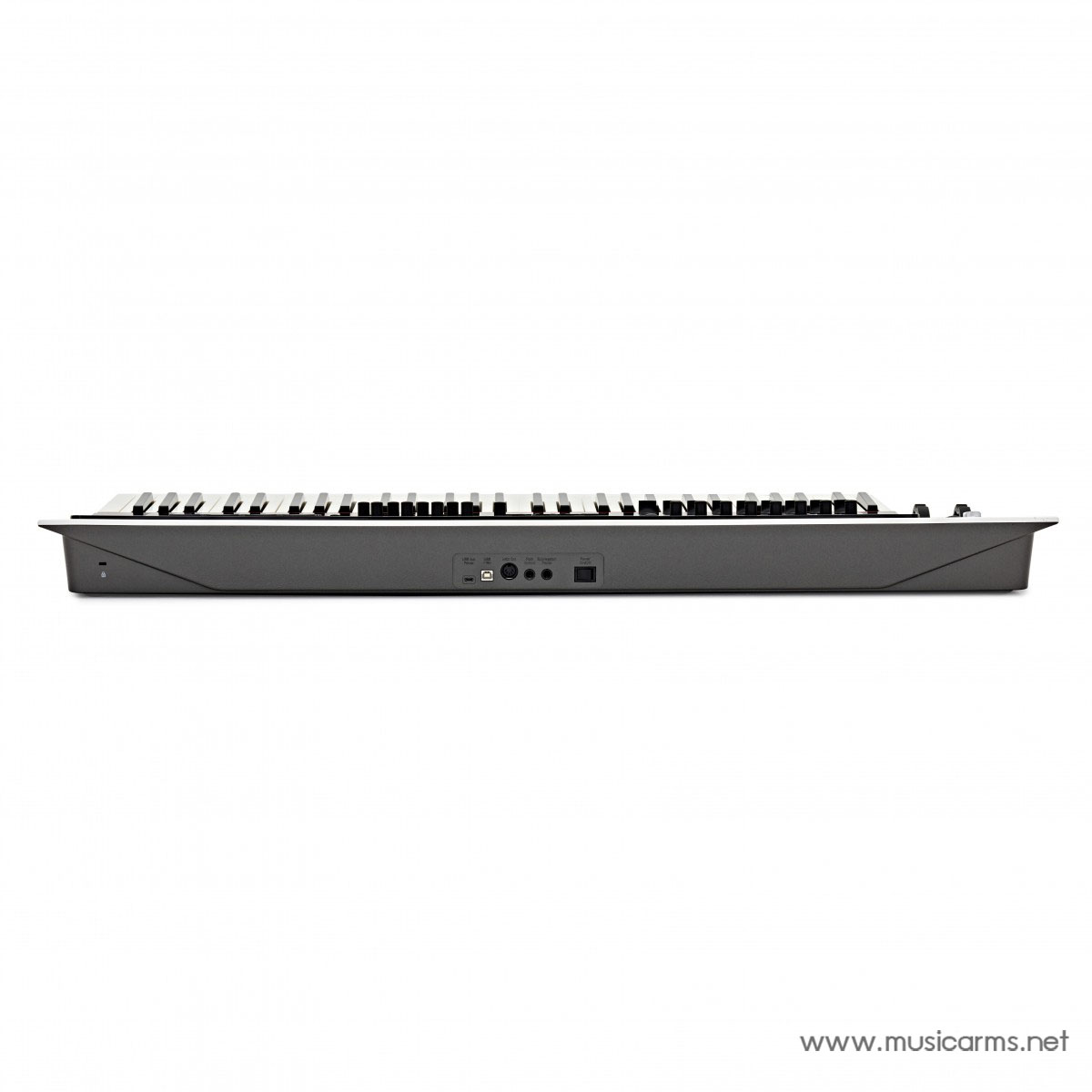

Connections

• Expression pedal 1/4″ jack input (pedal not included)
• Foot switch (sustain) 1/4″ jack input (pedal not included)
• MIDI output
• USB port for communication with computer
• USB Micro B connector for extra and external power*
