Nux B-8 Wireless System

Nux B-8 Wireless System

Unlimited freedom, professional sound quality, elevate performance, roam the stage

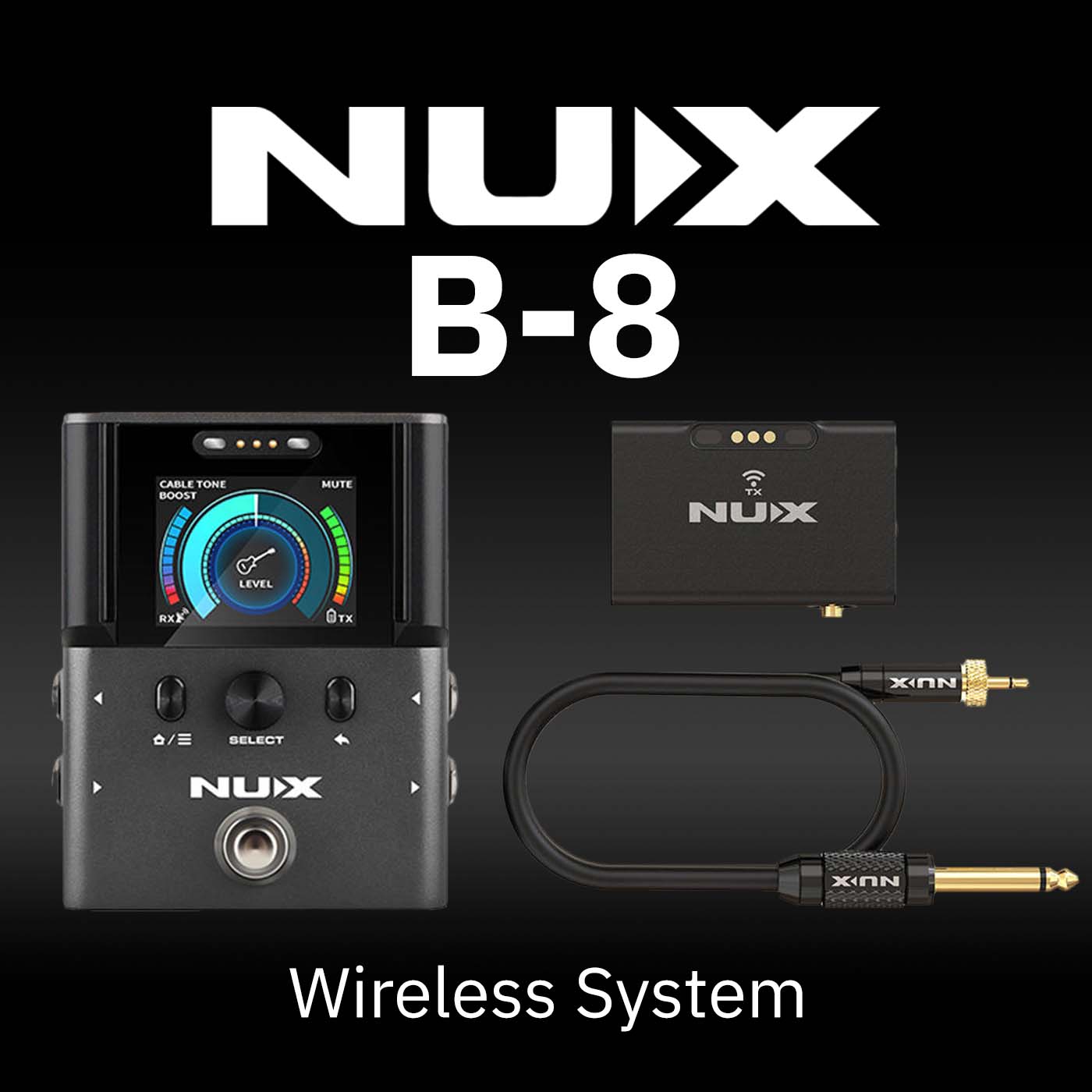

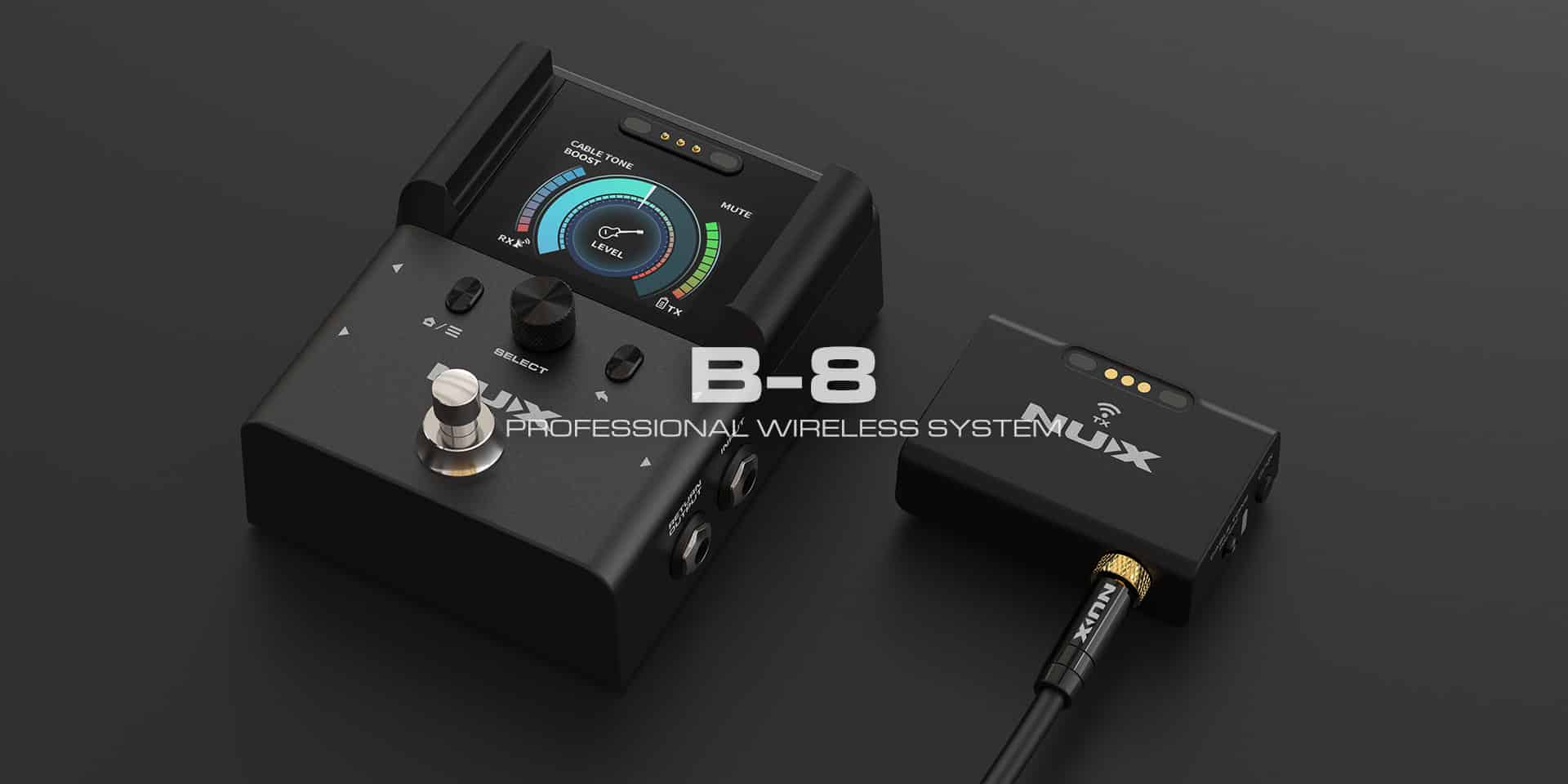

NUX B-8: The Ultimate Wireless System for Music

NUX B-8 is the ultimate wireless system for music, breaking through all the old limitations with cutting-edge technology. It is easy to connect and use, with a 2.4 GHz frequency, 24 Bit / 48 KHz high-quality sound, and a response time as low as 2.5 ms. You can move around freely with a range of up to 50 meters. Let your music flow with NUX B-8.

Easy Connection, No Hassle

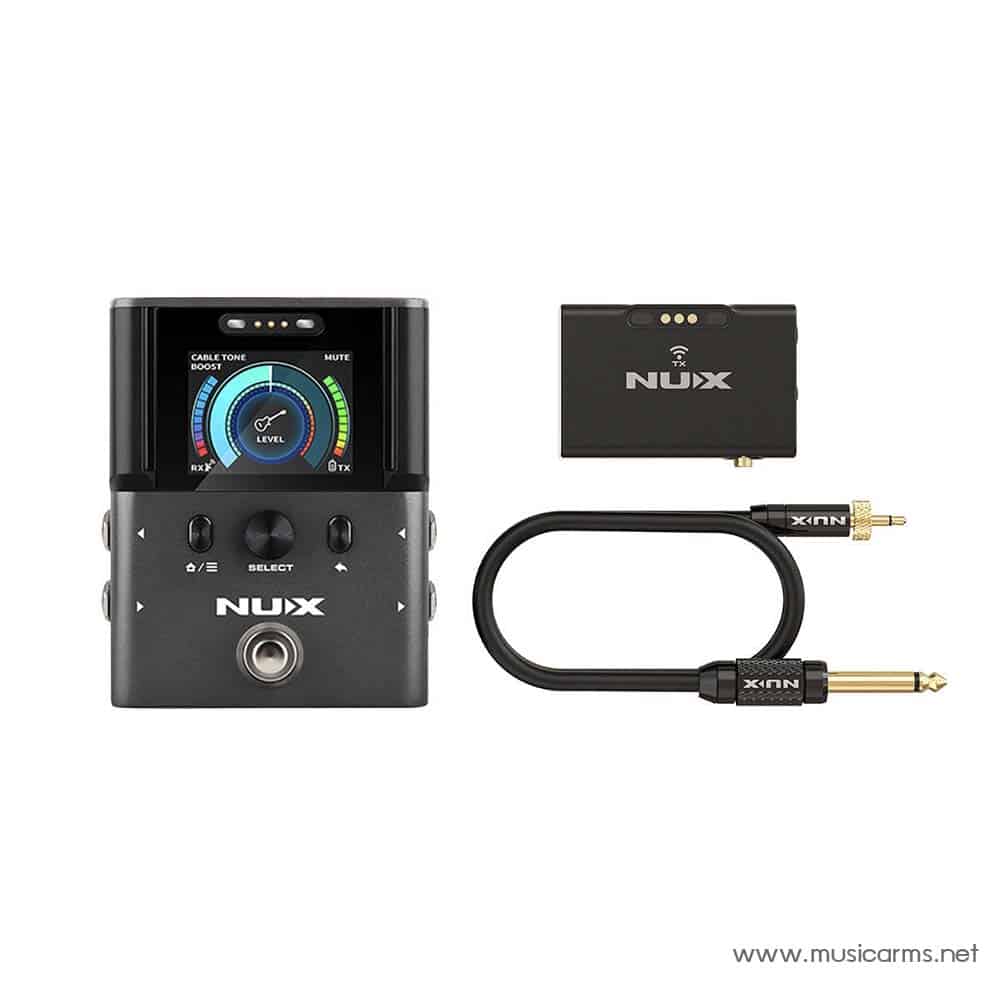

NUX B-8 features a state-of-the-art pairing system that automatically connects the transmitter (TX) and receiver (RX) within seconds. With its unique algorithm, you can be sure that the connection is correct and will not interfere with other systems. You can be ready to play in seconds, without having to waste time and energy on complicated settings.

Professional Sound

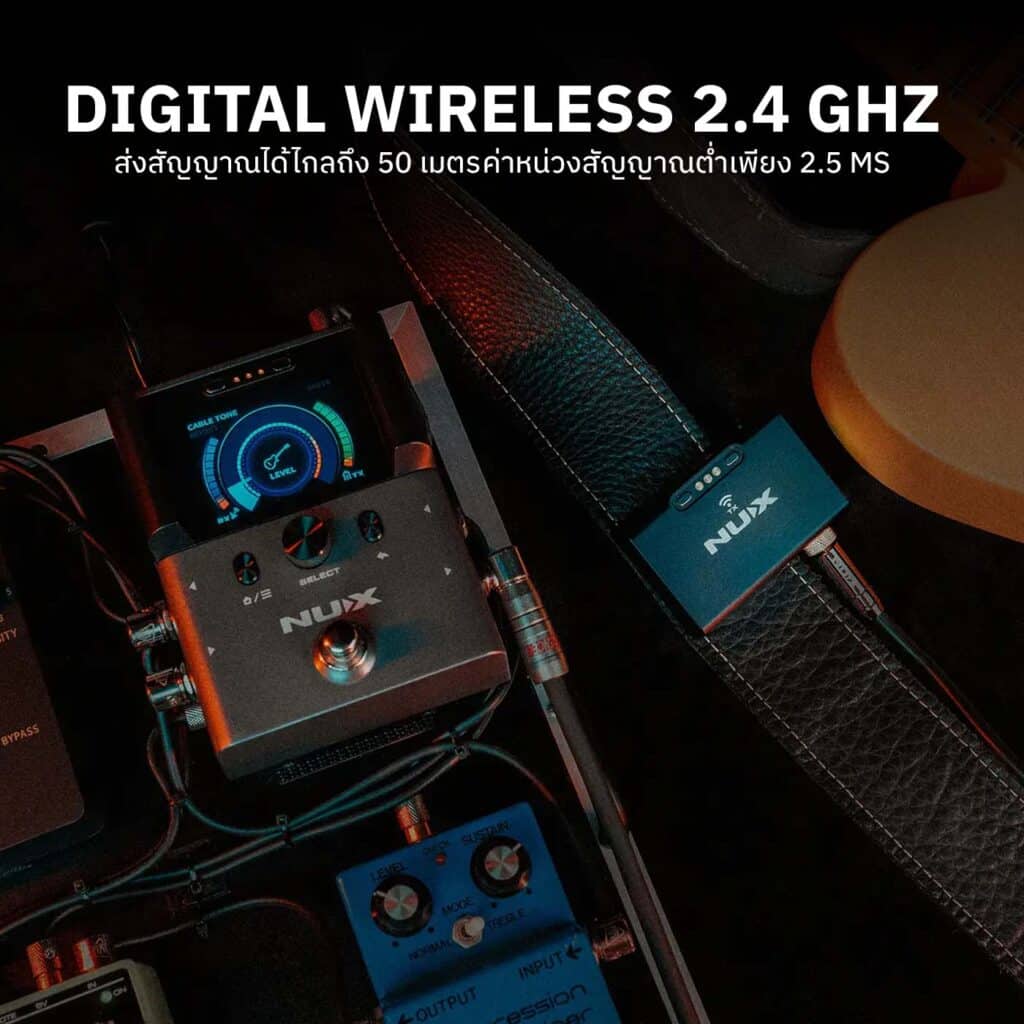

NUX B-8 transmits wireless signals using a 2.4 GHz frequency that is free from interference worldwide. You can use it anywhere with confidence, without any signal dropouts. NUX B-8 delivers high-quality sound with a 24 Bit / 48 KHz sampling rate, which is as clear and realistic as a direct cable connection. Enjoy professional sound with NUX B-8.

Play Far, No Delay, Fast Response, Enjoy Every Note

NUX B-8’s cutting-edge technology delivers a premium wireless experience. LOW LATENCY, quick response, accurate, and receives signals up to 50 meters. Whether on stage, in the studio, in the practice room, or even outdoors, it takes you to every corner, ready to unleash your full musical power.

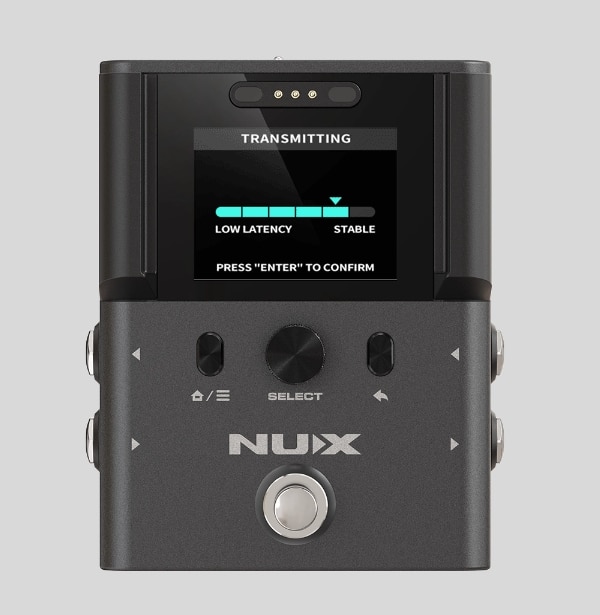

Stable and Play with Confidence

For optimal performance, please check your surroundings. If there are a lot of Wi-Fi devices nearby, it is recommended to adjust the signal strength of B-8 accordingly. Choose between LOW LATENCY mode for high accuracy or STABLE mode for interference-free stability. Choose the right mode to ensure smooth playing without signal interference.

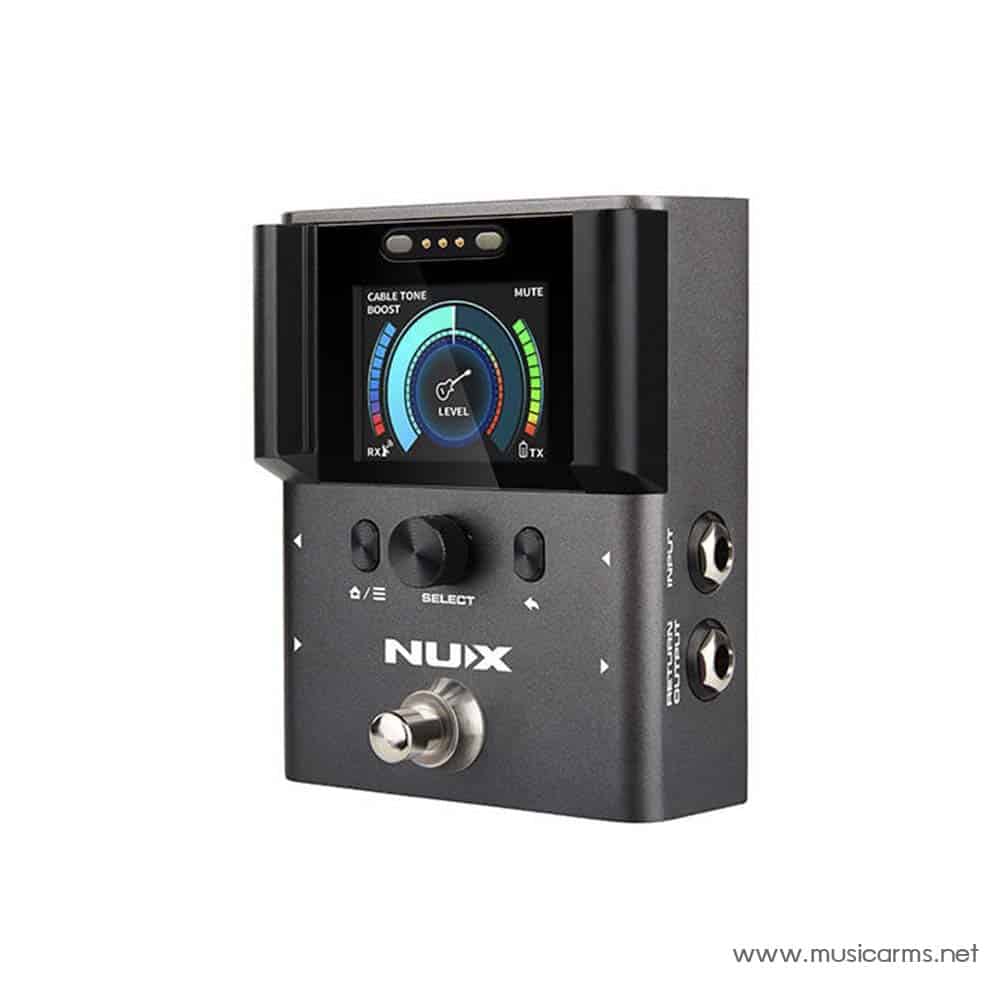

All-in-one functions, double the excitement

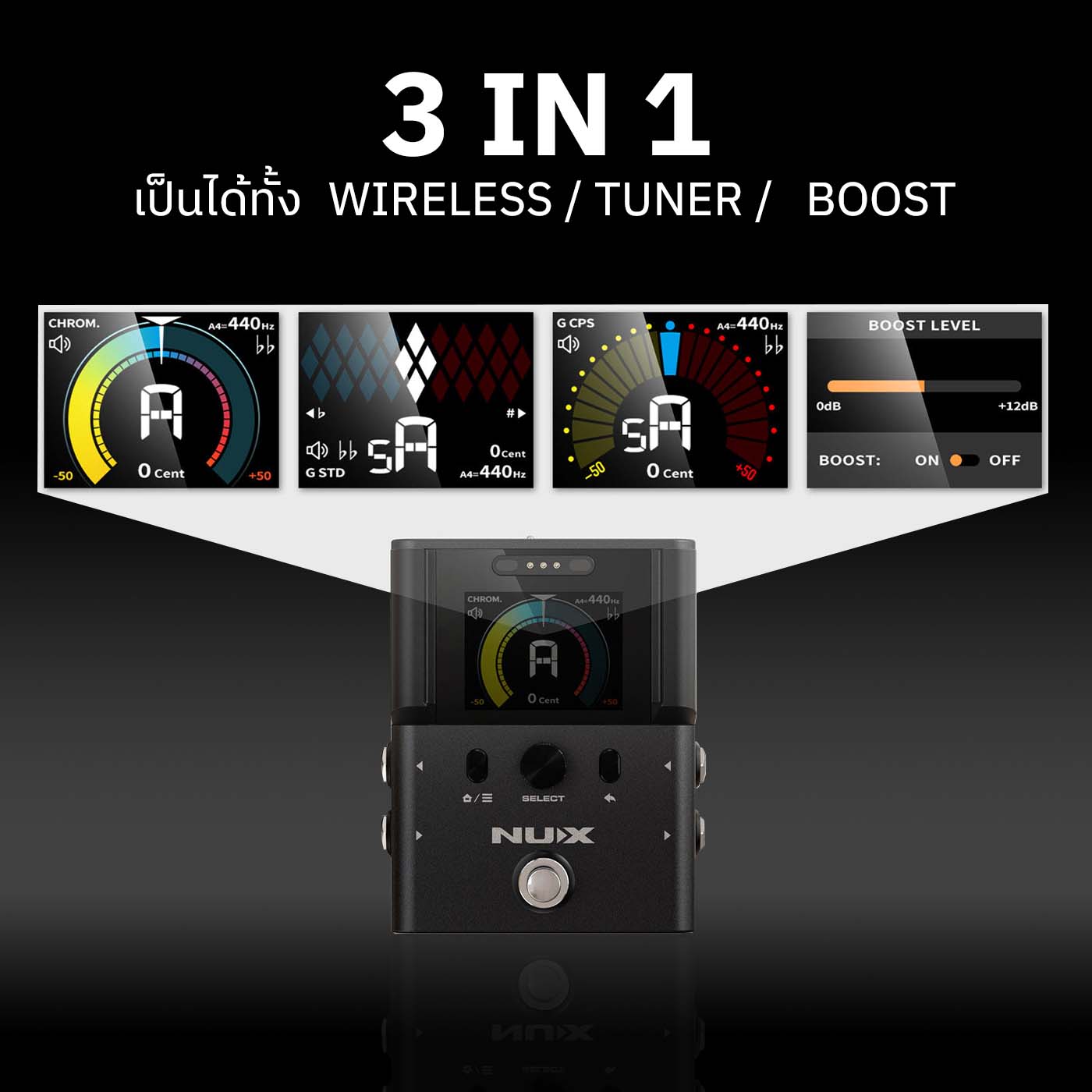

NUX B-8 is not just a wireless system, but it also comes with a booster and tuner function. This makes it a complete system that can meet all your playing needs. The booster function can add gain and volume to your sound, giving you a more powerful and punchy sound. The tuner function can help you stay in tune, so you can focus on your performance.

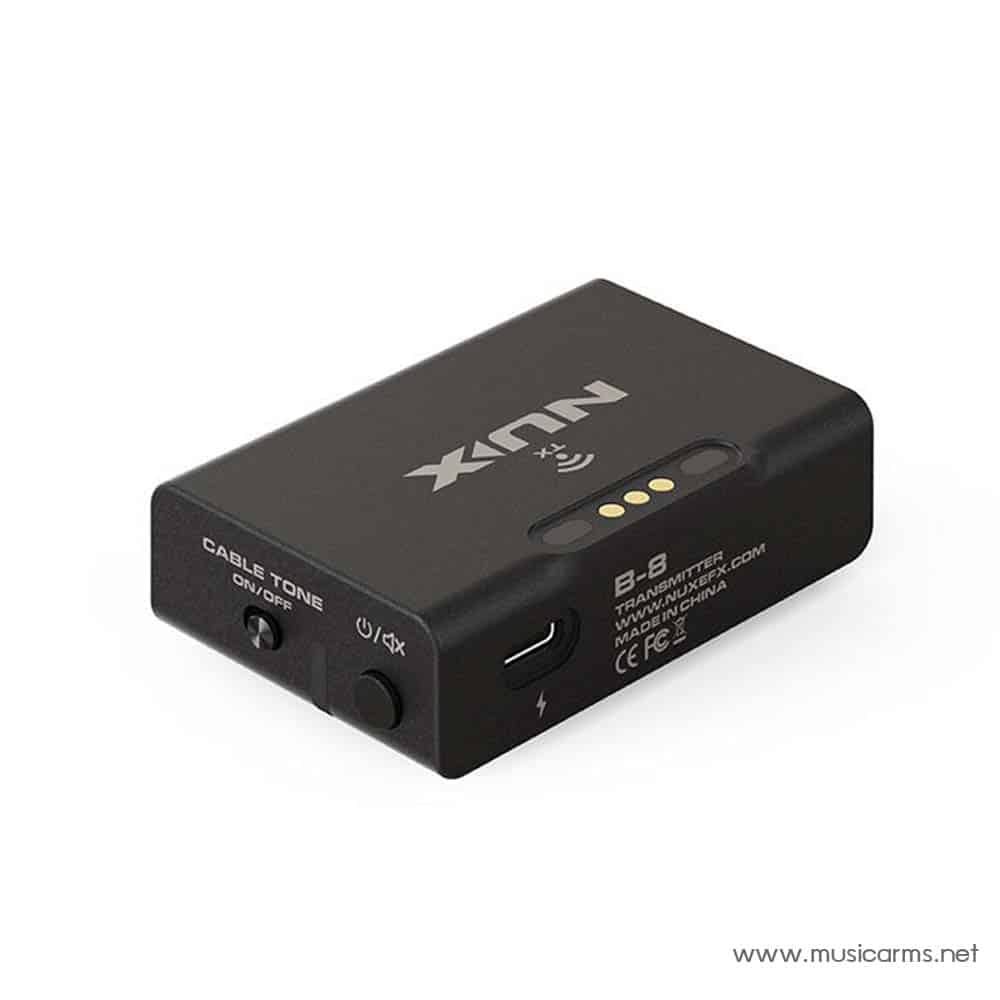

Long-lasting and uninterrupted fun

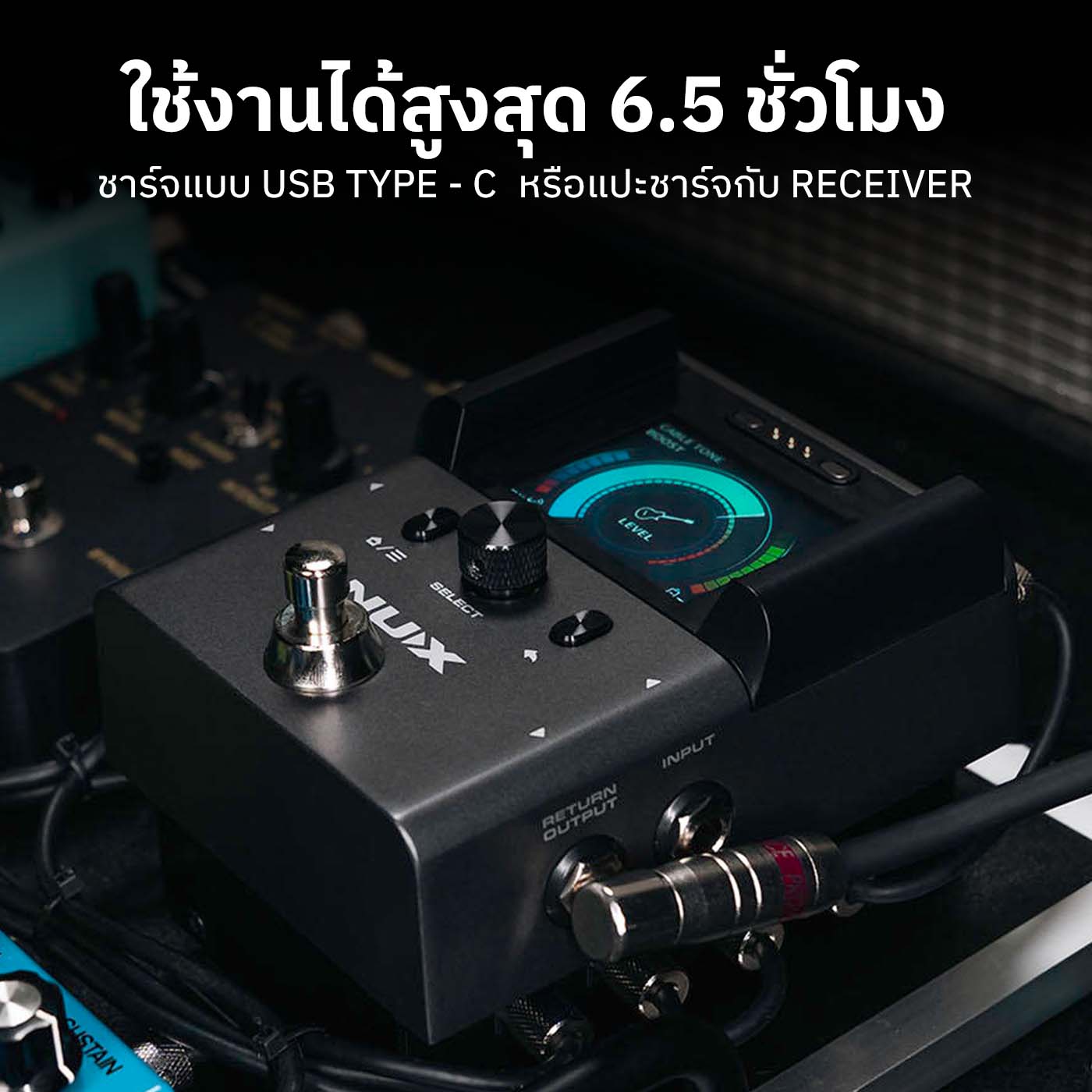

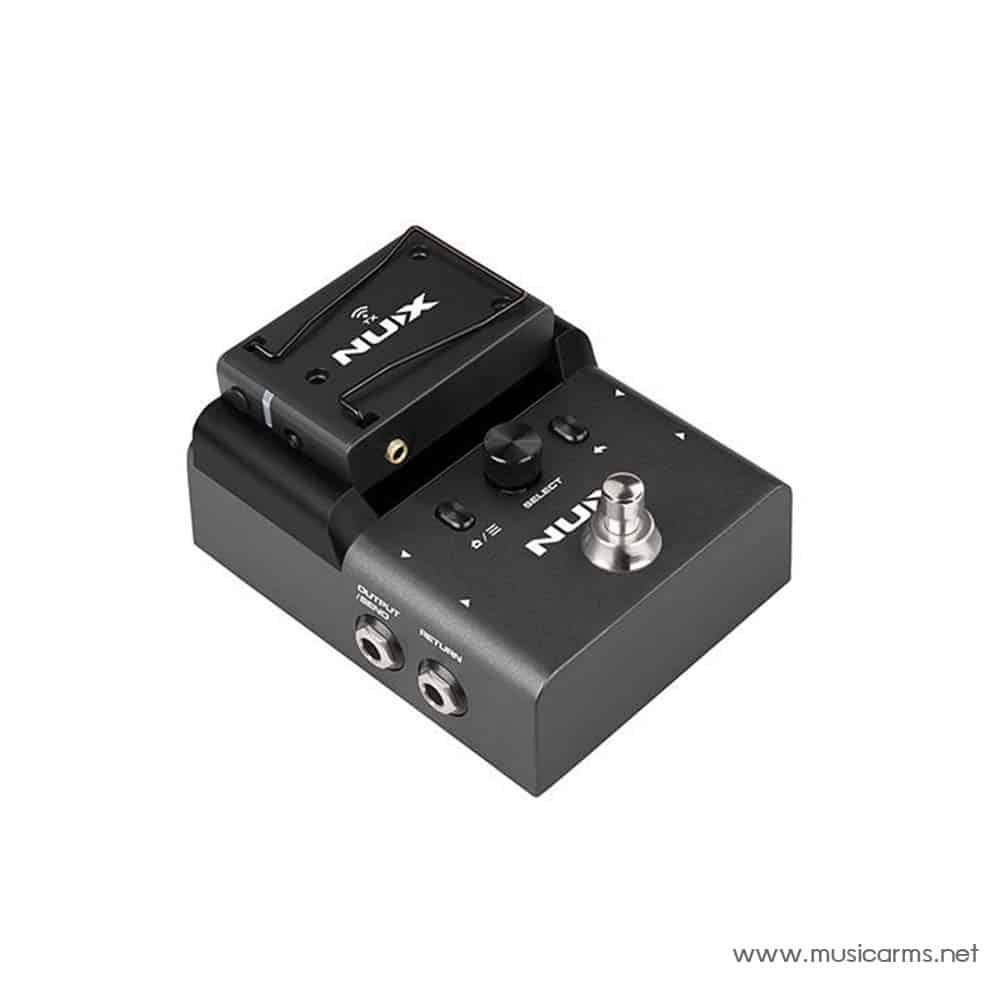

No need to worry about running out of battery halfway through your performance. The NUX B-8 transmitter (TX) comes with a large-capacity lithium-ion battery that can last up to 6.5 hours of continuous use. Play as long as you want. And when you need to charge, simply place the transmitter on the receiver (RX). Convenient and fast, ready to use again immediately. Durable, truly meets the needs of musicians.

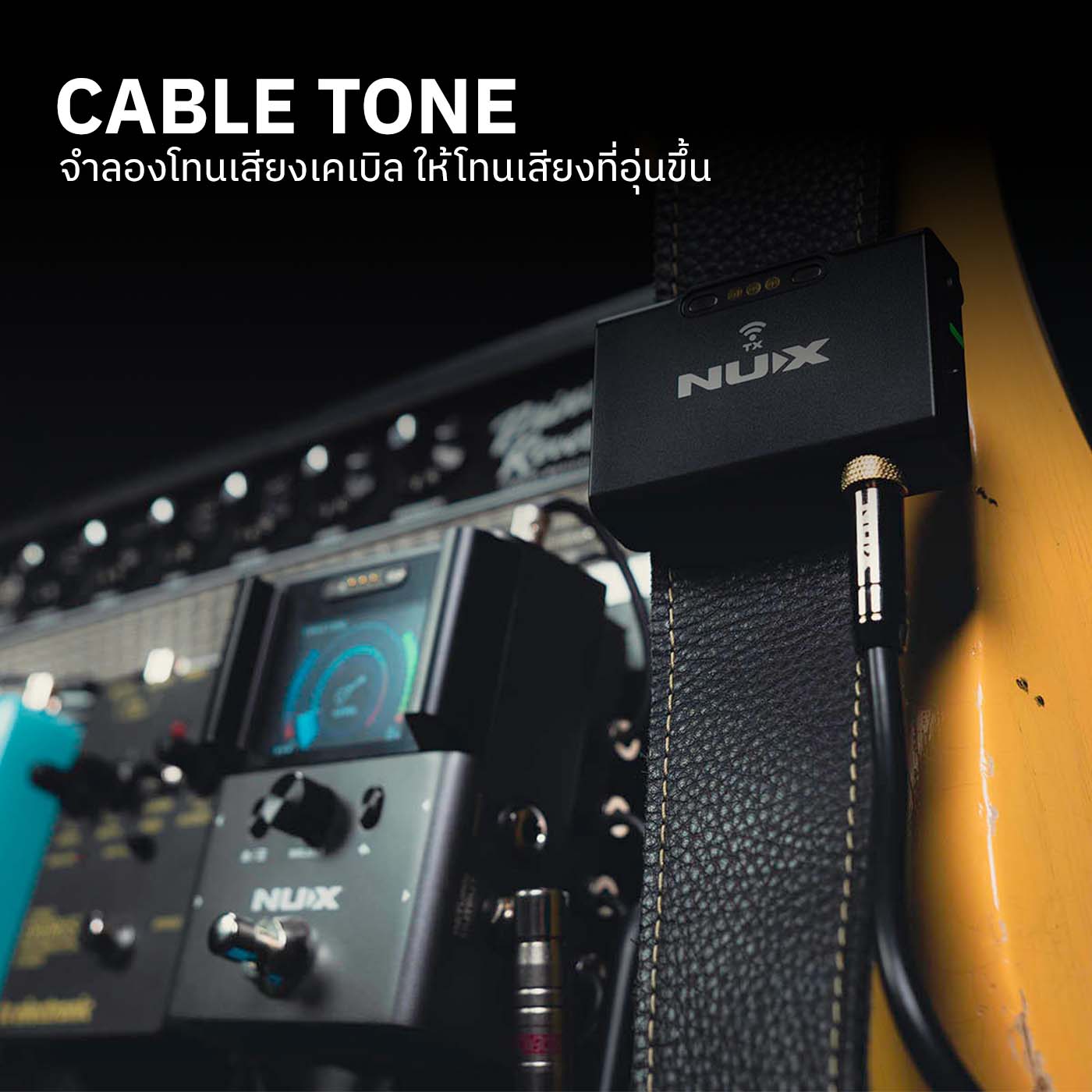

Experience the cable tone, just like a cable

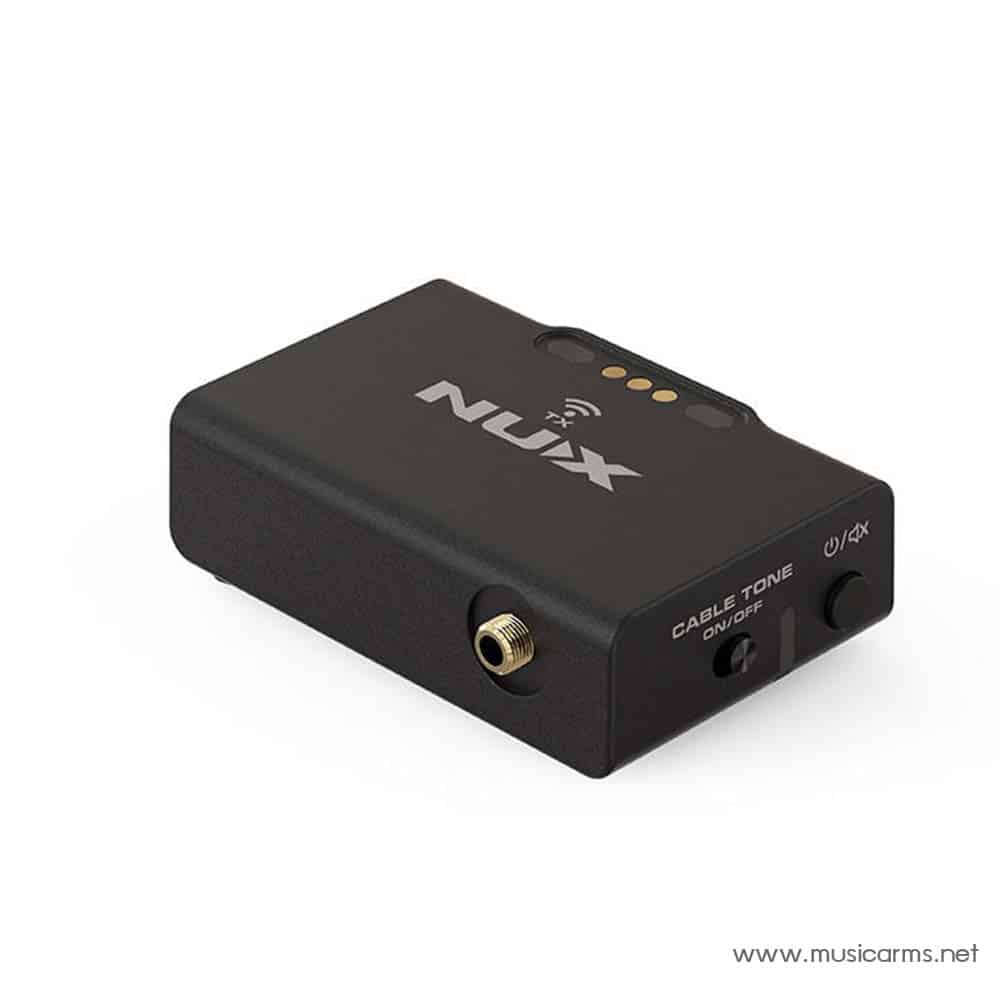

NUX B-8 understands the heart of musicians! The transmitter (TX) comes with a Cable Tone Simulation function that simulates the cable tone, which is popular with some guitarists. It gives you a warm, thick sound that is similar to playing with a cable. Just turn it on, and you are ready to experience the cable tone that you are familiar with.

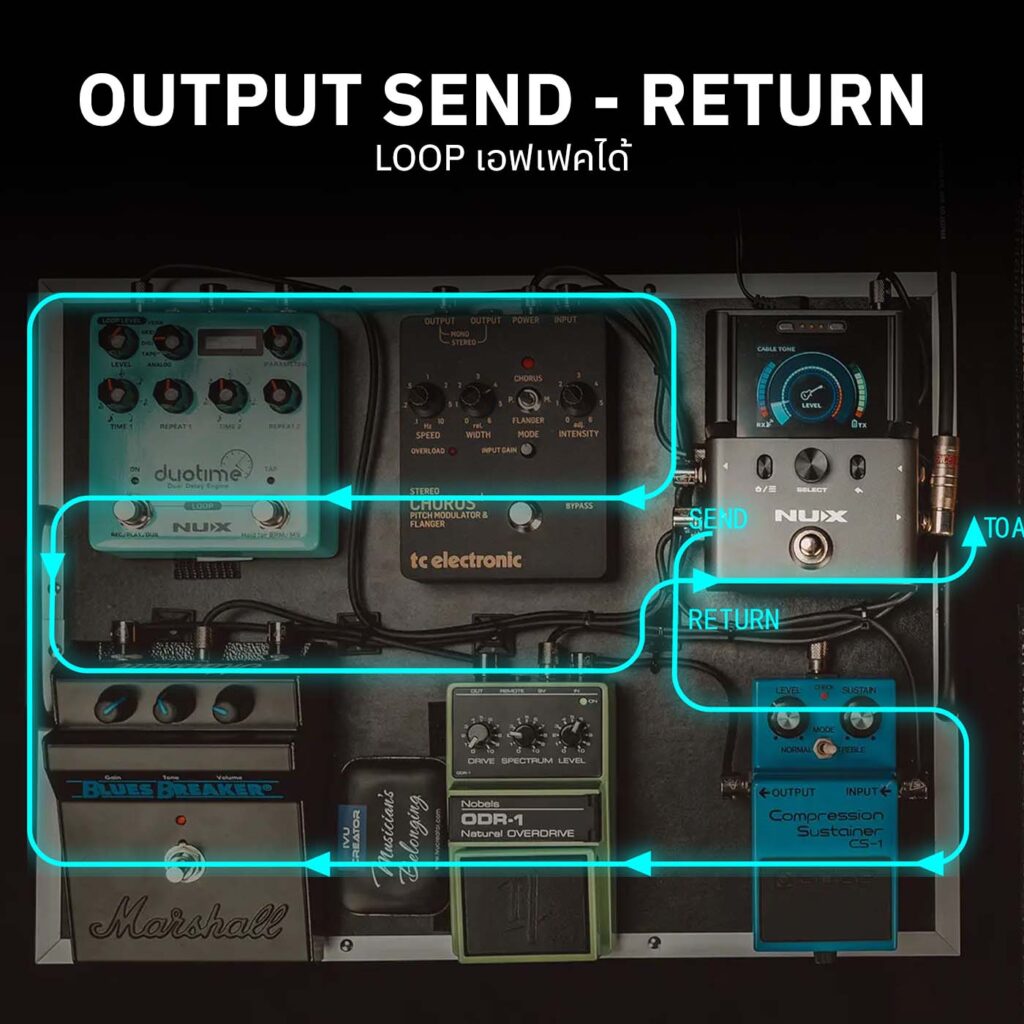

Connect effects to create the ultimate sound

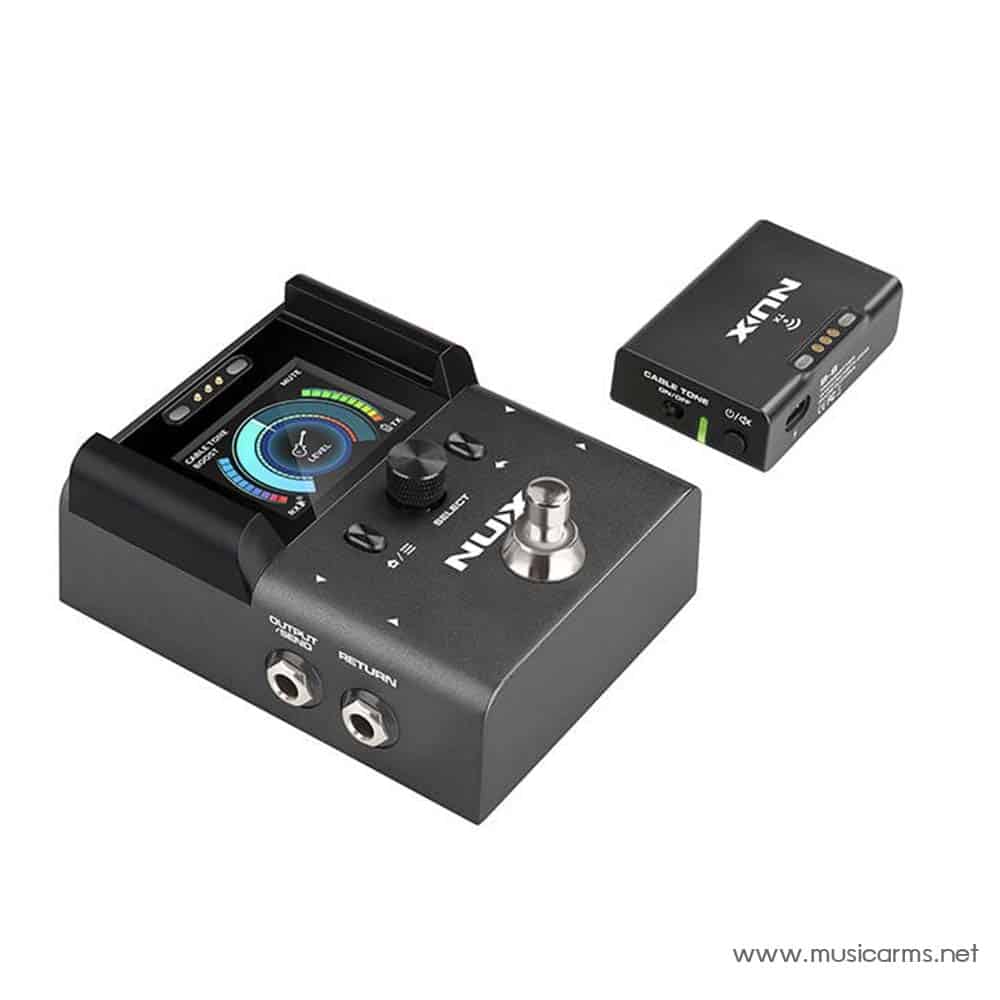

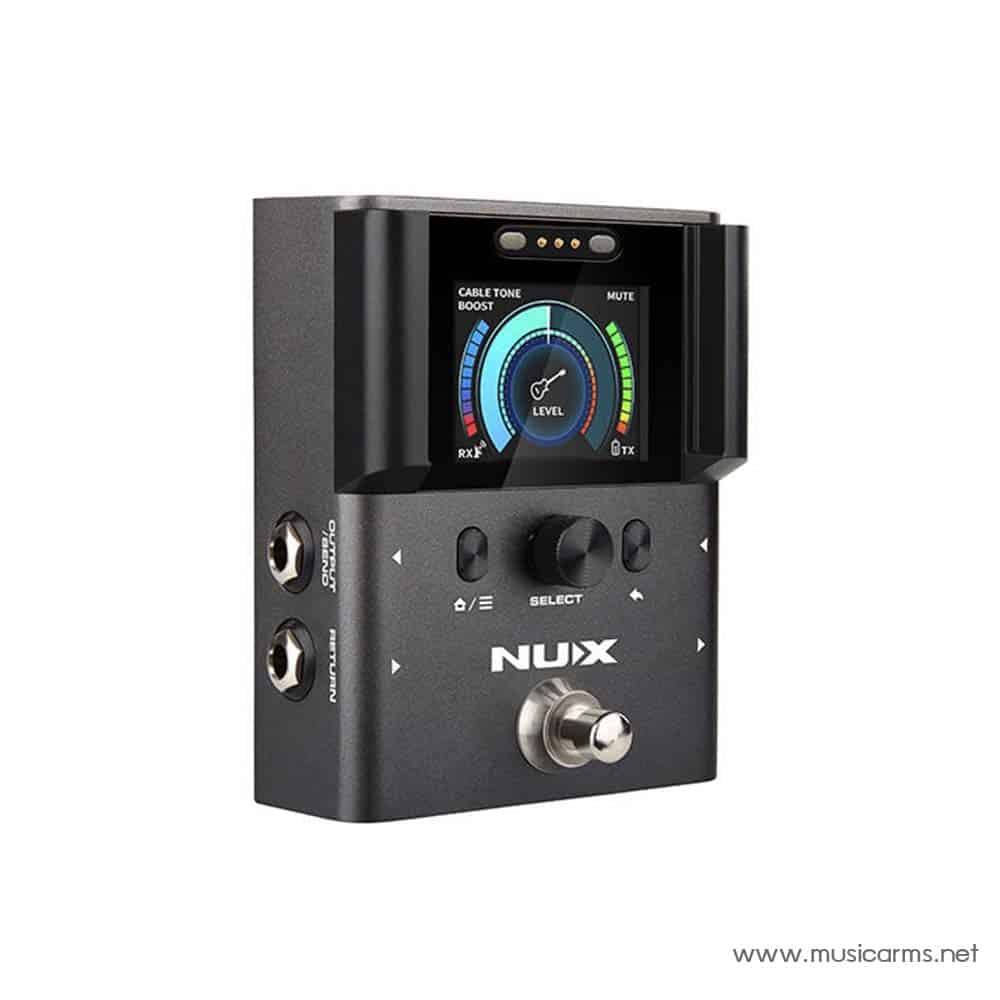

connect your favorite stompboxes to your wireless system. The system comes with 1/4″ OUTPUT/SEND and 1/4″ RETURN jacks that allow you to send audio from the receiver (RX) to your stompboxes, and then return the audio from the stompboxes to the receiver to be sent to your amp or recording device. This allows you to combine the fun of effects with the freedom of a wireless system.

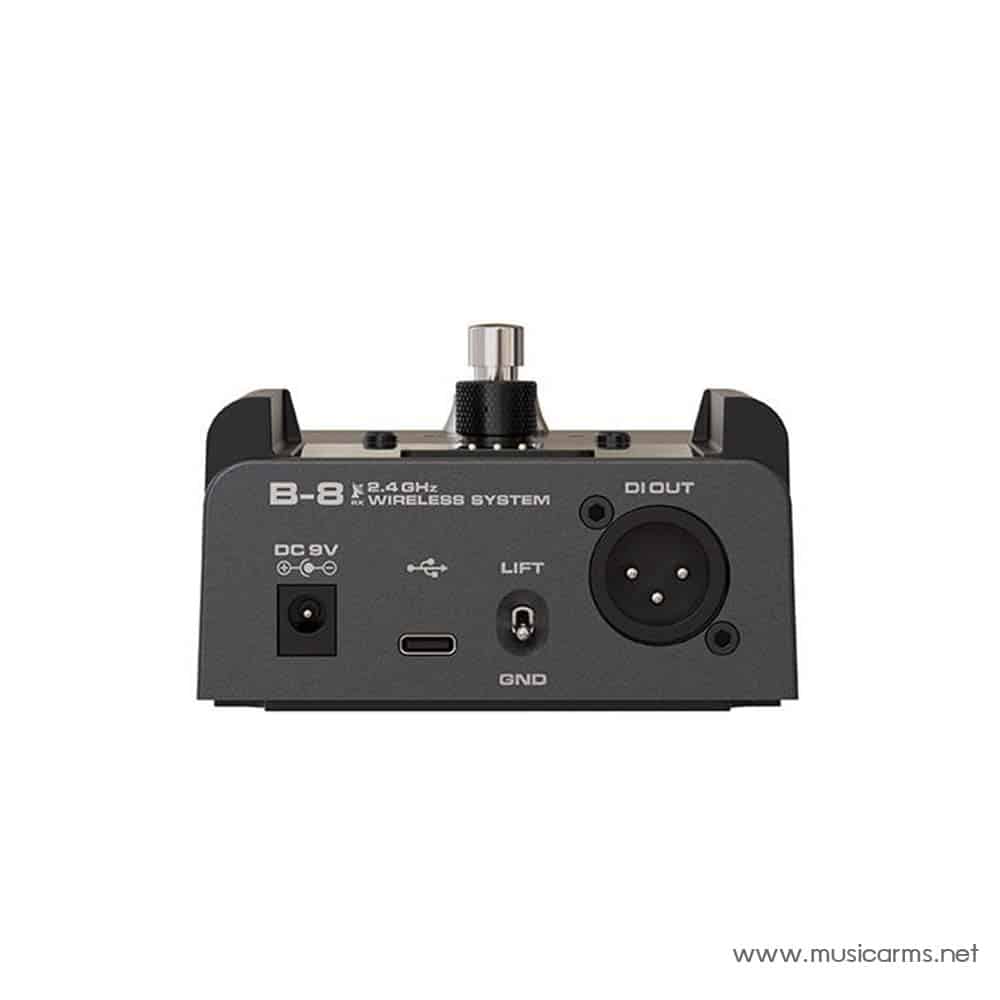

Directly connect to the mixer

For recording or live performances, with a balanced DI OUT jack, you can connect the receiver (RX) directly to your amp, mixer, or audio interface. Record crystal-clear sound or play live on a big stage, ready to take you beyond all limits.

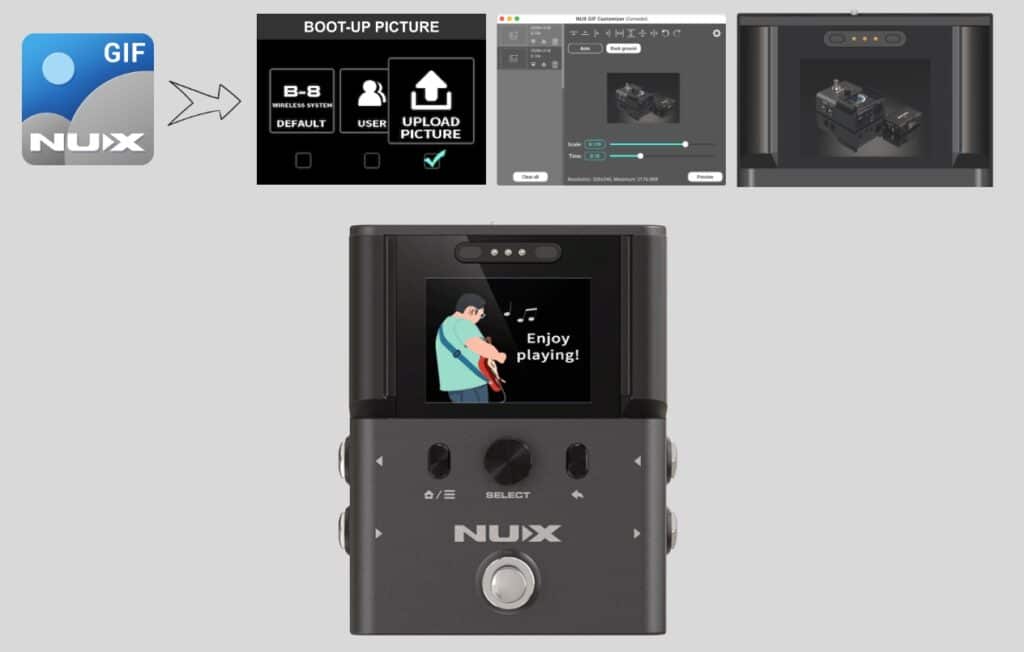

Personalize your B-8 with a cool boot-up picture

NUX B-8 gives you the opportunity to express yourself fully by customizing the boot-up picture with your favorite GIF file. With just a few clicks, your B-8 boot-up picture will become a cool GIF that is unique to you, reflecting your personality.

• Operating Frequency Band 2400-2483.5MHz

• Audio Quality 24bit/48kHz

• Frequency Response 20Hz-20kHz

• Latency 2.5ms(best performance setting)-8.7ms(safety mode)

• Input Impedance 1 MΩ

• Maximum Input Level 1 kHz at 1% THD  +6.2 dBV (5.78 Vp-p)

• THD+N 0.01% 1kHz, typical

• Dynamic Range 122dB, A-weighted(OUTPUT/SEND)

• Output level Adjustment Range mute -64dB~0dB

• Auto-sleep Mode N/A

• Built-in Battery Capacity 3.7V/500mAh Rechargeable Li-polymer (Transmitter)

• TX Battery Life up to 6.5 hours

• Power Requirements 7V to 12V DC, 500mA min, negative tip power supplies(Receiver)

• Operation Range Up to 50 m (165 feet) maximum

• TX dimesions 72.5mm*49.3mm*23mm  (L*W*H)

• TX weight 63g

• RX dimensions 122*95*60mm (L*W*H)

• RX weight 500g

• ย่านความถี่การทำงาน 2400-2483.5MHz
• คุณภาพเสียง 24 บิต/48kHz
• การตอบสนองความถี่ 20Hz-20kHz
• เวลาแฝง 2.5ms (การตั้งค่าประสิทธิภาพที่ดีที่สุด) -8.7ms (โหมดความปลอดภัย)
• ความต้านทานอินพุต 1 MΩ
• ระดับอินพุตสูงสุด 1 kHz ที่ 1% THD +6.2 dBV (5.78 Vp-p)
• THD+N 0.01% 1kHz ทั่วไป
• ช่วงไดนามิก 122dB, A-weighted (เอาต์พุต/ส่ง)
• ช่วงการปรับระดับเอาต์พุต ปิดเสียง -64dB~0dB
• โหมดพักอัตโนมัติ N/A
• แบตเตอรี่ในตัวความจุ 3.7V/500mAh Li-Polymer แบบชาร์จไฟได้ (เครื่องส่งสัญญาณ)
• อายุการใช้งานแบตเตอรี่ TX สูงสุด 6.5 ชั่วโมง
• ความต้องการพลังงาน 7V ถึง 12V DC, 500mA นาที, แหล่งจ่ายไฟปลายลบ (ตัวรับ)
• ระยะการทำงานสูงสุด 50 ม. (165 ฟุต)
• ขนาดตัวส่ง 72.5 มม.*49.3 มม.*23 มม. (L*W*H)
• น้ำหนักตัวส่ง 63g
• ขนาด ตัวรับ 122*95*60 มม. (L*W*H)
• น้ำหนักตัวรับ 500g
