Nux NCH-5 Mini SCF เอฟเฟคกีตาร์

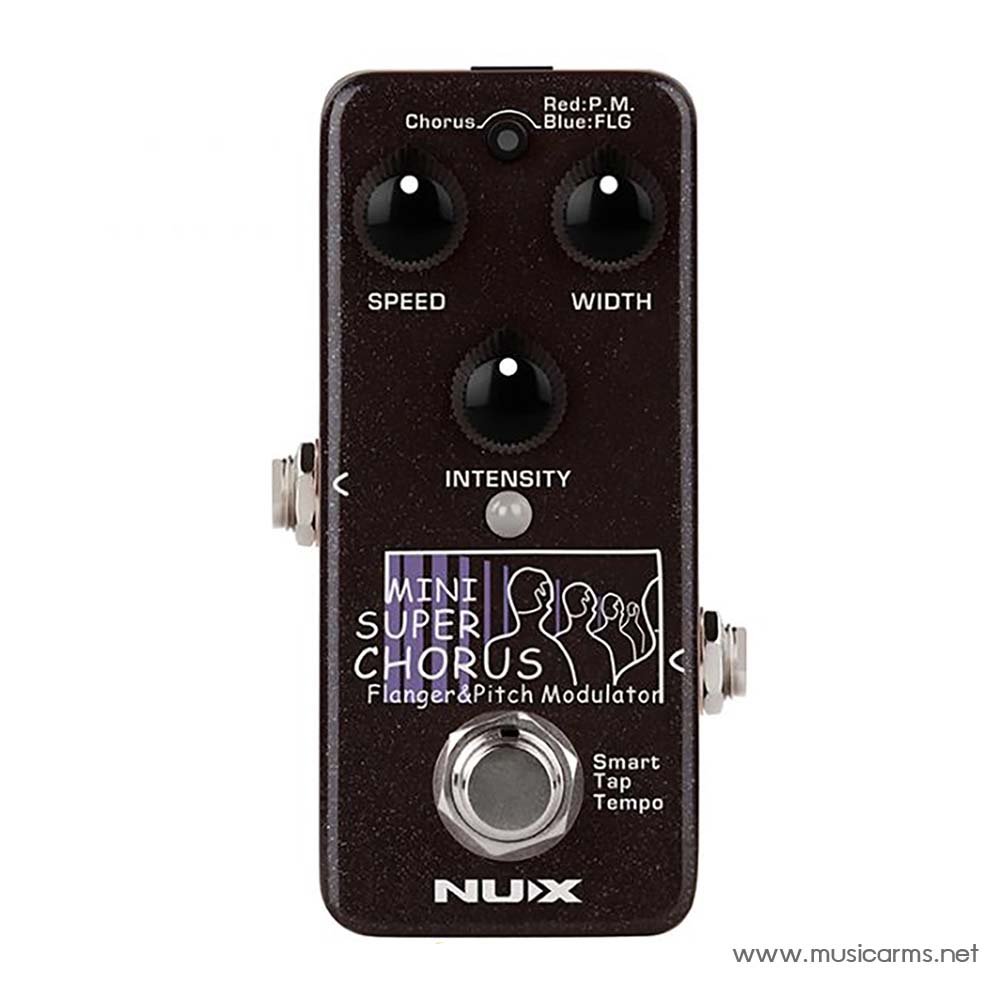

NUX NCH-5 Mini SCF (Super Chorus Flanger & Pitch Modulation)

Chorus: A chorus is basically a pitch generator which mixes multiple delay signals. When the multiple delay signals are mixed with the original signal, a soft and wide sounding modulation effect is created.

P.M.: A combination of chorus and pitch vibrato which creates a “light” chorus sound.

FLG: A flanger is based on the same principle as a chorus, although here the signal can be regenerated (like adding feedback on a delay) creating a more distinctive sounding effect.

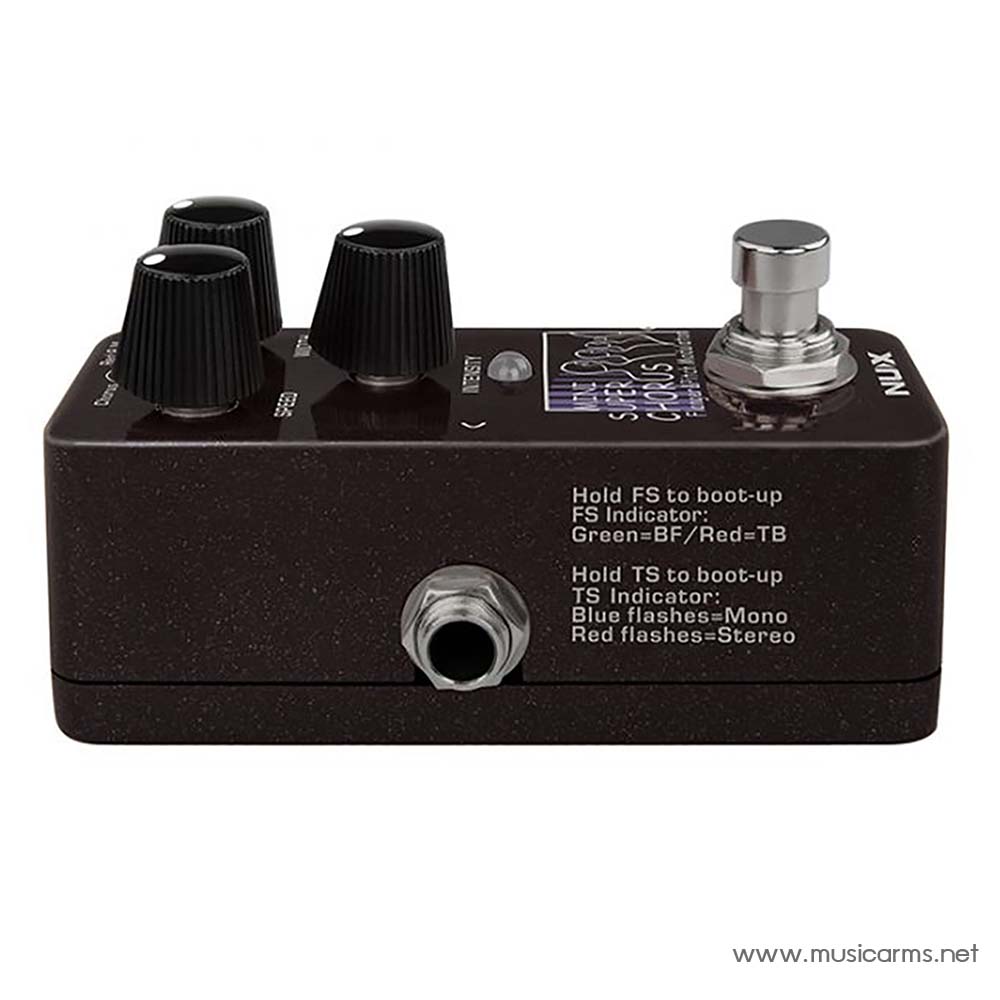

Mini SCF offers True-bypass and Buffer-bypass (Trails), just hold the footswitch to boot-up the pedal (do not connect USB). The footswitch indicator will show you the bypass status. (While you boot-up the pedal, if the FS indicator flashes “Green”=BF, “Red”=TB.)

Mini but mighty!
It also supports Stereo input & output. (Use 1/4” TRS cable, and choose Stereo mode.)

The mini SCF (SUPER CHORUS Flanger & Pitch Modulation) tributes to TC Electronic’s Stereo Chorus Flanger, one of the best modulation pedals ever made since 1976.

• Input Impedance : 1MΩ
• Output Impedance : 10kΩ
• Dynamic Range : 103 dB
• DSP Processing : 48KHz / 32-bit
• A/D D/A Sampling Rate : 48KHz / 24-bit
• Power : 9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw : less than 100mA
