Radial Exo-Pod Broadcast Splitter

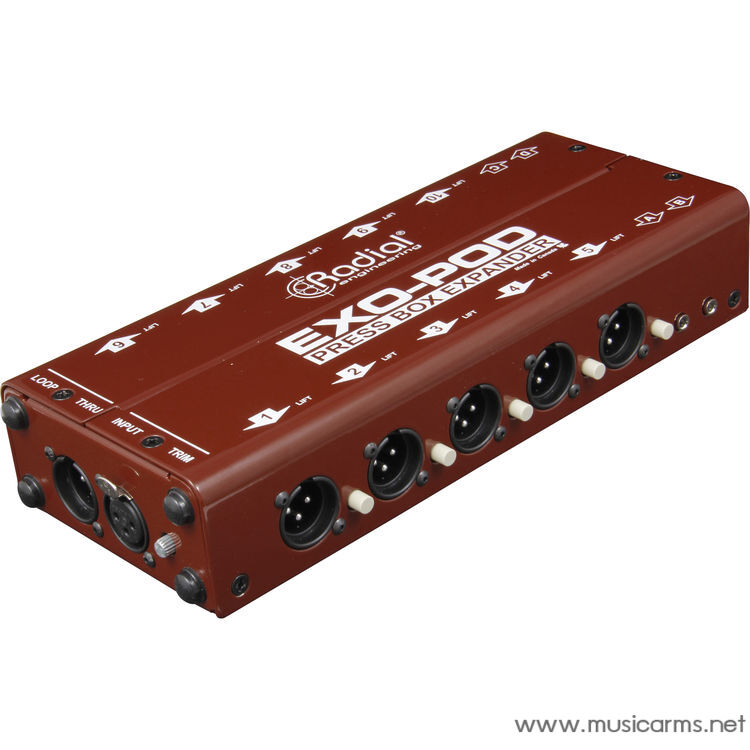

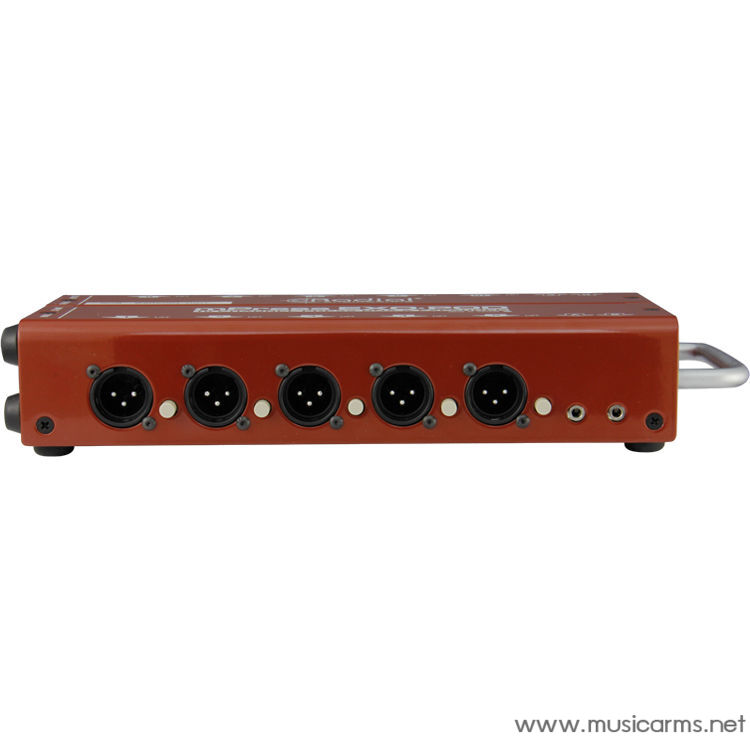

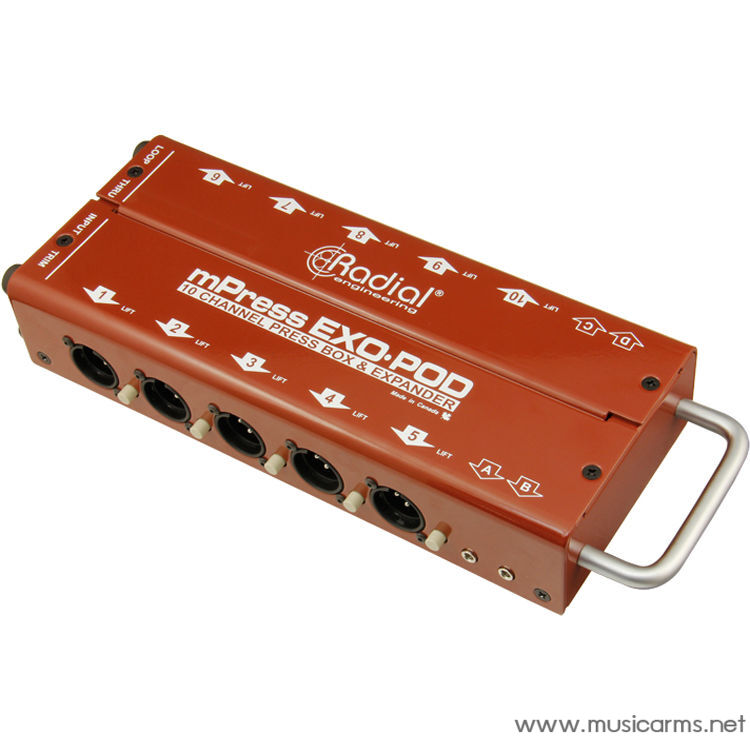

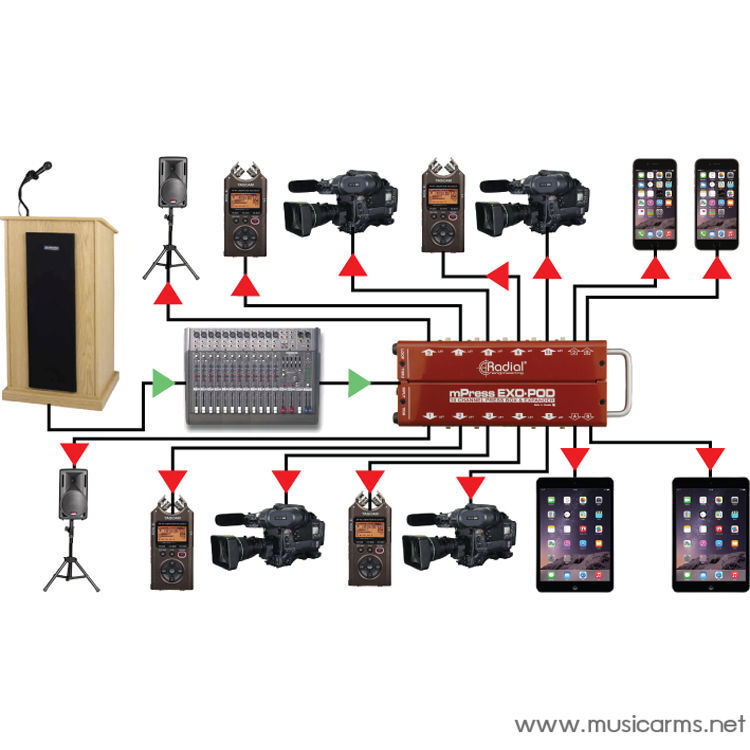

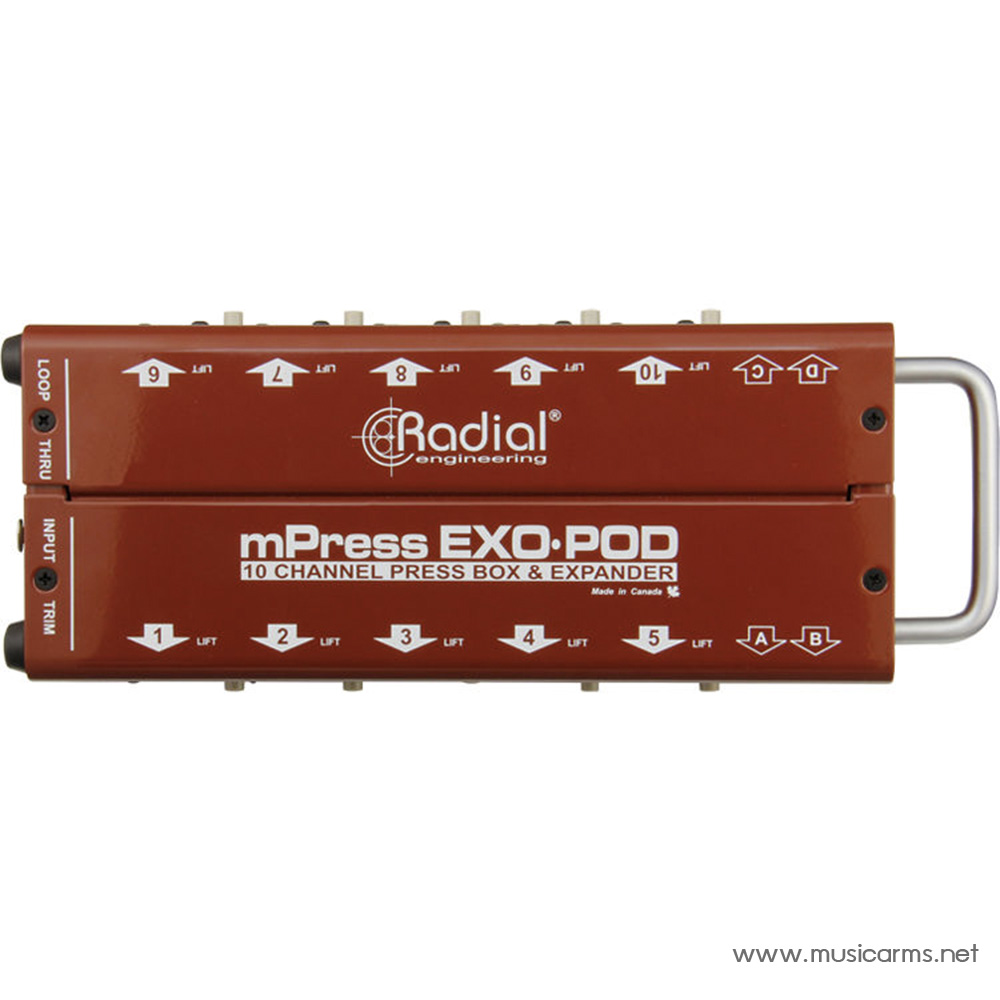

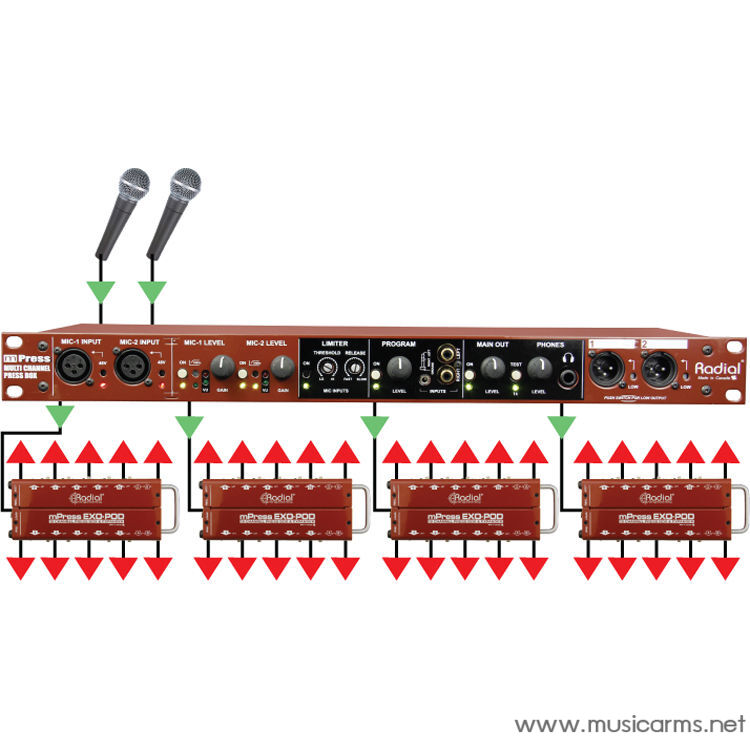

The Exo-Pod is a passive modular splitter for professional audio distribution to a large number of mic or line level recorders. Exo-Pods can be used with the mPress modular press box or as a standalone device, with the ability to daisy-chain multiple units together for even more outputs. Each Exo-Pod features ten XLR outputs with ground lift switches, and four 3.5mm stereo TRS jacks; all of these outputs are transformer isolated. A trim control at the input allows you to adjust the level. The Exo-Pod is built to last, with a 14-gauge steel enclosure and a steel handle that protects the XLR input, loop-thru output, and trim control. With its flat frequency response and noise-eliminating isolation transformers and ground lifts, the Exo-Pod will ensure that your audio is distributed cleanly.

Specifications

• Audio circuit type: Passive
• Number of channels: 14 outputs
• Frequency response: <20Hz to >20kHz ±1dB
• Dynamic range: >136dB / >100dB
• Gain: -3.5dB / -18dBu
• Clip Level: >+26dBu
• Total harmonic distortion: 0.001%
• Intermodulation Distortion: 0.006%
• Phase Deviation: -5/+25°
• Input Impedance: 350 Ω
• Output Impedance: XLR: 1000 Ω | 3.5mm: 4600 Ω
• Common Mode Rejection Ratio: 63dB
• Equivalent Input Noise: -108dBu/-84dBu
• Noise: XLR: -111dBu | 3.5mm: -86dBu

Features

• Ground lift, Level Control
• Input Connectors: XLR
• Output Connectors: XLR, 3.5mm

General

• Construction: 14-gauge steel chassis & outer shell
• Size (L x W x D): L:11.75″” x W:5″ H:2.25″ (298.45mm x 127mm x 57.15mm)
• Weight: 3.6lb
• Shipping size (L x W x D): L:13.37″ x W:5.5″ H:3.25″ (571.5mm x 260.35mm x 114.3mm)
• Shipping weight: 4lb
• Power: Passive, no power required
• Conditions: For use in dry locations only between 5°C and 40°C
