SOUNDVISION ACS-1000 ลำโพงคอลัมน์แอคทีฟ 4×3 นิ้ว ซับ 10 นิ้ว ความดัง 125 dB บลูทูธ 5.3

ราคา : 16,900 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
วีดีโอ
Description

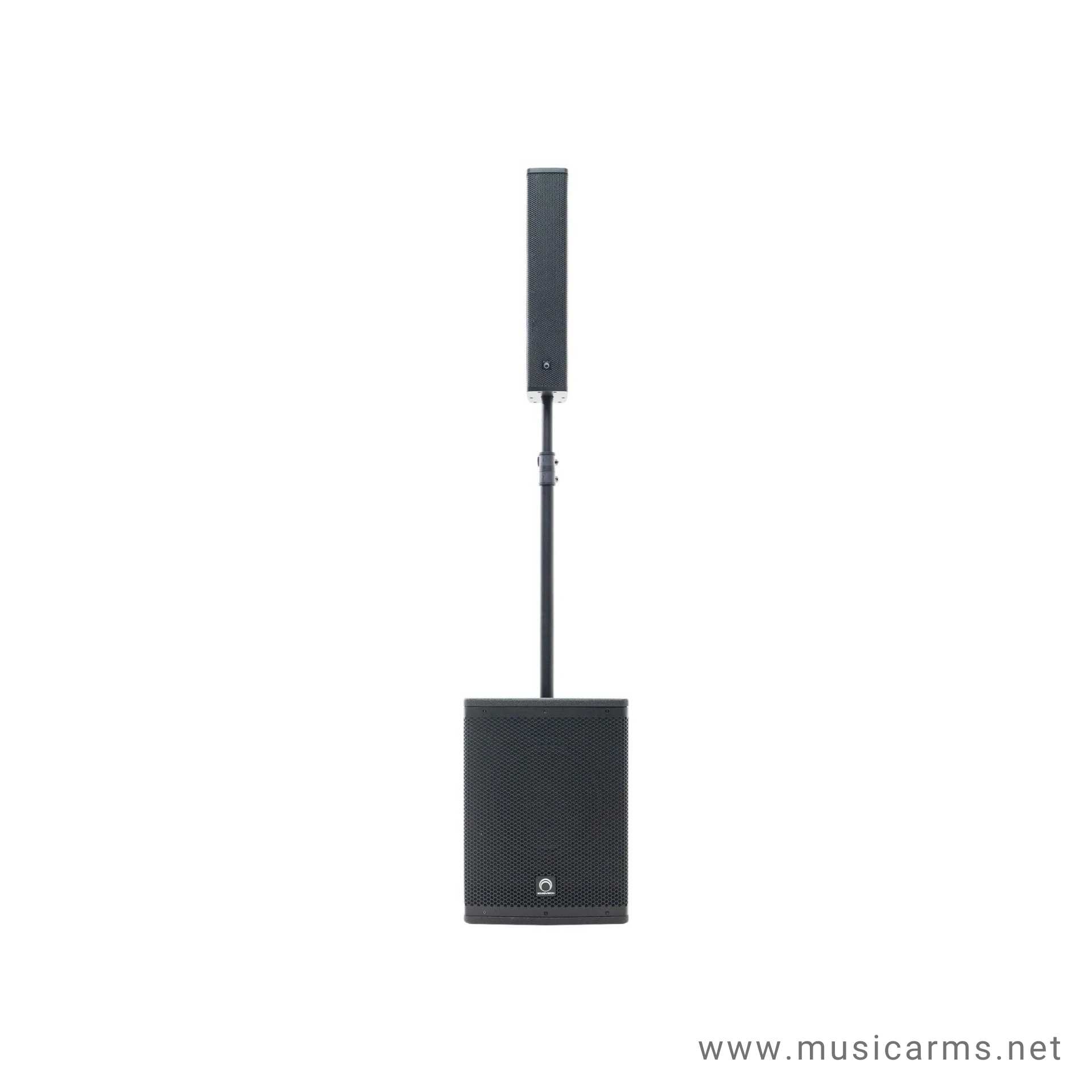

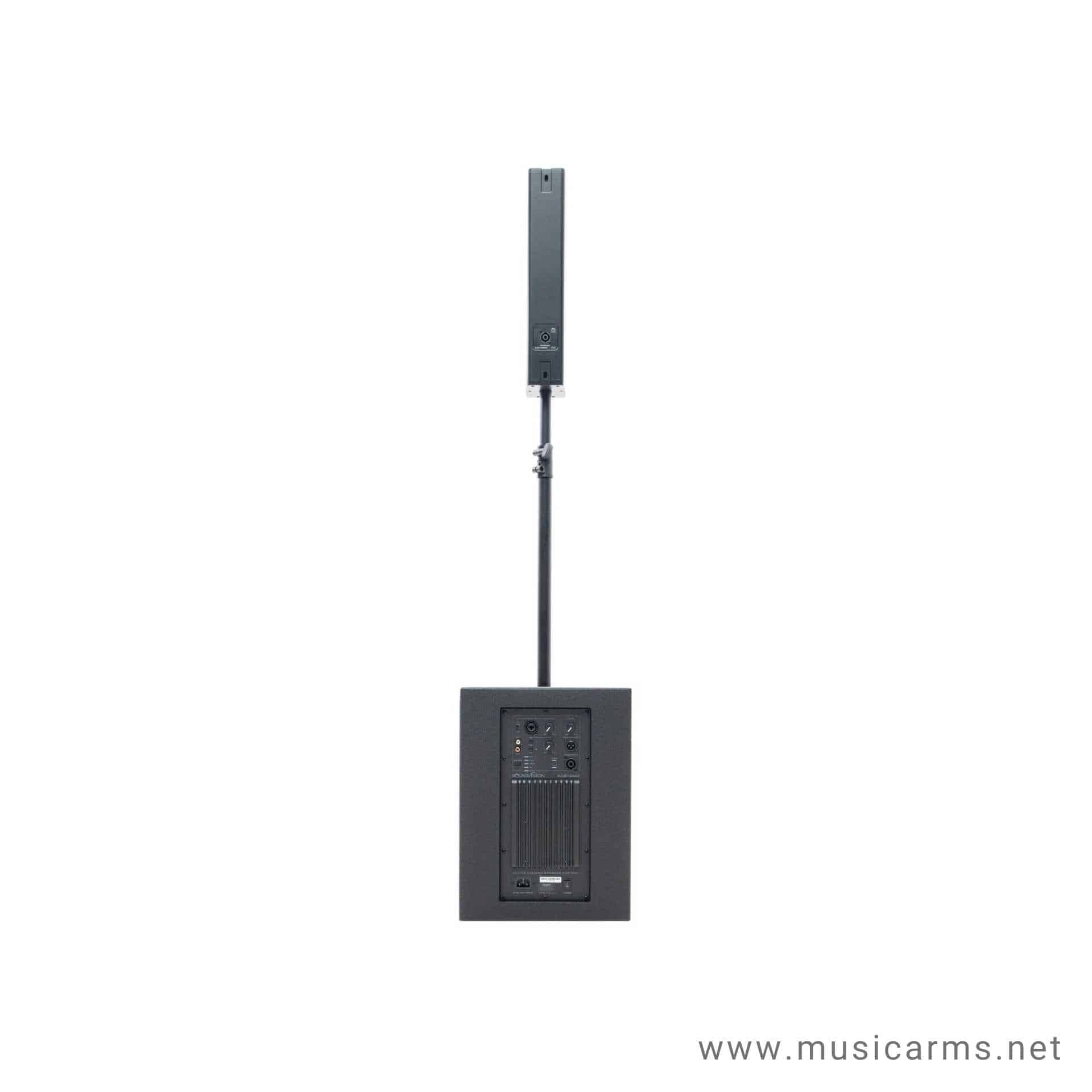

SOUNDVISION ACS-1000 Column Speaker
SOUNDVISION ACS-1000 active column loudspeakers incorporate state-of-the-art technology. Perfect design and complete functionality Delivering a powerful sound experience Powered by a Class D amplifier with a maximum power output of 800 watts. Professional audio performance. Comes with a DSP processor mode. Can be used in a variety of applications. Concert performances, live sound, events in department stores, in meeting rooms – training, fitness centers, restaurants or banquet rooms in hotels.

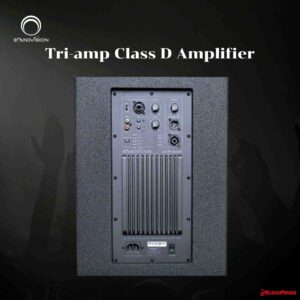

Amplifier Class D
Drive superior sound power in SOUNDVISION ACS-1000. Bass sound is deep, strong, mid-treble sound is clear and sharp, frequency response is wide, complete in every dimension. Vocals and music are clearly separated, with a maximum loudness of up to 125 dB SPL.
Outstanding with Full-Range speakers

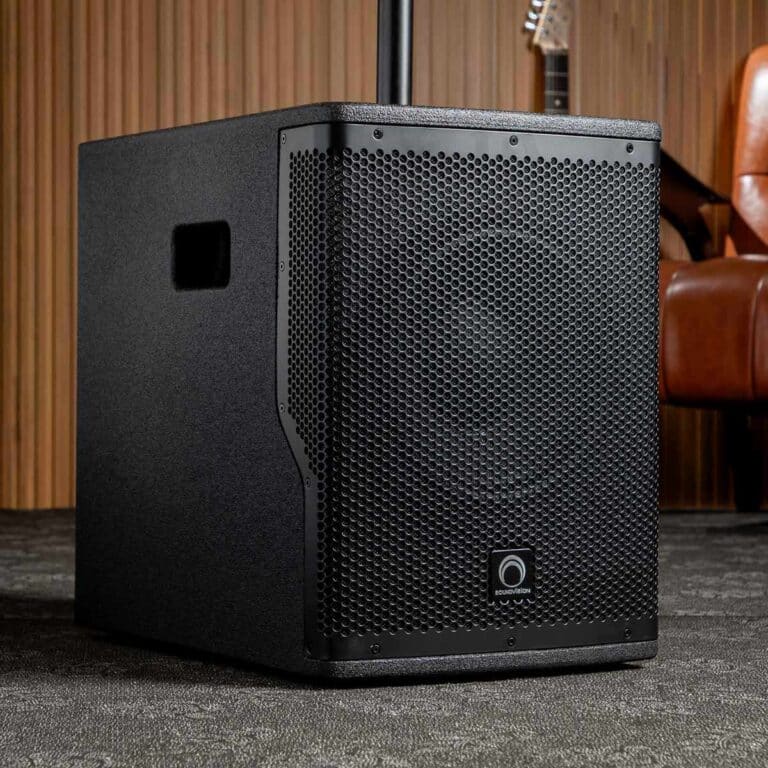

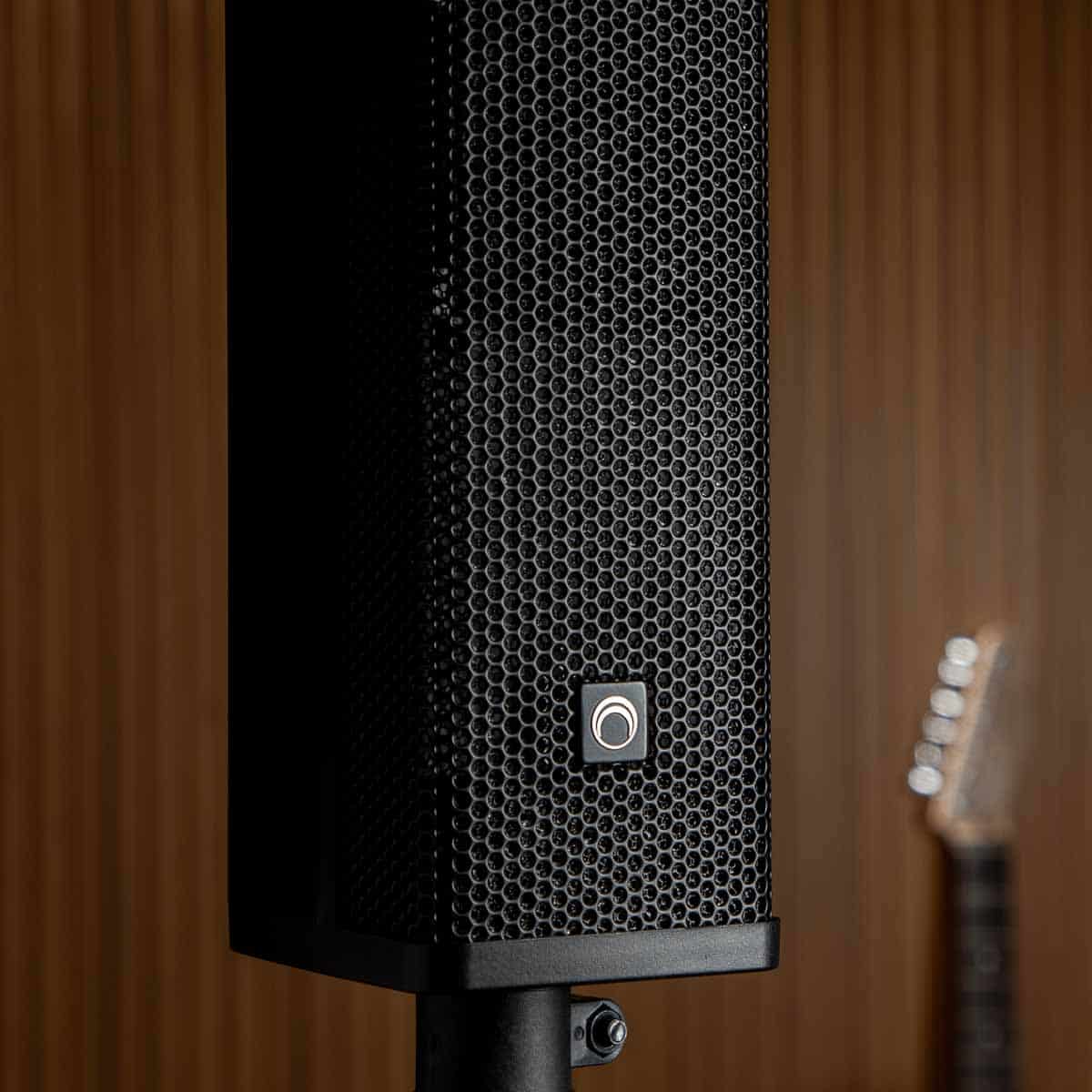

General column speakers often use tweeters to focus on high sound, but SOUNDVISION ACS-1000 uses Full-Range drivers that transmit sound in all frequency bands. Delivering the perfect sound experience The 10-inch Components subwoofer and the column are four 3-inch Neodymium full-range drivers. The sound comes across all frequency bands. Provides excellent sound quality Wide sound distribution angle

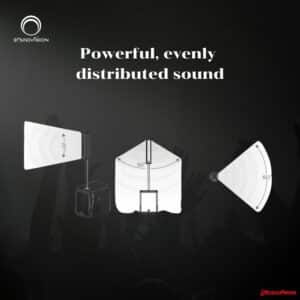

Powerful, evenly distributed sound

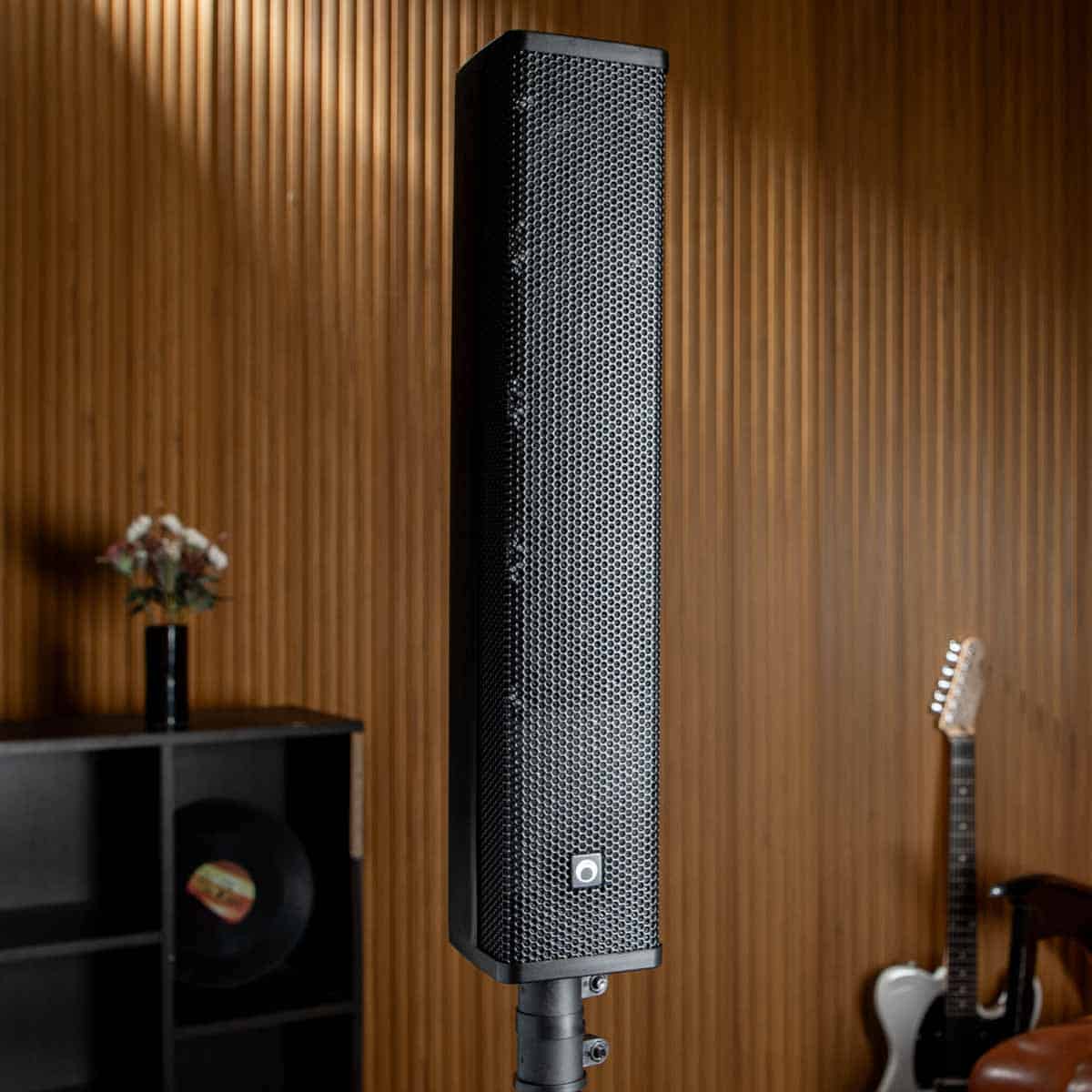

Experience state-of-the-art audio with the SOUNDVISION ACS-1000 wide-dispersion active column speakers. Suitable for various types of work. There is a complete frequency response for every sound detail. Horizontal sound distribution angle 80° and vertical 20° provides clear sound throughout every space. Subwoofer 42 Hz – 150 Hz (-10dB) Column 150 Hz – 20 kHz (-10dB)

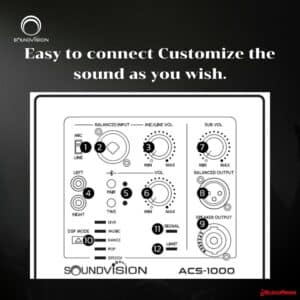

Easy to connect Customize the sound as you wish.

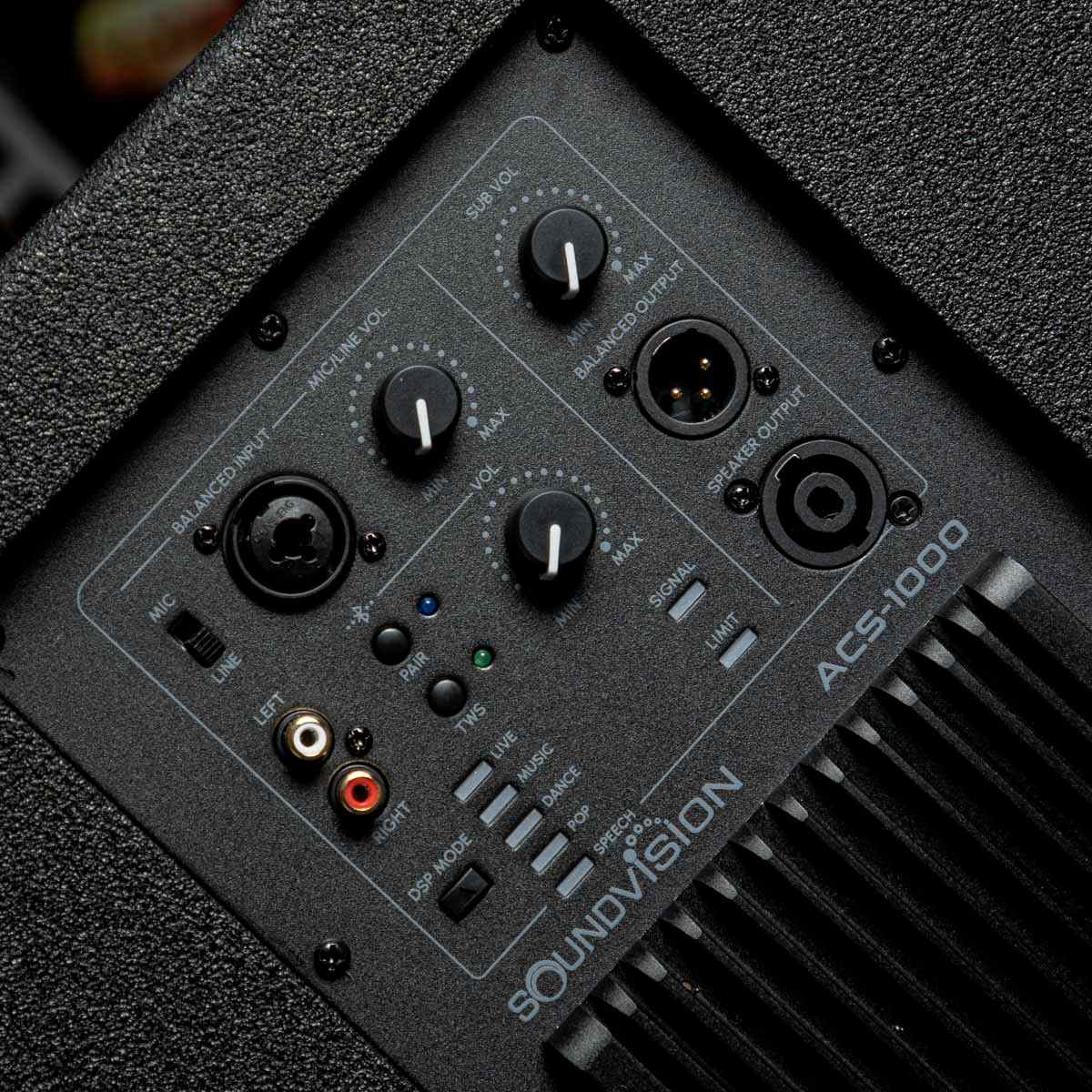

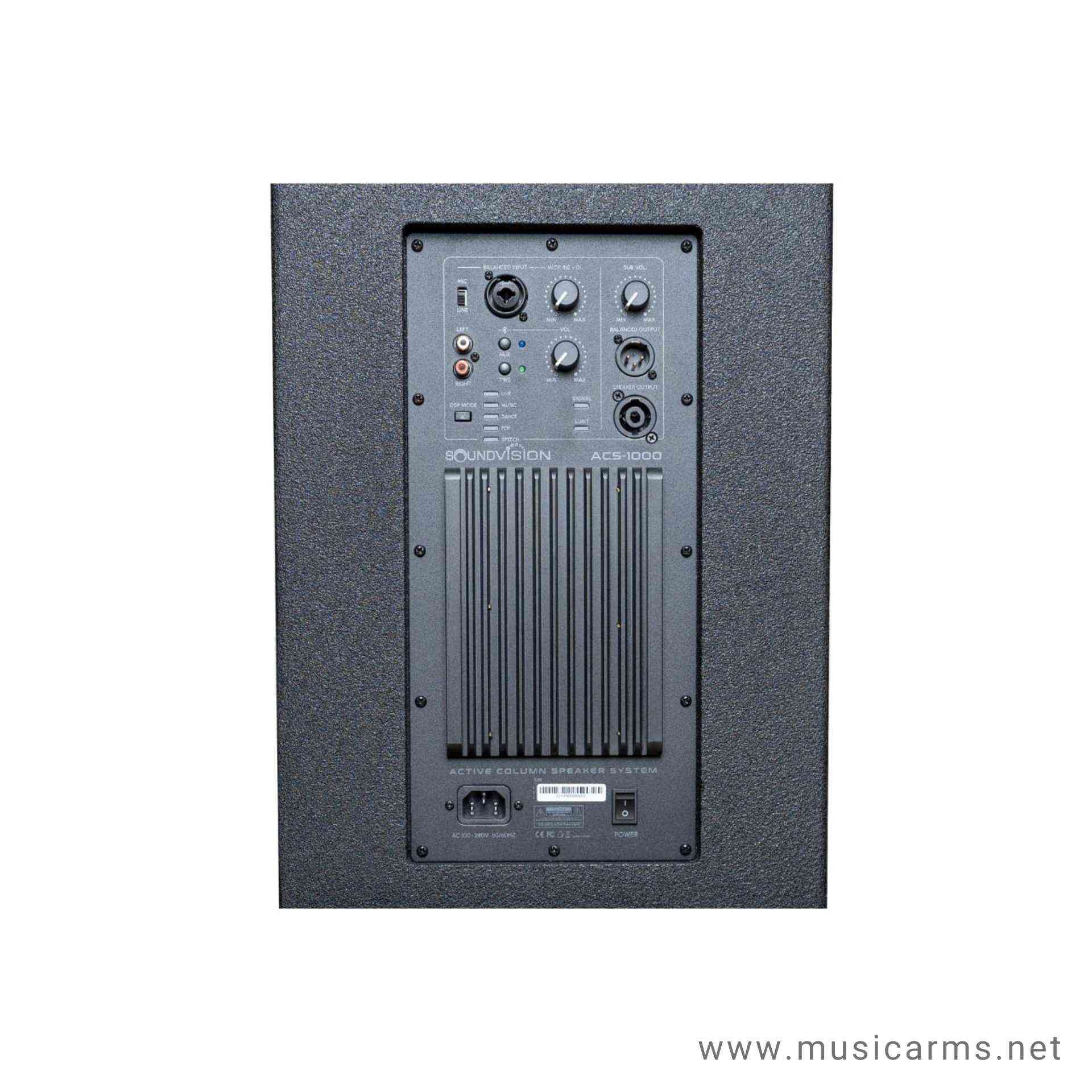

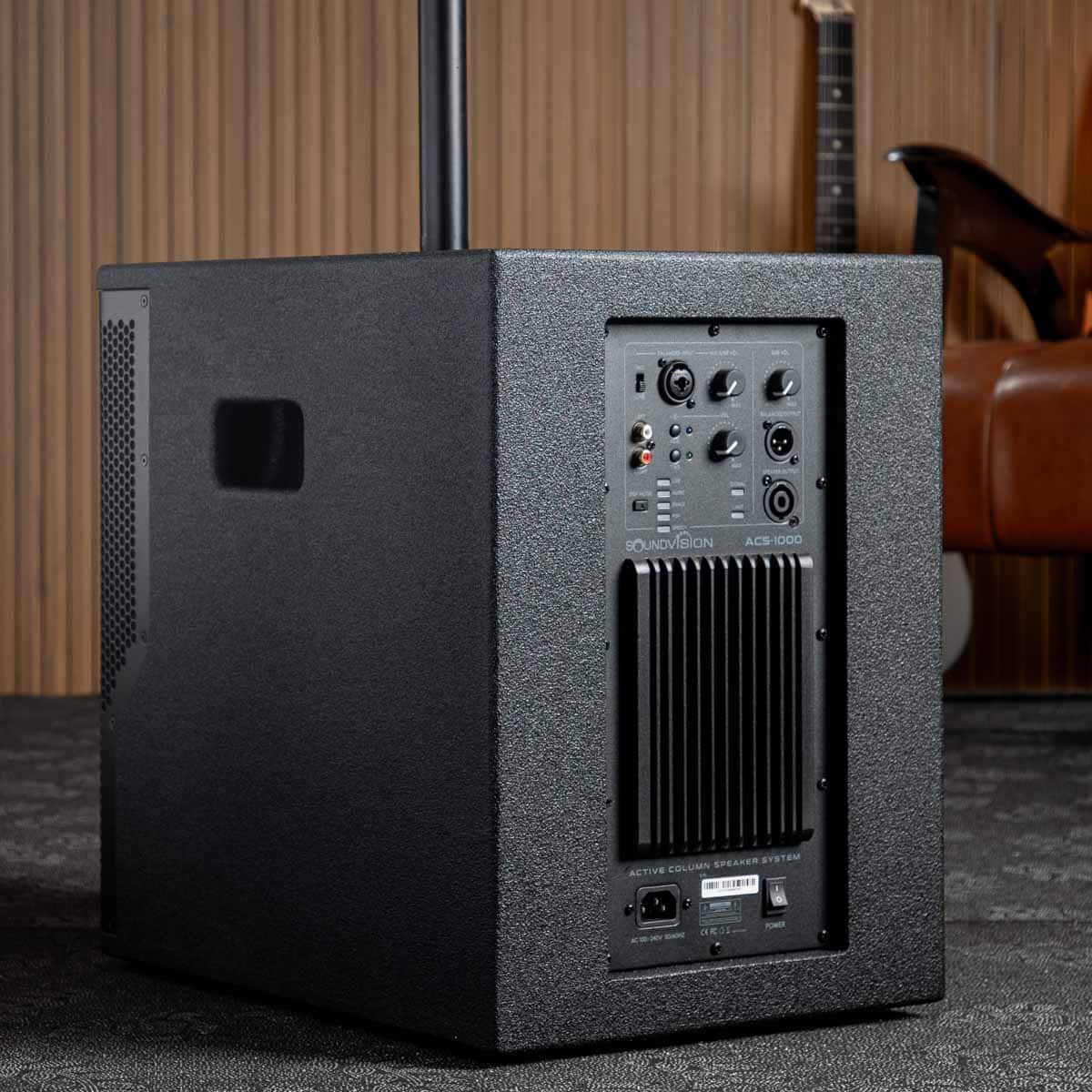

ACS-1000 supports a variety of connection formats, 1 input channel, XLR combo jack for connecting Mic/Line signals, RCA port for connecting to a stereo music player. The SIGNAL indicator shows the connection status. LIMIT indicates the level of the signal that may cause distortion. Wireless stereo system, TWS technology, connects 2 Bluetooth speakers to provide stereo sound. Only supports playing music via Bluetooth. Separate VOLUME control knobs adjust the volume independently. VOLUME BLUETOOTH controls the volume for Bluetooth input, VOLUME SUBWOOFER controls the volume of the subwoofer, VOLUME MIC/LINE CONTROL controls. MIC/LINE INPUT SPEAKON OUTPUT Connects the subwoofer to the column. 1 total output channel, XLR type, can adjust the volume balance of each channel.

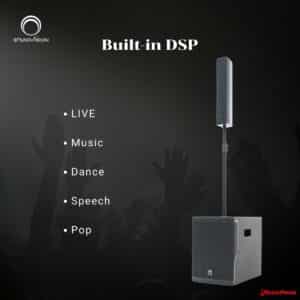

Built-in DSP
Experience cutting-edge sound with the SOUNDVISION ACS-1000, an active column speaker with built-in DSP that allows for easy sound customization. Suitable for many types of work. Can adjust the sound Choose the sound preset you want. Easy to use. Control via buttons on the unit. Easy to understand. Convenient. Preset 5 modes: LIVE – live music event. Music – play general music. Dance – emphasize bass sound. Speech – speaking event. Pop – play pop music.
Specification
SOUNDVISION ACS-1000 Details |
|
|---|---|
| Component Models | Subwoofer: ACS-1000S / Column Speaker: ACS-1000C |
| Speaker Type | Active Column Loudspeaker System |
| Transducers | Subwoofer (ACS-1000S): 10” Component (2” Voice Coil) Column (ACS-1000C): 4 × 3″ Neodymium Full-Range Speakers |
| Frequency Response (-10dB) | Subwoofer: 42Hz – 150Hz Column: 150Hz – 20kHz |
| Rated Power (RMS / MAX) | Subwoofer: 200W / 400W (MAX) Column: 200W / 400W (MAX) Total System: 400W (RMS) / 800W (MAX) |
| Amplifier Class | Class D Bi-amp |
| Sensitivity (1m/1W) | Subwoofer: 90dB Column: 92dB |
| Maximum SPL | 118dB / 125dB (Peak) |
| Nominal Impedance | 4 Ω (Both Subwoofer & Column) |
| Dispersion Angle (H x V) | 80° × 20° |
| Built-in DSP Processor | 5 Modes (Live, Music, Dance, Pop, Speech) |
| Wireless Audio Streaming | Bluetooth 5.3 with TWS (True Wireless Stereo) |
| Line Input | 1 × Combo XLR or 1/4″ Jack (Female), 1 × RCA (L/R), and 3.5mm Jack |
| Line Output | 1 × XLR (Male) |
| Speaker Port | Subwoofer: 1 × Speakon (Output) Column: 1 × Speakon (Input) |
| Operating Voltage | AC 100 – 240V, 50Hz/60Hz |
| Power Consumption (IEC) | 100W |
| Dimensions (H x W x D) | Subwoofer: 445 × 320 × 465 mm Column: 450 × 85 × 105 mm |
| Net Weight | Subwoofer: 14.5 kg Column: 1.4 kg |
ข้อมูลสินค้า
SOUNDVISION ACS-1000 ลำโพงคอลัมน์
SOUNDVISION ACS-1000 ลำโพงคอลัมน์แอคทีฟที่รวมเอาเทคโนโลยีล้ำสมัย ดีไซน์ที่ลงตัว และฟังก์ชั่นการใช้งานครบครัน มอบประสบการณ์เสียงอันทรงพลัง ขับเคลื่อนด้วยแอมพลิฟายเออร์ Class D กำลังขับสูงสุด 800 วัตต์ ประสิทธิภาพเสียงระดับมืออาชีพ มาพร้อมโหมด DSP โปรเซสเซอร์ สามารถใช้งานได้หลากหลาย การแสดงคอนเสิร์ต, ไลฟ์ซาวด์, งานอีเว้นท์ในห้างสรรพสินค้า, ในงานห้องประชุม-อบรม, ฟิตเนส, ร้านอาหาร หรือห้องจัดเลี้ยงในโรงแรม
Amplifier Class D
ขับเคลื่อนพลังเสียงอันเหนือระดับใน SOUNDVISION ACS-1000 เสียงเบส ลึก หนักแน่น เสียงกลาง-แหลม ใส คมชัด ตอบสนองความถี่ได้กว้าง ครบทุกมิติ เสียงร้อง เสียงดนตรี แยกชัดเจน ทำความดังสูงสุดได้ถึง 125 dB SPL
โดดเด่นด้วยดอกลำโพง Full-Range
ลำโพงคอลัมน์ทั่วไปมักใช้ดอกทวีตเตอร์ เน้นเสียงสูง แต่ SOUNDVISION ACS-1000 เลือกใช้ดอก Full-Range ที่ถ่ายทอดเสียงครบทุกย่านความถี่ มอบประสบการณ์เสียงที่สมบูรณ์แบบ ดอกซับวูฟเฟอร์ Components ขนาด 10 นิ้ว และ ตัวคอลัมน์เป็น ดอกฟูลเรนจ์ Neodymium ขนาด 3 นิ้ว 4 ดอก เสียงมาครบทุกย่านความถี่ ให้คุณภาพเสียงที่ยอดเยี่ยม มุมกระจายเสียงที่กว้าง
เสียงทรงพลัง กระจายทั่วถึง
สัมผัสประสบการณ์เสียงอันล้ำสมัย กับ SOUNDVISION ACS-1000 ลำโพงคอลัมน์แอคทีฟที่กระจายเสียงกว้าง เหมาะสำหรับงานหลากหลายประเภท มีการตอบสนองความถี่ครบทุกรายละเอียดเสียง มุมกระจายเสียงแนวนอน 80° และแนวตั้ง 20° ให้เสียงที่ชัดเจนทั่วถึงทุกพื้นที่ ซับวูฟเฟอร์ 42 Hz – 150 Hz (-10dB) ดอกคอลัมน์ 150 Hz – 20 kHz (-10dB)
เชื่อมต่อง่าย ปรับแต่งเสียงได้ดั่งใจ
ACS-1000 รองรับการเชื่อมต่อหลากหลายรูปแบบ ช่องอินพุต 1 ช่อง แบบคอมโบแจ็ค XLR สำหรับเชื่อมต่อสัญญาณ Mic/Line ช่อง RCA สำหรับต่อเข้ากับเครื่องเล่นเพลงในแบบสเตอริโอ สัญญาณไฟแสดงสถานะ SIGNAL แสดงสถานะการเชื่อมต่อ LIMIT แสดงระดับสัญญาณที่อาจเกิดเสียงเพี้ยน ระบบสเตอริโอแบบไร้สาย เทคโนโลยี TWS เชื่อมต่อลำโพงบลูทูธ 2 ตัว ให้เสียงแบบสเตอริโอ รองรับเฉพาะการเปิดเพลงผ่านบลูทูธ ปุ่มควบคุม VOLUME แยกกัน ปรับระดับเสียงแยกอิสระ VOLUME BLUETOOTH ควบคุมระดับเสียงสำหรับอินพุตบลูทูธ , VOLUME SUBWOOFER ควบคุมระดับเสียงของลำโพงซับวูฟเฟอร์ , VOLUME MIC/LINE CONTROL ควบคุม MIC/LINE อินพุต ช่องเอาต์พุต SPEAKON เชื่อมต่อลำโพงซับวูฟเฟอร์กับคอลัมน์ ช่องเอาต์พุตรวม 1 ช่อง แบบ XLR ปรับ Balance ความดังเบาของแต่ละช่องสัญญาณได้
Built-in DSP
สัมผัสประสบการณ์เสียงอันล้ำสมัย กับ SOUNDVISION ACS-1000 ลำโพงคอลัมน์แอคทีฟที่มาพร้อมDSP ในตัว ช่วยให้ปรับแต่งเสียงได้ง่ายดาย เหมาะกับงานหลากหลายประเภท ปรับแต่งเสียงได้ เลือกพรีเซ็ตเสียงที่ต้องการ ใช้งานง่าย ควบคุมผ่านปุ่มบนตัวเครื่อง เข้าใจง่าย สะดวก พรีเซ็ต 5 โหมด LIVE – งานดนตรีสด Music – เปิดเพลงทั่วไป Dance – เน้นเสียงเบส Speech – งานพูด Pop – เปิดเพลง Pop
รายละเอียดคุณสมบัติ
SOUNDVISION ACS-1000 Details |
|
|---|---|
| รุ่นสินค้าภายในชุด | ตู้ซับวูฟเฟอร์: ACS-1000S / แท่งลำโพงคอลัมน์: ACS-1000C |
| ประเภทลำโพง | ระบบลำโพงคอลัมน์แบบมีกำลังขยายในตัว (Active Column Speaker System) |
| ไดรเวอร์ขับเสียง (Transducer) | ซับวูฟเฟอร์ (ACS-1000S): ขนาด 10 นิ้ว (วอยซ์คอยล์ 2 นิ้ว) คอลัมน์ (ACS-1000C): ดอกลำโพงฟูลเรนจ์นีโอไดเมียม ขนาด 3 นิ้ว จำนวน 4 ดอก |
| การตอบสนองความถี่ (-10dB) | ซับวูฟเฟอร์: 42Hz – 150Hz คอลัมน์: 150Hz – 20kHz |
| กำลังขับ (Rated / MAX) | ซับวูฟเฟอร์: 200W / 400W (MAX) คอลัมน์: 200W / 400W (MAX) รวมทั้งระบบ: 400W (RMS) / 800W (MAX) |
| ภาคขยายเสียง (Amplifier) | คลาส D แบบแยกขับอิสระ (Class D Bi-amp) |
| ความไวเสียง (Sensitivity 1m/1W) | ซับวูฟเฟอร์: 90dB คอลัมน์: 92dB |
| ความดังสูงสุด (Maximum SPL) | 118dB / 125dB (Peak) ทั้งระบบ |
| ความต้านทานรวม (Nominal Impedance) | 4 Ω (ทั้งซับวูฟเฟอร์และคอลัมน์) |
| มุมกระจายเสียง (H x V) | 80° × 20° (กระจายเสียงผ่านแท่งคอลัมน์) |
| ระบบประมวลผล DSP ในตัว | มีโปรเซสเซอร์ DSP ปรับได้ 5 โหมด (Live, Music, Dance, Pop, Speech) |
| การเชื่อมต่อไร้สาย | Bluetooth 5.3 รองรับระบบสเตอริโอไร้สาย TWS (True Wireless Stereo) |
| ช่องสัญญาณขาเข้า (Line Input) | 1 × Combo XLR หรือ 1/4″ Jack (Female), 1 × RCA (L/R) และช่อง 3.5mm |
| ช่องสัญญาณขาออก (Line Output) | 1 × XLR (Male) |
| พอร์ตต่อลำโพง (Speaker Port) | ซับวูฟเฟอร์: 1 × Speakon (Output สำหรับต่อไฟออกไปยังคอลัมน์) คอลัมน์: 1 × Speakon (Input สำหรับรับสัญญาณจากซับวูฟเฟอร์) |
| แรงดันไฟฟ้าที่ใช้ | AC 100 – 240V, 50Hz/60Hz |
| กำลังไฟฟ้าที่ใช้ (IEC) | 100W |
| ขนาด (สูง x กว้าง x ลึก) | ซับวูฟเฟอร์: 445 × 320 × 465 มม. คอลัมน์: 450 × 85 × 105 มม. |
| น้ำหนักสุทธิ | ซับวูฟเฟอร์: 14.5 กก. คอลัมน์: 1.4 กก. |
