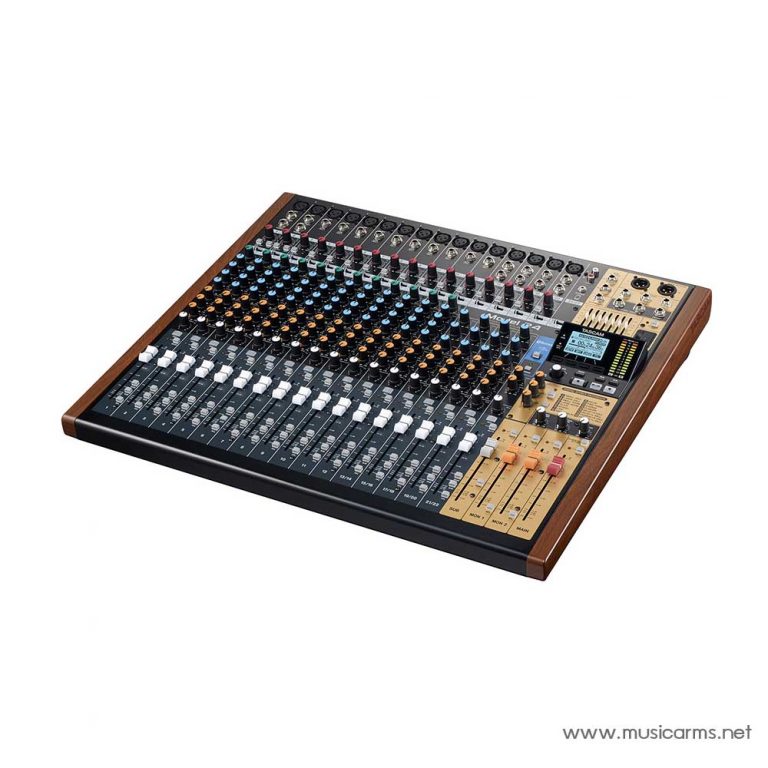

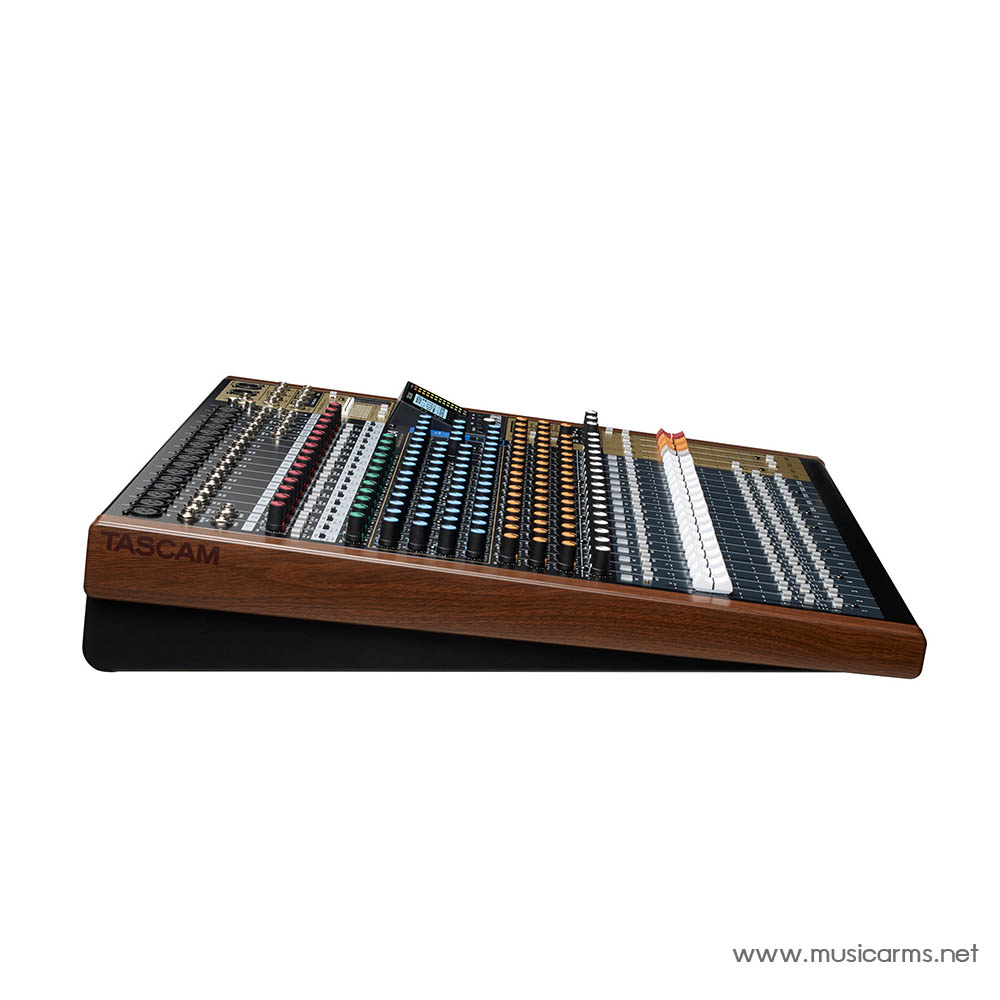

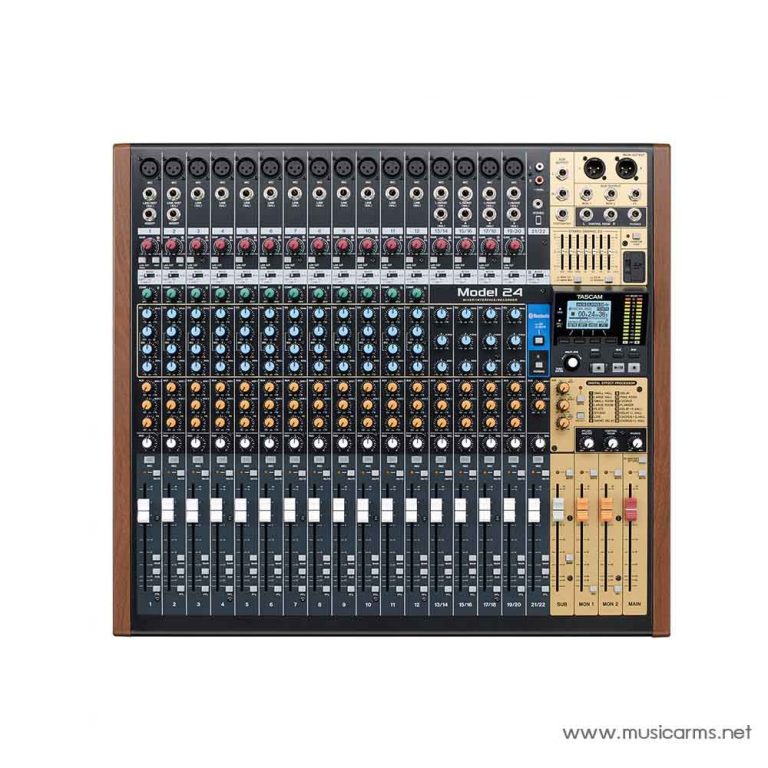

Tascam Model 24 Analog Mixer

Classic Design with Modern Capabilities

Whether you use it for rehearsal, live shows, or studio production, the TASCAM Model 24 is a great-sounding, easy-to-use multitrack recording solution. The Model 24 boasts a classic analog mixer-style design that’s both intuitive and immediate. Achieve precise control with 100mm faders, while tweaking your tracks with familiar EQ and Aux controls. High-grade preamps ensure top-notch sound that’s easily captured on an internal SD card at 24-bit/48kHz resolution. You also get a generous complement of I/O. Beyond that, DAW integration is a piece of cake, thanks to the Model 24’s built-in 24-in/22-out audio interface. The Model 24 is lightweight yet rugged, and can be transported from studio to stage with confidence, thanks to TASCAM’s legendary reliability.

Flexible routing and onboard effects

If you’ve ever used a small-format analog console or a classic Portastudio, you’ll already be familiar with the Model 24. Take control of your mix with 100mm long-throw faders, then tweak your tracks to perfection with 3-band EQs. Shape your output with a 7-band graphic EQ. Achieve great sound right from the start, thanks to 16 high-grade preamps with +48V phantom power. You also get a full complement of I/O for integrating your instruments and outboard gear.

Easy standalone multitrack recording

Recording with the TASCAM Model 24 is a breeze. Capture up to 24 simultaneous tracks directly to SD card at 24-bit/48kHz resolution, with the ability to support punch in/out eight tracks at the same time. You also get flexible routing and onboard effects. The Model 24 offers easy standalone multitrack recording at its best.

The perfect analog front-end for your DAW

The Model 24 does way more than simply let you move recorded tracks to and from a DAW. Rather, it functions as a full-blown 24-in/22-out USB audio interface, complete with premium-quality preamps and onboard compression. And when it’s time to mix, you can either work in-the-box, or route tracks back through the Model 24 for 22 channels of hands-on control and genuine analog vibe.

TASCAM Model 24 Features:

• Great-sounding, easy-to-use 24-track multitrack recording solution
• Boasts a classic analog mixer-style design that’s both intuitive and immediate
• 100mm faders provide precise control
• Familiar EQ and Aux controls for tweaking your tracks
• Generous complement of I/O including 16 high-grade mic preamps
• Internal recording to SD card at 24-bit/48kHz resolution
• Flexible routing and onboard effects
• Built-in 24-in/22-out audio interface for easy DAW integration
• Lightweight yet rugged design

• Type:Analog Mixer with USB Interface/Recorder
• Channels:22 input channels, 24-track
• Computer Connectivity:USB (24 x 22)
• A/D Resolution:24-bit/48kHz
• Faders:21 x 100mm Long Throw
• Inputs – Mic Preamps:16 x XLR
• Phantom Power:16 channels
• Inputs – Line:12 x 1/4″ (mono), 8 x 1/4″ (4 stereo), 2 x 1/4″ (line/Hi-Z), 1 x 1/8″ (stereo), 1 x Dual RCA Stereo
• Outputs – Main:2 x XLR (main), 2 x 1/4″ (control room)
• Outputs – Other:2 x 1/4″ (L/R subgroup)
• Aux Sends:2 x Monitor, 1 x FX
• Send/Return I/O:2 x 1/4″ (monitor send), 1 x 1/4″ (FX send)
• Busses/Groups:1 x Subgroup
• Inserts:2 x 1/4″ (channel)
• Headphones:1 x 1/4″
• USB:1 x Type B
• Bluetooth:v4.0
• Other I/O:1 x 1/4″ (footswitch)
• EQ Bands:3-band EQ with Sweepable Mid Frequency, 100Hz Low-cut, 7-band Graphic EQ
• Signal Processing:12 x Channel Compressor
• Effects:Reverbs, Delays, Chorus, Flanger
• Storage:SD Card Slot, SDHC (4GB-32GB), SDXC (64GB-512GB)
• OS Requirements – Mac:Dual Core 2GHz Processor or higher, OS X 10.11 or later
• OS Requirements – PC:Dual Core 2GHz Processor or higher, Windows 7 SP1, 8.1, 10 1803 update or later

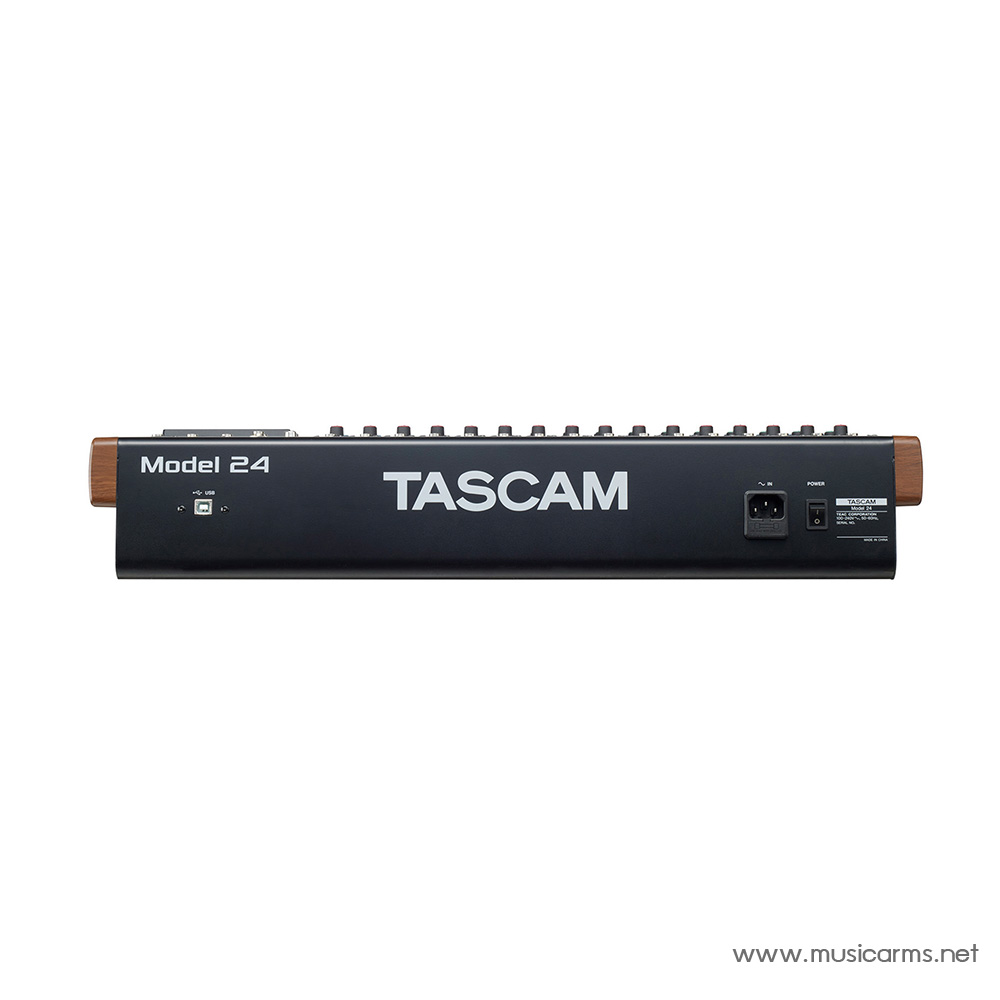

• Power Source:Standard IEC AC cable
• Height:4.43″
• Width:22.67″ (with panels), 20.26″ (without)
• Depth:20.20″
• Weight:22 lbs.

Manual

• ประเภท: อนาล็อกมิกเซอร์พร้อมอินเทอร์เฟซ/เรคอร์เดอร์ USB
• ช่องสัญญาณ: 22 อินพุต, 24 แทร็ก
• การเชื่อมต่อคอมพิวเตอร์: USB (24 x 22)
• ความละเอียด A/D: 24-bit/48kHz
• เฟดเดอร์: 21 x 100 มม. (แบบยาว)
• อินพุต – ปรีแอมป์ไมค์: 16 x XLR
• Phantom Power: 16 ช่อง
• อินพุต – ไลน์:
  • 12 x 1/4″ (โมโน)
  • 8 x 1/4″ (4 สเตอริโอ)
  • 2 x 1/4″ (ไลน์/Hi-Z)
  • 1 x 1/8″ (สเตอริโอ)
  • 1 x Dual RCA สเตอริโอ
• เอาต์พุต – หลัก:
  • 2 x XLR (หลัก)
  • 2 x 1/4″ (ห้องควบคุม)
• เอาต์พุต – อื่นๆ: 2 x 1/4″ (ซับกรุ๊ป L/R)
• Aux Sends: 2 x มอนิเตอร์, 1 x FX
• Send/Return I/O:
  • 2 x 1/4″ (มอนิเตอร์ Send)
  • 1 x 1/4″ (FX Send)
• Busses/Groups: 1 x ซับกรุ๊ป
• Inserts: 2 x 1/4″ (ช่องสัญญาณ)
• หูฟัง: 1 x 1/4″
• USB: 1 x Type B
• Bluetooth: v4.0
• I/O อื่นๆ: 1 x 1/4″ (Footswitch)
• EQ Bands:
  • 3-band EQ พร้อม Sweepable Mid Frequency
  • Low-cut 100Hz
  • 7-band Graphic EQ
• การประมวลผลสัญญาณ: 12 x Channel Compressor
• เอฟเฟกต์: Reverbs, Delays, Chorus, Flanger
• พื้นที่เก็บข้อมูล:
  • ช่องเสียบ SD Card
  • SDHC (4GB-32GB)
  • SDXC (64GB-512GB)
• ข้อกำหนด OS – Mac: Dual Core 2GHz Processor หรือสูงกว่า, OS X 10.11 หรือใหม่กว่า
• ข้อกำหนด OS – PC: Dual Core 2GHz Processor หรือสูงกว่า, Windows 7 SP1, 8.1, 10 (อัปเดต 1803) หรือใหม่กว่า
• แหล่งจ่ายไฟ: สายไฟ AC IEC มาตรฐาน
• ความสูง: 4.43 นิ้ว
• ความกว้าง: 22.67 นิ้ว (รวมแผง), 20.26 นิ้ว (ไม่รวมแผง)
• ความลึก: 20.20 นิ้ว
• น้ำหนัก: 22 ปอนด์
