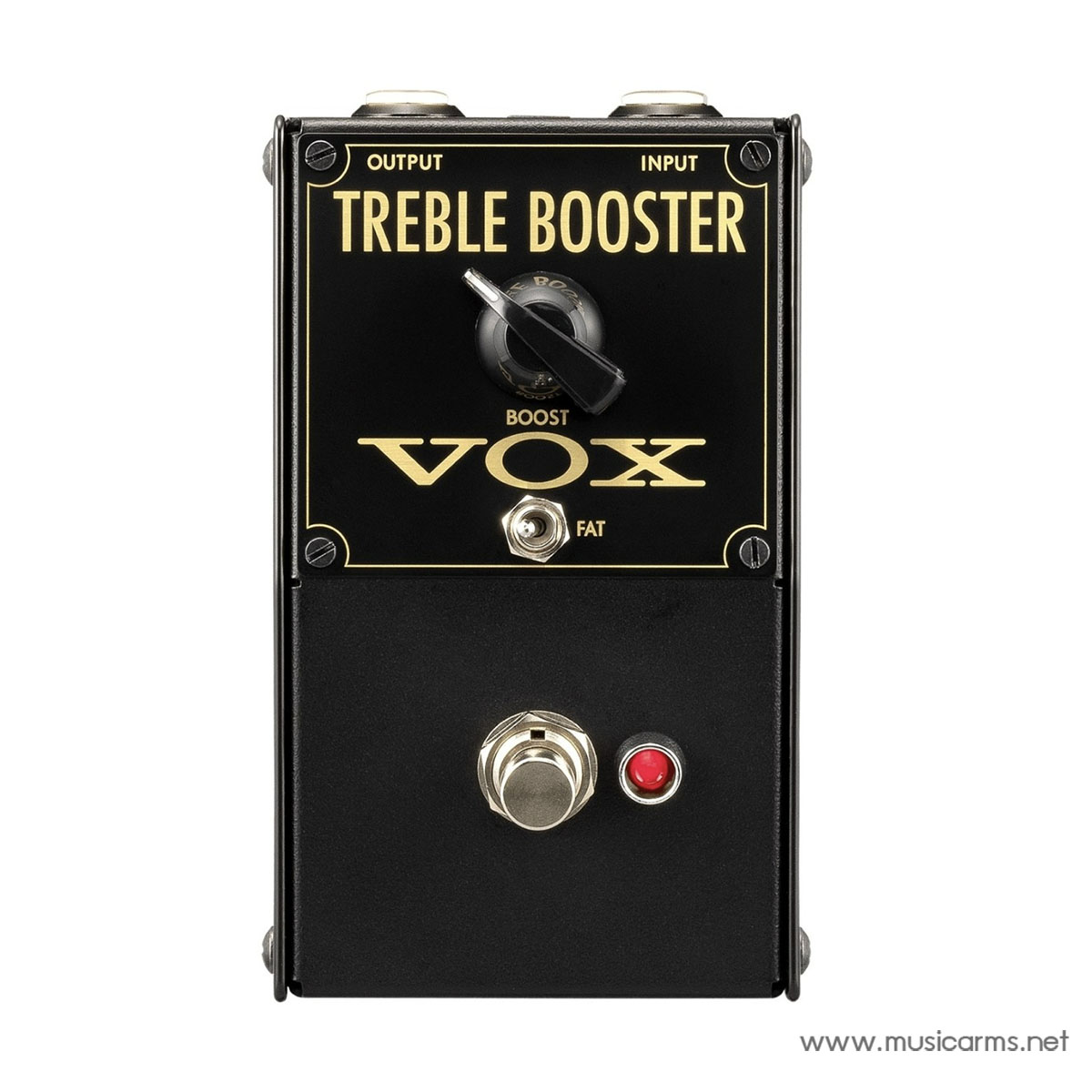

Vox VTB-1 Treble Booster เอฟเฟคกีตาร์

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Vox

ราคา : 4,500 บาท

5,000 บาท ประหยัด10%
รุ่น :  Vox VTB-1 Treble Booster เอฟเฟคก้อน Strombox
🚚 การจัดส่ง

ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ

🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

💳 ช่องทางการชำระเงิน
จ่ายหน้าร้าน 13 สาขา โอนเงิน เก็บปลายทาง บัตรเครดิต ผ่อน 0% (บางรายการ) Shopee Lazada

🏢
ลูกค้าองค์กร / ขอใบเสนอราคา
สั่งซื้อ Vox VTB-1 Treble Booster เอฟเฟคกีตาร์ผ่านline สั่งซื้อ Vox VTB-1 Treble Booster เอฟเฟคกีตาร์ผ่าน messenger

Description

Vox VTB-1 Treble Booster: Capture the Iconic British Rock Sizzle with Modern Analog Reliability

The VOX VTB-1 Treble Booster is a premium analog effects pedal meticulously engineered to resurrect the legendary “British Treble Booster” tone that defined the golden era of 60s and 70s rock. Infamous for pushing classic tube amplifiers—especially the VOX AC30—into a cutting, articulate, and harmonically rich overdrive, this pedal reinvents classic topology with a “Vintage Character + Modern Stability” philosophy. By utilizing a precision-biased, single-stage silicon transistor circuit, the VTB-1 perfectly emulates the organic behavior and characteristics of vintage Germanium units while introducing rock-solid consistency and significantly lower noise. It delivers a highly touch-sensitive experience, interacting flawlessly with player dynamics and your guitar’s volume knob for a truly natural performance.

Key Features

  • Vintage Rangemaster Heritage, Modern Circuitry: Inspired by the iconic British high-pass boost circuits, this pedal utilizes a reliable single-transistor silicon design that eliminates the temperature-sensitivity issues of old-school Germanium pedals.
  • Precision Biasing for Maximum Presence: Features expert internal biasing that captures the perfect sonic sweet spot, delivering a focused upper-midrange punch and enhanced harmonic presence that cuts cleanly through any dense band mix.
  • Organic Tube Saturation & Gain Stacking: Designed as the ultimate front-end companion for tube amplifiers, adding a beautiful edge-of-breakup grit and cascading smooth saturation without masking your core instrument voice.
  • Dedicated Fat Switch Expansion: Equipped with an intuitive onboard Fat Switch that injects extra body into the low-mid frequencies, offering immediate versatility for players seeking a thicker, meatier lead tone.
  • Dynamic Guitar Volume Clean-Up: Highly responsive to your instrument’s control layout, allowing you to seamlessly roll off your guitar’s volume knob to clean up the drive into a crisp, sparkling chime.
  • Studio-Grade Low Noise Floor: Re-engineered to offer a substantially quieter operation than original vintage designs, making it ideal for both critical studio tracking sessions and high-gain modern pedalboard environments.

The Definitive Mid-Forward Boost to Elevate Your Guitar Tone

Tailored perfectly for Rock, Blues, and traditional British tone connoisseurs, the Vox VTB-1 Treble Booster bridges the gap between historical vibe and modern tour-ready performance. Whether you want to add an aggressive bite to your rhythm tracks or a singing sustain to your solos, this compact analog pedal delivers pristine edge and harmonic color. Unlock the legendary grit that shaped rock history—integrate the Vox VTB-1 into your creative signal chain today.

Specification

Vox VTB-1 Treble Booster Specifications

Product Type Analog Treble Booster Guitar Effects Pedal
Circuitry Single-Transistor Silicon Boost Circuit
Tone Profile British Treble Booster / AC30-style drive
Transistor Type Premium Selected Silver-can BC108 / BC109 Silicon
Biasing System Precision tuned bias point
Input Impedance 68 kΩ
Output Impedance 1 kΩ
Controls Boost Knob, Fat Switch

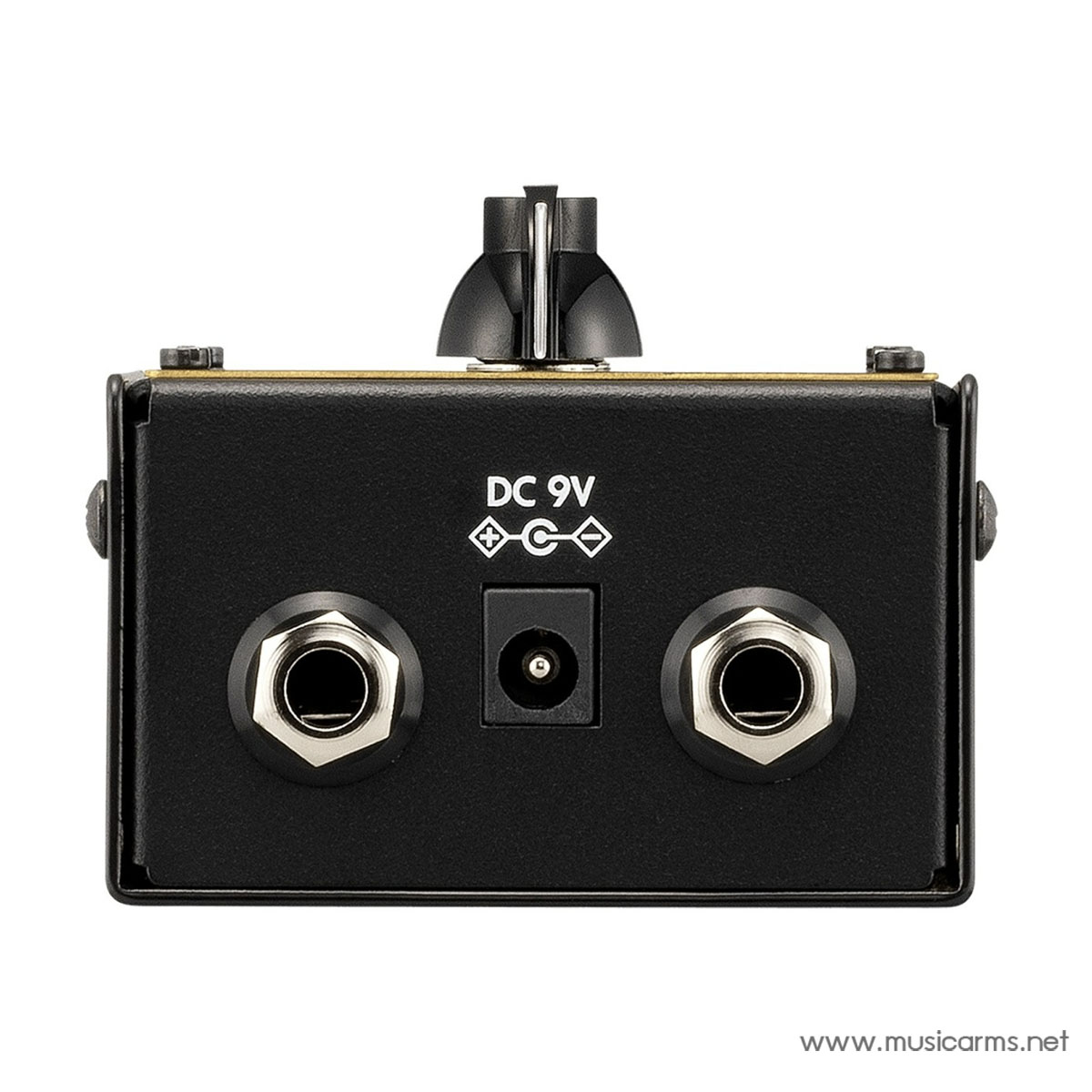

I/O Connectivity 1/4” Mono Jack (Input / Output)
Switching System True Bypass
Dynamic Response Dynamic touch-sensitive boost range
Current Draw Approx. 1.8 mA
Power Requirements 9V DC (Standard Center Negative AC Adapter) or 9V Battery
Application Ideal for pushing tube amplifiers or stacking within a pedal chain
Enclosure & Build Heavy-duty metal chassis designed for live stage performance
Form Factor & Ergonomics Compact layout optimized for standard pedalboards; intuitive control interface
Dimensions (H × W × D) Approx. 74 × 123 × 58 mm (2.91 × 4.84 × 2.28 in)
Weight Approx. 404 g (Without battery)

ข้อมูลสินค้า

Vox VTB-1 Treble Booster: ปลุกชีพซาวด์ระดับตำนานสไตล์ British Rock ด้วยเทคโนโลยีแอนะล็อกยุคใหม่

VOX VTB-1 Treble Booster คือเอฟเฟกต์กีตาร์แบบแอนะล็อกที่ออกแบบมาเพื่อฟื้นคืนโทนเสียง “British Treble Booster” ระดับคลาสสิกที่มีบทบาทสำคัญในซาวด์ดนตรีร็อกยุค 60s–70s โดยเฉพาะการใช้งานร่วมกับแอมป์หลอดอย่าง VOX AC30 ที่จะช่วยเค้นเนื้อเสียงให้พุ่ง คมชัด และมีฮาร์โมนิกที่อิ่มหนาเป็นเอกลักษณ์ ตัววงจรถูกพัฒนาขึ้นใหม่ภายใต้แนวคิด “Vintage Character + Modern Stability” โดยเลือกใช้ทรานซิสเตอร์ซิลิคอนแบบ Single-Stage ที่ผ่านการปรับไบอัส (Bias) อย่างแม่นยำ เพื่อจำลองพฤติกรรมและความอบอุ่นของทรานซิสเตอร์แบบเยอรมาเนียม (Germanium) ดั้งเดิม แต่ให้ความเสถียรที่สูงกว่าและมีสัญญาณรบกวน (Noise) ที่ต่ำกว่าอย่างเห็นได้ชัด รองรับการตอบสนองต่อไดนามิกการดีดและวอลุ่มบนตัวกีตาร์ได้อย่างเป็นธรรมชาติ เหมาะสำหรับการใช้งานทั้งบนเวทีและในสตูดิโอยุคใหม่

คุณสมบัติเด่น

  • Vintage British Character with Modern Stability: ออกแบบโดยอิงโครงสร้างวงจรระดับตำนานอย่าง British Treble Booster และ Rangemaster-style โดยใช้ทรานซิสเตอร์ซิลิคอนแบบเดี่ยว (Single-transistor silicon circuit) ที่ให้ความนิ่งและเสถียรภาพของวงจรสูงในทุกสภาพอากาศ
  • Precision Biasing & Harmonic Presence: ผ่านการปรับตั้งค่าไบอัสอย่างแม่นยำเพื่อค้นหาจุด Sweet Spot ที่กว้างขึ้น มอบโทนเสียงที่พุ่งทะลุมิกซ์ เน้นย้ำย่านเสียงกลางส่วนบน (Upper-Mid) และเพิ่มประกายฮาร์โมนิกให้โดดเด่น
  • Natural Tube Push & Edge-of-Breakup: เหมาะอย่างยิ่งสำหรับใช้เป็นตัวดัน (Boost) หน้าแอมป์หลอด เพื่อเพิ่มระดับเกนในลักษณะ Edge-of-Breakup ช่วยให้เสียงแตกของแอมป์หลอดมีความอิ่ม ละมุน และเป็นธรรมชาติมากยิ่งขึ้น
  • Fat Switch Mode: ติดตั้งสวิตช์ Fat สำหรับสลับโหมดเพิ่มมวลเสียงย่านกลาง-ต่ำ (Low-Mid) ช่วยเพิ่มความหนาและน้ำหนักให้เนื้อเสียง สำหรับมือกีตาร์ที่ต้องการซาวด์ที่อวบอิ่มขึ้น
  • Excellent Volume Roll-off Response: ตอบสนองต่อวอลุ่มของตัวกีตาร์ได้อย่างยอดเยี่ยม สามารถหรี่วอลุ่มที่กีตาร์เพื่อลดทอนเสียงแตกให้กลับมาสะอาด (Clean up) ได้อย่างราบรื่นโดยไม่สูญเสียประกายเสียงคมชัด
  • Ultra-Low Noise Design: มีการจัดการระบบกราวด์และวงจรที่ทันสมัย ทำให้มีสัญญาณรบกวน (Noise Floor) ต่ำกว่าวงจรวินเทจที่ใช้ทรานซิสเตอร์เยอรมาเนียมแบบเก่า จัดวางบนบอร์ดเอฟเฟกต์สมัยใหม่ได้อย่างง่ายดาย

ศูนย์รวมความคลาสสิกที่พร้อมขับเคลื่อนซาวด์ร็อกร่วมสมัย

หากคุณกำลังตามหาซาวด์โซโล่ที่คมชัด พุ่งทะลวง และเปี่ยมด้วยมนต์ขลังของดนตรีร็อกแอนด์โรลระดับตำนาน Vox VTB-1 Treble Booster คือจิ๊กซอว์ชิ้นสำคัญบนบอร์ดของคุณ ด้วยการผสมผสานที่ลงตัวระหว่างซาวด์แบบวินเทจแท้ๆ กับความเสถียรและเงียบสงบในแบบวงจรสมัยใหม่ เอฟเฟกต์ก้อนนี้พร้อมแล้วที่จะยกระดับแอมป์หลอดของคุณให้กรีดร้องอย่างมีมิติ ร่วมสัมผัสสุ้มเสียงระดับประวัติศาสตร์ในมาตรฐานสากลได้แล้ววันนี้

รายละเอียดคุณสมบัติ

Vox VTB-1 Treble Booster Details

ประเภทสินค้า Analog Treble Booster Guitar Effects Pedal (เอฟเฟกต์กีตาร์เทรเบิลบูสเตอร์แอนะล็อก)
โครงสร้างวงจร Single-Transistor Silicon Boost Circuit (วงจรบูสต์ทรานซิสเตอร์ซิลิคอนเดี่ยว)
คาแรคเตอร์โทนเสียง British Treble Booster / AC30-style drive
ชนิดทรานซิสเตอร์ Silver-can BC108 / BC109 Silicon (คัดเกรดพิเศษ)
ระบบปรับตั้งค่าไบอัส Precision tuned bias point (ปรับจูนจุดไบอัสอย่างแม่นยำ)
อินพุตอิมพีแดนซ์ (Input Impedance) 68 kΩ
เอาต์พุตอิมพีแดนซ์ (Output Impedance) 1 kΩ
ปุ่มควบคุมและสวิตช์ ปุ่ม Boost, สวิตช์ Fat Switch
การเชื่อมต่อสัญญาณ Input / Output แบบ 1/4” Mono Jack
ระบบบายพาส True Bypass
การตอบสนองต่อไดนามิก Dynamic touch-sensitive boost range (ตอบสนองตามน้ำหนักมืออย่างเป็นธรรมชาติ)
การกินกระแสไฟ (Current Draw) ประมาณ 1.8 mA
ระบบจ่ายไฟ (Power) 9V DC (Center Negative แกนในลบ) หรือ แบตเตอรี่ 9V
รูปแบบการใช้งาน ใช้ต่อพ่วงหน้าแอมป์หลอด หรือจัดวางในสายสัญญาณเอฟเฟกต์บอร์ด (Pedal chain)
วัสดุและโครงสร้างตัวกรอบ โครงสร้างโลหะ (Metal Chassis) แข็งแรงทนทานสูงสำหรับการใช้งานบนเวที
ดีไซน์และการติดตั้ง ขนาดกะทัดรัด (Compact design) ปุ่มควบคุมใช้งานง่าย รองรับการติดตั้งบนมาตรฐานเอฟเฟกต์บอร์ดทั่วไป
ขนาดตัวเครื่อง (สูง × กว้าง × ลึก) ประมาณ 74 × 123 × 58 มม. (2.91 × 4.84 × 2.28 นิ้ว)
น้ำหนัก ประมาณ 404 กรัม (ไม่รวมแบตเตอรี่)
