Xvive AT-3 เครื่องทดสอบระบบเสียงแบบแยกชิ้น

Xvive AT-3: Ultra-Convenient Split-Unit Audio Cable Tester

The Xvive AT-3 Audio Tester Ultra is a professional sound testing tool designed to eliminate the hassle of troubleshooting long cable runs, such as multi-core snake cables routed from stage to FOH or cables embedded inside venue walls. Featuring an innovative Split-Unit design that separates into two independent units—AT-3M (Sender) and AT-3F (Receiver)—it allows you to test both ends of a cable simultaneously from different locations without dragging cables together. Equipped with a built-in Signal Generator, pin-separated Phantom Power Check, Input Metering, and built-in monitoring options, the AT-3 drastically reduces setup time and ensures reliable audio system performance.

Key Features

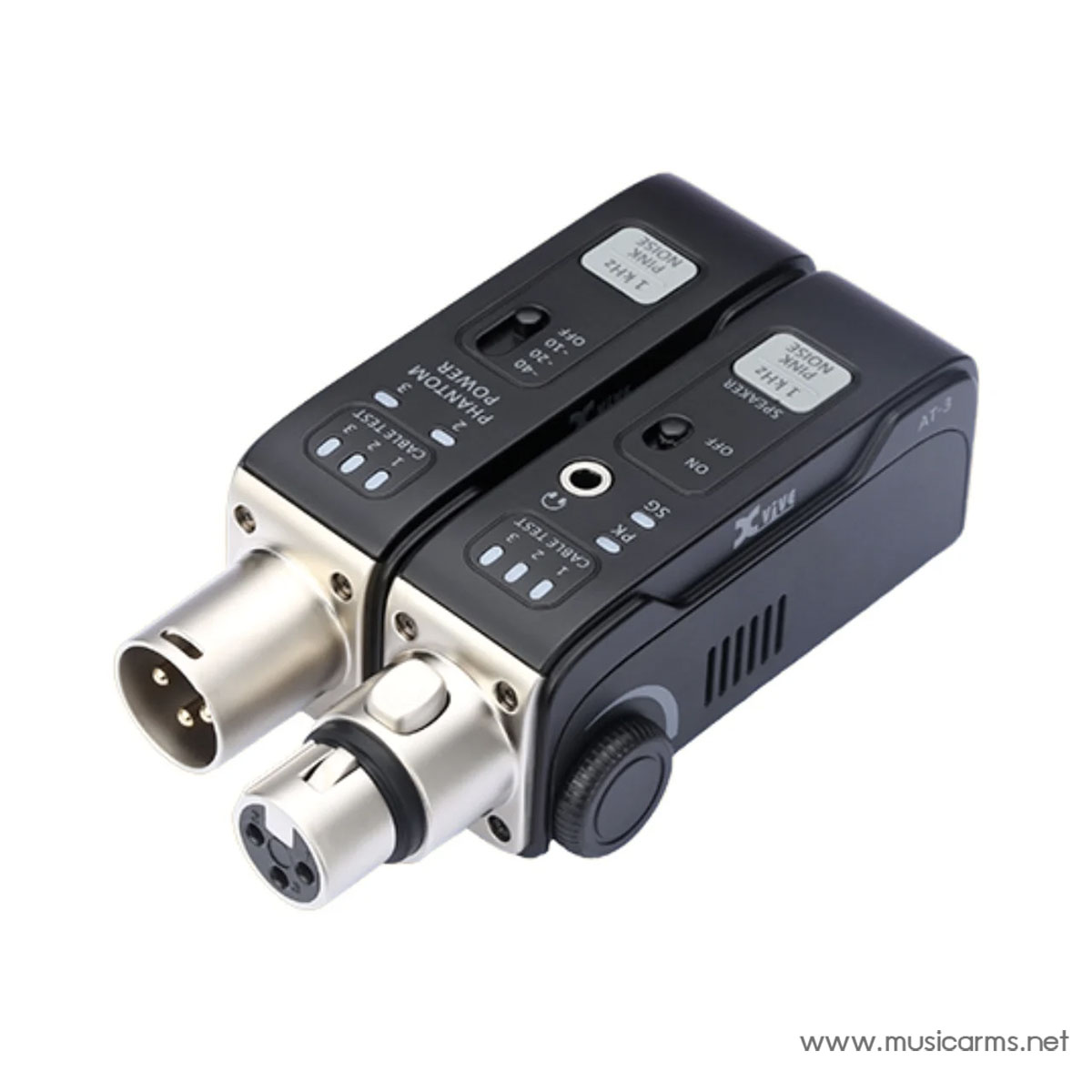

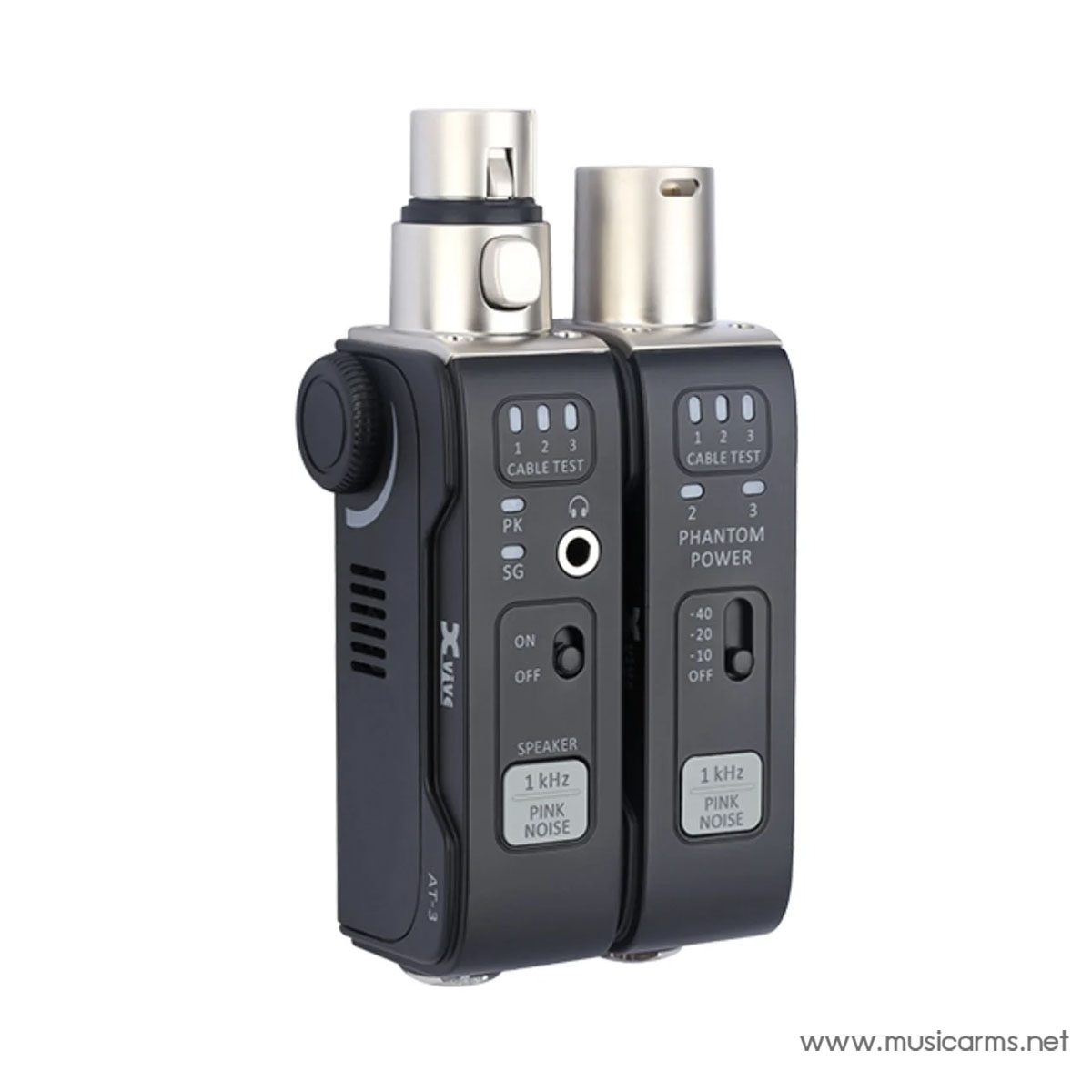

• Innovative Split-Unit Design: Consists of independent AT-3M (Sender) and AT-3F (Receiver) modules, allowing long-distance cable testing without unrouting or relocating cables.

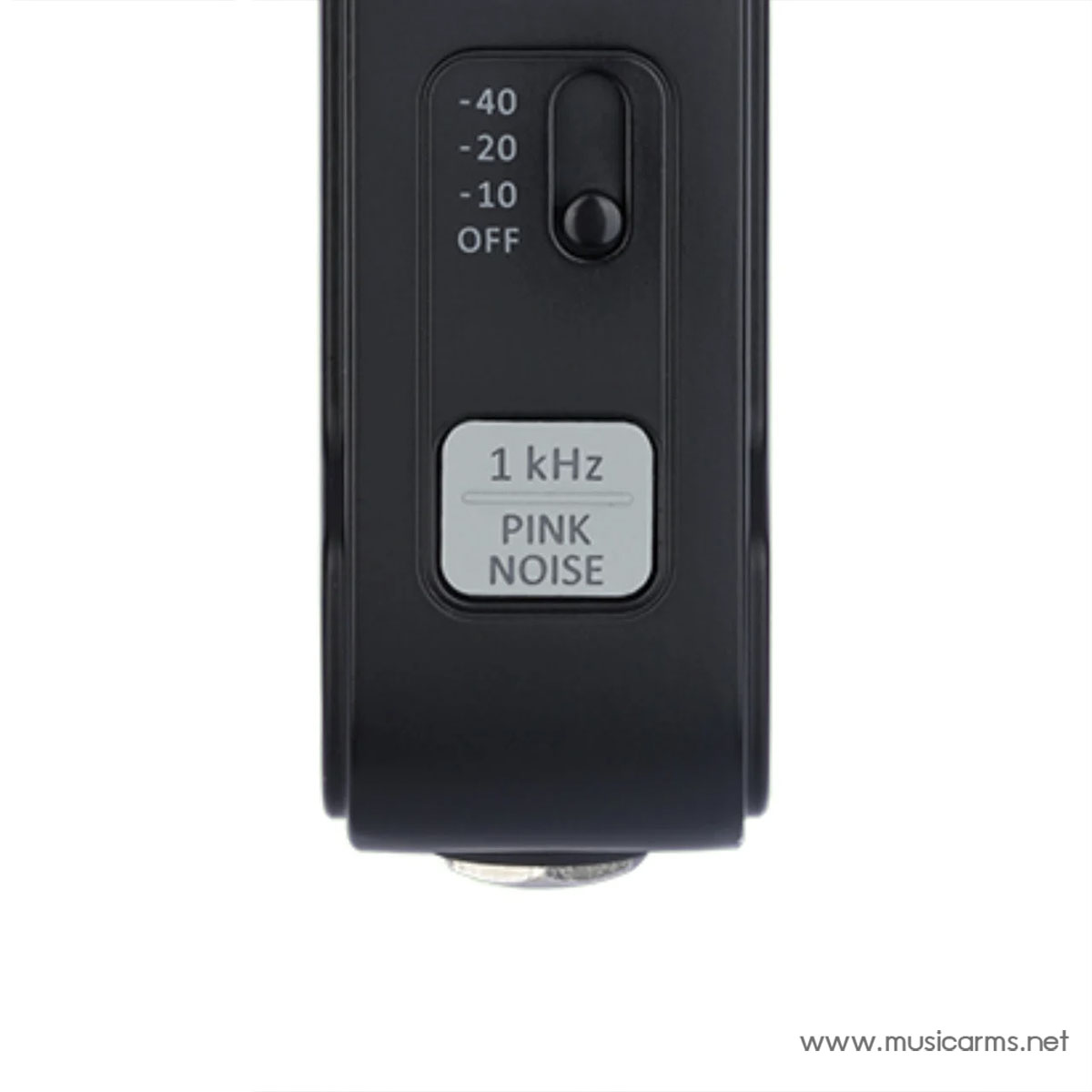

• Built-in Signal Generator: Generates 1kHz Sine Wave for signal tracing and phase alignment, plus Pink Noise for EQ tuning, with 3 selectable output levels (-10dBu, -20dBu, -40dBu).
• Pin-Separated Phantom Power Check: Independently tests 48V Phantom Power on Pin 2 and Pin 3 with clear LED indicators for precise voltage level diagnosis.
• Real-Time Input Metering: Features LED indicators for Signal presence (-20dBu+) and Peak status (+10dBu) to prevent clipping and signal overload.

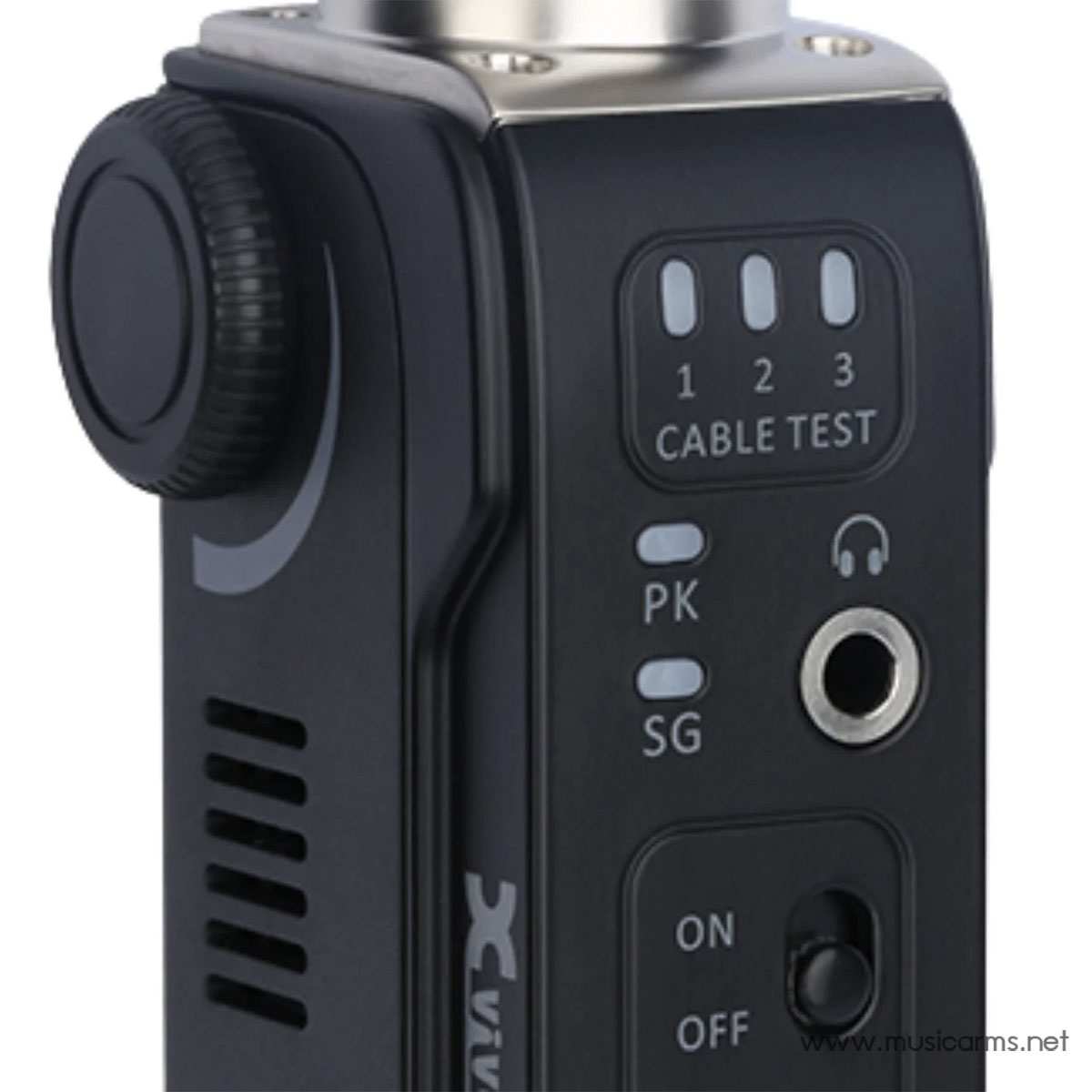

• Comprehensive Signal Monitoring: The AT-3F receiver unit includes a built-in speaker and a dedicated headphone output for immediate audio monitoring at the receiving end.
• Rechargeable Battery & Versatile Connectivity: Built-in rechargeable Li-ion battery via USB-C port, supporting both XLR and 1/4-inch (TRS/TS) connectors.

Streamline Your Audio Workflow with Xvive AT-3

Say goodbye to tedious cable troubleshooting and save valuable time on site with the Xvive AT-3. Designed for sound engineers and audio technicians who demand speed, accuracy, and reliability, the AT-3 is the ultimate addition to your professional toolset. Order yours today and test with absolute confidence!
