RockBoard MOD 3 V2 บอร์ดเอฟเฟค

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : RockBoard

ราคา : 2,550 บาท

รุ่น :  RockBoard MOD 3 V2 เคสเอฟเฟค Pedalboard Cases
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ RockBoard MOD 3 V2 บอร์ดเอฟเฟคผ่านline สั่งซื้อ RockBoard MOD 3 V2 บอร์ดเอฟเฟคผ่าน messenger

Description

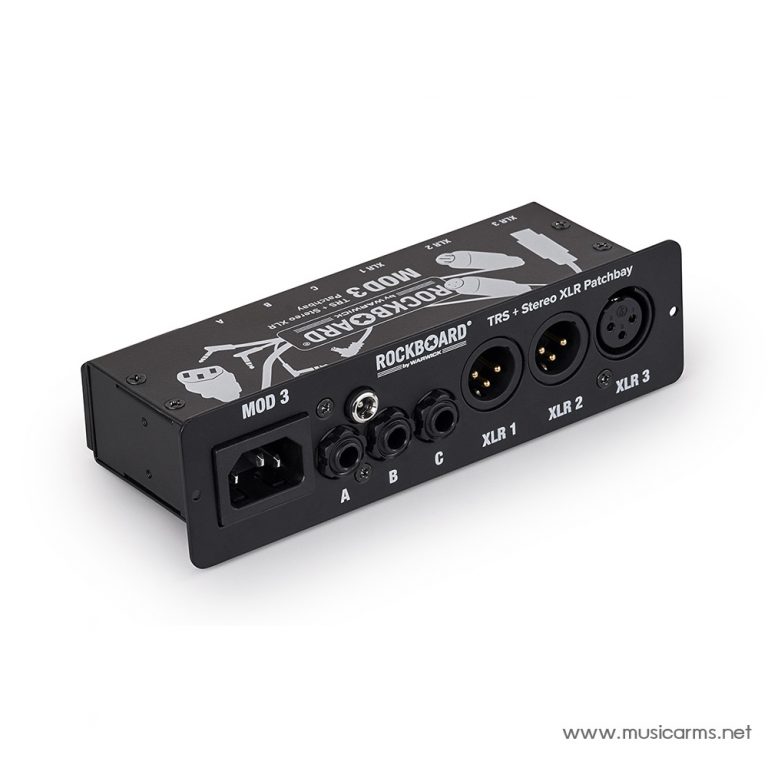

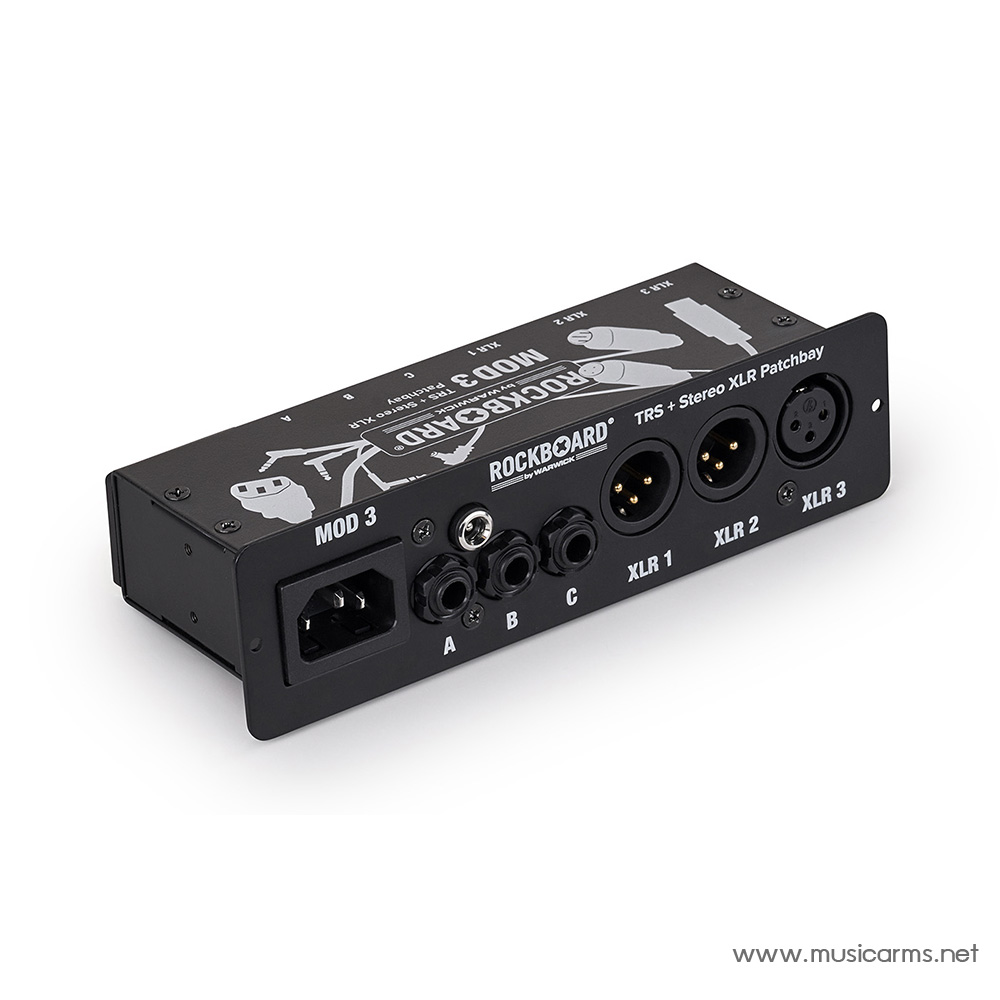

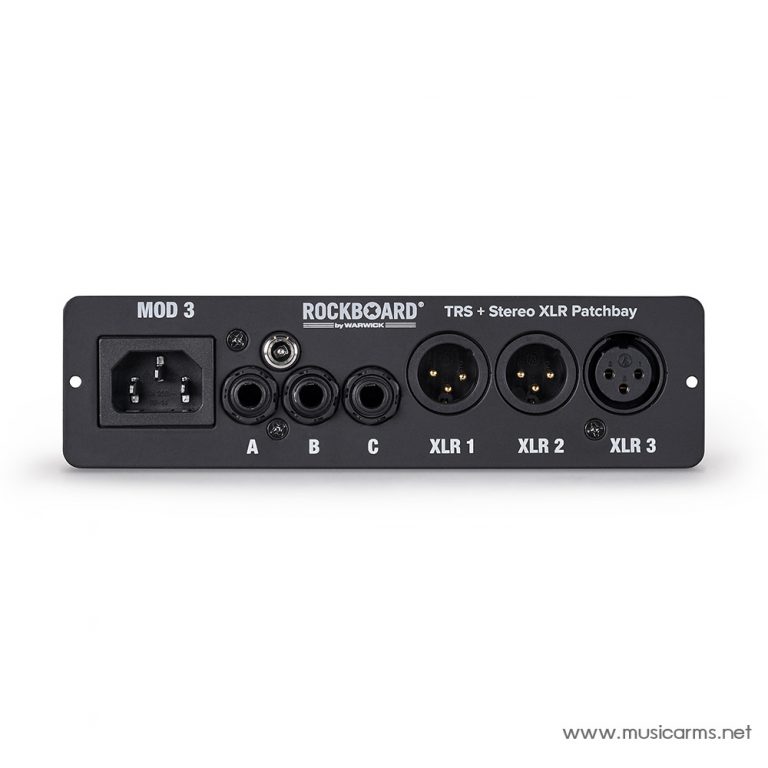

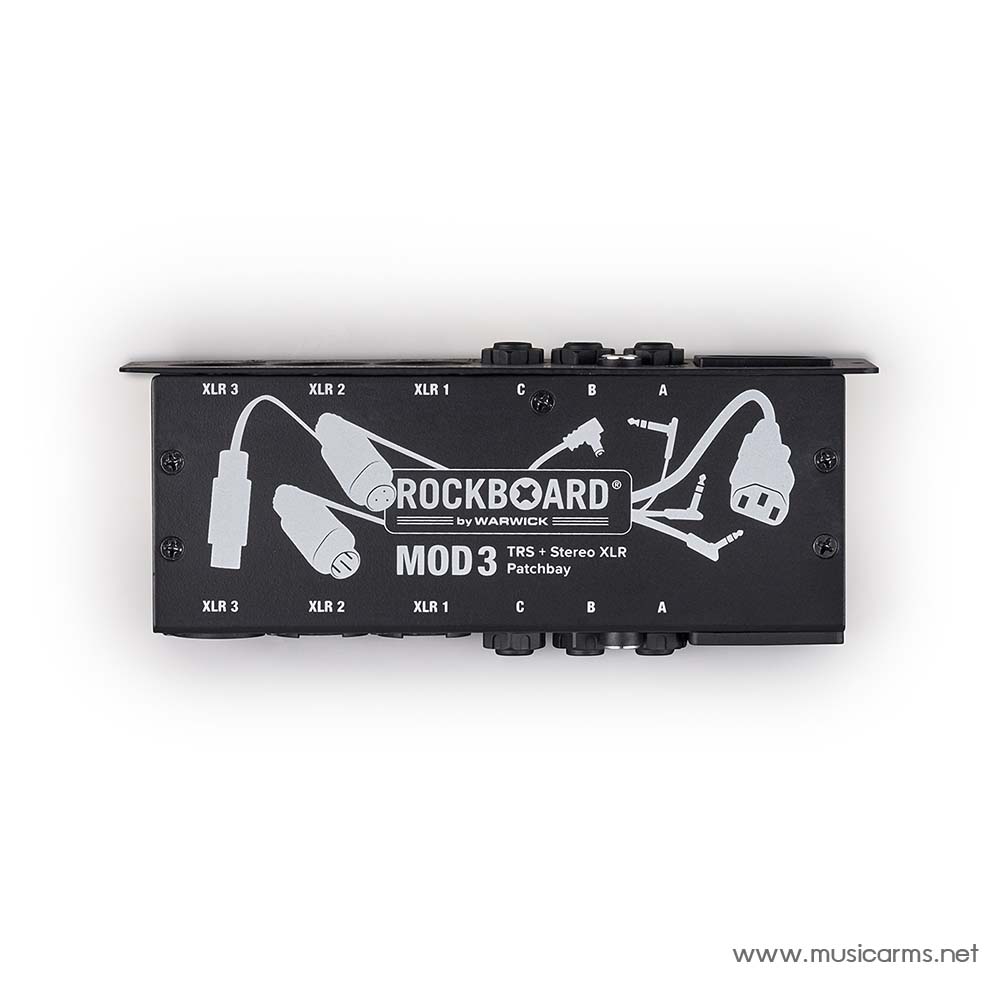

RockBoard MOD 3 V2 – All-in-One TRS & XLR Patchbay for Vocalists & Acoustic Players
The improved RockBoard® MODs V2 are simple all-in-one patchbays for RockBoard pedalboards with a new, refreshed design, and compact housing. Utilizing the MOD slot on all new RockBoards® (except the DUO series), they provide various cable connections to fit a wide variety of needs as a convenient patchbay. With the RockBoard® MODs you can permanently connect your pedals underneath your board and organize all connections to and from your effects setup in one convenient module. The RockBoard® MODs provide a central access point from your instrument to your amp, as well as your power supply via IEC, and a 2.1 x 5.5 barrel thru power connector. The RockBoard® MOD 3 V2 is a pass-thru box designed for use by vocalists and acoustic players. The 2x XLR outputs allow you to send a stereo signal from your MOD and the 1x XLR input can be used to connect your microphone. You can also use it to run several pedals from your board through the effects loop of your amp, or simply use the MOD as a central access point to your pedalboard.

Specification

  • all-in-one patchbay for pedalboards
  • fits MOD slots in RockBoard pedalboards
  • compatible with a wide variety of other pedalboards
  • acts as central access point to your effects setup
  • establishes clean cable paths to and from the pedal board
  • detachable front plate for mounting on top or underneath pedalboards
  • 3 x 6,3 mm / ¼” TRS thru
  • 2 x XLR thru (male front / female back)
  • 1 x XLR thru (female front / male back)
  • 1 x DC 2,1 x 5,5 mm barrel thru
  • 1 x AC IEC thru (male front / female back)

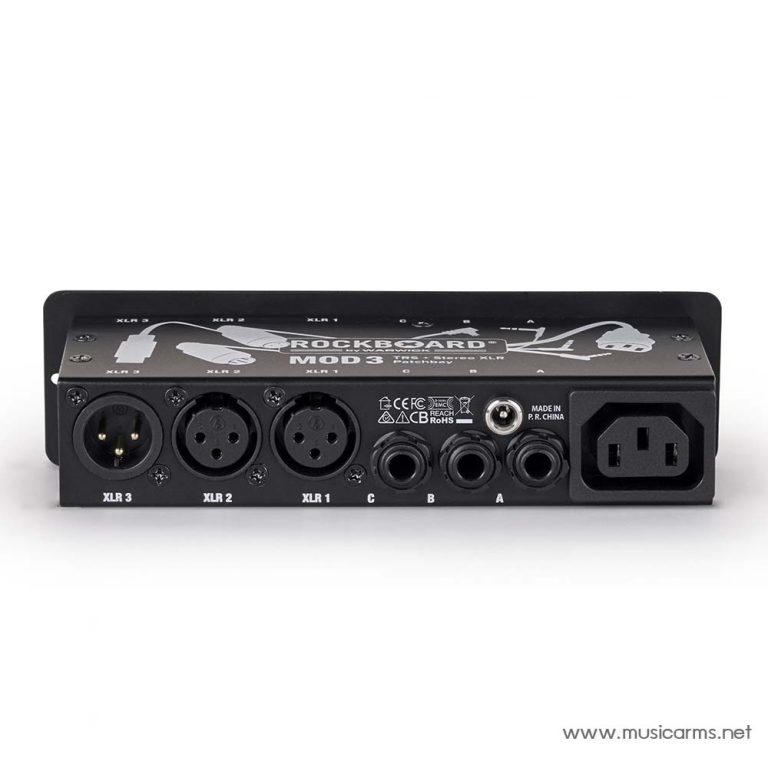

  • all connections mirrored on backside
  • dimensions excl. front plate (W x D x H): 160 x 60 x 33 mm / 6 19/64″ x 2 23/64″ x 1 19/64″
  • dimensions of the front plate (W x H): 175 x 48 mm / 6 57/64″ x 1 57/64″
  • weight 450 g / 0.99 lbs
  • incl. mounting screws, counter nuts and TX wrench

ข้อมูล

RockBoard MOD 3 V2 แพตช์เบย์แบบ all-in-one ที่เรียบง่ายสำหรับแผงเหยียบ RockBoard พร้อมการออกแบบใหม่ การใช้สล็อต MOD บน RockBoards® ใหม่ทั้งหมด มีการเชื่อมต่อสายเคเบิลที่หลากหลายเพื่อให้เหมาะกับความต้องการ สามารถเชื่อมต่อแป้นเหยียบของคุณไว้ใต้บอร์ดได้อย่างถาวร และจัดระเบียบการเชื่อมต่อทั้งหมดเข้าและออกจากการตั้งค่าเอฟเฟคของคุณในโมดูลเดียวที่สะดวกสบาย มอบจุดเชื่อมต่อกลางจากเครื่องดนตรีของคุณไปยังแอมป์ของคุณ เช่นเดียวกับแหล่งจ่ายไฟของคุณผ่าน IEC และคอนเน็กเตอร์จ่ายไฟแบบต่อพ่วงขนาด 2.1 x 5.5 บาร์เรล

สเปค

  • all-in-one patchbay สำหรับบอร์ดเอฟเฟค
  • เหมาะกับสล็อต MOD ใน RockBoard pedalboards
  • เข้ากันได้กับแป้นเหยียบอื่น ๆ ที่หลากหลาย
  • ทำหน้าที่เป็นจุดเชื่อมต่อกลางในการตั้งค่าเอฟเฟคของคุณ
  • กำหนดเส้นทางสายเคเบิลไปและกลับจากแผงเหยียบ
  • แผ่นด้านหน้าที่ถอดออกได้สำหรับติดตั้งบนหรือใต้แป้นเหยียบ
  • ช่องต่อ TRS ¼ นิ้ว 3 ช่อง
  • ช่องต่อ XLR (หน้าตัวผู้ / หลังตัวเมีย) 2 ช่อง
  • ช่องต่อ XLR (หน้าตัวเมีย / หลังตัวผู้) 1 ช่อง
  • ช่องต่อ DC 2,1 x 5.5 มม. บาร์เรล 1 ช่อง
  • ช่องต่อ AC IEC (หน้าตัวผู้ / หลังตัวเมีย) 1 ช่อง
  • การเชื่อมต่อทั้งหมดออกที่ด้านหลัง
  • ขนาดไม่รวม จานหน้า  160 x 60 x 33 มม.
  • ขนาดจานหน้า (175 x 48 มม.
  • น้ำหนัก 450 กรัม
  • รวม สกรูยึด น็อตเคาน์เตอร์ และประแจ TX

×
